| Specifications |

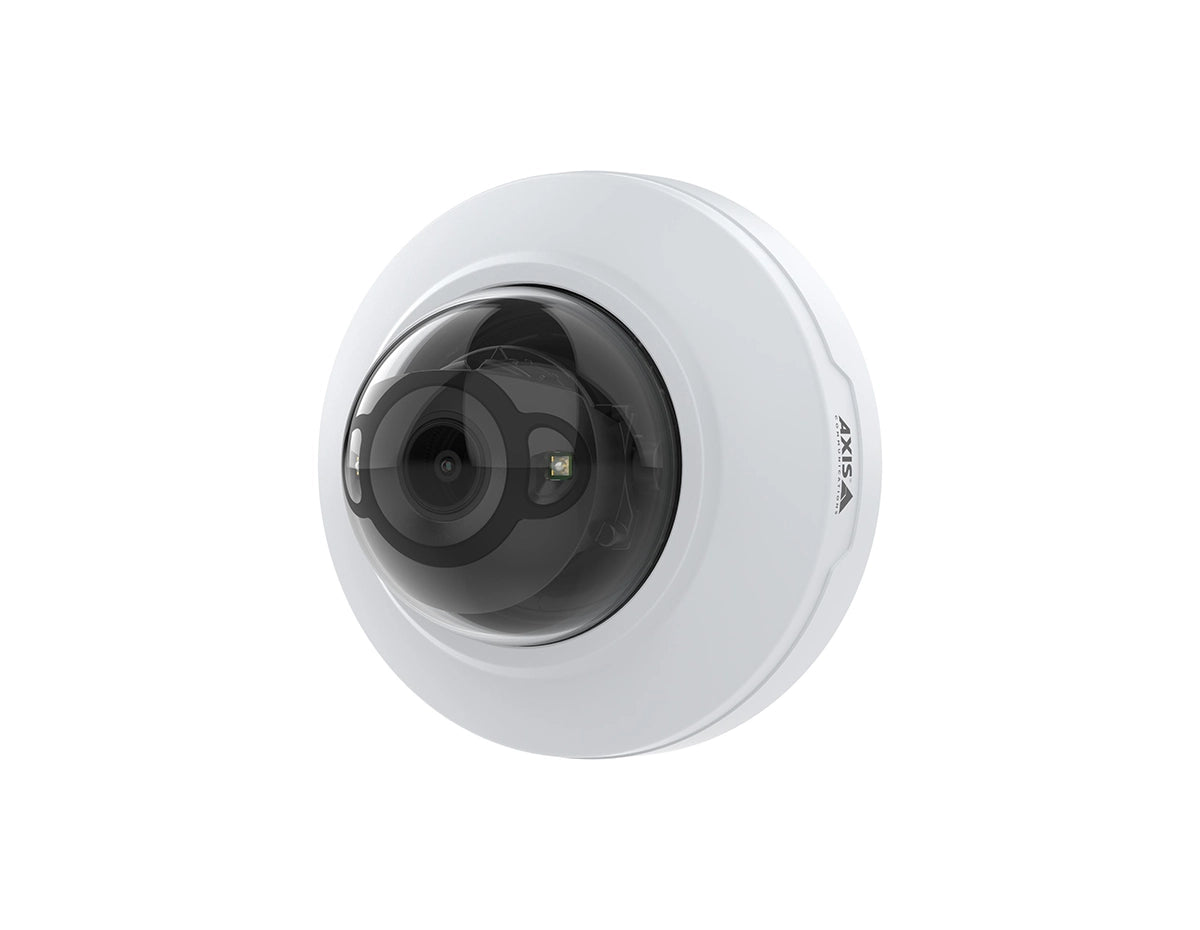

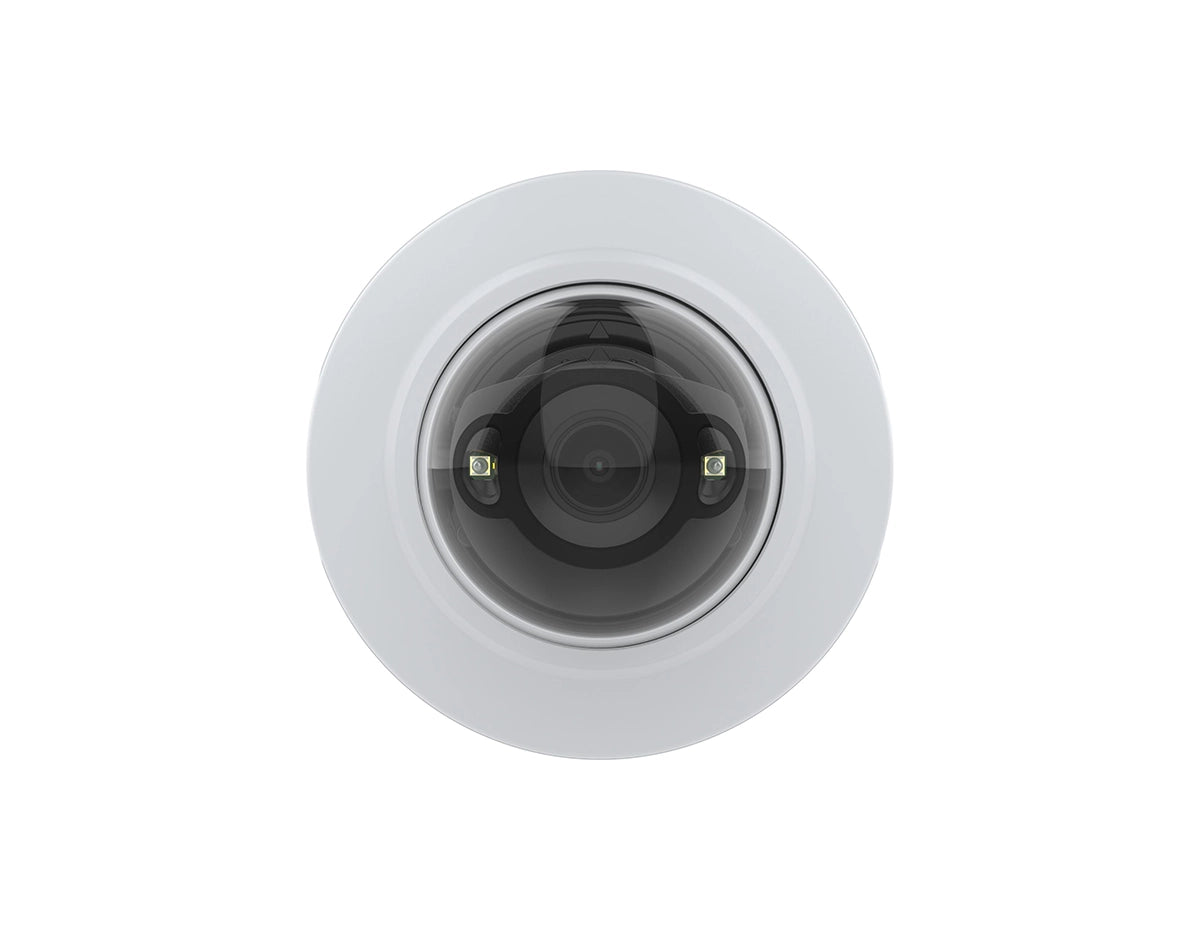

AXIS M4216-LV Dome Camera |
| Camera |
| Image sensor |
1/2.7” progressive scan RGB CMOS |
| Lens |
Varifocal, 3–6 mm, F1.9 - 2.7 |
| Horizontal field of view: 100°–45° |
| Vertical field of view: 72°–34° |
| Remote focus and zoom, fixed iris |
| Day and night |
Automatic IR-cut filter |
| Minimum illumination |
With Lightfinder: |
| Color: 0.18 lux at 50 IRE F2.0 |
| B/W: 0.03 lux at 50 IRE F2.0, 0 lux when IR illumination is on |
| Shutter speed |
1/37500 s to 1/5 s |
| Camera angle adjustment |
Pan ±180°, tilt -40 to +65°, rotation ±105° |
| Can be directed in any direction and see the wall/ceiling |
| System on chip (SoC) |
| Model |
CV25 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Compute capabilities |
Deep learning processing unit (DLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main and High Profiles |
| Motion JPEG |
| Resolution |
2304x1728 to 320x240 |
| Frame rate |
Up to 25/30 fps with power line frequency 50/60 Hz in H.264 and H.265 |
| (Reduced frame rate in Motion JPEG) |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/MBR H.264/H.265 |
| Multi-view streaming: 2 individually cropped view areas |
| HDMI output for local monitors |
| Low latency mode supported |
| Multi-view streaming |
2 individually cropped out view areas |
| HDMI output |
HDMI 1080p (16:9) @25/30 fps (50/60 Hz) |
| HDMI 720p (16:9) @50/60 fps (50/60 Hz) |
| Image settings |
Compression, color, brightness, sharpness, contrast, white balance, exposure control, motion-adaptive exposure, WDR: up to 110 dB depending on scene, text and image overlay, mirroring of images, privacy mask |
| Rotation: 0°, 90°, 180°, 270°, including Corridor Format |
| Digital PTZ |
| Image preset and advanced ROI control |
| Support for multi-codec streams and adaptive bitrate |
| Audio |
| Audio input/output |
Two-way audio input/output via optional AXIS T61 Audio and I/O Interfaces |
| Interfaces with portcast technology |
| Network |
| Security |
Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Supported protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org |
| AXIS ACAP support for third-party applications |
| Metadata stream support |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Trigger conditions: line crossing, object in area |
| Up to 10 scenarios |
| Metadata visualized with color-coded bounding boxes |
| Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Analytics applications supported |
Supports AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS People Counter, AXIS Queue Monitor |
| General |
| Casing |
IP42 water- and dust-resistant, IK08 impact-resistant, polycarbonate and aluminum casing with hard-coated dome |
| Encapsulated electronics |
| Color: white NCS S 1002-B |
| For repainting instructions , contact your Axis partner. |
| Sustainability: PVC free, BFR/CFR free, 43% recycled plastics |
| Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; Typical 5 W, max 9.7 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| HDMI type D |
| Audio and I/O connectivity via AXIS T61 Audio and I/O Interfaces with portcast technology |
| Portcast-enabled I/O integration |
| IR illumination |
OptimizedIR with power-efficient, long-life 855 nm IR LEDs |
| Range of reach 20 m (65.6 ft) or more depending on the scene |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption |
| Support for recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
0 °C to 45 °C (32 °F to 113 °F) |
| Humidity 10–85% RH (non-condensing) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC |
| CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, |
| EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, |
| ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, |
| RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Safety |
| IEC/EN/UL 62368-1, IS 13252 |
| IEC 62471 |
| Environment |
| IEC 60068–2–1, IEC 60068–2–2, IEC 60068–2–14, |
| IEC 60068–2–27, IEC 60068–2–6, IEC/EN 60529 IP42, |
| IEC/EN 62262 IK08 |
| Network |
| NIST SP500-267 |
| Dimensions |
Height: 71 mm (2.8 in) |
| ø 121 mm (4.76 in) |
| Weight |
375 g (0.83 lb) |
| Included accessories |
Installation guide, Windows® decoder 1-user license |
| Video management software |
AXIS Companion, AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5 and video management software from Axis Application Development Partners. For more information, see axis.com/vms |
| AXIS Camera Station Edge and Pro include options for local and cloud-managed recording |
| Partner VMS solutions supported; see axis.com/vms for compatibility |
