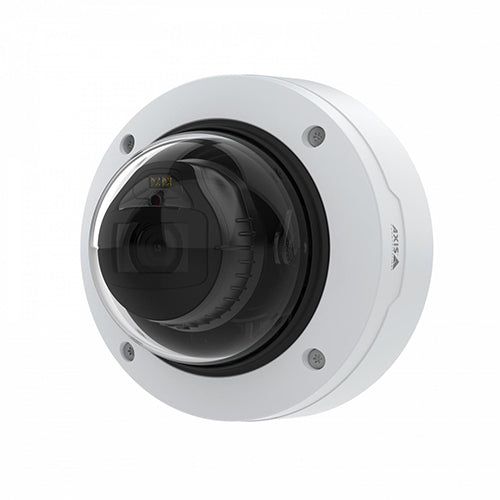

AXIS P3268-LV DOME CAMERA
| Model: | 02331-001 |
| Detail: |
|
| List Price: | |
| Price: | $910.00 |
| You Save: | $39.00 (4% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
AXIS P3268-LV Dome Camera (02331-001)
The AXIS P3268-LV camera provides high-quality images with precise forensic details in stunning 4K resolution. It comes equipped with a varifocal 9mm lens for wide-area surveillance and offers a broad field of view ranging from 100- to 53 degrees. The camera's analytics system is powered by ARTPEC-8, the latest Axis system-on-chip, and includes a deep learning processing unit (DLPU). These advanced features enhance processing and storage capabilities and enable users to collect and analyze more data than ever before.
Quick Specs:
- Excellent image quality in brilliant 4K
- Audio and I/O connectivity
- Analytics with deep learning
- Built-in cybersecurity features
Please see the related tabs for the 02331-001 datasheet and compatible accessories.
| Feature | AXIS P3265-LV | AXIS P3265-LVE | AXIS P3265-LVE-3 | AXIS P3265-V | AXIS P3267-LV | AXIS P3267-LVE | AXIS P3268-LV | AXIS P3268-LVE |
|---|---|---|---|---|---|---|---|---|
| Max video resolution | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 | 2592x1944 | 2592x1944 | 3840x2160 | 3840x2160 |
| Horizontal field of view | 100-36 | 100-36 / 35-15 | 100-36 | 100-36 | 104 - 40 | 104 - 40 | 100 - 53 | 100 - 53 |
| OptimizedIR | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Day and Night functionality | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Remote zoom | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Remote focus | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Audio Support | ✓ | ✓ | ✓ | ✓ | ✓ | |||
| Alarm inputs/outputs | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 |
| Lightfinder | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR |
| Zipstream | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Vandal rating | IK10 | IK10 | IK10 | IK10 | IK10 | IK10 | IK10 | IK11 |
| Analytics compute capability | DLPU | DLPU | DLPU | DLPU | DLPU | DLPU | DLPU | DLPU |
| Axis Edge Vault | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Accessories
| Optional accessories | • AXIS TP3201 Recessed Mount • AXIS TP3202 Recessed Mount • AXIS T94K01D Pendant Kit • AXIS T8355 Digital Microphone 3.5 mm • AXIS ACI Conduit Adapters • Smoked dome • Black casing |
Specifications
| Specifications | AXIS P3268-LV Dome Camera |
| Camera | |
| Image sensor | 1/1.8” progressive scan RGB CMOS |
| Lens | Varifocal, 4.3–8.6 mm, F1.5 |
| Horizontal field of view: 100°–53° | |
| Vertical field of view: 54°–30° | |
| Minimum focus distance: 50 cm (20 in) | |
| IR corrected, remote zoom and focus, P-Iris control | |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | With Forensic WDR and Lightfinder 2.0: |
| Color: 0.14 lux at 50 IRE, F1.5 | |
| B/W: 0 lux at 50 IRE, F1.5 | |
| Shutter speed | 1/8500 s to 1/5 s |
| Camera angle adjustment | Pan ±190° |
| Tilt -10 to +80° | |
| Rotation ±190° | |
| System on chip (SoC) | |
| Model | ARTPEC-8 |
| Memory | 2048 MB RAM, 8192 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 3840x2160 to 160x90 |
| Frame rate | 25/30 fps with power line frequency 50/60 Hz |
| Video streaming | Multiple, individually configurable streams in H.264, H.265, and |
| Motion JPEG | |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| Video streaming indicator | |
| Multi-view streaming | Up to 2 individually cropped-out view areas in full frame rate |
| Image settings | Saturation, contrast, brightness, sharpness, Forensic WDR: up to |
| 120 dB depending on scene, white balance, day/night threshold, | |
| local contrast, tone mapping, exposure mode, exposure zones, | |
| defogging, barrel distortion correction, compression, rotation: 0°, | |
| 90°, 180°, 270° including Corridor Format, mirroring, dynamic | |
| text and image overlay, privacy masks, polygon privacy mask | |
| Pan/Tilt/Zoom | Digital PTZ, preset positions |
| Audio | |
| Audio streaming | Audio in, simplex, two-way audio via edge-to-edge technology |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, |
| G.726 ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Audio output/output | External microphone input, line input, digital input with ring |
| power, automatic gain control, network speaker pairing | |
| Network | |
| Security | Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Supported protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and | |
| ONVIF® Profile T, specification at onvif.org | |
| Support for Session Initiation Protocol (SIP) for integration with | |
| Voice over IP (VoIP) systems, peer to peer or integrated with | |
| SIP/PBX. | |
| Onscreen controls | Day/night shift |
| Defogging | |
| Wide dynamic range | |
| Video streaming indicator | |
| IR illumination | |
| Event conditions | Analytics, external input, supervised external input, virtual inputs through API |
| Call: state, state change | |
| Device status: above operating temperature, above or below | |
| operating temperature, below operating temperature, within | |
| operating temperature, IP address removed, new IP address, | |
| network lost, system ready, ring power overcurrent protection, | |
| live stream active, casing open | |
| Digital audio: digital signal contains Axis metadata, digital signal | |
| has invalid sample rate, digital signal missing, digital signal okay | |
| Edge storage: recording ongoing, storage disruption, storage health issues detected | |
| I/O: digital input, manual trigger, virtual input | |
| MQTT: subcribe | |
| Scheduled and recurring: schedule | |
| Video: average bitrate degradation, day-night mode, live stream | |
| open, tampering | |
| Event actions | Overlay text, external output activation, zoom preset, day/night |
| mode, flash status LED, use lights, set defog mode, set WDR mode | |
| Calls: end SIP call, make SIP call, answer call | |
| I/O: toggle I/O once, toggle I/O while the rule is active | |
| MQTT: publish | |
| Notification: email, HTTP, HTTPS, TCP, and SNMP trap | |
| Pre- and post-alarm video or image buffering for recording or upload | |
| Record video: SD card and network share | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email | |
| Data streaming | Event data |
| Built-in installation aids | Remote zoom and focus, straighten image, pixel counter, level grid |
| Analytics | |
| AXIS Object Analytics | Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Trigger conditions: line crossing, object in area | |
| Up to 10 scenarios | |
| Metadata visualized with color-coded bounding boxes | |
| Polygon include/exclude areas | |
| Perspective configuration | |
| ONVIF Motion Alarm event | |
| Applications | Included |
| AXIS Object Analytics | |
| AXIS Video Motion Detection, active tampering alarm, audio | |
| detection | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| General | |
| Casing | IP52- and IK10-rated |
| Polycarbonate hard-coated dome | |
| Polycarbonate casing | |
| Color: white NCS S 1002-B | |
| For repainting instructions, go to the product’s support page. For information about the impact on warranty, go to axis.com/warranty-implication-when-repainting. | |
| Mounting | Mounting bracket with junction box holes (double-gang, |
| single-gang, and 4” octagon) and for wall or ceiling mount | |
| Sustainability | PVC-free, BFR/CFR free |
| 7% bioplastics | |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 5.5 W, max 10.0 W | |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised | |
| digital input and 1 digital output (12 V DC output, max. Load 25 mA) | |
| Audio: 3.5 mm mic/line in | |
| IR illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reach 40 m (130 ft) or more depending on the scene | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity 10–85% RH (non-condensing) | |
| Storage conditions | (-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) | |
| Approvals | EMC |
| EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, | |
| EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, | |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, | |
| KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, | |
| VCCI Class A | |
| Safety | |
| CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, | |
| IEC/EN 62471, IS 13252 | |
| Environment | |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, | |
| IEC 60068-2-27, IEC 60068-2-78 | |
| IEC/EN 60529 IP52, IEC/EN 62262 IK10 | |
| Network | |
| NIST SP500-267 | |
| Dimensions | Height: 107 mm (4.21 in) |
| ø 149 mm (5.87 in) | |
| Weight | 800 g (1.8 lb) |
| Included accessories | Installation guide, Windows® decoder 1-user license, drill template, RESISTORX® T20 screw bit, terminal block connectors, cable gaskets, connector guard |
| Video management software | AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available | |
| at axis.com/vms | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese | |
Properties
| Properties | AXIS P3268-LV Dome Camera |
| Description | The AXIS P3268-LV Dome Camera is an indoor 8 MP dome with IR and deep learning capabilities. With Lightfinder 2.0, Forensic WDR, and OptimizedIR, it delivers brilliant 4K image quality in any lighting. Featuring analytics with deep learning, audio and I/O connectivity, and built-in cybersecurity, this camera is a robust solution for indoor surveillance. |
| Product Family | AXIS P3268-LV Dome Camera |
| Product Type | Camera |
