CISCO IE-3000-4TC SWITCH
| Model: | IE-3000-4TC |
| Detail: | 4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port one port active) |
| List Price: | |
| Price: | $1,395.00 |
| You Save: | $896.00 (39% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

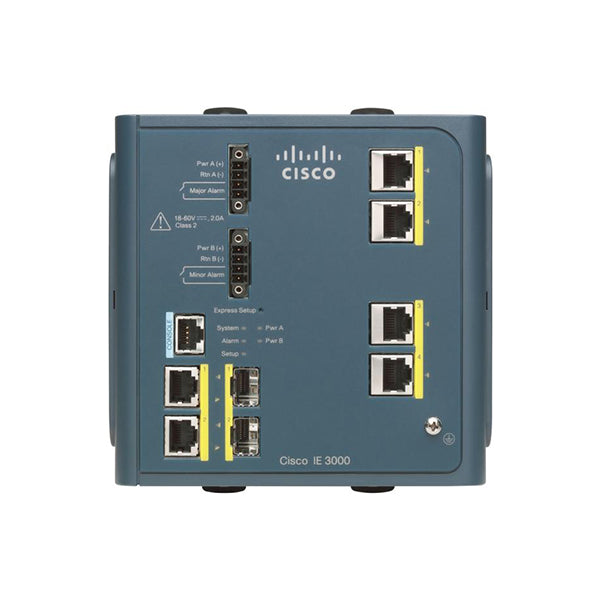

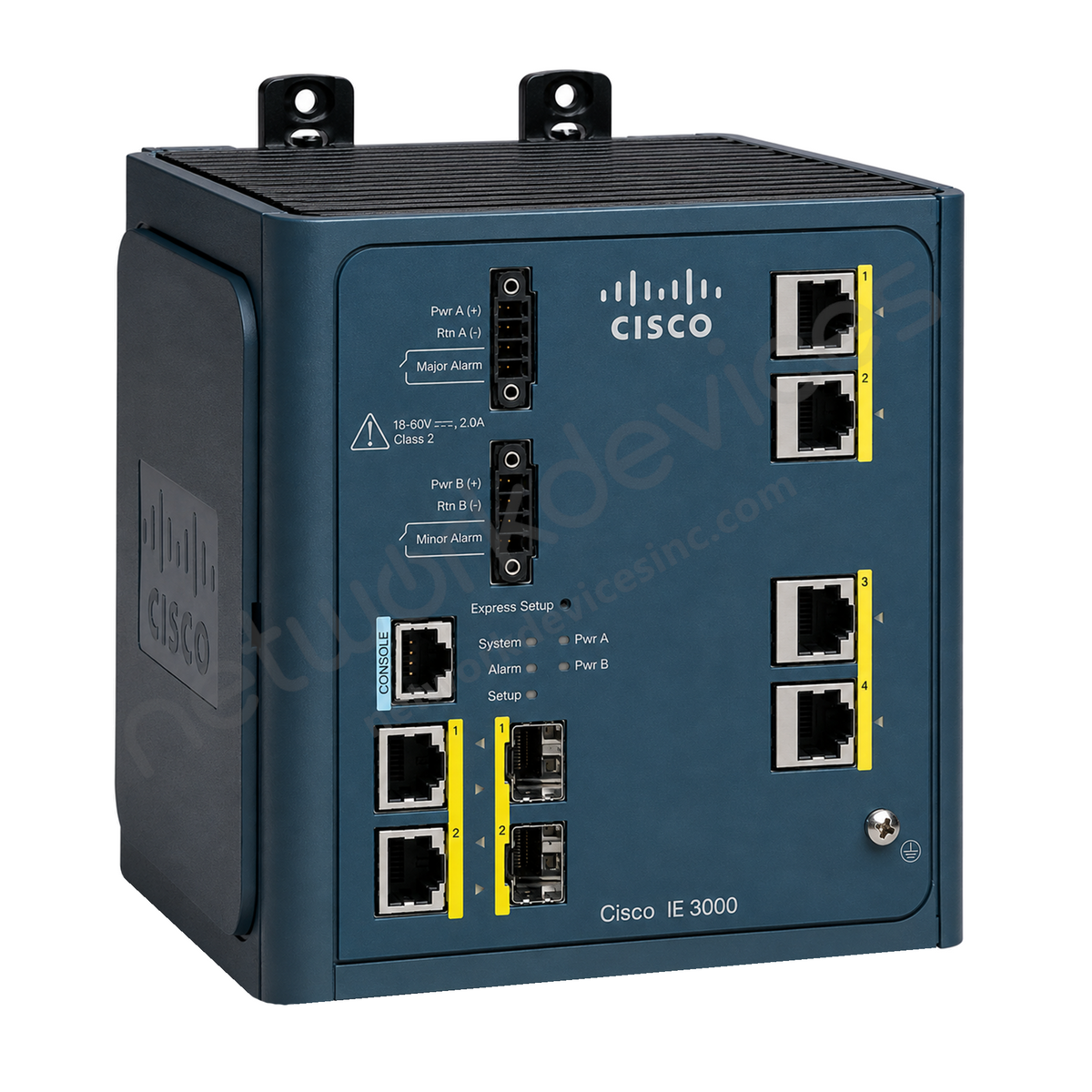

Cisco IE-3000-4TC Industrial Ethernet Switch
The Cisco IE-3000-4TC is a rugged, high-performance industrial Ethernet switch designed to meet the rigorous demands of harsh industrial environments. This switch features 4 Fast Ethernet ports and 2 Gigabit combo ports (Ethernet/SFP), making it an ideal solution for connecting critical industrial devices such as sensors, controllers, and IP cameras. The IE-3000-4TC is engineered to ensure continuous operation in extreme conditions, offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.
Key Features:
- 4 x Fast Ethernet Ports: Provides reliable and efficient data connectivity for a variety of industrial devices, ensuring stable network communication.
- 2 x Gigabit Combo Ports: Offers flexible uplink options with Ethernet and SFP connectivity, enabling high-speed data transfer and network scalability.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
- Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control and security.
- Compact and Modular Form Factor: Designed for space-constrained installations, with the ability to expand as your network grows.
Technical Overview:
- Recommended for: Industrial environments requiring robust Ethernet connectivity with advanced management and security features.
- Ports: 4 x Fast Ethernet ports, 2 x Gigabit combo ports (Ethernet/SFP).
- Operating Temperature: Designed to operate in a wide temperature range suitable for harsh industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco Network Assistant for comprehensive network setup and monitoring.
- Form Factor: Modular design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-3000-4TC datasheet.
Accessories
| Accessories and License Upgrade PIDs | |
| IEM-3000-8TM= | Expansion Copper module for Cisco IE-3000-4TC and IE-3000-8TC switches 8 10/100 TX ports 2.8W |
| IEM-3000-8FM= | Expansion Fiber module for Cisco IE-3000-4TC and IE-3000-8TC switches 8 100 FX ports 10.1W |
| IEM-3000-4SM= | Expansion SFP module for Cisco IE-3000-4TC and IE-3000-8TC switches 4 100M SFP ports 7.6W |
| IEM-3000-8SM= | Expansion SFP module for Cisco IE-3000-4TC and IE-3000-8TC switches 8 100M SFP ports 12.2W |
| IEM-3000-4PC= | Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC switches 4 10/100 PoE/PoE+ ports External PoE power source (44-57 VDC for PoE/50-57 VDC for PoE+) 7.3W |
| IEM-3000-4PC-4TC= | Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC switches 4 non-PoE ports and 4 10/100 PoE/PoE+ ports External PoE power source (44-57 VDC for PoE/50-57 VDC for PoE+) 7.9W |
| PWR-IE50W-AC= | Expansion power module for IE-3000-4TC and IE-3000-8TC switches |
| PWR-IE50W-AC-IEC= | Expansion power module for IE-3000-4TC and IE-3000-8TC switches |
| PWR-IE65W-PC-AC= | AC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules |
| PWR-IE65W-PC-DC= | DC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules |
| CAB-SM-LCSC-1M | 1m-fiber single-mode LC-to-SC connectors |
| CAB-SM-LCSC-5M | 5m-fiber single-mode LC-to-SC connectors |
| CF-IE3000= | IE 3000 Compact Flash |
| PWR-IE3000-CLP= | IE 3000 Power Transformer Spare connector clip |
| PWR-IE3000-CNCT= | IE 3000 Power Spare connector |
| LPNL-IE3000= | IE 3000 Left Panel Spare |
| RPNL-IE3000= | IE 3000 Right Panel Spare |
| DINCLP-IE3000= | Din-rail clip 4 pack Spare |
| BMP-IE3000= | Din-rail clip bumper 4 pack Spare |
| STK-RACKMNT-2955= | Din-rail adapter for rack mounting |
| IE-SW-SPARE | Spare IOS software upgrade part number (L2 to L3 features) |
| IE3000-DNA-E-L | DNA Essentials license |
| IE3000-DNA-E-L-3Y | DNA Essentials 3-year term license option |
| IE3000-DNA-E-L-5Y | DNA Essentials 5-year term license option |
| SFPs | |
| GLC-FE-100FX-RGD= | 100BASE-FX Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX-RGD | 100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-T-I= | 100BASE-T for Fast Ethernet SFP Ports |
| GLC-FE-100FX= | 100BASE-FX SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX= | 100BASE-LX10 SFP for Fast Ethernet SFP Ports |
| GLC-FE-100EX= | 100BASE-EX for Fast Ethernet SFP Ports |
| GLC-FE-100ZX= | 100BASE-ZX for Fast Ethernet SFP Ports |
| GLC-FE-100BX-D= | 100BASE-BX10-D SFP for Fast Ethernet SFP Ports |
| GLC-FE-100BX-U= | 100BASE-BX10-U SFP for Fast Ethernet SFP Ports |
| GLC-SX-MM-RGD= | 1000BASE-SX short wavelength; rugged |
| GLC-LX-SM-RGD= | 1000BASE-LX/LH long wavelength; rugged |
| GLC-ZX-SM-RGD= | 1000BASE-ZX extended distance; rugged |
| GLC-BX40-U-I= | 1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-D-I= | 1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-DA-I= | 1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-U-I= | 1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-D-I= | 1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-SX-MMD= | 1000BASE-SX short wavelength; with DOM |
| GLC-LH-SMD= | 1000BASE-LX/LH long-wavelength; with DOM |
| GLC-EX-SMD= | 1000BASE-EX long-wavelength; with DOM |
| GLC-ZX-SMD= | 1000BASE-ZX extended distance; with DOM |
| GLC-BX-D= | 1000BASE-BX10-D downstream bidirectional single fiber; with DOM |
| GLC-BX-U= | 1000BASE-BX10-U upstream bidirectional single fiber; with DOM |
| CWDM-SFP-xxxx= (8 freq) | Longwave xxxx-nm laser, single mode |
| DWDM-SFP-xxxx= (40 freq) | 1000BASE-DWDM SFP |
| SFP-GE-S= | Cisco 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range. |
| SFP-GE-L= | Cisco 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, extended operating temperature range. |
| SFP-GE-Z= | Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, extended operating temperature range. |
| GLC-SX-MM= | Cisco 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, commercial operating temperature range. |
| GLC-LH-SM= | Cisco 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, commercial operating temperature range. |
| GLC-ZX-SM= | Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, commercial operating temperature range. |
| GLC-TE= | 1000BASE-T standard |
| GLC-T= | 1000BASE-T SFP transceiver module for copper networks, commercial operating temperature range. |
| GLC-T-RGD= | 1000BASE-T standard |
Specifications
| Specifications | IE-3000-4TC |
| DRAM | 128 MB |
| Flash Memory | 64 MB Compact Flash Memory |
| Max. Switching Bandwidth | 16 Gbps |
| Max. Forwarding Rate | 6.5 Mpps |
| Max. MAC Addresses | Configurable up to 8000 MAC addresses (Layer 2) Configurable up to 2000 MAC addresses (Layer 3) |
| Jumbo Frames | Jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports |
| Unicast Routes | Configurable up to 3,000 (Layer 3) |
| Internet Group Managament Protocol (IGMP) Multicast Groups | Configurable up to 256 (Layer 2) Configurable up to 1000 (Layer 3) |
| Indicators | Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications System-status LED: System, link status, link duplex, link speed, indications |
| Input Voltage | 18-60VDC |
| Max. Power Consumption | 15.1W |
| Power Rating | .05KVA |
| Connectors and cabling | 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling 100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling 1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber) 100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber) |
| Operating Temperature | -40C to +75C -40C to +70C (Vented Enclosure 40 LFM Air Flow) -40C to +60C (Sealed Enclosure 0 LFM Air Flow) -24C to +75C (Fan or Blower equipped Enclosure 200 LFM Air Flow) -40C to +85C (IEC 60068-2-2 Environmental Type Testing 16 hours) |
| Storage Temperature | -40 C to +85 C |
| Operating Altitude | Up to 13,000 ft (3963m) |
| Storage Altitude | Up to 15,000 ft (4573m) |
| Mean Time Between Failures (MTBF) | 363,942 |
| Standard safety certifications | UL 60950-1 CSA C22.2 No. 60950-1 TUV/GS to EN 60950-1 CB to IEC 60950-1 with all country deviations NOM |
| Electromagnetic emissions | FCC Part 15 Class A EN 55022 CISPR 22 CISPR11 VCCI Class A AS/NZS 3548 Class A CNS 13438 Class A KN 22 Class A |
| Electromagnetic immunity | EN 55024 AS/NZS CISPR 24 KN 24 IEC/EN 61000-4-2 (Electro Static Discharge) IEC/EN 61000-4-3 (Radiated Immunity) IEC/EN 61000-4-4 (Fast Transients) IEC/EN 61000-4-5 (Surge) IEC/EN 61000-4-6 (Conducted Immunity) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-16 (Low Frequency Conducted CM Disturbances) IEC/EN 61000-4-17 (Ripple on DC Input Power) IEC/EN 61000-4-18 (Damped Oscillatory Wave) IEC/EN 61000-4-29 (Voltage Dips Immunity, DC power) IEEE C37.90 (Surge) IEEE C37.90.1 (Fast Transients) IEEE C37.90.2 (Radiated Immunity) IEEE C37.90.3 (Electro Static Discharge) |
| Mechanical stability | IEC 60628-2-27 Shock 20g (operational), 30g (nonoperational) |
| Industry specifications | EN 61131-2 Programmable Controllers (EMC/EMI, environmental, mechanical) IEEE 1613 Power Station and Substation Networking Devices IEC 61850-3 Power Station and Substation Communication Networks and Systems EN 61326-1 Electrical Equipment for Measurement, Control and Laboratory Use - EMC EN 61000-6-1 Immunity for Light Industrial Environments EN 61000-6-2 Immunity for Industrial Environments EN 61000-6-4 Emissions for Industrial Environments TS 61000-6-5 EMC Immunity for Power Station and Substation EN 50155 Railway, Electronic Equipment on Rolling Stock (EMI/EMC, environmental, mechanical) EN 50121-3-2 Railway, Electromagnetic Compatibility on Rolling Stock EN 50121-4 Railway, Emission and Immunity of Signaling and Telecommunications Apparatus EN 60945 Maritime Navigation and Radio-communication Equipment and Systems IEC 60533 Shipboard Electrical and Electronic Installation EMC Marine Type Approval (BV, DNV, Korean Register, Lloyd Register) NEMA TS-2 (EMC, environmental, mechanical) ABB Industrial IT certification ODVA Industrial EtherNet/IP support PROFINETv2 support Directive 2011/65/EU RoHS IP20 |
| Hazardous locations | UL/CSA 60079-0, -15 (Class 1, Div 2 A-D) (requires cabinet enclosure) EN 60079-0, -15 ATEX Certification (Class 1, Zone 2 A-D) (requires cabinet enclosure) IEC 60079-0, -15 (Test report only) (requires cabinet enclosure) UL 508 CSA C22.2 No. 142 |
| Humidity | Relative humidity: 5% to 95% non-condensing |
Properties
| Properties | Cisco IE-3000-4TC |
| Description | Industrial Ethernet switch 4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has 1 10/100/1000 Ethernet port and 1 SFP-based Gigabit Ethernet port, 1 port active) Each switch supports 2 Cisco modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module Layer 2 LAN Base image installed |
| Product Family | Industrial Ethernet 3000 |
| Product Type | Ethernet Switch |
| Configurations | 4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber Support up to two expansion modules with various combinations DC input range 18VDC-60VDC Layer 2 LAN Base Image |
| Dimensions (HxWxD) Inches | 6.0W x 5.8H x 4.4D (152mm W x 147mm H x 112mm D) |
| Weight | 4.4 lb (2.0 kg) |
