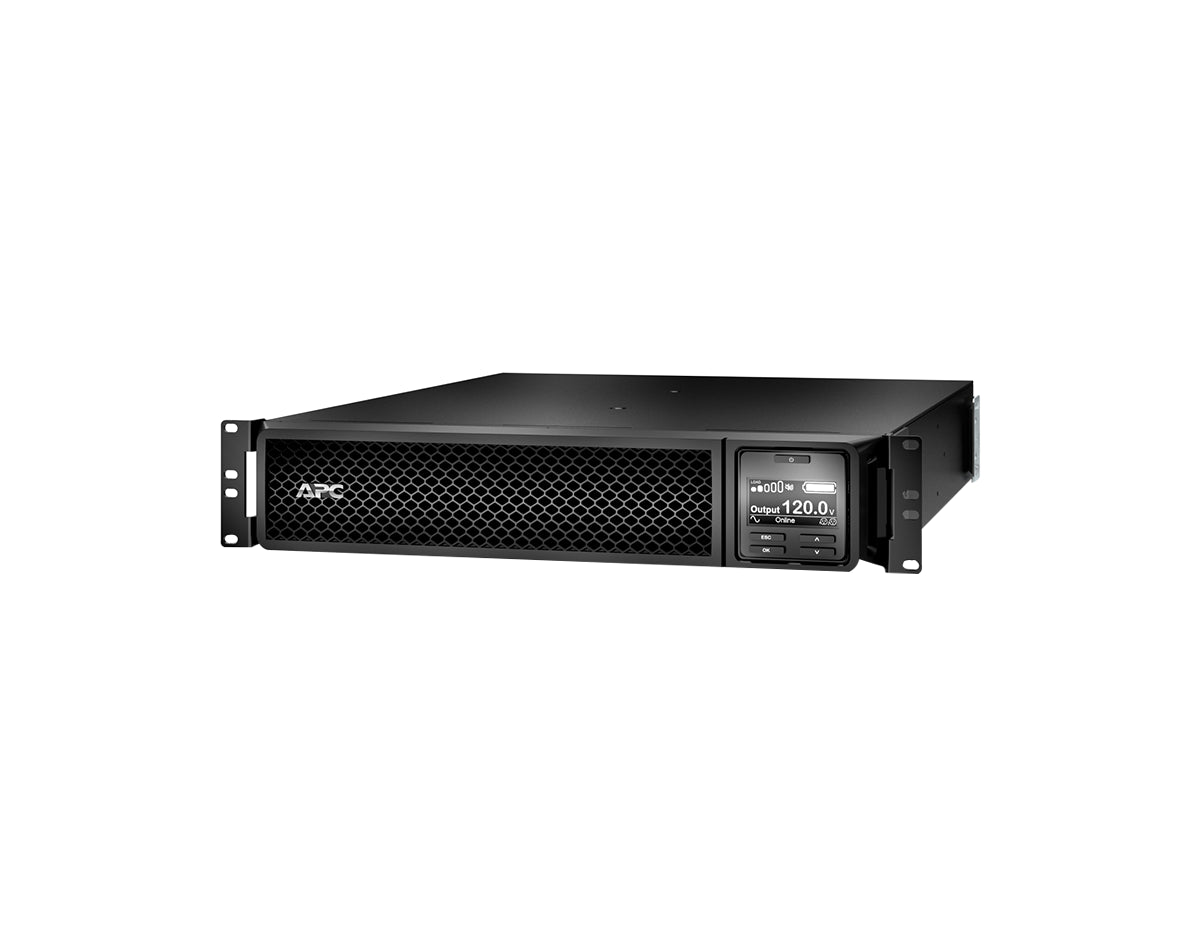

APC SRT3000RMXLA - Smart-UPS On-Line 3000VA Rackmount 2U UPS

Overview

The APC Smart-UPS SRT3000RMXLA delivers 3000VA / 2700W of high-density online power protection in a 2U rackmount form factor. Engineered with double-conversion technology, it provides pure sine wave output, ensuring clean and reliable power for critical IT and network devices. With scalable runtime options and SmartSlot expandability, it is designed to keep business operations running without interruption.

Key Features & Benefits

• Double-Conversion Online: Continuous power conditioning with pure sine wave output.
• Scalable Runtime: Supports external battery packs for extended backup capability.
• SmartSlot Expandability: Add network management cards for advanced remote monitoring.
• LCD Control Panel: Real-time status with intuitive navigation and multi-language support.
• Multiple Outlets: 8x NEMA 5-20R and 1x L5-30R provide flexible device connectivity.

Technical Deep Dive

The SRT3000RMXLA utilizes double-conversion online technology, constantly converting incoming AC power to DC and back to AC. This isolates connected devices from power disturbances such as surges, sags, and harmonics, delivering clean sine wave output at all times.

Its scalable design allows connection of up to 10 external battery packs, offering extended runtime for mission-critical applications. With a typical recharge time of only 3 hours, downtime is minimized even after extended outages. Intelligent battery management enhances reliability by providing temperature-compensated charging and proactive replacement alerts.

Additionally, the SmartSlot interface enables integration with optional network management cards, empowering administrators with advanced monitoring, control, and automation across enterprise environments.

Ideal Applications

• Enterprise servers and storage systems
• Network hardware and communications infrastructure
• Healthcare and financial IT systems
• High-availability industrial control environments

Frequently Asked Questions (FAQs)

Q1: How is the SRT3000RMXLA installed?
A: It is a 2U rackmount UPS supplied with brackets and rails for seamless installation in standard racks.

Q2: What performance can I expect?
A: The UPS provides 3000VA / 2700W with sine wave output. Runtime depends on load and optional external battery packs; consult runtime charts for precise data.

Q3: How can it be managed?
A: Standard LCD interface and USB connectivity are included. Adding a SmartSlot network card enables full remote monitoring and control.

Brand	APC by Schneider Electric
Model	SRT3000RMXLA
Product Type	Smart-UPS On-Line, Double Conversion
Form Factor	Rackmount 2U
Dimensions (H x W x D)	3.3" x 17.008" x 25" (85 x 432 x 635 mm)
Weight	69.005 lb (31.3 kg)
Color	Black
Number of Rack Units	2U
Cable Length	8 ft (2.4 m)
Cooling	—

Capacity	3000 VA / 2700 W
Input Voltage	120 V
Input Connection Type	NEMA L5-30P
Input Frequency	40–70 Hz auto-sensing
Output Voltage	120 V
Output Connections	8 × NEMA 5-20R, 1 × NEMA L5-30R
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	0 ms (on-line)
Bypass Type	Internal Bypass (Automatic and Manual)
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • Voltage: 96 V • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC152 • Charge power: 151 W rated
Extendable Runtime	Yes
Surge Energy Rating	340 J
Acoustic Noise	55 dBA
Thermal Dissipation	805 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	USB compatible, EPO, Audible/visible alarms, SmartSlot (1 free)
Certifications	ENERGY STAR V2.0 (USA)

Rack Mounting Brackets	Included in the box
Rack Mounting Support Rails	Included in the box
USB Cable	Included in the box
Documentation	CD with software, Documentation CD, Installation guide, Warranty card
