| Specifications |

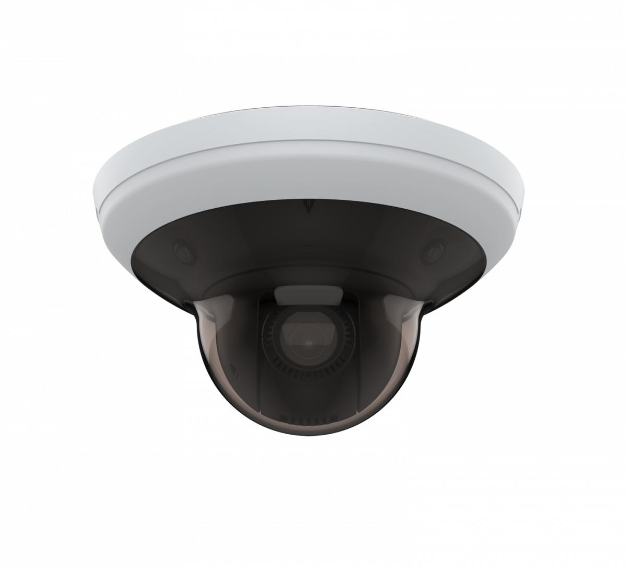

AXIS M5000-G PTZ Camera |
| Camera |
| Image sensor |
PTZ camera: |
| 1/2.8” progressive scan RGB CMOS |
| Overview cameras: |
| 1/2.8” progressive scan RGB CMOS |
| Lens |
PTZ camera: |
| Varifocal, 4.7–47 mm, F1.6–3.0 |
| Horizontal field of view: 61.8°–6.7° |
| Vertical field of view: 36.3°–3.8° |
| Autofocus, auto-iris, P-Iris control |
| Overview cameras: |
| Focal length 2.39 mm, F2.0 |
| Horizontal field of view: 360° |
| Vertical field of view: 93° |
| Day and night |
PTZ camera: |
| Automatically removable infrared-cut filter |
| Minimum illumination |
PTZ camera: |
| Color: 0.09 lux at 30 IRE F1.6 |
| B/W: 0.01 lux at 30 IRE F1.6 |
| Color: 0.1 lux at 50 IRE F1.6 |
| B/W: 0.01 lux at 50 IRE F1.6 |
| Overview cameras: |
| Color: 0.08 lux at 30 IRE F2.0 |
| B/W: 0.03 lux at 30 IRE F2.0 |
| Color: 0.4 lux at 50 IRE F2.0 |
| B/W: 0.03 lux at 50 IRE F2.0 |
| Shutter speed |
PTZ camera: |
| 1/66500 s to 2 s |
| Overview cameras: |
| 1/50000 s to 2 s |
| Pan/Tilt/Zoom |
PTZ camera: |
| Pan: 360° with autoflip, 1.8°–150°/s |
| Tilt: 180°,1.8°–150°/s |
| 10x optical zoom, 12x digital zoom, total 120x zoom |
| 100 preset positions, limited guard tour, control queue, on-screen |
| directional indicator, E-flip, click-in-image |
| System on chip (SoC) |
| Model |
ARTPEC-7 |
| Memory |
2048 MB RAM, 512 MB Flash |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
PTZ camera: |
| 1920x1080 to 320x180 |
| Overview cameras: |
| 2592x1944 to 320x180 |
| Frame rate |
PTZ camera: |
| Up to 25/30 fps with power line frequency 50/60 Hz |
| Overview cameras: |
| Up to 12 fps with power line frequency 50/60 Hz |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Low latency mode |
| Video streaming indicator |
| Image settings |
Saturation, contrast, brightness, sharpness, WDR – forensic |
| capture, white balance, day/night threshold, tone mapping, |
| exposure mode, exposure zones, compression, Z-Wave overlay, |
| text and image overlay, polygon privacy masks, image freeze on |
| PTZ, local contrast, max shutter, max gain, noise/motion priority, |
| aperture lock, exposure level |
| Scene profiles: indoor, forensic |
| Audio |
| Audio streaming |
Two-way, full duplex |
| Audio encoding |
24bit LPCM, AAC-LC 8/16/32/44.1 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable bit rate |
| Audio input/output |
External microphone input or line input, line output, automatic |
| gain control |
| Network |
| Security |
IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, user access log, centralized certificate management |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), Z-Wave PlusTM v2 |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and |
| ONVIF® Profile T, specification at onvif.org |
| Onscreen controls |
Focus recall area |
| Video streaming indicator |
| Privacy masks |
| Day/night shift |
| Event conditions |
Audio: audio clip playing |
| Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, IP address |
| removed, network lost, new IP address, storage failure, system |
| ready, within operating temperature |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| I/O: manual trigger, virtual input |
| MQTT subscribe |
| PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position |
| reached, PTZ ready |
| Scheduled and recurring: scheduled event |
| Video: average bitrate degradation, day-night mode, live stream |
| open |
| Event actions |
Audio clips: play, play while the rule is active, stop playing |
| Guard tours: Run while the rule is active, start |
| MQTT publish |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap |
| Record video: SD card and network share |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| Day-night mode, overlay text, preset positions, WDR mode |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter |
| Analytics |
| Applications |
Included |
| AXIS Loitering Guard, AXIS Video Motion Detection, audio |
| detection, shock detection, advanced gatekeeper |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| Cybersecurity |
| Edge security |
Software: Signed OS, brute force delay protection, digest |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization |
| Code Flow for centralized ADFS account management, password |
| protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Axis Edge Vault cybersecurity platform |
| Secure element (CC EAL 6+), Axis device ID, secure keystore, |
| signed video, secure boot |
| Network security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)* , IEEE 802.1AR, HTTPS/HSTS* , TLS v1.2/v1.3* , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| General |
| Casing |
IP51-rated |
| Repaintable plastic casing, polycarbonate (PC) dome |
| Sustainability |
PVC free, BFR/CFR free |
| Power |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 |
| Typical 7.6 W, max 13.4 W |
| 20–28 V DC, typical 6.6 W, max 12.1 W |
| (PoE midspan and power supply not included) |
| Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| DC input terminal block |
| Audio: mic/line in, line out terminal block |
| Storage |
Support for SD/SDHC/SDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Support for recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
0 °C to 40 °C (32 °F to 104 °F) |
| Humidity 10–85% RH (non-condensing) |
| Storage conditions |
(-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC |
| EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, |
| VCCI Class A, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A) |
| Safety |
| CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1 |
| Environment |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP51 |
| Radio |
| EN 62311, EN 300220-2, EN 301489-1, EN 301489-3, MIC, |
| FCC Part 15 Subpart C, RSS-210 |
| Network |
| NIST SP500–267 |
| Dimensions |
Height: 138 mm (5.4 in), ø 247 mm (9.7 in) |
| Weight |
1.95 kg (4.3 lb) |
| Included accessories |
Installation Guide, Windows® |
| decoder 1-user license, drill hole |
| template, terminal block connectors, connector guard, bayonette |
| screws |
| Video management software |
AXIS Camera Station Edge/Pro/5 and partner VMS, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
