Cisco AIR-AP2802I-B-K9 Access Point Technical Specifications
Â
Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or later |
Supported Wireless LAN Controllers | Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series SwitchesCisco Mobility Express |
802.11n Version 2.0 (and related) Capabilities | 4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support |
802.11ac Wave 1 Capabilities | 4x4 MIMO with three spatial streams MRC802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 DFSCSD support |
802.11ac Wave 2 Capabilities | 802.11ac Wave 2 capabilities 4x4 MU-MIMO with three spatial streams MRC802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFSCSD support |
Integrated Antenna | Integrated Antenna Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90 Dedicated 5-GHz radio 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
Interfaces | 2802I/E
Management console port (RJ-45)USB 2.0 (enabled via future software) |
Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
Dimensions (W x L x H) | Access point (without mounting brackets): 2802I: 8.66" x 8.68" x 2.17" |
Weight | 3.53 lb (1.6 kg) |
Input Power Requirements | 802.3at PoE+, Cisco Universal PoE (Cisco UPOE)Â 802.3 at power injector (AIR-PWRINJ6) |
Power Draw |
26W at the PSE with all features enabled except for the USB 2.0 port. 30W at the PSE with the USB 2.0 port enabled |
Environmental |
Nonoperating (storage) temperature: -22 to 158F (-30 to 70C) Nonoperating (storage) altitude test: 25C, 15,000 ft. Operating temperature: 32 to 104F (0 to 40C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40C, 9843 ft |
System Memory | 1024 MB DRAM256 MB flash |
Â
[/specifications]
Cisco AIR-AP2802I-B-K9 Access Point is one of the Cisco Aironet 2800 Series Access Points. It provides internal antenna and B regulatory domain. This 2800 series access point features new 802.11ac Wave 2 standard.Â
Cisco AIR-AP2802I-B-K9 Access Point is the right choice for large enterprise organizations that rely on Wi-Fi for customer engagement. This 2800 series access point is intelligent enough to make decisions based on end-device activities and usage.
Â
Manufacturer Part Number | Â AIR-AP2802I-B-K9 |
Frequency Band and 20-MHz Operating Channels | B (B regulatory domain): - 2.412 to 2.462 GHz; 11 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.720 GHz; 12 channels - 5.745 to 5.825 GHz; 5 channels |
Antenna | Internal Antenna |
Features | - 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac Beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support |
Interfaces | - 2 x 100/1000BASE-T autosensing (RJ-45) - Management console port (RJ-45) - USB 2.0 (enabled via future software) |
System Memory | - 1024 MB DRAM - 256 MB flash |
Dimensions (W x L x H) | 8.66 x 8.68 x 2.17 in. |
Net Weight | 3.53 lb (1.6 kg) |
Â
Â
Â
Â
Â
Image below shows Ports and Connectors of the 2802I Model.
Â
Â
[specifications] [/specifications]

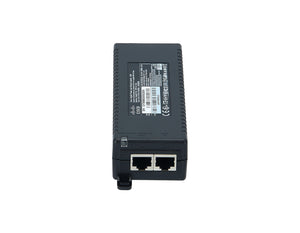

Cisco AIR-PWRINJ6= POE Injector is built to add efficient PoE connectivity to your network. It can also add power to your cabling system, allowing you to power PoE-supported devices on your local network. Â
Cisco AIR-PWRINJ6= POE Injector is designed for Cisco Aironet systems and is compatible with the Aironet 1810, 1815, 1830, 2800 series Access Points.
This Cisco AIR-PWRINJ6= POE Injector works at a frequency of 49 Hz to 60 Hz and AC voltage of 100 volts to 240 volts. It adds any 802.3 compliant switch ports to power the access point. PoE injector is built to power IEEE 802.3 compliant devices and is effective for connecting to non-PoE LAN switch ports.
[specifications]
Type | Wireless access point |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 5.2 Gbps |
Data Link Protocol | IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Compliant Standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ad (LACP) |
Status Indicators | Boot state, Error, Operation mode, Status |
Features | 4T4R MIMO technology, Beamforming technology, CAPWAP support, CleanAir technology, ClientLink 4.0 technology, Cross AP Noise Reduction, Cyclic shift diversity (CSD), DFS support, LACP support, Maximum Ratio Combining (MRC), MIMO equalization, MU-MIMO technology, Optimized AP Roaming, Packet aggregation A-MPDU, Packet aggregation A-MSDU |
Wireless Protocol | 802.11a/b/g/n/ac Wave 2 |
Wi-Fi Bands | 2.4 GHz, 5 GHz |
Type | 1000Base-T |
Connector Type | RJ-45 |
Included Accessories | Ceiling mounting kit, Mounting brackets |
Compatibility | PC |
Manufacturer | Cisco Systems |
Packaged Quantity | 1 |
Product Line | Cisco Aironet |
Model | 2802E (Config) |
Brand | Cisco |
Type | CAPWAP Software Image |
Width | 8.7 in |
Depth | 8.8 in |
Height | 2.5 in |
Ruggedized Design | Indoor |
Â
Â
Â
[/specifications]
Cisco Air-Ap2802e-B-K9c Access Point provides a controller-less Wi-Fi management solution to set up, configure and monitor Enterprise-class Wi-Fi network. It’s built on the best-in-class RF architecture, capable of providing high-performance network coverage for a high density of client devices.Â
Cisco Air-Ap2802e-B-K9c Access Point gives seamless wireless experience. This access point is powered with industry-leading innovations, such as Cisco CleanAir, ClientLink 4.0, Flexible Radio Assignment, cross-access point noise reduction, and an optimized client roaming.Â
Â
Approved External Antennas For Use With 2802E
Â
[specifications]
Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or laterCisco IOSXE Software Release 16.3 |
Supported wireless LAN controllers | Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless ControllerCisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series SwitchesCisco Mobility Express |
802.11n version 2.0 (and related) capabilities | 4x4 MIMO with three spatial streamsMaximal ratio combining (MRC)802.11n and 802.11a/g beamforming20- and 40-MHz channelsPHY data rates up to 450 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 dynamic frequency selection (DFS)Cyclic shift diversity (CSD) support |
802.11ac Wave 1 capabilities | 4x4 MIMO with three spatial streamsMRC802.11ac beamforming20-, 40-, and 80-MHz channelsPHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 DFSCSD support |
802.11ac Wave 2 capabilities | 4x4 MU-MIMO with three spatial streamsMRC802.11ac beamforming20-, 40-, 80, 160-MHz channelsPHY data rates up to 5.2 GbpsPacket aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 DFSCSD support |
Integrated antenna | Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90 Dedicated 5-GHz radio 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
External antenna (sold separately) | 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios |
Smart antenna connector | Available on the 2802e Series access points onlyRequires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access pointRequired when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio |
Interfaces | 2802I/E Â Â 2x100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45)USB 2.0 (enabled via future software) |
Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
Dimensions (W x L x H) | Access point (without mounting brackets): 2802I: 8.66" x 8.68" x 2.17", 2802E: 8.66" x 8.77" x 2.50" |
Weight | Cisco Aironet 2802i 3.53 lb (1.6 kg) Cisco Aironet 2802e 4.6 lb (2.09 kg) |
Input power requirements | 802.3at PoE+, Cisco Universal PoE (Cisco UPOE)802.3at power injector (AIR-PWRINJ6=) |
Power draw | 26W at the PSE with all features enabled except for the USB 2.0 port30W at the PSE with the USB 2.0 port enabled |
Environmental | Cisco Aironet 2802i Nonoperating (storage) temperature: -22 to 158F (-30 to 70C)Nonoperating (storage) altitude test: 25C, 15,000 ft.Operating temperature: 32 to 104F (0 to 40C)Operating humidity: 10% to 90% (noncondensing)Operating altitude test: 40C, 9843 ft. Cisco Aironet 2802e Nonoperating (storage) temperature: -22 to 158F (-30 to 70C)Nonoperating (storage) altitude test: 25C, 15,000 ft.Operating temperature: -4 to 122F (-20 to 50C)Operating humidity: 10% to 90% (noncondensing)Operating altitude test: 40C, 9843 ft. |
System memory | 1024 MB DRAM256 MB flash |
Â
[/specifications]Â
Cisco Air-Ap2802e-B-K9 Access Point is the perfect solution for organizations paving the way for the 802.11ac Wave 2 standard. This access point provides the ultimate compatibility, flexibility and versatility.Â
Cisco Air-Ap2802e-B-K9 Access Point meets the requirements of the larger enterprise organizations that rely on Wi-Fi heavily to engage with customers. The Cisco Aironet 2800 series is a hands-off product to make intelligent decisions on the basis of end-device activities and usage. As a result of this automation, its users can concentrate on other important work areas as being sure about smooth-running of the Wi-Fi network.Â
Cisco Air-Ap2802e-B-K9 Access Point is built with all necessary capabilities to manage wireless growth and coverage gaps in dense indoor environment. Top of all, it’s available at cheap price.
Â
Approved External Antennas For Use With 2802E
Â
Frequency band and 20-MHz operating channels | B (B regulatory domain): - 2.412 to 2.462 GHz; 11 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.720 GHz; 12 channels - 5.745 to 5.825 GHz; 5 channels |
Antenna | External Antenna |
Features | - 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac Beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support |
Interfaces | - 2 x 100/1000BASE-T autosensing (RJ-45) - Management console port (RJ-45) - USB 2.0 (enabled via future software) |
System memory | - 1024 MB DRAM - 256 MB flash |
Dimensions (W x L x H) | 8.66 x 8.77 x 2.50 in. |
Net Weight | 4.6 lb (2.09 kg) |
Â
[specifications] [/specifications]
Cisco Air-Pwr-50= Power Supply works as a spare for power supply needs of access point.Â
Cisco Air-Pwr-50= Power Supply delivers solutions as an external power supply and operates at an AC voltage of 100 – 240 volts. It provides a power of 50 watts and is compatible with Cisco Aironet 3800 series access points.
[specifications]
Â
Cisco AIR-AP2802I-B-K9C Access Point Technical Specifications
Â
Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or later |
Supported Wireless LAN Controllers | Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series SwitchesCisco Mobility Express |
802.11n Version 2.0 (and related) Capabilities | 4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support |
802.11ac Wave 1 Capabilities | 4x4 MIMO with three spatial streams MRC802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 DFSCSD support |
802.11ac Wave 2 Capabilities | 802.11ac Wave 2 capabilities 4x4 MU-MIMO with three spatial streams MRC802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFSCSD support |
Integrated Antenna | Integrated Antenna Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90 Dedicated 5-GHz radio 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
Interfaces |
2802I/E
Management console port (RJ-45)USB 2.0 (enabled via future software) |
Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
Dimensions (W x L x H) | Access point (without mounting brackets): 2802I: 8.66" x 8.68" x 2.17" |
Weight | 3.53 lb (1.6 kg) |
Input Power Requirements | 802.3at PoE+, Cisco Universal PoE (Cisco UPOE)Â 802.3 at power injector (AIR-PWRINJ6) |
Power Draw |
26W at the PSE with all features enabled except for the USB 2.0 port. 30W at the PSE with the USB 2.0 port enabled |
Environmental |
Nonoperating (storage) temperature: -22 to 158F (-30 to 70C) Nonoperating (storage) altitude test: 25C, 15,000 ft. Operating temperature: 32 to 104F (0 to 40C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40C, 9843 ft |
System Memory | 1024 MB DRAM256 MB flash |
Â
[/specifications]
Cisco Air-Ap2802i-B-K9c Access Point is packed with versatile and flexible networking technology. It comes with wireless networking capability to meet evolving business requirements. Cisco Air-AP2802I-B-K9C provides internal antenna and B regulatory domain. Â
Cisco Air-Ap2802i-B-K9c Access Point supports new 802.11ac Wave 2 standard. It is perfect for large enterprise organizations that have constant Wi-Fi dependency for customer engagement. This series is a hands-off intelligent device to make decision based on end-device activities and usage.
Â
Â
Product Code | Â AIR-AP2802I-B-K9C |
Frequency Band and 20-MHz Operating Channels | B (B regulatory domain): - 2.412 to 2.462 GHz; 11 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.720 GHz; 12 channels - 5.745 to 5.825 GHz; 5 channels |
Antenna | Internal Antenna |
Features | - 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac Beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support |
Interfaces | - 2 x 100/1000BASE-T autosensing (RJ-45) - Management console port (RJ-45) - USB 2.0 (enabled via future software) |
System Memory | - 1024 MB DRAM - 256 MB flash |
Dimensions (W x L x H) | 8.66 x 8.68 x 2.17 in. |
Net Weight | 3.53 lb (1.6 kg) |
Â
Â
Â
Â
Â
Image below shows Ports and Connectors of the 2802I Model.
