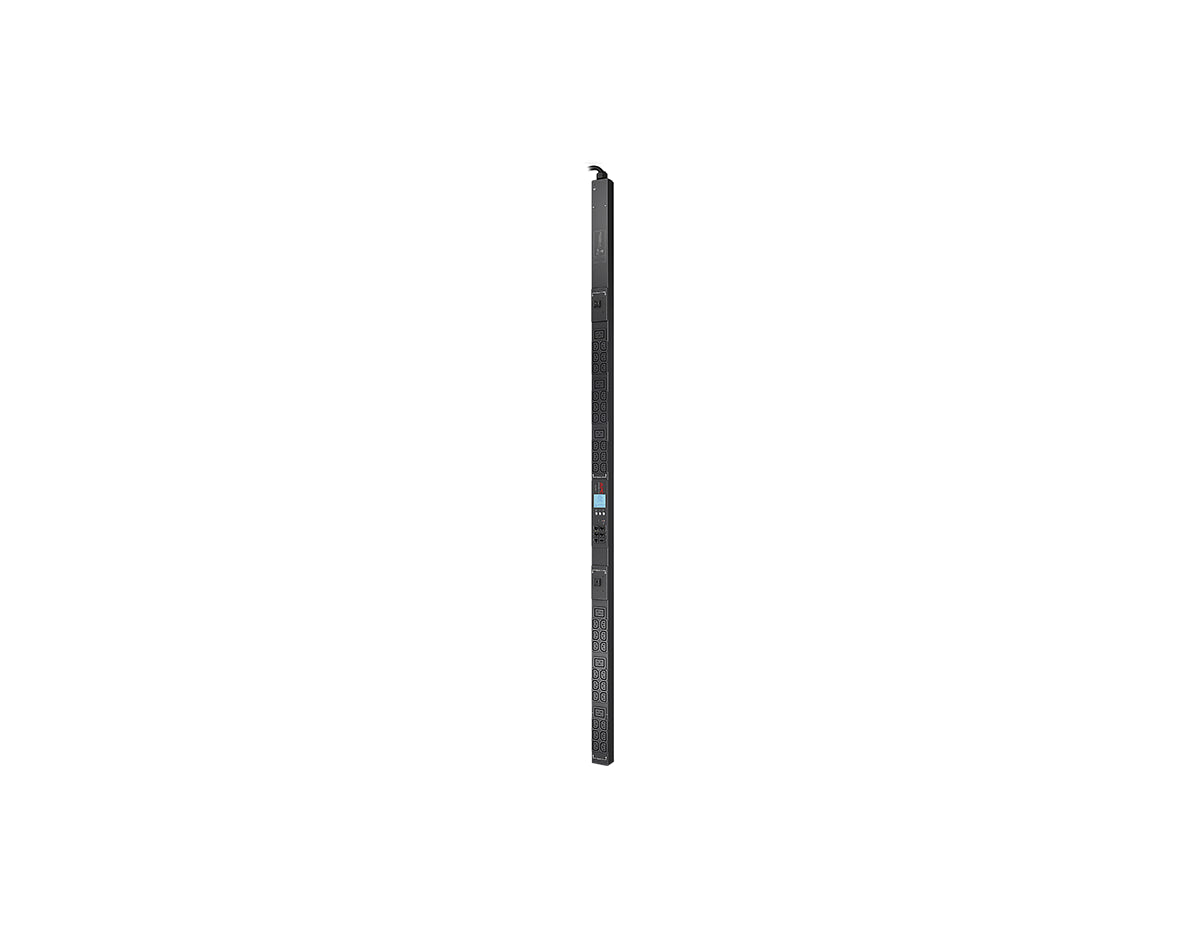

APC RACK PDU, 2G, METERED, 0U, 30A, 200V AND 208V, 36 C13 AND 6 C19 SOCKETS ( AP8841)

APC AP8841 Rack PDU, 2G, Metered, 0U, 30A, 200V and 208V

The APC AP8841 Rack PDU provides reliable rack power distribution with real-time remote monitoring and user-defined alarms to prevent potential circuit overloads. This metered PDU is designed for easy access, configuration, and management from remote locations, making it an ideal solution for critical equipment power management in data centers and IT environments.

Overview:

APC Metered Rack PDUs distribute reliable power via a single input with multiple output receptacles. The network management interface offers standards-based management via Web, SNMP, and Command Line Interface. The PDU provides (36) IEC 60320 C13 and (6) IEC 60320 C19 outlets with locking IEC receptacles to reduce the probability of accidental disconnection. Real-time monitoring of volts, amps, power (kW), and energy (kWh) supports energy management. An embedded log memory reports historic metered data. The unit is easily mountable in racks or enclosures, occupying zero U of valuable rack space. Environmental monitoring ports are available for external temperature/humidity sensors (sold separately).

Main Features:

• Main Input Voltage: 200 V / 208 V
• PDU Type: Metered
• Main Output Voltage: 200 V / 208 V
• Input Connection Type: NEMA L6-30P
• Number of Rack Units: 0U
• Cable Length: 9.84 ft (3.00 m)
• Number of Cables: 1
• Provided Equipment: Installation guide, Rack Mounting brackets, Serial configuration cable, Safety guide

Physical Specifications:

• Color: Black
• Height: 70.51 in (179.1 cm)
• Width: 2.20 in (5.6 cm)
• Depth: 1.73 in (4.4 cm)
• Net Weight: 15.08 lb (6.84 kg)
• Mounting Location: Side
• Mounting Position: Vertical
• USB Compatible: No

Input Specifications:

• Line Rated Current: 24 A
• Acceptable Input Voltage: 200…240 V
• Input Current Limits: 30 A
• Load Capacity: 4992 VA
• Input Frequency: 50/60 Hz

Output Specifications:

• Number of Power Socket Outlets: 36 IEC 60320 C13, 6 IEC 60320 C19

Conformance:

• Product Certifications: METI Denan, PSE, VDE
• Standards: CSA C22.2 No. 60950, IEC 60950, UL 60950-1

Environmental Specifications:

• Operating Temperature: 23…140 °F (-5…60 °C)
• Relative Humidity: 5…95 %
• Operating Altitude: 0...10000 ft
• Storage Temperature: -13…149 °F (-25…65 °C)
• Storage Relative Humidity: 5…95 %
• Storage Altitude: 0…50000 ft (0.00…15240.00 m)

Ordering and Shipping Details:

• Category: 11309 - APC Resale Products
• GTIN: 731304277002
• Returnability: No
• Packing Units:
  • Package Type: 1 PCE
  • Number of Units in Package: 1
  • Package Height: 78.74 in (200 cm)
  • Package Width: 4.21 in (10.7 cm)
  • Package Length: 6.38 in (16.2 cm)
  • Package Weight: 18.67 lb (8.47 kg)

Offer Sustainability:

• Sustainable Offer Status: Green Premium product
• REACh Regulation: REACh Declaration
• EU RoHS Directive: Compliant EU RoHS Declaration
• Lead Free: Yes
• Mercury Free: Yes
• RoHS Exemption Information: Yes
• Environmental Disclosure: Product Environmental Profile
• Circularity Profile: End Of Life Information
• Optimized Energy Efficiency: Energy efficient product
• Take-back Program: Available
