AXIS M4218-V DOME CAMERA
| Model: | 02678-001 |
| Detail: |
|
| List Price: | |
| Price: | $495.00 |
| You Save: | $24.00 (5% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

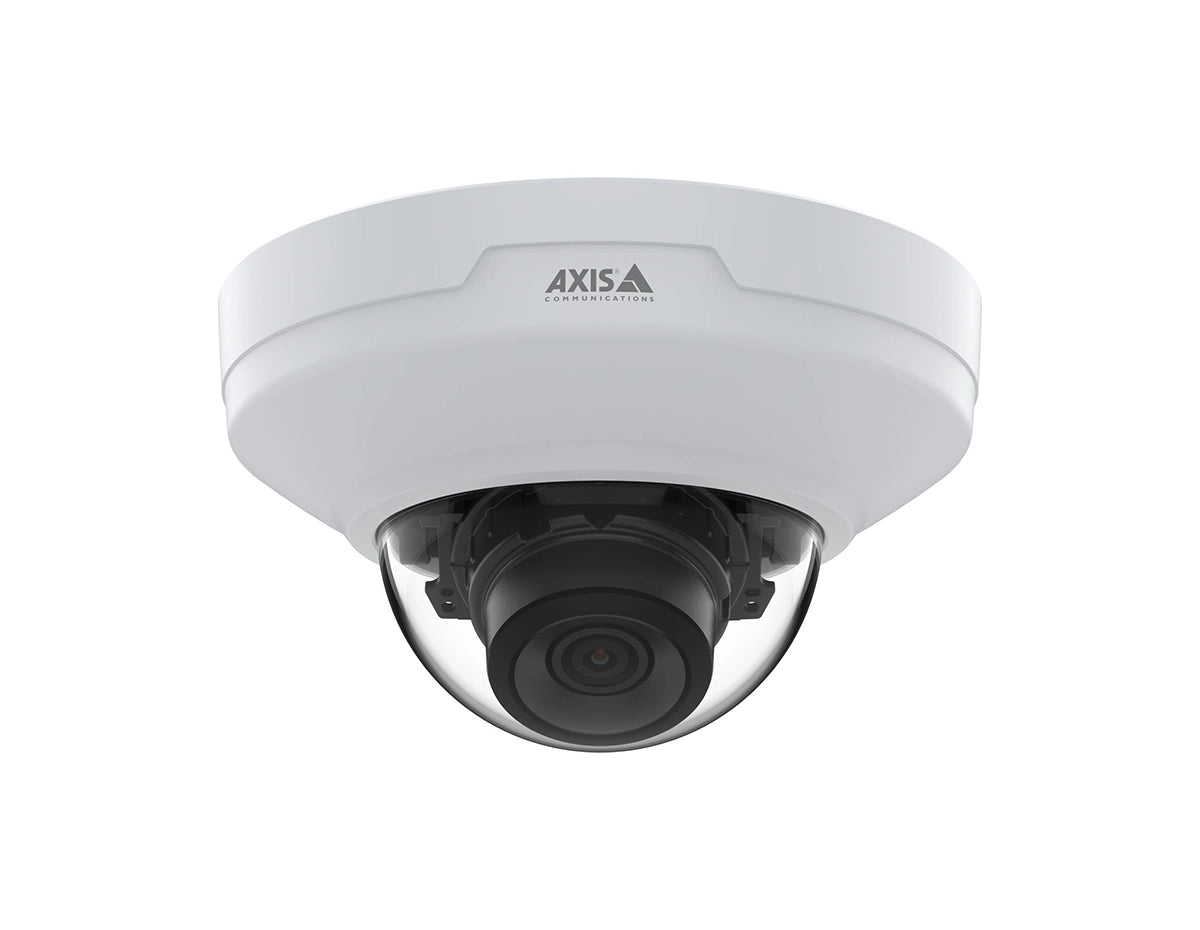

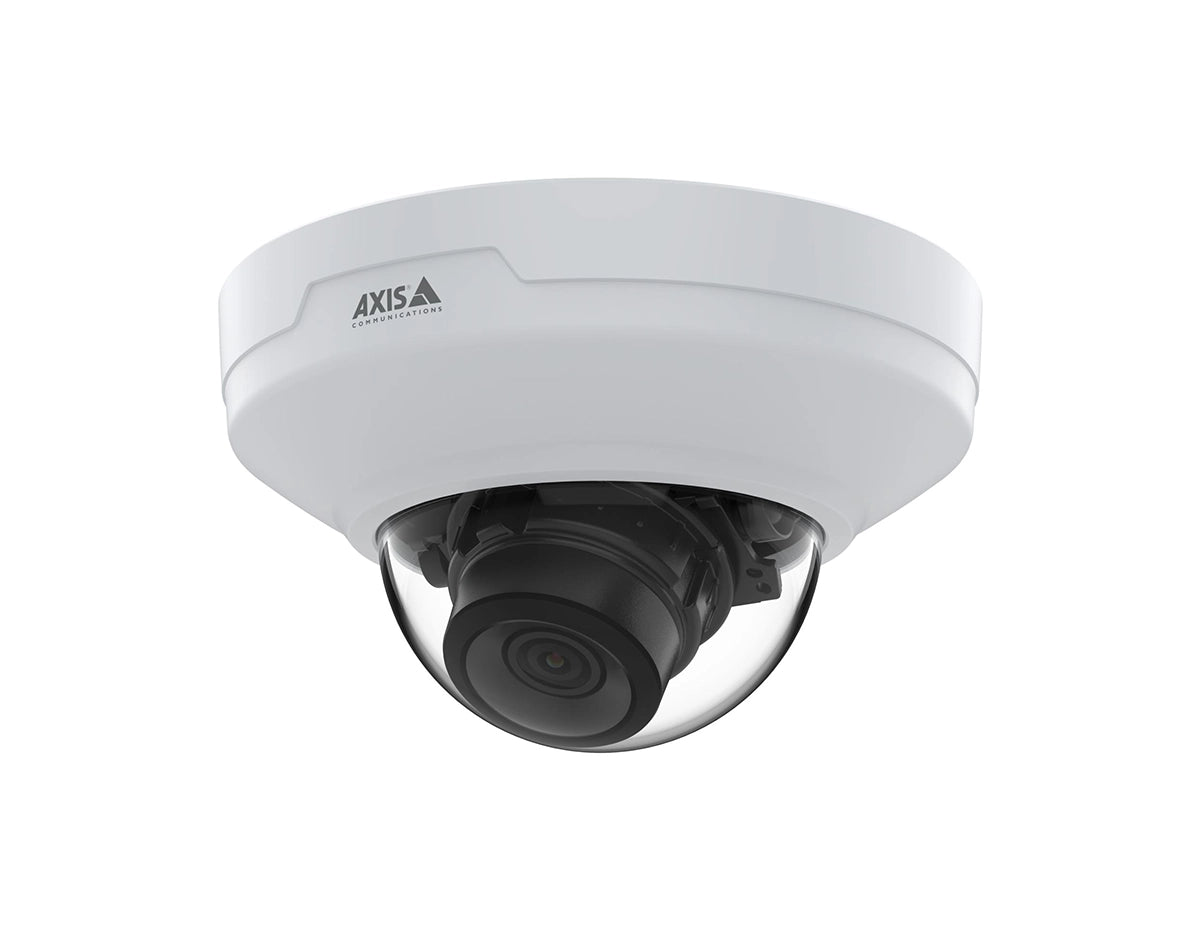

AXIS M4218-V Dome Camera (02678-001)
The AXIS M4218-V is a dome camera that provides exceptional image quality of 4K ultra-HD (8 MP) and includes a varifocal lens with remote zoom and focus for a versatile field of view. The camera is equipped with advanced features such as WDR, enabling surveillance in challenging lighting conditions, and Analytics with deep learning. With Axis Object Analysis, M4218-V can effortlessly identify moving objects like humans and vehicles. This indoor dome camera is cost-effective and easy to install, thanks to its sleek and discrete design.
Quick Specs:
- Great image quality in superior 4K
- Varifocal lens with remote zoom and focus
- HDMI output for public viewing monitors
- WDR for difficult light conditions
Please see the related tabs for the 02678-001 datasheet and compatible accessories.
| Feature | AXIS M4215-LV | AXIS M4215-V | AXIS M4216-LV | AXIS M4216-V | AXIS M4218-LV | AXIS M4218-V |
|---|---|---|---|---|---|---|
| Max video resolution | 1920x1080 | 1920x1080 | 2304x1728 | 2304x1728 | 3840x2160 | 3840x2160 |
| Horizontal field of view | 93-47 | 93-47 | 100-45 | 100-45 | 93-47 | 93-47 |
| Lightfinder | Lightfinder | Lightfinder | Lightfinder | Lightfinder | Lightfinder | Lightfinder |
| Wide dynamic range | WDR | WDR | WDR | WDR | WDR | WDR |
| OptimizedIR | ✓ | – | ✓ | – | ✓ | – |
| Remote zoom | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Remote focus | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Analytics compute capability | DLPU | DLPU | DLPU | DLPU | DLPU | DLPU |
| Zipstream | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| HDMI Output | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Vandal rating | IK08 | IK08 | IK08 | IK08 | IK08 | IK08 |
| Axis Edge Vault | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Accessories
| Optional accessories | • AXIS T8415 Wireless Installation Tool • AXIS TM4201 Recessed Mount • AXIS TM3207 Recessed Mount • AXIS T94C01L Recessed Mount • AXIS T94C01U Universal Mount • AXIS T94C01M J-Box/Gang Box Plate • AXIS M42 Casing A Black 4P • AXIS M42 Smoked Dome A 4P • AXIS T91A33 Lighting Track Mount • AXIS T91A23 Tile Grid Ceiling Mount • AXIS TM4101 Pendant Kit • AXIS TM3101 Pendant Wall Mount • AXIS Surveillance Cards |
Specifications
| Specifications | AXIS M4218-V Dome Camera |
| Camera | |
| Image sensor | 1/2.8” progressive scan RGB CMOS |
| Lens | Varifocal, 3.5–6.6 mm, F1.7 - 2.6 |
| Horizontal field of view: 93°–47° | |
| Vertical field of view: 50°–26° | |
| Minimum focus distance: 1.5 m (59 in) | |
| Day and night | Automatic IR-cut filter |
| Minimum illumination | Color: 0.24 lux at 50 IRE F1.7 |
| B/W: 0.04 lux at 50 IRE F1.7 | |
| Shutter speed | 1/71500 s to 1/5 s |
| Camera angle adjustment | Pan ±180°, tilt -40 to +65°, rotation ±105° |
| Can be directed in any direction and see the wall/ceiling | |
| System on chip (SoC) | |
| Model | CV25 |
| Memory | 2048 MB RAM, 512 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 3840x2160 to 320x240 |
| Frame rate | Up to 12.5/15 fps with power line frequency 50/60 Hz in H.264 and H.265 |
| (Reduced frame rate in Motion JPEG) | |
| Video streaming | Multiple, individually configurable streams* |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| *: We recommend a maximum of 3 unique video streams per camera or channel, for optimized user experience, network bandwidth, and storage utilization. A unique video stream can be served to many video clients in the network using multicast or unicast transport methods via built-in stream reuse functionality | |
| Multi-view streaming | 2 individually cropped-out view areas |
| HDMI output | HDMI 1080p (16:9) @25/30 Hz refresh rate |
| HDMI 720p (16:9) @50/60 Hz refresh rate | |
| Noise reduction | Spatial filter (2D noise reduction) |
| Temporal filter (3D noise reduction) | |
| Image settings | Compression, color, brightness, sharpness, contrast, white |
| balance, exposure control, motion-adaptive exposure, WDR: up | |
| to 110 dB depending on scene, text and image overlay, mirroring | |
| of images, privacy mask | |
| Rotation: 0°, 90°, 180°, 270°, including Corridor Format | |
| Pan/Tilt/Zoom | Digital PTZ |
| Audio | |
| Audio output/output | Audio features through portcast technology: two-way audio |
| connectivity, voice enhancer | |
| Network | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer |
| 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, | |
| RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, | |
| ARP, SSH, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-click cloud connection | |
| ONVIF® Profile G, M, S and T, specification at onvif.org | |
| Video management systems | Compatible with AXIS Companion, AXIS Camera Station, video |
| management software from Axis’ Application Development | |
| Partners available at axis.com/vms | |
| Onscreen controls | Privacy masks |
| Media clip | |
| Event conditions | Application |
| Device status: above operating temperature, above or below | |
| operating temperature, below operating temperature, within | |
| operating temperature, IP address removed, new IP address, | |
| network lost, system ready, live stream active | |
| Edge storage: recording ongoing, storage disruption, storage | |
| health issues detected | |
| I/O: manual trigger, virtual input | |
| MQTT: subscribe | |
| Scheduled and recurring: schedule | |
| Video: average bitrate degradation, day-night mode, tampering | |
| Event actions | Day-night mode |
| MQTT: publish | |
| Notification: HTTP, HTTPS, TCP and email | |
| Overlay text | |
| Pre- and post-alarm video or image buffering for recording or upload | |
| Recordings: SD card and network share | |
| SNMP traps: send, send while the rule is active | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share and email | |
| WDR mode | |
| Built-in installation aids | Pixel counter, remote zoom and focus, level grid |
| Analytics | |
| AXIS Object Analytics | Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Scenarios: line crossing, object in area, occupancy in area, time | |
| in area | |
| Up to 10 scenarios | |
| Metadata visualized with color-coded bounding boxes | |
| Polygon include/exclude areas | |
| Perspective configuration | |
| ONVIF Motion Alarm event | |
| Metadata | Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
| Attributes: Vehicle color, upper/lower clothing color, confidence, position | |
| Event data: Producer reference, scenarios, trigger conditions | |
| Applications | Included |
| AXIS Object Analytics, AXIS Video Motion Detection, | |
| AXIS Face Detector, AXIS Live Privacy Shield, active tampering alarm | |
| Supported | |
| AXIS Camera Application Platform enabling installation of | |
| third-party applications, see axis.com/acap | |
| Approvals | |
| Product markings | CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| EMC | CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, |
| EN 61000-6-1, EN 61000-6-2 | |
| USA: FCC Part 15 Subpart B Class A | |
| Canada: ICES-3(A)/NMB-3(A) | |
| Korea: KS C 9835, KS C 9832 Class A | |
| Australia/New Zealand: RCM AS/NZS CISPR 32 Class A | |
| Japan: VCCI Class A | |
| Safety | IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IS 13252 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC/EN 60529 IP42, IEC/EN 62262 IK08 | |
| Network | NIST SP500-267 |
| Cybersecurity | |
| Edge security | Software: Signed firmware, brute force delay protection, digest |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization | |
| Code Flow for centralized ADFS account management, password | |
| protection, AES-XTS-Plain64 256bit SD card encryption | |
| Hardware: Axis Edge Vault cybersecurity platform | |
| Secure element (CC EAL 6+), system-on-chip security (TEE), Axis | |
| device ID, secure keystore, signed video, secure boot, encrypted | |
| filesystem (AES-XTS-Plain64 256bit) | |
| Network security | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, |
| HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 | |
| Certificate PKI, IP address filtering | |
| Documentation | AXIS OS Hardening Guide |
| Axis Vulnerability Management Policy | |
| Axis Security Development Model | |
| AXIS OS Software Bill of Material (SBOM) | |
| General | |
| Casing | IP42 ingress protection, IK08 impact-resistant, polycarbonate |
| and aluminum casing with hard-coated dome | |
| Encapsulated electronics | |
| Color: white NCS S 1002-B | |
| For repainting instructions of casing and impact on warranty, | |
| contact your Axis partner. | |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 |
| Typical 3 W, max 4.8 W | |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| HDMI type D | |
| Audio: Audio and I/O connectivity via portcast technology | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Recording to network-attached storage (NAS) | |
| For SD card and recorder recommendations, see axis.com | |
| Operating conditions | 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity 10–85% RH (non-condensing) | |
| Storage conditions | (-30 °C to 65 °C) (-22 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) | |
| Dimensions | Height: 71 mm (2.8 in) |
| ø 120 mm (4.72 in) | |
| Weight | 356 g (0.78 lb) |
| Box content | Camera, installation guide, owner authentication key, virtual |
| client license for H.264/H.265 | |
| System tools | AXIS Site Designer, AXIS Device Manager, product selector, |
| accessory selector, lens calculator | |
| Available at axis.com | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional | |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese | |
| Sustainability | |
| Substance control | PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard |
| JS709 | |
| RoHS in accordance with EU RoHS Directive 2011/65/EU/ and | |
| EN 63000:2018 | |
| REACH in accordance with (EC) No 1907/2006. For SCIP UUID, | |
| see echa.europa.eu | |
| Materials | Renewable carbon-based plastic content: 38.9% (recycled) |
| Screened for conflict minerals in accordance with OECD | |
| guidelines | |
| To read more about sustainability at Axis, go to | |
| axis.com/about-axis/sustainability | |
| Environmental responsibility | axis.com/environmental-responsibility |
| Axis Communications is a signatory of the UN Global Compact, | |
| read more at unglobalcompact.org | |
Properties
| Properties | AXIS M4218-V Dome Camera |
| Description | The AXIS M4218-V is a discreet 8 MP dome camera with superior 4K image quality and varifocal lens. Featuring WDR for challenging light conditions, it includes a deep learning processing unit for intelligent analytics. Designed to blend seamlessly into any environment, it offers HDMI output and the flexibility to add audio and I/O connectivity using AXIS T61 Series. Axis Edge Vault ensures hardware-based cybersecurity for the device. |
| Product Family | AXIS M4218-V Dome Camera |
| Product Type | Camera |
