FORTINET FS-124F-FPOE SWITCH
| Model: | FS-124F-FPOE |
| Detail: |
|
| List Price: | |
| Price: | $665.00 |
| You Save: | $930.00 (58% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

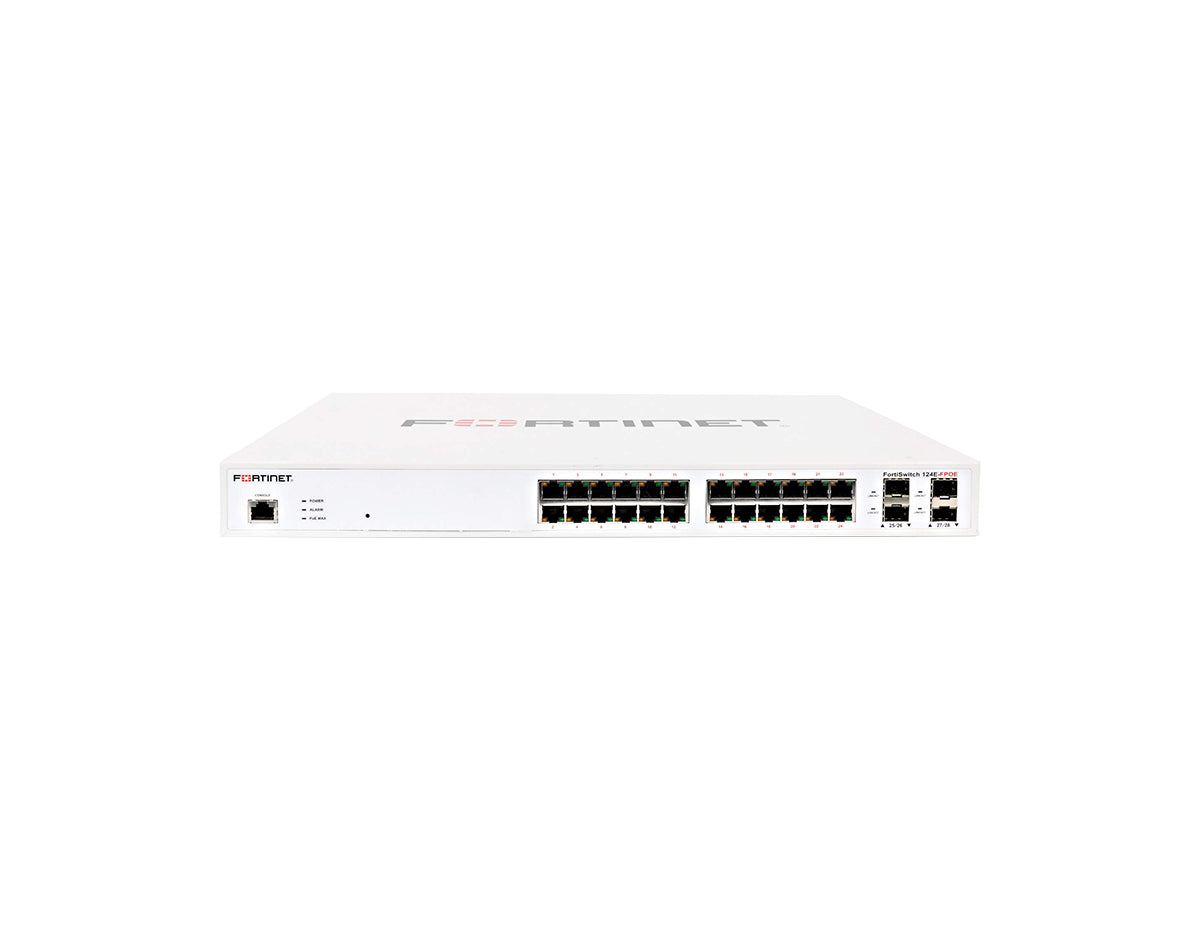

Fortinet FS-124F-FPOE Switch
The FS-124F-FPOE is a stackable switch that offers a switching capacity of 128 Gbps. It is well-suited for SD-Branch and campus deployments and can be integrated with the FortiGate NGFW using the management protocol FortiLink. Additionally, it is compatible with non-FortiLink deployments. It is equipped with 24x GE RJ45 ports, 4x 10GE SFP+ ports, and 24 PoE ports.
Quick Specs:
- 1RU Rackmount
- 24x GE RJ45 ports + 4x 10GE SFP+ ports + 24 PoE ports
- Layer2 FortiGate switch controller compatible PoE+ switch
- Packets Per Second (Duplex): 190 Mpps
Please see the related tabs for the FS-124F-FPOE datasheet and compatible accessories.
Specifications
| Switching Capacity (Duplex) | 128 Gbps |
| Packets Per Second (Duplex) | 190 Mpps |
| MAC Address Storage | 32 K |
| Network Latency | < 1µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | 16 |
| Packet Buffers | 2 MB |
| DRAM | 512 MB DDR3 |
| FLASH | 64 MB |
| ACL | 768 |
| Spanning Tree Instances | 16 |
| Route Entries (IPv4/IPv6) | - |
| Multicast Route Entries | - |
| Host Entries | - |
| Dimensions in. | 1.73 x 10.24 x 17.32 |
| Power Required | 100240V AC, 50-60 Hz |
| Power Supply | AC built in |
| Redundant Power | No |
| Power Consumption (Average / Maximum) | 449.8 W / 451.3 W |
| Heat Dissipation | 118.327 BTU/h |
| Operating Temperature | 32°113°F (0°45°C) |
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
| Warranty | Fortinet Limited Lifetime Warranty |
Properties
| Properties | FS-124F-FPOE |
| Description | Layer 2 FortiGate switch controller compatible PoE+ switch with 24 GE RJ45 + 4 10G SFP+ ports, 24 port PoE with maximum 370 W limit |
| Product Family | FortiSwitch |
| Product Type | Switch |
| Total Network Interfaces | 24x GE RJ45 and 4x 10GE SFP+ |
| Dedicated Management 10/100/1000 Ports |
0 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 24 (802.3af/at) |
| PoE Power Budget (single/dual PSU) |
370 W |
| Mean Time Between Failures | > 10 years |
