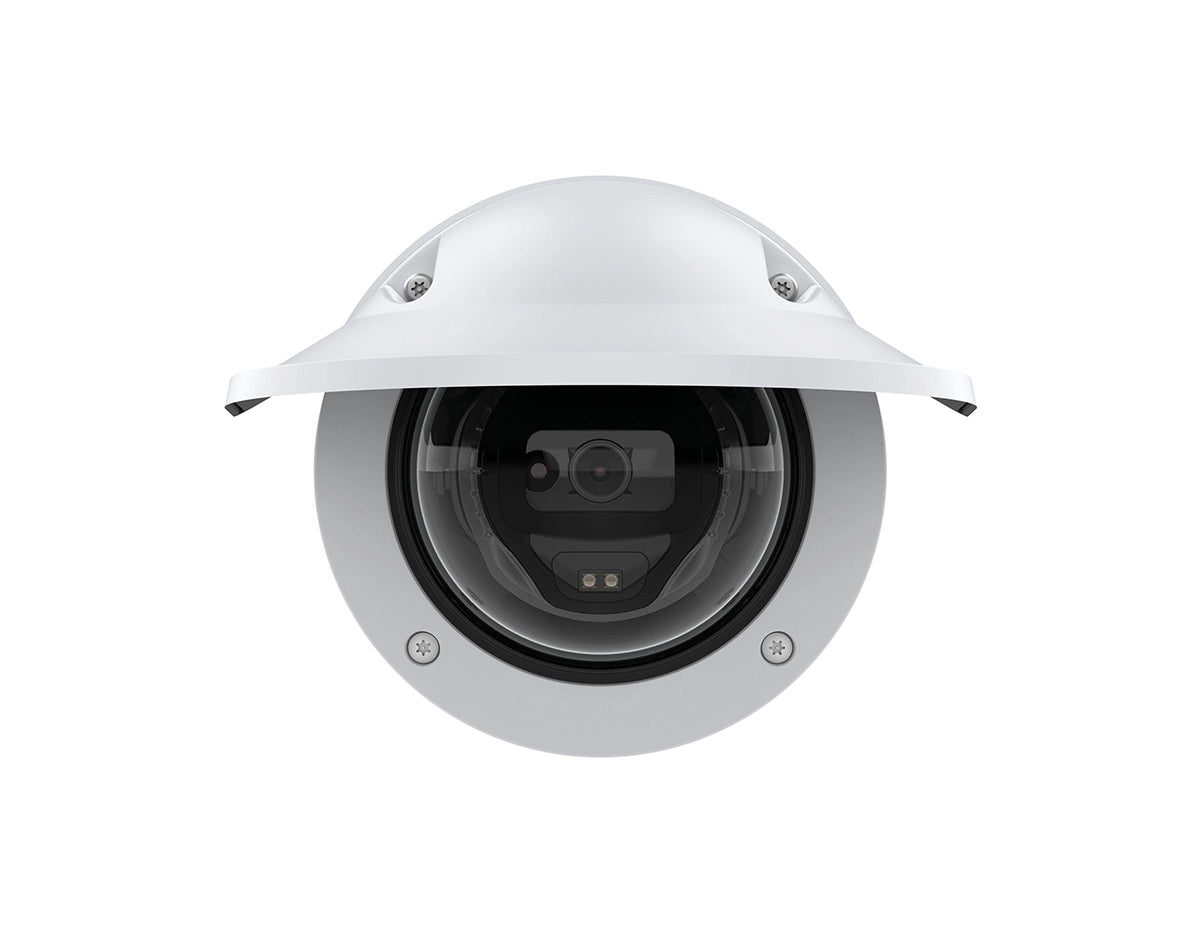

AXIS M3216-LVE NETWORK CAMERA

Accessories

Optional accessories

• AXIS TP3823-E Weathershield Black • AXIS TP3821-E Casing Black • AXIS TM3815-E Dome Smoked • AXIS Surveillance Cards

Specifications

Specifications	AXIS M3216-LVE Network Camera
Camera
Image sensor	1/2.7” progressive scan RGB CMOS
Lens	2.9 mm, F2.0
	Horizontal field of view: 102°
	Vertical field of view: 73°
	Minimum focus distance: 1.0 m (3.3 ft)
	Fixed iris, IR corrected
Day and night	Automatic IR-cut filter
	Hybrid IR filter
Minimum illumination	With WDR and Lightfinder:
	Color: 0.16 lux at 50 IRE, F2.0
	B/W: 0 lux at 50 IRE, F2.0
	0 lux with IR illumination on
Shutter speed	1/50000 s to 1/5 s
Camera angle adjustment	Pan ±190°
	Tilt -10 to +80°
	Rotation ±190
System on chip (SoC)
Model	ARTPEC-8
Memory	1024 MB RAM, 8192 MB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	16:9: 2688x1512 to 160x90
	4:3: 2304x1728 to 160x120
Frame rate	Up to 30/25 fps (60/50 Hz) in all resolutions
Video streaming	Multiple, individually configurable streams in H.264, H.265, and
	Motion JPEG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265
	Low latency mode
Multi-view streaming	Up to 8 individually cropped out view areas
Image settings	Saturation, contrast, brightness, sharpness, Forensic WDR: Up to
	120 dB depending on scene, white balance, day/night threshold,
	local contrast, tone mapping, exposure mode, exposure zones,
	defogging, barrel distortion correction, compression, rotation: 0°,
	90°, 180°, 270° including Corridor Format, mirroring, dynamic
	text and image overlay, polygon privacy mask
Pan/Tilt/Zoom	Digital PTZ
Audio
Audio streaming	Two-way audio via edge-to-edge technology
Audio encoding	AAC 8/16/32/44.1/48 kHz, G.711 8 kHz, G.726 8 kHz, Opus
	8/16/48 kHz, LPCM 48 kHz
	Configurable bit rate
Audio output/output	External microphone input or line input, ring power, digital audio
	input, automatic gain control
	Network speaker pairing
Network
Network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS
	Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),
	UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP,
	RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6,
	ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC
	3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
System Integration
Application Programming Interface	Open API for software integration, including VAPIX® and
	AXIS Camera Application Platform; specifications at axis.com
	One-click cloud connection
	ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
	ONVIF® Profile T, specification at onvif.org
	Support for Session Initiation Protocol (SIP) for integration with
	Voice over IP (VoIP) systems, peer to peer or integrated with
	SIP/PBX.
Onscreen controls	Day/night shift
	Defogging
	Wide dynamic range
	Video streaming indicator
	IR illumination
	Enable-disable all privacy masks
	Play media clip
Event conditions	Analytics, external input, supervised external input, virtual inputs
	through API
	Digital audio: digital signal contains Axis metadata, digital signal
	has invalid sample rate, digital signal missing, digital signal okay
	I/O: digital input, manual trigger, virtual input
	Device status: above operating temperature, above or below
	operating temperature, below operating temperature, within
	operating temperature, IP address removed, new IP address,
	network lost, system ready, ring power overcurrent protection,
	live stream active, casing open
	Call: state, state change
	Video: average bitrate degradation, day-night mode, live stream
	open, tampering
	Audio: audio detection, audio clip playing, audio clip currently
	playing
	Edge storage: recording ongoing, storage disruption, storage
	health issues detected
	Scheduled and recurring: schedule
	MQTT: stateless
Event actions	Overlay text, day/night mode, flash status LED, use lights, set
	defog mode, set WDR mode
	I/O: toggle I/O once, toggle I/O while the rule is active
	MQTT: publish
	Notification: HTTP, HTTPS, TCP and email
	Audio clips: play, stop
	Record video: SD card and network share
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
	share and email
	Pre- and post-alarm video or image buffering for recording or
	upload
	Calls: answer call, end SIP call, make SIP call
	SNMP traps: send, send while the rule is active
Data streaming	Event data
Built-in installation aids	Pixel counter, straighten image, level grid
Analytics
AXIS Object Analytics	Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
	Scenarios: line crossing, object in area, crossline counting,
	occupancy in area, time in area
	Up to 10 scenarios
	Metadata visualized with trajectories, color-coded bounding
	boxes and tables
	Polygon include/exclude areas
	Perspective configuration
	ONVIF Motion Alarm event
Applications	Included
	AXIS Object Analytics, AXIS Video Motion Detection, active
	tampering alarm, audio detection
	AXIS Live Privacy Shield
	Supported
	Support for AXIS Camera Application Platform enabling
	installation of third-party applications, see axis.com/acap
Approvals
EMC	EN 55032 Class A, EN 61000-6-1, EN 61000-6-2
	Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
	Canada: ICES-3(A)/NMB-3(A)
	Japan: VCCI Class A
	Korea: KC KN35KC, KN32 Class A
	USA: FCC Part 15 Subpart B Class A
Safety	IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471 risk group
	exempt, IS 13252
Environment	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
	IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66,
	IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
Network	NIST SP500-267
Cybersecurity
Edge security	Software: Signed firmware, brute force delay protection, digest
	authentication and OAuth 2.0 RFC6749 OpenID Authorization
	Code Flow for centralized ADFS account management, password
	protection
	Hardware: Axis Edge Vault cybersecurity platform
	Secure element (CC EAL 6+), system-on-chip security (TEE), Axis
	device ID, secure keystore, signed video, secure boot, encrypted
	filesystem (AES-XTS-Plain64 256bit)
Network security	IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR,
	HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509
	Certificate PKI, IP address filtering
Documentation	AXIS OS Hardening Guide
	Axis Vulnerability Management Policy
	Axis Security Development Model
	AXIS OS Software Bill of Material (SBOM)
General
Casing	IP66-, NEMA 4X- and IK10-rated
	Polycarbonate hard-coated dome
	Plastic casing, sunshield (PC/ASA)
	Color: white NCS S 1002-B
	For repainting instructions, go to the product’s support
	page. For information about the impact on warranty, go to
	axis.com/warranty-implication-when-repainting.
	This product can be repainted.
Mounting	Mounting bracket with junction box holes (double-gang,
	single-gang, and 4” octagon) and for wall or ceiling mount
	½” (M20) or ¾” (M25) conduit side entry, with conduit adapter
Sustainability	PVC free, 4.1% recycled plastics
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
	Typical 4.8 W, max 10.8 W
Connectors	Network: Shielded RJ45 10BASE-T/100BASE-TX PoE
	I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised
	digital input and 1 digital output (12 V DC output, max. Load 25 mA)
	Audio: 3.5 mm mic/line in
IR illumination	OptimizedIR with power-efficient, long-life 850 nm IR LEDs
	Range of reach 30 m (98 ft) or more depending on the scene
Storage	Support for microSD/microSDHC/microSDXC card and encryption
	Recording to network-attached storage (NAS)
	For SD card and NAS recommendations see axis.com
Operating conditions	(-40 °C to 50 °C) (-40 °F to 122 °F)
	Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
	(165 °F)
	Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F)
	Humidity 10–100% RH (condensing)
Storage conditions	(-40 °C to 65 °C) (-40 °F to 149 °F)
	Humidity 5–95% RH (non-condensing)
Dimensions	Without weathershield:
	Height: 102 mm (4.0 in)
	ø 149 mm (5.9 in)
Weight	With weathershield:
	791 g (1.74 lb)
Included accessories	Installation guide, Windows® decoder 1-user license, drill hole
	template, RESISTORX® TR20 bit, terminal block connector, cable
	gaskets, connector guard, weathershield
Video management software	AXIS Companion, AXIS Camera Station, video management
	software from Axis Application Development Partners available
	at axis.com/vms
Languages	English, German, French, Spanish, Italian, Russian, Simplified
	Chinese, Japanese, Korean, Portuguese, Polish, Traditional
	Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Sustainability
Substance control	PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard
	JS709
	RoHS in accordance with EU RoHS Directive 2011/65/EU/ and
	EN 63000:2018
	REACH in accordance with (EC) No 1907/2006. For SCIP UUID,
	see echa.europa.eu
Materials	Renewable carbon-based plastic content: 12% (bio-based)
	Screened for conflict minerals in accordance with OECD guidelines
	To read more about sustainability at Axis, go to
	axis.com/about-axis/sustainability
Environmental responsibility	axis.com/environmental-responsibility
	Axis Communications is a signatory of the UN Global Compact,
	read more at unglobalcompact.org

Properties

Properties	AXIS M3216-LVE Network Camera
Description	The AXIS M3216-LVE is a cost-effective 4 MP dome camera with Lightfinder, Forensic WDR, and OptimizedIR for excellent image quality in any light. Built on ARTPEC-8, it features deep learning analytics, providing valuable metadata for efficient forensic searches. AXIS Object Analytics enables detection and classification tailored to specific needs, and audio/I/O connectivity allows easy system integration. Built-in cybersecurity features ensure the security of your surveillance system.
Product Family	AXIS M3216-LVE Network Camera
Product Type	Camera
