Unmanaged, Rack-mountable, 26 x 1G ports, 12 x PoE (100W), 2 x SFP combo Uplinks, Layer 2

[/shortdesc]

[properties]

Properties	CBS110-24PP
Description	24 10/100/1000 ports (12 support PoE with 100W power budget) 2 Gigabit SFP (combo with 2 10/100/1000 ports)
Product Family	CBS 110 Series
Product Type	Small Business Switch
Number of Ports	24
RJ-45 ports	24 Gigabit Ethernet
Downlinks total 10/100/1000 ports	24
Power dedicated to PoE	100W
Number of ports that support PoE	12
Power	100 to 240V, 50 to 60 Hz, internal, universal
Fans	Fanless
Unit dimensions in. (W x D x H)	17.32 x 7.97 x 1.73
Rack-mountable	Yes

[/properties]

[specifications]

Specifications	CBS110-24PP
Capacity in millions of packets	35.7 mpps
Switching capacity	48 Gbps
Flash Memory	8 MB
CPU	400 MHz ARM
CPU Memory	64 MB
Packet Buffer	2 Mbit
MAC addresses	8K
Head-of-line (HOL) blocking	HOL blocking prevention
Quality of Service (QoS)	802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection	Helps discover loops in the network to avoid broadcast storms
Cable diagnostics	Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface	Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Operating Temperature	32° to 104°F (0° to 40°C)
Operating humidity	10% to 90%, relative, noncondensing
Compliance/certifications	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models

[/specifications]

[accesories]

Hardware
LEDs	Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE.
Cabling type	Category 5e or better
Mounting options	Desktop, wall-mount or rack mount
Physical security lock	Kensington lock slot
Accessories	There is no additional accessories other than the power supply and the mounting kit which are included with the device package .
Supported SFP modules
MGBSX1	Multimode fiber
MGBLX1	Single-mode fiber
MGBLH1	Single-mode fiber
MGBT1	UTP cat 5e
Package contents
Cisco Business 110 Series switch
Power cord or adapter
Quick start guide
Mounting kit
Minimum requirements
Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet
Cat5e or better Ethernet cable
Network interface card for each computer

[/accesories]

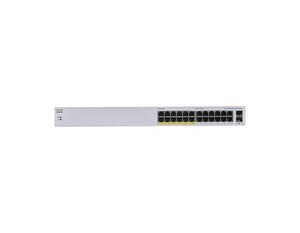

Cisco CBS110-24PP Switch

The Cisco CBS110-24PP is a 24-port Gigabit Ethernet switch that includes Power over Ethernet (PoE) capabilities, designed to provide fast and reliable networking for small to medium-sized businesses. With 12 PoE ports and a total power budget of 100W, this switch simplifies the deployment of IP phones, cameras, and other network devices without the need for additional power outlets. The fanless design ensures silent operation, making it an excellent choice for office environments.

Key Features:

24 x Gigabit Ethernet Ports: Provides high-speed connections for various devices, including computers, printers, and IP phones.
12 x PoE Ports with 100W Budget: Powers IP devices such as cameras and phones directly over Ethernet.
Energy-Efficient Design: Complies with IEEE 802.3az standards, reducing power consumption when network traffic is low.
Fanless Operation: Silent performance ideal for noise-sensitive environments such as offices.
Plug-and-Play: No configuration required for immediate deployment.

Technical Overview:

Recommended for: Small businesses, retail environments, and branch offices.
Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports, 12 PoE-enabled.
PoE Budget: 100W across 12 ports.
Switching Capacity: 48 Gbps.
Forwarding Rate: 35.7 Mpps.
Energy Efficiency: Meets IEEE 802.3az standards for power-saving operation.

You can check the related tab for the CBS110-24PP datasheet.
