Cisco Catalyst 1000 Series Switches

Cisco Catalyst 1000 Series Switches

Cisco Catalyst 1000 Series are ideal if you are looking for an easy-to-use network switch for a small office. Intuitive CLI interface makes it especially suitable for businesses where time is of the essence, and there is not an engineer dedicated to the networking system. The series offer:

    - 8,16, 24, and 48 port options

    - Rack, magnet, and wall mount options

    - Resiliency against power shortages

Note: 48 Port models do not have fanless models, while 24 port options have fans only on non-fully PoE models.

Cisco Catalyst 1000 Series Switches

Show on page:

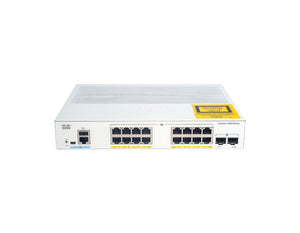

  • Cisco C1000-16FP-2G-L Switch
    Save $1,220.09

    CISCO C1000-16FP-2G-L SWITCH

    CISCO C1000-16FP-2G-L SWITCH

    $1,350.00
    $2,570.09

    • Switch, managed, 16x 10/100/1000 Ethernet PoE+ ports and 240W PoE budget, 2x 1G SFP uplinks



    Properties C1000-16FP-2G-L
    Description 16x 10/100/1000 Ethernet PoE+ ports and 240W PoE budget, 2x 1G SFP uplinks
    Product Family Catalyst 1000
    Product Type Ethernet Switch
    Number of Ports 16
    Uplink Interfaces 2 SFP
    Available PoE power 240W
    Fanless Yes
    Height 10.56"
    Depth 12.14"
    Width 1.73"



    [specifications]

    Specifications C1000-16FP-2G-L
    Console Ports 1x RJ-45 Ethernet
    1x USB mini-B
    1x USB-A port for storage and Bluetooth console
    CPU ARM v7 800 MHz
    DRAM 512 MB
    Flash Memory 256 MB
    Forwarding Bandwidth 18 Gbps
    Switching Bandwidth 36 Gbps
    MAC addresses 16000
    Maximum Active VLANs 256
    Operating Temperature
    Up to 5,000 ft (1500 m)
    -5 to 45 deg C
    Operating Temperature
    Up to 10,000 ft (3000 m)
    -5 to 40 deg C
    Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1
    Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
    GB 4943.1-2011
    EMC: emissions 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A,
    ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A,
    CNS13438 Class A
    EMC: immunity EN55024 (including EN 61000-4-5), EN300386, KN35
    Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
    Telco Common Language Equipment Identifier (CLEI) code
    U.S. Government certifications USGv6 and IPv6 Ready Logo
    Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling
    100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
    1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
    1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
    Telnet - SSH Yes
    TACACS, TACACS+, Radius Yes

    [/specifications]

    Part Number Description In Stock
    CAB-CONSOLE-RJ45 Console Cable 6 Feet with RJ-45 Yes
    CAB-CONSOLE-USB Console Cable 6 Feet with USB Type A and mini-B Connectors Yes
    PWR-CLP Power Cable Restraining Clip No
    RCKMNT-19-CMPCT 19” Rack Mount bracket for C1000, 3560-CX and 2960CX Yes
    RCKMNT-23-CMPCT 23” and 24” Rack Mount bracket for C1000, 3560-CX and 2960-CX No



    The Cisco C1000-16FP-2G-L is a managed Ethernet switch designed for small businesses and branch offices. It offers 16 Fast Ethernet ports and 2 Gigabit Ethernet SFP ports for fiber connectivity, providing the high-speed connectivity you need to keep your network running smoothly. The switch supports advanced security features, including access control lists and Quality of Service (QoS), and is easy to set up and manage with the intuitive web interface. Whether you're connecting devices, servers, or a combination of both, the Cisco C1000-16FP-2G-L delivers reliable and secure networking performance.

    quick view
    Availability: In Stock
    $2,570.09
    $1,350.00
    quick view

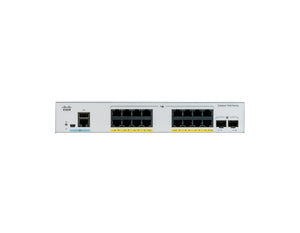

  • Cisco C1000-16P-2G-L Switch
    Save $668.09

    CISCO C1000-16P-2G-L SWITCH

    CISCO C1000-16P-2G-L SWITCH

    $832.02
    $1,500.11

    • Switch, Managed, 16x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP uplinks

    Properties C1000-16P-2G-L
    Description 16x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP uplinks
    Product Family Catalyst 1000
