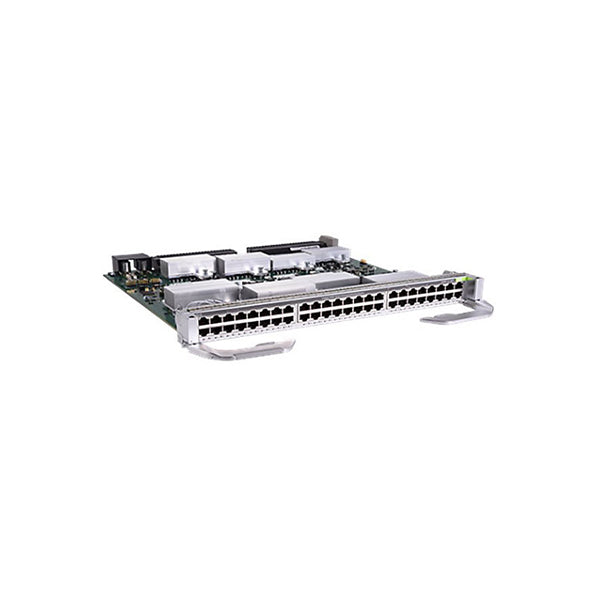

Cisco C9600-LC-48TX Line Card

Name: Cisco C9600-LC-48TX Line Card
Brand: Cisco
SKU: C9600-LC-48TX-NEW
Price: 17495.00 USD
Availability: InStock

Part Number: C9600-LC-48TX

Technical Details

Switch 48 x 100/1000/2.5G/5G/10GBase-T Plug-in module

$28,105.35

$17,495.00

38% OFF

You Save: $10,610.35

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco C9600-LC-48TX Line Card

The C9600 Series is designed for enterprise campus, combining excellent table scale and buffering for demanding enterprise applications. The line cards are designed with modular architecture, allowing you to invest in high-performance line cards. The C9600-LC-48TX benefits from advanced features of the supervisor engine, such as QoS, Layer 2, 3, and 4 routing. If you combine it with C9600X-SUP-2, you can use hardware-based IPv6.

Quick Specs:

48 ports (10GE/5GE/2.5GE/1GE/100Mbps/10Mbps multigigabit RJ45)
Nonblocking
MACsec-256 encryption with the C9600-SUP-1

Please check the related tabs for the C9600-LC-48YTX datasheet and detailed specifications.

Properties

Properties	Cisco C9600-LC-48TX
Description	Cisco Catalyst 9600 Series 48-port RJ45 Copper 10GE/5GE/2.5GE/1GE/100Mbps/10Mbps line card
Product Family	Catalyst 9600
Product Type	Switch Line Card
Ports for LC-48TX
Port Speed	Maximum Ports
10GE, 5GE, 2.5GE, 1GE, 100M, 10M	C9600X-SUP-2: 192* C9600-SUP-1: 192 *Speeds below 10GE not supported on C9600X-SUP-2
Physical dimensions	1.7 x 15.0 x 13.41¢‚¬ (to faceplate) (4.32 x 38.1 x 34.06 cm) 1.7 x 15.0 x 15.7 (to ejector) (4.32 x 38.1 x 39.88 cm)
Weight	4.03 kg (8.88 lbs)
Max rated power C9600X-SUP-2	315 W
Max rated power C9600-SUP-1	315 W

Specifications

Specifications	C9600-LC-48TX
Standards	Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab
Highlights	48 ports nonblocking 10GE, 5GE, 2.5GE, 1GE, 100Mbps, 10Mbps multigigabit RJ45 Copper ports (Only 10 GE supported on C9600X-SUP-2) IPv6 support on the UADP Application-Specific Integrated Circuit (ASIC), providing wire-rate forwarding for IPv6 networks Advanced Encryption Standard 256 (AES-256) support with the powerful MACsec-256 encryption algorithm is available on the UADP ASIC (UADP ASIC is part of the Cisco Catalyst 9600 Series Supervisor Engine 1. This line card does not support MACsec with C9600X-SUP-2)
Bandwidth
C9600-SUP-1	960 Gbps
C9600X-SUP-2	960 Gbps
Minimum SW requirement
C9600-SUP-1	17.1.1
C9600X-SUP-2	17.7.1
Operating temperature	-5° to 45° C (23° to 113° F) up to 6,000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet
Storage temperature	-40° to 75° C (40° to 167° F)
Relative Humidity, Operating and Non- operating, Non-condensing	10% to 95%, noncondensing
Operating altitude	-60 to 3000 m (-197 to 9843 feet)
Rated MTBF (hours)	543,000
Safety conditions	Fiber optic lasers: Class 1 laser products
Safety certifications	‚ UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 AS/NZS 60950.1 IEEE 802.3
Electromagnetic emissions certifications	‚ ‚ EN55032:2015 ‚ EN61000-3-2:2014 ‚ EN55032:2012 ‚ NM EN 55032:2015 ‚ QCVN 118:2018/BTTTT ‚ ICES-003:2016:Iss:6 ‚ NM EN 61000-3-3:2015 ‚ NM EN 61000-3-2:2015 ‚ 47 CFR Part 15:2016 ‚ KN61000-3-3:2014 ‚ CISPR32:2012:Ed:1 ‚ EN300 386:2012:V1.6.1 ‚ KN61000-3-2:2014 ‚ CNS13438:2006 ‚ CISPR32:2015:Ed:2 ‚ KN32:2015 ‚ VCCI-CISPR 32:2016 ‚ EN61000-3-3:2013 ‚ CISPR24:2010+A1:2015 ‚ CISPR35:2016:Ed:1 ‚ EN55024:2010 ‚ EN55024:2010:A1 ‚ EN55035:2017 ‚ EN61000-6-1:2007 ‚ EN61000-6-2:2005 ‚ IEC61000-6-1:2016:Ed:3 ‚ IEC61000-6-2:2016:Ed:3 ‚ KN35:2015 ‚ NM EN 55024:2018 ‚ TCVN 7317:2003
ROHS compliance	ROHS5
