CISCO CP-8861-K9 IP PHONE

Model: CP-8861-K9-NEW
Detail: VoIP phone, IEEE 802.11a/b/g/n/ac (Wi-Fi), SIP, RTP, SDP, 5 lines, Power Adapter Sold Separately
List Price: US$715.00
Price:
$244.35
You Save: $470.65 (66% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey
Quantity:
+
-

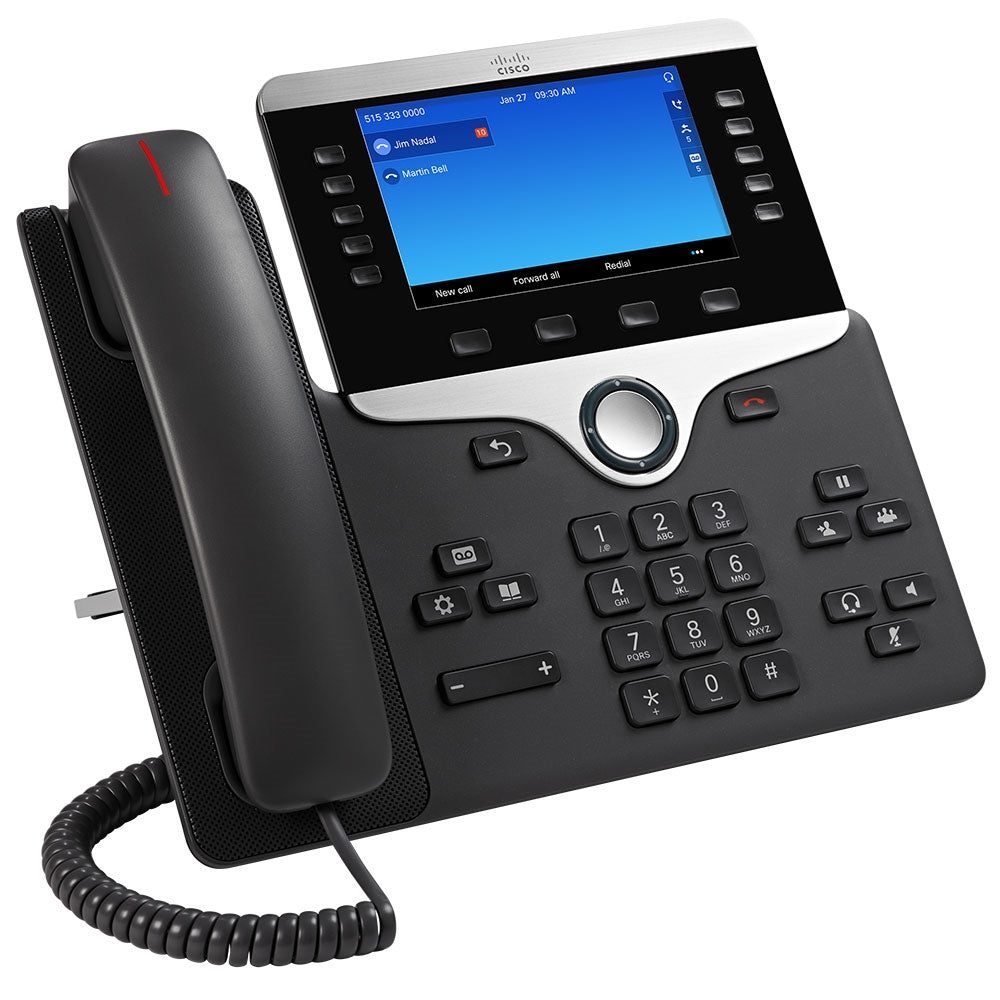

Cisco CP-8861-K9 IP Phone Overview



The Cisco IP Phone 8861 is a business-class collaboration endpoint that combines high-fidelity, reliable, secure, and scalable voice communications with Cisco Intelligent Proximity for telephony integration for personal mobile devices to support midsize to large enterprise businesses. With the IP Phone 8861, you can increase personal productivity through an engaging user experience that is both powerful and easy-to-use. The IP Phone 8861 combines an attractive ergonomic design with wideband audio for crystal clear voice communications, "always-on" reliability, and encrypted voice communications to enhance security, and access to a comprehensive suite of unified communications features from Cisco communication servers. In addition, Cisco Intelligent Proximity brings the worlds of desk and mobile together for you when you are using your mobile device at the desk for your work. You can move the audio path over to the IP Phone 8861 during active mobile calls to take advantage of its superior audio acoustics. An example would be to share a conversation with a colleague who you want to listen in. This capability gives you greater flexibility and superior user experience when at your desk. The IP Phone 8861 comes standard with two USB ports so you can charge your personal mobile devices when at your desk, and stay connected when away from your desk. The Cisco IP Phone 8861 offers five programmable line keys. You can configure keys to support either multiple directory numbers or calling features such as speed dial. You can also boost productivity by handling multiple calls for each directory number using the multicall-per-line feature. Fixed-function keys give you one-touch access to applications, messaging, directory, as well as often-used calling features such as hold/resume, transfer, and conference. A five-way navigation cluster helps you transition through menus more easily. Backlit acoustic keys provide flexibility for audio path selection and switching.



Display 5" high-resolution (800 x 480) WVGA color display
Ethernet Switch 10/100/1000
Programmable Line Keys 4
Number of Line Keys 5
Full Duplex Speakerphone Yes
Wideband Audio Yes
PoE Classification Class 4
Bluetooth / DECT Bluetooth
KEM (Key Expansion Module) Three Optional KEM
Third-party Call Control Yes
Replaceable Bezel Yes (Black, Silver)
Wall Mountable Yes
Package Weight 1.81 Kg

Specifications

Audio codec support G.711 a-law and mu-law, G.722, G.729a, Internet Low Bitrate Codec (iLBC), and Internet Speech Audio Codec (iSAC)
Key call features support DialingAbbreviated dialingAdjustable ring tones and volume levelsAdjustable display brightnessAgent greetingAuto-answerAuto-detection of headsetcBargeBusy Lamp Field (BLF)Busy Lamp Field (BLF) PickupBusy Lamp Field (BLF) speed dialCallbackCall forwardCall forward notificationCall filterCall history listsCall parkCall pickupCall timerCall waitingCall chaperoneCaller IDCorporate directoryConference, including traditional Join featureCross Cluster Extension Mobility (EMCC)Direct transferExtension mobilityFast-dial serviceForced access codes and client matter codesGroup call pickupHoldIntercomImmediate divertMalicious-caller IDMessage-waiting indicator (MWI)Meet-me conferenceMobilityMusic on hold (MoH)MuteNetwork profiles (automatic)On- and off-network distinctive ringingPersonal directoryPickUpPredialing before sendingPrivacyPrivate Line Automated Ringdown (PLAR)RedialRing tone per line appearanceService URLShared lineSilent monitoring and recordingSpeed dialTime and date displayTransferUniform Resource Locator (URI) dialingVisual voice mailVoice mailWhisper coaching
Electronic hookswitch You can control the hookswitch electronically with a third-party headset connected to either the USB or auxiliary port, or directly paired with the phone through Bluetooth.
Cisco Intelligent Proximity Audio path moving sends audio through the IP Phone 8861 for a mobile device-connected call.Call history synchronization allows you to view placed and missed calls of your mobile device from the IP Phone 8861.Contact synchronization allows you to synchronize the contact objects from your mobile device to your IP Phone 8861
Quality-of-service (QoS) options The phone supports Cisco Discovery Protocol and 802.1Q/p standards, and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the Admin VLAN ID.
Network features Session Initiation Protocol (SIP) for signalingSession Description Protocol (SDP)IPv4 and IPv6User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol [RTP] streams)Dynamic Host Configuration Protocol (DHCP) client or static configurationGratuitous Address Resolution Protocol (GARP)Domain Name System (DNS)Trivial File Transfer Protocol (TFTP)Secure Hypertext Transfer Protocol (HTTPS)VLANReal-Time Transport Protocol (RTP)Real-Time Control Protocol (RTCP)Cisco Peer-to-Peer Distribution Protocol (PPDP)Cisco Discovery ProtocolLLDP (including LLDP-MED)Switch speed auto-negotiation
Security features Secure bootSecure credential storageDevice authenticationConfiguration file authentication and encryptionImage authenticationRandom bit generationHardware cryptographic accelerationCertificate Authority Proxy Function (CAPF)Manufacturer-Installed Certificates (MIC)Locally Significant Certificates (LSC)Ethernet 802.1x supplicant options: Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)Signaling authentication and encryption using TLSMedia authentication and encryption using SRTPHTTPS for client and serverSecure Shell (SSH) Protocol serverSecure Sockets Layer (SSL)-based VPN client
Physical dimensions
(H  W  D)
9.02 x 10.13 x 1.57 in. (229.1 x 257.34 x 40 mm) (exclude foot stand)
Weight 2.62 lb (1.19 kg)
Phone-casing composition Polycarbonate acrylonitrile butadiene styrene (ABS) textured plastic; Cosmetic class A
Operational temperature 32 to 104F (0 to 40C)
Nonoperational temperature shock 14 to 140F (-10 to 60C)
Humidity Operating 10 to 90%, noncondensingNonoperating 10 to 95%, noncondensing
Certification and compliance Regulatory compliance
   CE Markings per directives 2004/108/EC and 2006/95/EC

Safety
   UL 60950 Second Edition

   CAN/CSA-C22.2 No. 60950 Second Edition

   EN 60950 Second Edition (including A11 & A12)

   IEC 60950 Second Edition (including A11 & A12)

   AS/NZS 60950

   GB4943

EMC - Emissions
   47CFR Part 15 (CFR 47) Class B

   AS/NZS CISPR22 Class B

   CISPR22: 2005 w/Amendment 1: 2005 Class B

   EN55022: 2006 w/Amendment 1: 2007 Class B

   ICES003 Class B

   VCCI Class B

   EN61000-3-2

   EN61000-3-3

   KN22 Class B

EMC - Immunity
   EN55024

   CISPR24

   EN60601-1-2

   KN24

   Armadillo Light

Telecom
   FCC Part 68 HAC

   CS-03-HAC

   AS/ACIF S004

   AS/ACIF S040

   NZ PTC 220

   Industry Standards: TIA 810 and TIA 920

   Industry Standards: IEEE 802.3 Ethernet, IEEE 802.3af and 802.3at

   Korea (RRA Public Notification 2010-36, Nov 01, 2010)

   Korea (RRA Announce 2011-2, Feb28, 2011)

Radio
   FCC Part 15.247 (CFR 47)

   FCC Part 2.1093 (BT RF Exposure TR)

   RSS-102 (BT RF Exposure TR)

   RSS-210

   EN 300.328

   EN50385 (BT RF Exposure TR)

   EN 301-489-1

   EN 301-489-17

   EN 301-893

   NCC LP0002

   Korea (RRL No. 2006-128, RRL No. 2006-129)

   Japan Bluetooth GFSK/EDR
