SG550X - SF550X

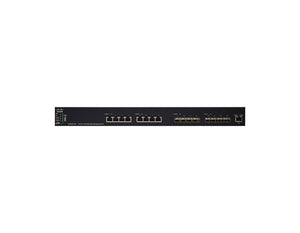

[specifications] [/specifications]The Cisco SX550X-16FT-K9-NA Switch is a next-generation managed switch that offers excellent performance, rich features, and ease of use. With support for Layer 2 and 3 features, advanced security, routing, and energy-saving technology, it delivers a solid foundation for business applications today and in the future.

[specifications] [/specifications]The Cisco 550X series Stackable Managed Switches are the next-generation stackable Managed Ethernet switches that provide the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. These switches incorporate fan and power hardware redundancy, increasing overall network availability. The Cisco 550XG models provide 10 Gigabit Ethernet with both copper and fiber connection options, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff. Cisco 550X series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 550X series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use because the stack of units operate as a single entity constituting all the ports of the stack members.

[specifications] [/specifications]10 Gigabit Ethernet delivers high performance to your network to promote higher productivity and business efficiency. The 550X series breaks the barrier of 10 Gigabit Ethernet adoptions with exceptional affordability. Keep your network running so your business never slows down. The 550X series offers true stacking, built-in fan redundancy, a redundant power supply connector, and high-availability protocols. A variety of energy-saving features provide an eco-friendly and cost-effective network solution without compromising performance.

[specifications]

Short Description	Switch: L3 managed, 24 x 10/100 + 2 x 10 GE combo + 2 x 10GE SFP+, rack-mountable, PoE
Device type	Switch: 100M, 24 ports, L3 managed
Enclosure type	Rack-mountable, 1RU
Ports	24 x 10/100 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+
Power over Ethernet (PoE)	PoE, PoE+ and 60W PoE (195W)
Switching capacity	84.8 Gbps
Forwarding performance (64-byte packets)	63.09 Mpps
MAC address table size	16,000 entries
Capacity (active VLANS)	4000
Routing protocol	RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol	SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features	Stacking, flow control, Layer 2 switching, Layer 3 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button, LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security, static routing, dynamic routing, policy based routing, sFlow, RSPAN, ?60W PoE, hardware redundancy
Compliant IEEE standards	802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3af, 802.3at, 802.3az
RAM	512 MB
Flash memory	256 MB
Status indicators	System, Master, Fan, RPS, Stack ID, Link/Speed/PoE per port
Interfaces	24 x 10BASE-T/100Base-TX, RJ-45, PoE, 2 x 10GBASE-T/SFP+ combo, 2 x SFP+, 1 x console, RJ45, 1 x RPS port
Power supply	Internal
Voltage required	AC 120/230V (50/60 Hz)
Width	17.3 in. (440 mm)
Depth	10.1 in. (257 mm)
Height	1.7 in. (44 mm)
Weight	9.13 lb (4.14 kg)
Cables included	1 x console cable
Compliance standards	UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature	32-F (0-C)
Maximum operating temperature	122-F (50-C)
Humidity range operating	10-90% (noncondensing)
Minimum storage temperature	-4-F (-20-C)
Maximum storage temperature	158-F (70-C)
Humidity range storage	10-90% (noncondensing)







[/specifications]Cisco 550X Series switches provide the advanced feature set that growing businesses require and that high-bandwidth applications and technologies demand. These switches can improve the availability of your critical applications, protect your business information, and optimize your network bandwidth to more effectively deliver information and support applications. The switches provide the following benefits.

[specifications]

Short Description	Switch: L3 managed, 48 x 10/100 + 2 x 10 GE combo + 2 x 10GE SFP+, rack-mountable, PoE
Device type	Switch: 100M, 48 ports, L3 managed
Enclosure type	Rack-mountable, 1RU
Ports	48 x 10/100 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+
Power over Ethernet (PoE)	PoE, PoE+ and 60W PoE (382W)
Switching capacity	89.6 Gbps
Forwarding performance (64-byte packets)	66.66 Mpps
MAC address table size	16,000 entries
Capacity (active VLANs)	4000
Routing protocol	RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol	SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features	Stacking, flow control, Layer 2 switching, Layer 3 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button, LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security, static routing, dynamic routing, policy-based routing, sFlow, RSPAN, 60W PoE, hardware redundancy
Compliant IEEE standards	802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3af, 802.3at, 802.3az
RAM	512 MB
Flash memory	256 MB
Status indicators	System, Master, Fan, RPS, Stack ID, Link/Speed/PoE per port
Interfaces	48 x 10BASE-T/100Base-TX, RJ-45, PoE, 2 x 10GBASE-T/SFP+ combo, 2 x SFP+, 1 x console, RJ45, 1 x RPS port
Power supply	Internal
Voltage required	AC 120/230V (50/60 Hz)
Width	17.3 in. (440 mm)
Depth	13.8 in. (350 mm)
Height	1.7 in. (44 mm)
Weight	11.22 lb (5.09 kg)
Cables included	1 x console cable
Compliance standards	UL 60950, FCC Part 15 A, CSA 22.2
Service and support	Enhanced limited lifetime warranty
Service and support details	Next business day hardware replacement. Software updates. 1-year complimentary telephone and online technical support
Minimum operating temperature	32-F (0-C)
Maximum operating temperature	122-F (50-C)
Humidity range operating	10-90% (noncondensing)
Minimum storage temperature	-4-F (-20-C)
Maximum storage temperature	158-F (70-C)
Humidity range storage	10-90% (noncondensing)





[/specifications]

Install Cisco SF550X-48P-K9 Switch for Optimized Network Bandwidth

Cisco SF550X-48P-K9 Switch offers advanced features and functionalities for growing businesses. Get high-bandwidth applications and technologies in this switching system.

Key Benefits of Cisco SF550X-48P-K9 Switch

Cisco SF550X-48P-K9 Switch is built to improve the availability of critical applications, protect business information, and optimize network bandwidth to more effectively deliver information and support applications.

[specifications] [/specifications]Cisco 550X series switches provide the advanced feature set that growing businesses require and that highbandwidth applications and technologies demand. These switches can improve the availability of your critical applications, protect your business information, and optimize your network bandwidth to more effectively deliver information and support applications. The switches provide the following benefits.

[specifications] [/specifications]Cisco 550X series switches provide the advanced feature set that growing businesses require and that highbandwidth applications and technologies demand. These switches can improve the availability of your critical applications, protect your business information, and optimize your network bandwidth to more effectively deliver information and support applications. The switches provide the following benefits.

[specifications] [/specifications]To get the fast data speeds, continuous availability, and advanced security you need in your LAN, you can turn to the Cisco 550X series switches. They give you the speed you need to share information quickly and deliver substantial productivity gains.

[specifications]

Short Description	Switch: L3 managed, 48 x 10/100/1000 + 2 x 10 GE combo + 2 x 10GE SFP+, rack-mountable, Max PoE
Device type	Switch: 1G, 48 ports, L3 managed
Enclosure type	Rack-mountable, 1RU
Ports	48 x 10/100/1000 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+
Power over Ethernet (PoE)	PoE, PoE+ and 60W PoE (740W)
Switching capacity	176 Gbps
Forwarding performance (64-byte packets)	130.94 Mpps
MAC address table size	16,000 entries
Capacity (active VLANS)	4000
Routing protocol	RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol	SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features	Stacking, flow control, Layer 2 switching, Layer 3 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button, LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security, static routing, dynamic routing, policy based routing, sFlow, RSPAN, ?60W PoE, hardware redundancy
Compliant IEEE standards	802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3af, 802.3at, 802.3az
RAM	512 MB
Flash memory	256 MB
Status indicators	System, Master, Fan, RPS, Stack ID, Link/Speed/PoE per port
Interfaces	48 x 10BASE-T/100Base-TX/1000BASE-T, RJ-45, PoE, 2 x 10GBASE-T/SFP+ combo, 2 x SFP+, 1 x console, RJ45, 1 x RPS port
Power supply	Internal
Width	17.3 in. (440 mm)
Depth	17.7 in. (450 mm)
Height	1.7 in. (44 mm)
Weight	14.75 lb (6.69 kg)
Cables included	1 x console cable
Compliance standards	UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature	32-F (0-C)
Maximum operating temperature	122-F (50-C)
Humidity range operating	10-90% (noncondensing)
Minimum storage temperature	-4-F (-20-C)
Maximum storage temperature	158-F (70-C)
Humidity range storage	10-90% (noncondensing)









[/specifications]

CISCO SG550X-48MP-K9 for Faster Data Speed

Cisco SG550X-48MP-K9 Switch offers platform for faster data speed, continuous availability, and advanced security for LAN connection.

Key Benefits of Cisco SG550X-48MP-K9

By using this Cisco SG550X-48MP-K9 Switch, users will get the desired speed to share information quickly and deliver substantial productivity returns.

[specifications]

Short Description	Switch: L3 managed, 48 x 10/100/1000 + 2 x 10 GE combo + 2 x 10GE SFP+, rack-mountable, PoE
Device type	Switch: 1G, 48 ports, L3 managed
Enclosure type	Rack-mountable, 1RU
Ports	48 x 10/100/1000 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+
Power over Ethernet (PoE)	PoE, PoE+ and 60W PoE (382W)
Switching capacity	176 Gbps
Forwarding performance (64-byte packets)	130.94 Mpps
MAC address table size	16,000 entries
Capacity (active VLANs)	4000
Routing protocol	RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol	SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features	Stacking, flow control, Layer 2 switching, Layer 3 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button, LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security, static routing, dynamic routing, policy-based routing, sFlow, RSPAN, ?60W PoE, hardware redundancy
Compliant IEEE standards	802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3af, 802.3at, 802.3az
RAM	512 MB
Flash memory	256 MB
Status indicators	System, Master, Fan, RPS, Stack ID, Link/Speed/PoE per port
Interfaces	48 x 10BASE-T/100Base-TX/1000BASE-T, RJ-45, PoE, 2 x 10GBASE-T/SFP+ combo, 2 x SFP+, 1 x console, RJ45, 1 x RPS port
Power supply	Internal
Voltage required	AC 120/230V (50/60 Hz)
Width	17.3 in. (440 mm)
Depth	13.8 in. (350 mm)
Height	1.7 in. (44 mm)
Weight	12.83 lb (5.82 kg)
Cables included	1 x console cable
Compliance standards	UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature	32-F (0-C)
Maximum operating temperature	122-F (50-C)
Humidity range operating	10-90% (noncondensing)
Minimum storage temperature	-4-F (-20-C)
Maximum storage temperature	158-F (70-C)
Humidity range storage	10-90% (noncondensing)

[/specifications]

Use Cisco SG550X-48P-K9 Switch for Seamless Availability & Security

Cisco SG550X-48P-K9 Switch is designed for excellent performance, rich features, and ease of use. It delivers a solid foundation for today’s as well as for future-ready business applications with support for Layer 2 and Layer 3 features.

Key Benefits of Cisco SG550X-48P-K9 Switch

Cisco SG550X-48P-K9 Switch is built to deliver fast data speeds, uninterrupted availability, and advanced security required for your LAN. This Cisco Series Switch delivers speed necessary to share information quickly and offer substantial productivity gains.

[specifications]

Short Description	Switch: L3 managed, 24 x 10/100/1000 + 2 x 10 GE combo + 2 x 10GE SFP+, rack-mountable, Max PoE
Device type	Switch: 1G, 24 ports, L3 managed
Enclosure type	Rack-mountable, 1RU
Ports	24 x 10/100/1000 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+
Power over Ethernet (PoE)	PoE, PoE+ and 60W PoE (740W)
Switching capacity	128 Gbps
Forwarding performance (64-byte packets)	95.23 Mpps
MAC address table size	16,000 entries
Capacity (active VLANS)	4000
Routing protocol	RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol	SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features	Stacking, flow control, Layer 2 switching, Layer 3 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button, LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security, static routing, dynamic routing, policy based routing, sFlow, RSPAN, ?60W PoE, hardware redundancy
Compliant IEEE standards	802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3af, 802.3at, 802.3az
RAM	512 MB
Flash memory	256 MB
Status indicators	System, Master, Fan, RPS, Stack ID, Link/Speed/PoE per port
Interfaces	24 x 10BASE-T/100Base-TX/1000BASE-T, RJ-45, PoE, 2 x 10GBASE-T/SFP+ combo, 2 x SFP+, 1 x console, RJ45, 1 x RPS port
Power supply	Internal
Voltage required	AC 120/230V (50/60 Hz)
Width	17.3 in. (440 mm)
Depth	17.7 in. (450 mm)
Height	1.7 in. (44 mm)
Weight	13.65 lb (6.19 kg)
Cables included	1 x console cable
Compliance standards	UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature	32-F (0-C)
Maximum operating temperature	122-F (50-C)
Humidity range operating	10-90% (noncondensing)
Minimum storage temperature	-4-F (-20-C)
Maximum storage temperature	158-F (70-C)
Humidity range storage	10-90% (noncondensing)









[/specifications]The Cisco 550X Series are the next-generation stackable Managed Ethernet switches that provide the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. These switches incorporate fan and power hardware redundancy, increasing overall network availability. Cisco 550X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 550X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use because the stack of units operate as a single entity constituting all the ports of the stack members.

[specifications]

Short Description	Switch: L3 managed, 8 x 10GE copper + 8 x 10GE SFP+, rack-mountable
Device type	Switch: 10G, 16 ports, L3 managed
Enclosure type	Rack-mountable, 1RU
Ports	8 10GE copper + 8 10GE SFP+ plus 1 GE OOB Management
Switching capacity	320 Gbps
Forwarding performance (64-byte packets)	238.08 Mpps
MAC address table size	64,000 entries
Capacity (active VLANS)	4000
Routing protocol	RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol	SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features	Stacking, flow control, Layer 2 switching, Layer 3 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button, LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security, static routing, dynamic routing, policy based routing, sFlow, RSPAN, hardware redundancy
Compliant IEEE standards	802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3az
RAM	512 MB
Flash memory	256 MB
Status indicators	System, Master, Fan, RPS, Stack ID, Link/Speed per port
Interfaces	8 x 10BASE-T/100BASE-TX/1000BASE-T/10GBASE-T, RJ-45, 8 10GE SFP+ slots, 1 x GE OOB port, 1 x console, RJ45, 1 x RPS port
Power supply	Internal
Voltage required	AC 120/230V (50/60 Hz)
Width	17.3 in. (440 mm)
Depth	13.8 in. (350 mm)
Height	1.7 in. (44 mm)
Weight	11.53 lb (5.23 kg)
Cables included	1 x console cable
Compliance standards	UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature	32-F (0-C)
Maximum operating temperature	122-F (50-C)
Humidity range operating	10-90% (noncondensing)
Minimum storage temperature	-4-F (-20-C)
Maximum storage temperature	158-F (70-C)
Humidity range storage	10-90% (noncondensing)







[/specifications]The Cisco 500 Series is a line of stackable Managed switches that offer the advanced capabilities you need to support a more demanding network environment, at an affordable price. They provide a solid foundation for your current business applications, as well as those you are planning for the future.
