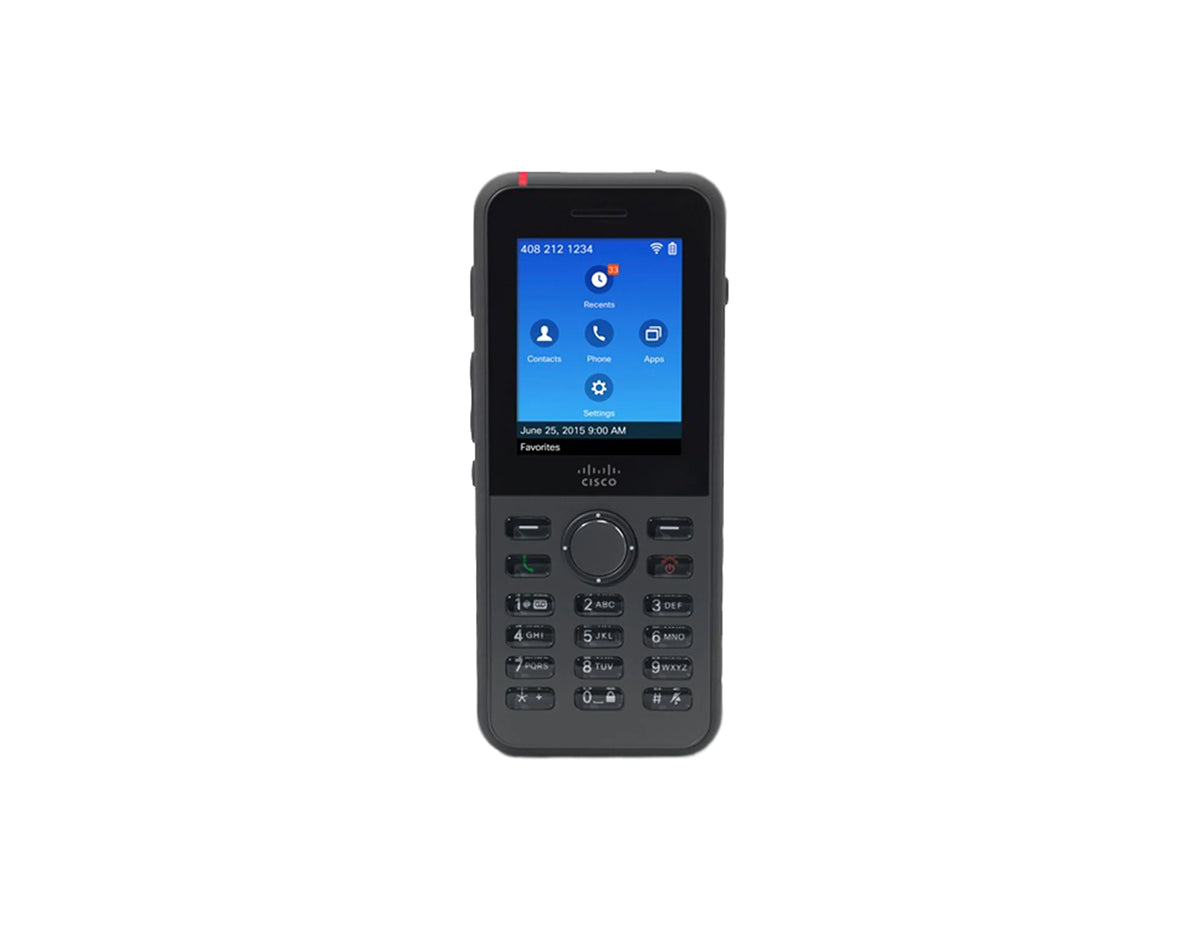

CISCO CP-8821-K9 IP PHONE
| Part No: | CP-8821-K9 |
| Detail: |
Cordless extension handset,
Bluetooth interface,
IEEE 802.11a/b/g/n/ac (Wi-Fi),
SIP,
6 lines,
Phone ONLY, no battery and charger,
|
| List Price: |
|
| Price: |
$698.00
|
| You Save: | $558.00 (44% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
Cisco CP-8821-K9 IP Phone Overview
Rugged and lightweight, the Cisco 8821 Wireless IP Phone makes an ideal wireless LAN handset for mobile workers in healthcare, manufacturing, retail, hospitality, oil and chemical industries. IP67 rated and MIL-STD-810G tested, this business phone is resistant to shocks, breakage, dust and water. With strong encryption, it enables certificate management or enhanced security and easy configuration. This IP phone supports Fast Transition (802.11r) for seamless voice communications while roaming between Access Points in one campus. It also features call forwarding, call hold, call waiting and caller ID for improved audio communication. -Ingress Protection standard rated cordless phone, with seal for dust and water protection -High-resolution 240x320 pixel LCD color display is crisp and large -Bluetooth interface allows users to connect third-party wireless headsets -Supports Cisco and/or third-party XML applications such as push-to-talk for added convenience
Accessories
Specifications
| Antenna | 2.4 GHz: 2.4 dBi peak gain 5 GHz: 3.0 dBi peak gain |
| Access point support | Cisco unified access points —¦ Minimum: 8.0.121.0 Cisco autonomous access points —¦ Minimum: 12.4(21a)JY Cisco Meraki® access points |
| Wireless security | Authentication: Wi-Fi Protected Access (WPA) versions 1 and 2 Personal and Enterprise Extensible Authentication Protocol Flexible Authentication via Secure Tunneling (EAP-FAST) Protected Extensible Authentication Protocol Generic Token Card (PEAP-GTC) Protected Extensible Authentication Protocol Microsoft Challenge Handshake Authentication Protocol Version 2 (PEAP-MSCHAPv2) Extensible Authentication Protocol Transport Layer Security (EAP-TLS) Encryption: 40-bit and 128-bit static Wired Equivalent Privacy (WEP) Temporal Key Integrity Protocol (TKIP) and Message Integrity Check (MIC) Advanced Encryption Standard (AES) Note: The access point must support AES as TKIP can only be used as the broadcast/multicast cipher. |
| Fast, secure roaming | 802.11r (FT) Cisco Centralized Key Management (CCKM) |
| Signature types | Secure Hash Algorithm 1 (SHA-1) and Secure Hash Algorithm 2 (SHA-2) |
| Bit key types | 1024, 2048, and 4096 bit keys |
| QoS | IEEE 802.11e and Wi-Fi Multimedia (WMM) Traffic Specification (TSPEC) Traffic Classification (TCLAS) Enhanced Distributed Channel Access (EDCA) QoS Basic Service Set (QBSS) |
| Display | 2.4-in. (6-cm) color display with 240 x 320 pixel resolution |
| Dimensions (HxWxD) | Phone: 5.2 x 2.2 x 0.7 in. (13.2 x 5.6 x 1.7 cm) Battery: 7.8 x 2.9 x .165 in. (10.15 x 4.17 x .42 cm) |
| Battery | Rechargeable Lithium ion 4.35V, 2060mAh smart battery (minimal capacity 3.8V, 2000mAh) For battery life information refer to the Battery Performance section later in this document |
| Input power | Phone: 100 to 240 VAC, ~0.2A, and 50 to 60 Hz AC adapters (by geographical region) |
| Operating temperature | Device: 14° to 122°F (-10° to 50°C) Battery: -4° to 140°F (-20° to 60°C) |
| Vibration | 1.5 Grms maximum, 0.1 in. (2.5 mm) double amplitude at 0.887 octaves per minute from 5-500-5 Hz sweep, and 10-minute dwell on three major peaks in each of the three major mutually perpendicular axes |
| Endurance | Ingress Protection Standard IP54 MIL-STD-810G Drop and Vibration procedures |
| Drop specs | Withstand multiple drops of 5 feet (1.5 m) onto concrete. 12 drops (6 faces, 4 edges, face, and bottom) |
| Headset | Wireless: Bluetooth SW 3.0 HW 4.0 Wired: 3.5 mm stereo headphone/microphone jack |
| Connector | Magnetic USB 2.0 On The Go (OTG) connector |
| Safety | UL 60950-1 CAN/CSA 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEC 60529 (IP 54) |
| Electromagnetic Compatibility and Electromagnetic Interference (EMC/EMI) | 47 CFR Part 15 Class B ICES-003 Class B EN 55022 Class B AS/NZS CISPR 22 Class B CISPR 22 Class B VCCI Class B EN 61000-3-2 EN 61000-3-3 KN 22 Class B EN 55024 EN 50082-1 EN 61000-6-1 EN 61000-6-3 EN 300 386 EN 60601-1-2 KN Immunity Series |
| Telecom | FCC Part 68 (CFR) (HAC) NZ PTC 220 DR AS/ACIF S004 and AS/ACIF S040 (Australia) TIA 810-B and TIA 920-A Canada-CS-03-HAC |
| Radio | USA: FCC Part 15.247 (2.4 GHz), FCC Part 15.407 (5 GHz), and FCC Part 2 Canada: RSS-210 Japan: ARIB STD-T66 (2.4 GHz), ARIB STD-T70, and T71 (4.9/5 GHz) ETSI: EN 300.328 (2.4 GHz) and EN 301.893 (5 GHz) Australia and New Zealand: AS/NZS 4268 Singapore: IDA TS SRD Hong Kong: HKTA1039 |
| RF Exposure | OET-65C (01-01) ANSI C95.1 (91) RSS-102 ACA Radio Communications (Electromagnetic Radiation Human Exposure) Standard 2003 EN 50360 EN 301 489-1 EN 301 489-17 |
| Protocols | IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency bands and operating channels | 2.412 to 2.472 GHz (channels 1 to 13) 5.180 to 5.240 GHz (channels 36 to 48) 5.260 to 5.320 GHz (channels 52 to 64) 5.500 to 5.700 GHz (channels 100 to 140) 5.745 to 5.825 GHz (channels 149 to 165) IEEE 802.11d can be used to identify available channels |
| Nonoverlapping channels | 2.4 GHz (20-MHz channels): up to 3 channels 5 GHz (20-MHz channels): up to 24 channels 5 GHz (40-MHz channels): up to 9 channels 5 GHz (80-MHz channels): up to 4 channels |
| Operating modes | Auto (preference to 5 GHz) 2.4 GHz only 5 GHz only |
| Data rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11b: 1, 2, 5.5, and 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11n: HT MCS 0, MCS 1, MCS 2, MCS 3, MCS 4, MCS 5, MCS 6, and MCS 7 802.11ac: VHT MCS 0, MCS 1, MCS 2, MCS 3, MCS 4, MCS 5, MCS 6, MCS 7, MCS 8, and MCS 9 (MCS 9 available with VHT40 and VHT80 only) |
| 2.4-GHz receiver sensitivity | IEEE 802.11b: 1 Mbps: -98 dBm 2 Mbps: -96 dBm 5.5 Mbps: -93 dBm 11 Mbps: -91 dBm IEEE 802.11g: 6 Mbps: -95 dBm 9 Mbps: -94 dBm 12 Mbps: -93 dBm 18 Mbps: -90 dBm 24 Mbps: -87 dBm 36 Mbps: -84 dBm 48 Mbps: -79 dBm 54 Mbps: -77 dBm IEEE 802.11n HT20: MCS 0: -95 dBm MCS 1: -92 dBm MCS 2: -90 dBm MCS 3: -87 dBm MCS 4: -83 dBm MCS 5: -78 dBm MCS 6: -77 dBm MCS 7: -75 dBm |
| 5-GHz receiver sensitivity | IEEE 802.11a: 6 Mbps: -94 dBm 9 Mbps: -93 dBm 12 Mbps: -92 dBm 18 Mbps: -89 dBm 24 Mbps: -86 dBm 36 Mbps: -83 dBm 48 Mbps: -78 dBm 54 Mbps: -76 dBm IEEE 802.11n HT20: MCS 0: -94 dBm MCS 1: -91 dBm MCS 2: -89 dBm MCS 3: -86 dBm MCS 4: -82 dBm MCS 5: -77 dBm MCS 6: -76 dBm MCS 7: -74 dBm IEEE 802.11n HT40: MCS 0: -91 dBm MCS 1: -88 dBm MCS 2: -86 dBm MCS 3: -83 dBm MCS 4: -79 dBm MCS 5: -75 dBm MCS 6: -73 dBm MCS 7: -72 dBm |
| IEEE 802.11ac VHT20: MCS 0: -93 dBm MCS 1: -90 dBm MCS 2: -87 dBm MCS 3: -84 dBm MCS 4: -81 dBm MCS 5: -76 dBm MCS 6: -75 dBm MCS 7: -74 dBm MCS 8: -70 dBm IEEE 802.11ac VHT40: MCS 0: -90 dBm MCS 1: -87 dBm MCS 2: -85 dBm MCS 3: -82 dBm MCS 4: -79 dBm MCS 5: -73 dBm MCS 6: -72 dBm MCS 7: -72 dBm MCS 8: -67 dBm MCS 9: -66 dBm IEEE 802.11ac VHT80: MCS 0: -87 dBm MCS 1: -83 dBm MCS 2: -81 dBm MCS 3: -78 dBm MCS 4: -75 dBm MCS 5: -73 dBm MCS 6: -68 dBm MCS 7: -68 dBm MCS 8: -64 dBm MCS 9: -62 dBm |
|
| Transmitter output power | 2.4 GHz: 802.11b: up to 17 dBm 802.11g: up to 14 dBm 802.11n HT20: up to 13 dBm 5 GHz: 802.11a: up to 14 dBm 802.11n HT20: up to 13 dBm 802.11n HT40: up to 13 dBm 802.11ac VHT20: up to 12 dBm 802.11ac VHT40: up to 12 dBm 802.11ac VHT80: up to 12 dBm |
Properties
| Properties | CP-8821-K9 |
| Description | Cisco Wireless IP Phone 8821 World mode device ONLY |
| Product Family | Cisco IP Phone 8800 Series |
| Product Type | IP Phones |
| Features | Six line appearances Abbreviated dialing Adjustable ringing and volume levels Adjustable display brightness and timeout Audible and vibrating ringers Auto-answer Auto-detection of headset and auto-answer from headset Automatic keypad lock Callback Call forward Call history lists Call park Call pickup Call timer Call waiting Caller ID cBarge " Corporate directory Conference Direct transfer Extension mobility service Fast-dial service Group call pickup Hold Hotkey for keypad lock, ring silent mode, and voicemail access Immediate divert Join Last-number redial green key Malicious caller Message-waiting indicator Meet-me conference Multilevel precedence and preemption (MLPP) Music on hold Mute Network profiles (4) OPickUp Personal directory Predialing before sending Presence Privacy Quality Report Tool (QRT) Redial Ring tone per line appearance Service URL Shared line Time and date display Transfer Network hold Hospitality Support for mutual-authentication Transport Layer Security (TLS) Cisco Unified Communications Manager WLAN profiles +Dialing Application launch pad Busy Lamp Field (BLF) BLF pickup BLF speed dial Call forward notification Forced authorization and client matter codes Intercom Mobility Silent monitoring and recording Speed dial Voicemail " Whisper coaching Ring setting phone active (ring, ring once, beep, flash) Predictive search on new call" |
| Buttons | Power button Volume up/down Two soft-key buttons to access screen-based applications, features, and functions Green key (answer/send/redial) and red key (power/end call) Application button Mute Speakerphone Five-way navigation support Numeric keypad (09, *, &, #) |
| Codecs | G.711a, G.711u G.729a, G.729ab G.722 Internet Low Bitrate Codec (iLBC) audio-compression codecs iSAC |
| Protocol | Session Initiation Protocol (SIP) |
| Call control | Cisco Unified Communications Manager: 9.1(2), 10.5(2), 11.0(1), and later Cisco Unified Survivable Remote Site Telephony (SRST): 10.5, 11.0, 11.5, 11.7, and later Cisco Unified Communications Manager Express: 10.5, 11.0, 11.5, 11.7 (native support), and later Cisco Hosted Collaboration Solution (HCS): 9.x, 10.x, 11.x, and later |
| Security features | Certificates Image authentication Device authentication File authentication Signaling authentication Secure Cisco Unified SRST Media encryption using Secure Real-Time Protocol (SRTP) Signaling encryption using TLS Protocol Certificate Authority Proxy Function (CAPF) Simple Certificate Enrollment Protocol support (SCEP) for certificate renewal Secure profiles Encrypted configuration files Cryptography is not enabled by default and may be enabled only through a cryptographically enabled Cisco Unified Communications Manager |
| Provisioning and management | Configuration via Cisco Unified Communications Manager, SRST, and Unified Communications Manager Express administration interfaces Bulk provisioning support via desktop charger and USB to Ethernet dongle combination Web server for configuration and statistics Capability to disable local phone settings QoS reporting: Jitter, delay, dropped packets, and latency on a per-call basis Real Time Control Protocol (RTCP) support and monitoring Syslog |
| Configuration options | Dynamic Host Configuration Protocol (DHCP) client or static configuration Support for online firmware upgrades using Trivial File Transfer Protocol (TFTP) Domain Name System (DNS) |
| Application framework | XML (support push-to-talk, paging, and other 3rd party applications) |
| User localization | Arabic, Bulgarian, Catalan, Chinese (Hong Kong), Chinese (China), Chinese (Taiwan), Croatian, Czech, Danish, Dutch, English (United Kingdom), English (United States), Estonian, Finnish, French (Canada), French (France), German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Serbian, Slovak, Slovenian, Spanish (Spain), Spanish (Colombia), Swedish, Thai, and Turkish |
| Network localization | Argentina, Australia, Austria, Belgium, Brazil, Canada, China, Colombia, Cyprus, Czech Republic, Denmark, Egypt, Finland, France, Germany, Ghana, Greece, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, Japan, Jordan, Kenya, Korea Republic, Lebanon, Luxembourg, Malaysia, Mexico, Nepal, Netherlands, New Zealand, Nigeria, Norway, Pakistan, Panama, Peru, Philippines, Poland, Portugal, Russian Federation, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Thailand, Turkey, United Kingdom, United States, Venezuela, and Zimbabwe |
| A fully charged battery provides: | Up to 11.5 hours of talk time (depending on the phone firmware and charger version) Up to 145 hours of standby time (auto-scan) Up to 45 hours of standby time (continuous scan) |
