AXIS P9106-V NETWORK CAMERA - WHITE
| Model: | 01620-001 |
| Detail: |
|
| List Price: | |
| Price: | $625.00 |
| You Save: | $24.00 (4% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

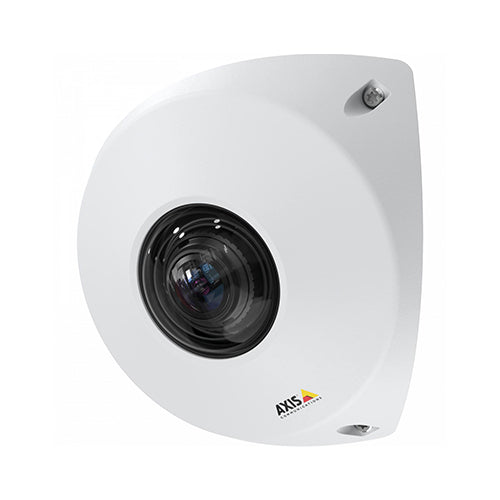

AXIS P9106-V Network Camera – White (01620-001)
The AXIS P9106-V Network Camera offers pre-configured comprehensive coverage of 3 MP without any visual gaps. It is housed in a vandal-resistant (IK10), dust- and waterproof (IP66) casing. The anti-ligature design of the AXIS P9106-V White is intended to mitigate self-harm. This camera is well-suited for video surveillance in high-security settings such as police custody suites, correctional facilities, psychiatric wards, hospital recovery rooms, waiting rooms, and interview rooms.
Quick Specs:
- Out-of-box optimized field of view in 3 MP resolution – no blind spots
- Vandal-resistant (IK10) and IP66 rated dust protection
- PoE over 2-wire for elevator installations
- Support for Portcast devices with AXIS T61 series
Please see the related tabs for the 01620-001 datasheet and compatible accessories.
Accessories
| Optional accessories | • AXIS P91 Skin Cover A Brushed Steel (for white Network Camera) • AXIS T6101 Audio and I/O Interface • AXIS T6112 Audio and I/O Interface • AXIS T864 PoE+ over Coax Series • 2N® 2WIRE • AXIS T8415 Wireless Installation Tool • AXIS Surveillance Cards |
Specifications
| Specifications | AXIS P9106-V Network Camera - White |
| Camera | |
| Image sensor | 1/3” progressive scan RGB CMOS |
| Lens | M12 mount, fixed focus, fixed iris |
| 1.8 mm, F2.4 | |
| Horizontal field of view: 130° | |
| Vertical field of view: 95° | |
| Minimum illumination | Color: 0.35 lux at 50 IRE F2.4 |
| Shutter speed | 1/32500 s to 1/5 s |
| Camera angle adjustment | Tilt ±5° |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| Motion JPEG | |
| Resolution | 2016x1512 to 320x240 (4:3) |
| 1920x1080 to 640x360 (16:9) | |
| Frame rate | Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video streaming | Multiple, individually configurable streams in H.264 and Motion |
| JPEG | |
| Zipstream technology in H.264 | |
| Controllable frame rate and bandwidth | |
| VBR/MBR H.264 | |
| Multi-view streaming | 2 individually cropped-out view areas |
| Image settings | Saturation, contrast, brightness, sharpness, WDR, white balance, |
| exposure mode, compression, privacy masks, orientation: auto, | |
| 0°, 90°, 180°, 270°, mirroring of images, text and image overlays | |
| Pan/Tilt/Zoom | Digital PTZ of view areas, preset positions, guard tours |
| Audio | |
| Audio input/output | Two-way audio connectivity via AXIS T61 Audio and I/O |
| Interfaces with portcast technology | |
| Network | |
| Security | Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware |
| *:This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Supported protocols | IPv4, IPv6 USGv6, HTTP, HTTPS* , SSL/TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| *:This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-click cloud connection | |
| ONVIF® Profile G and ONVIF® Profile S | |
| Event triggers | Analytics, edge storage events, virtual inputs through API |
| Event actions | Video recording: to SD card or network share |
| Upload of images or video clips: via FTP, SFTP, HTTP, HTTPS, | |
| network share and email | |
| Pre- and post-alarm video or image buffering for recording or | |
| upload | |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap | |
| PTZ: PTZ preset, start/stop guard tour | |
| Overlay text | |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter |
| Analytics | |
| Applications | Included |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard | |
| AXIS Video Motion Detection, Active tampering alarm | |
| Supported | |
| AXIS Digital Autotracking | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications | |
| General | |
| Casing | IP66, IK10-rated |
| Polycarbonate hard-coated dome | |
| Zinc and aluminum casing | |
| Color: White NCS S 1002-B and brushed steel | |
| Mounting | Corner mounting on 3 or 2 surfaces (wall + wall or wall + ceiling) |
| Sustainability | PVC free |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 1 |
| Typical 2.8 W, max 3.2 W | |
| Compatible with 2–wire converters | |
| Compatible with Axis PoE-over-Coax devices | |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| Audio and I/O connectivity via AXIS T61 Audio and I/O Interfaces | |
| with portcast technology | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption | |
| Support for recording to network-attached storage (NAS) | |
| Operating conditions | (–15 °C to 50 °C) (5 °F to 122 °F) |
| Humidity 15–85% RH (non-condensing) | |
| Maximum operating temperature (intermittent): 55 °C (131 °F) | |
| Minimum startup temperature: 0 °C (32 °F) | |
| Storage conditions | (-40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals | EMC |
| EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, | |
| ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, | |
| KC KN32 Class B, KC KN35 | |
| Safety | |
| IEC/EN/UL 60950-1, IS 13252 | |
| Environment | |
| IEC/EN 60529 IP66, IEC/EN 62262 Class IK10, | |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, | |
| IEC 60068-2-27, IEC 60068-2-78 | |
| IEC 60721-3-5 5M3 (vibration, shock) | |
| Network NIST SP500-267 | |
| Dimensions | White |
| Height: 92 mm (3.62 in) | |
| Width: 146 mm (5.74 in) | |
| Depth: 122 mm (4.80 in) | |
| Height when corner-mounted: 82 mm (3.23 in) | |
| Depth when corner-mounted: 104 mm (4.01 in) | |
| Weight | White |
| 655 g (1.44 lb) | |
| Included accessories | Connector guard |
| Installation guide | |
| Drill template | |
| Windows decoder 1–user license | |
| Extra screw gaskets | |
| Extra cable gaskets | |
| Video management software | AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available | |
| at axis.com/vms | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Polish, Portuguese, Traditional Chinese | |
Properties
| Properties | AXIS P9106-V Network Camera - White |
| Description | Introducing AXIS P9106-V Network Camera: A 3 MP solution for seamless surveillance without blind spots. Encased in vandal-resistant (IK10) and weatherproof (IP66) housing, it offers durability. Choose from an elegant brushed steel model for sophisticated spaces or a white model for specialized environments. With an optimized field of view, compact design, and PoE compatibility, it's perfect for diverse installations. Enjoy advanced two-way audio with Portcast devices. Elevate your surveillance with AXIS P9106-V. |
| Product Family | AXIS P9106-V Network Camera |
| Product Type | Camera |
