CISCO CBS250-24T-4G SWITCH

Model: CBS250-24T-4G
Detail:
  • Managed, Rack-mountable, 24 x 1G ports, 4 x 1G SFP Uplinks, No PoE (Data Only), Layer 3
List Price: US$352.88
Price:
$271.00
You Save: $81.88 (23% OFF)
Condition: Brand New Sealed
Availability: Out of Stock
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

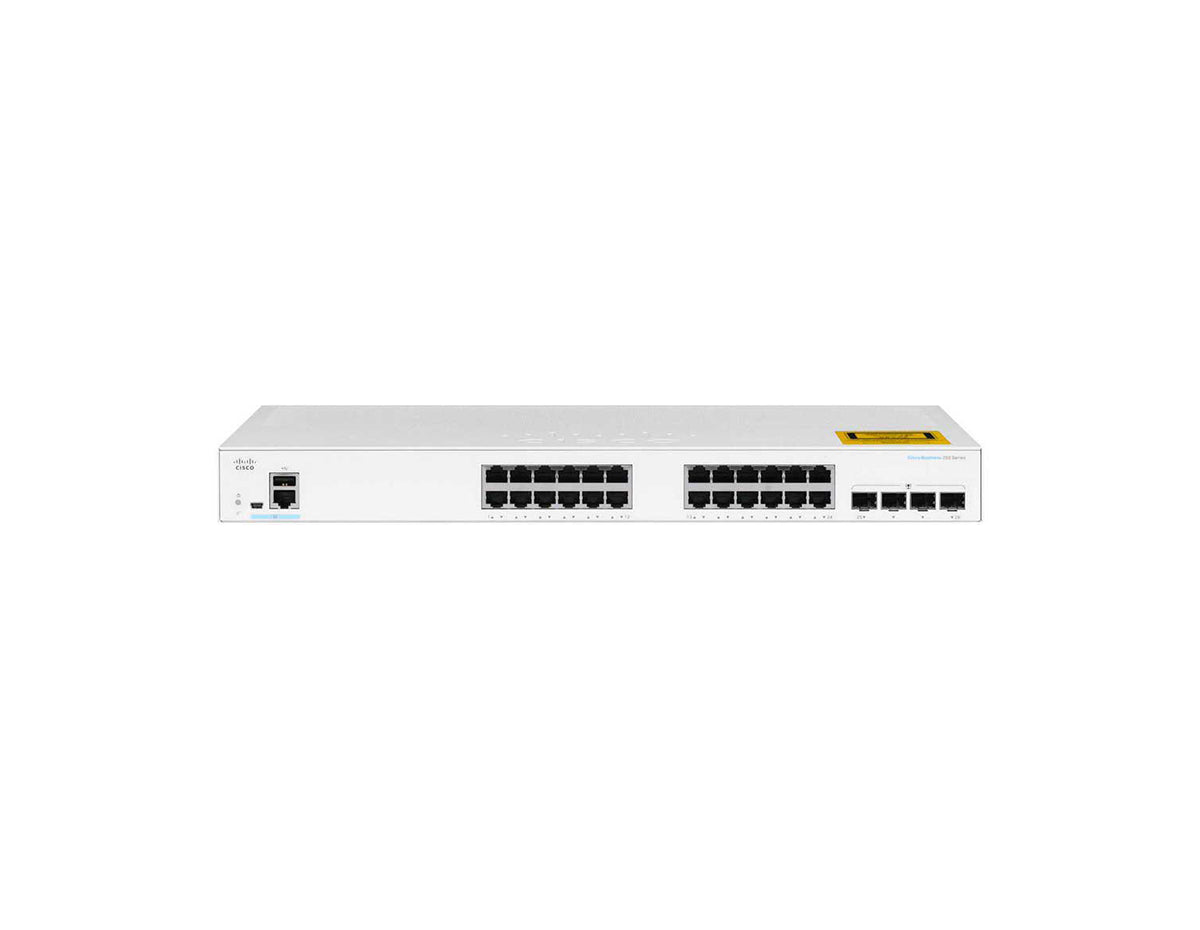

Cisco CBS250-24T-4G Switch

The Cisco CBS250-24T-4G Switch is a high-performance, scalable networking solution designed for small and medium-sized businesses. Equipped with 24 Gigabit Ethernet ports and 4 SFP uplink ports, this switch provides fast, reliable connections for expanding networks. With its energy-efficient design and robust security features, the CBS250-24T-4G ensures businesses can manage growing traffic demands while maintaining cost-effective operations.

Key Features:

  • 24 x Gigabit Ethernet Ports: Delivers fast, reliable connectivity for devices such as computers, printers, and IP phones.
  • 4 x SFP Uplink Ports: Provides flexible, high-speed uplink options for network scalability.
  • Energy-Efficient Design: Complies with IEEE 802.3az standards, reducing power consumption during periods of low traffic.
  • Comprehensive Security: Includes 802.1X authentication, Access Control Lists (ACLs), and DoS protection to secure your network.
  • Simple Management: Easily managed via the Cisco Business Dashboard or a web-based interface for smooth configuration.

Technical Overview:

  • Recommended for: Small to medium-sized businesses, retail environments, and educational institutions.
  • Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports.
  • Uplink Modules: 4 x Gigabit SFP ports.
  • Switching Capacity: 56 Gbps.
  • Forwarding Rate: 41.66 Mpps.
  • Energy Efficiency: Complies with IEEE 802.3az standards for reduced energy consumption.

You can check the related tab for the CBS250-24T-4G datasheet.

Accessories

Hardware
LEDs Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE.
Cabling type Category 5e or better
Mounting options Desktop, wall-mount or rack mount
Physical security lock Kensington lock slot
Accessories There is no additional accessories other than the power supply and the mounting kit which are included with the device package .
Supported SFP modules SKU
MGBSX1 Multimode fiber
MGBLX1 Single-mode fiber
MGBLH1 Single-mode fiber
MGBT1 UTP cat 5e
Package contents
— Cisco Business 250 Series Smart Switch
— Power cord (power adapter for 8-port SKUs)
— Quick start guide
— Mounting kit
Minimum requirements
Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet
Cat5e or better Ethernet cable
Network interface card for each computer

Specifications

Specifications CBS250-24T-4G
Capacity in millions of packets 41.66 mpps
Switching capacity 56.0 Gbps
Flash Memory 16 MB
DRAM 512 MB
CPU 400 MHz ARM
CPU Memory 128 MB
Packet Buffer 1.5 MB
MAC addresses 8K
Head-of-line (HOL) blocking HOL blocking prevention
Quality of Service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection Helps discover loops in the network to avoid broadcast storms
Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Operating Temperature
23° to 122°F (-5° to 50°C)
Operating humidity 10% to 90%, relative, noncondensing
Compliance/certifications UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Warranty Limited lifetime

Properties

Properties CBS250-24T-4G
Description

— 24 10/100/1000 PoE+ ports with 195W power budget

— 4 Gigabit SFP

Product Family CBS 250 Series
Product Type Small Business Switch
Number of Ports 28
RJ-45 ports 24 Gigabit Ethernet
Downlinks total 10/100/1000 ports 24
Power dedicated to PoE 195W
Number of ports that support PoE 24
Power 100 to 240V 50 to 60 Hz, internal, universal
Fans Fanless
Unit dimensions in. (W x D x H) 17.5 x 9.45 x 1.73
Rack-mountable Yes
