| Properties |

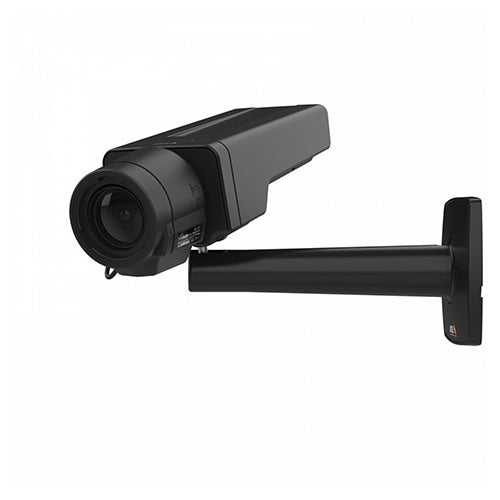

AXIS Q1656 |
| Description |
With premium Q-line functionality and high video quality even in poor light, AXIS Q1656 is based on the latest Axis system-on-chip (SoC) and offers support for strong analytics based on deep learning on the edge. |
| Product Family |
Axis Cameras |
| Product Type |
Box Camera |
| Image sensor |
1/1.8" progressive scan RGB CMOS |
| Lightfinder |
Lightfinder 2.0 |
| Wide dynamic range |
Forensic WDR |
| PoE Class |
IEEE 802.3af/802.3at Type 1 Class 3 |
| Wireless |
- |
| Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE Terminal block for two supervised and two unsupervised configurable inputs / digital outputs (12 V DC output, max load 50 mA) |
| RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block DC input, terminal block, 3.5 mm mic/line in, 3.5 mm line out i-CS connector (compatible with P-Iris and DC-iris) AXIS T92G20 connector, Security lock slot |
| Signed firmware |
Yes |
| Secure boot |
Yes |
| Remote focus |
Yes |
| Remote zoom |
Yes |
| Built-in IR |
- |
| Local storage (memory card slot) |
Yes |
| Outdoor Ready |
- |
| Vandal rating |
- |
| IP rating |
- |
| Designed for repaint |
- |
| Power (max) |
7.7 W |
| Power (average) |
4.6 W |
| DC input voltage |
10-28 V |
| Dimensions |
214 x 80 x 68 mm (8.4 x 3.2 x 2.7 in) |
| Weight |
790 g (1.7 lb) |
| Operating Temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Event actions |
Overlay text, external output activation, play audio clip, zoom preset |
| I/O: toggle I/O once, toggle I/O while the rule is active |
| MQTT: publish |
| Notification: HTTP, HTTPS, TCP, and email |
| Pre- and post-alarm video or image buffering for recording or upload |
| PTZ: PTZ preset, start/stop guard tour |
| Record video: SD card and network share |
| SNMP traps: send, send while the rule is active |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email |
| Applications |
AXIS Object Analytics, AXIS Video Motion Detection |
| Cybersecurity |
Software: Signed firmware, brute force delay protection, digest authentication, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Axis Edge Vault cybersecurity platform |
| TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
