Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
1000 Mb latency | < 2.3 s (LIFO 64-byte packets) |
100 Mb Latency | < 7.4 s (LIFO 64-byte packets) |
Throughput | Up to 41.6 million pps (64-byte packets) |
Switching capacity | 56 Gb/s |
MAC address table size | 16000 entries |
Dimensions (W x D x H) | 44.3 x 25.4 x 4.45 cm (17.44 x 10.00 x 1.75 in) (1U height) |
Weight | 2.77 kg (6.1 lb) |
Maximum heat dissipation | 164 BTU/hr (173.02 kJ/hr) |
Voltage | 100 - 127 / 200 - 240 V ac |
Current | .6/.4 A |
Idle power1 | 28.8 W |
Maximum power rating2 | 48.0 W |
Frequency | 50/60 Hz |
Operating temperature | 0 to 45C (32 to 113F) |
Operating relative humidity | 15% to 95% @ 40C (104F), noncondensing |
Non-operating/storage temperature | -40 to 70C (-40 to 158F) |
Non-operating/storage relative humidity | 15% to 90% @ 65C (149F), noncondensing |
Altitude | Up to 3 km (10,000 ft) |
Acoustic | Power: 26.4 dB, Pressure: 34.0 dB |
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
Â
Â
Â
Â
The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave and cloud-based Central.
Â
Type | Aruba 2530-24G Switch |
Ports |  24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports. 1 dual-personality (RJ-45 or USB micro-B) serial console port Supports a maximum of 28 Gigabit Ethernet ports.        |
Throughput | Up to 41.6 million pps (64-byte packets) |
Switching capacity | 56 Gb/s |
Dimensions (W x D x H) | 44.3 x 25.4 x 4.45 cm (17.44 x 10.00 x 1.75 in) (1U height) |
Weight | 2.77 kg (6.1 lb) |
Ports | Â 24 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 fixed Gigabit Ethernet SFP ports 1 dual-personality (RJ-45 or USB micro-B) serial console port. |
Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
Mounting | Â Â Â Â Â Â Â Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB);IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
1000 Mb latency | < 1.1s (LIFO 64-byte packets) |
100 Mb Latency | < 1.7 s (LIFO 64-byte packets) |
Throughput | Up to 9.5 Mp/s (64-byte packets) |
Switching capacity | 12.8 Gb/s |
MAC address table size | 16000 entries |
Dimensions (W x D x H) | 44.2 x 32.26 x 4.45 cm (17.4 x 12.7 x 1.75 in) (1U height) |
Weight | 3.81 kg (8.4 lb) |
Maximum heat dissipation | 99 BTU/hr (104.45 kJ/hr), (switch only: 99 BTU/hr; combined switch + max. PoE devices: 809 BTU/hr). |
Voltage | 100 - 127 / 200 - 240 V ac |
Current | 2.8/1.4 A |
Idle power | 21.8 W |
Maximum power rating | 237 W |
PoE power | 195 W |
Frequency | 50/60 Hz |
Operating temperature | 0 to 45C (32 to 113F) |
Operating relative humidity | 15% to 95% @ 40C (104F), noncondensing |
Non-operating/storage temperature | -40 to 70C (-40 to 158F) |
Non-operating/storage relative humidity | 15% to 90% @ 65C (149F), noncondensing |
Altitude | Up to 3 km (10,000 ft) |
Acoustic | Power: 31.7 dB, Pressure: 40.4 dB |
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
Â
Â
Â
Â
Â
The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave and cloud-based Central.
Â
Type | Aruba 2530-24-PoE+ Switch |
Ports | Â 24 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 fixed Gigabit Ethernet SFP ports 1 dual-personality (RJ-45 or USB micro-B) serial console port. |
PoE power | 195W |
Throughput | Up to 9.5 Mp/s (64-byte packets) |
Switching capacity | 12.8 Gb/s |
Dimensions (W x D x H) | 44.2 x 32.26 x 4.45 cm (17.4 x 12.7 x 1.75 in) (1U height) |
Weight | 3.81 kg (8.4 lb) |
Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
1000 Mb latency | < 2.6 s (LIFO 64-byte packets) |
100 Mb Latency | < 7.4s (LIFO 64-byte packets) |
Throughput | Up to 14.8 million pps (64-byte packets) |
Switching capacity | 20 Gb/s |
MAC address table size | 16000 entries |
Dimensions (W x D x H) | 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height) |
Weight | 1 kg (2.2 lb) |
Maximum heat dissipation | 65 BTU/hr (68.58 kJ/hr), (switch only: 65 BTU/hr; combined switch + max. PoE devices: 293 BTU/hr) |
Voltage | 100 - 127 / 200 - 240 V ac |
Current | 1.4 A |
Idle power1 | 13.4 W |
Maximum power rating2 | 86 W |
PoE power | 67 W |
Frequency | 50/60 Hz |
Operating temperature | 0 to 45C (32 to 113F) |
Operating relative humidity | 15% to 95% @ 40C (104F), non-condensing |
Non-operating/storage temperature | -40 to 70C (40 to 158F) |
Non-operating/storage relative humidity | 15% to 90% @ 65C (149F), noncondensing |
Altitude | Up to 3 km (10,000 ft) |
Acoustic | Power: 0 dB, Pressure: 0 dB |
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
Â
Â
Â
Â
Â
The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave and cloud-based Central.
Â
Type | Aruba 2530-8G-PoE+ Switch |
Ports |  8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only  2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers)  1 dual-personality (RJ-45 or USB micro-B) serial console port. |
Switching capacity | 20 Gb/s |
PoE power | 67 W |
Minimum dimensions (W x D x H) | 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height) |
Weight | 1 kg (2.2 lb) |
Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC - Intelligent Management Center; Command-Line Interface (CLI); Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB);IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB.        |
1000 Mb latency | < 2.3 s (LIFO 64-byte packets) |
100 Mb Latency | < 7.4 s (LIFO 64-byte packets) |
MAC address table size | 16000 entries |
Maximum heat dissipation | 135 BTU/hr (142.42 kJ/hr), (switch only: 135 BTU/hr; combined switch + max. PoE devices: 843 BTU/hr) |
Voltage | 100 - 127 / 200 - 240 V ac |
Current | 3.2/1.6 A |
Idle power1 | 25.2 W |
Maximum power rating2 | 247 W |
PoE power | 195 W |
Frequency | 50/60 Hz |
Operating temperature | 0 to 45C (32 to 113F) |
Operating relative humidity | 15% to 95% @ 40C (104F), noncondensing |
Non-operating/storage temperature | -40 to 70C (-40 to 158F) |
Non-operating/storage relative humidity | 15% to 90% @ 65C (149F), noncondensing |
Altitude | Up to 3 km (10,000 ft) |
Acoustic | Power: 39.6 dB, Pressure: 43.9 dB |
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
Â
Â
Â
Â
Â
The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave and cloud-based Central.
Â
Type | Aruba 2530-24G-PoE+ Switch |
Ports | Â 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 1 dual-personality (RJ-45 or USB micro-B) serial console port. |
PoE power | 195 W |
Throughput | up to 41.6 million pps (64-byte packets) |
Switching capacity | 56 Gb/s |
Dimensions (W x D x H) | 44.3 x 33.02 x 4.45 cm (17.44 x 13.00 x 1.75 in) (1U height) |
Weight | 3.95 kg (8.7 lb) |
Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or MicroUSB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
1000 Mb latency | < 2.6 s (LIFO 64-byte packets) |
100 Mb Latency | < 7.4 s (LIFO 64-byte packets) |
ThrougArubaut | Up to 14.8 million pps (64-byte packets) |
Switching capacity | 20 Gb/s |
MAC address table size | 16000 entries |
Dimensions (W x D x H) | 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height) |
Weight | 0.91 kg (2.0 lb) |
Maximum heat dissipation | 63 BTU/hr (66.46 kJ/hr), (switch only: 63 BTU/hr) |
Voltage | 100 - 127 / 200 - 240 V ac |
Current | 0.5 A |
Idle power1 | 13.6 W |
Maximum power rating | 18.6 W |
PoE power | N/A |
Frequency | 50/60 Hz |
Operating temperature | 0 to 45C (32 to 113F) |
Non-operating/storage temperature | -40 to 70C (-40 to 158F) |
Non-operating/storage relative humidity | 15% to 90% @ 65C (149F), noncondensing |
Altitude | Up to 3 km (10,000 ft) |
Acoustic | Power: 0 dB, Pressure: 0 dB |
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
Â
Â
Â
Â
Â
The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave and cloud-based Central.
Â
Type | Aruba 2530-8G Switch |
Ports | Â 8Â RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full;1000BASE-T: full only. Â 2Â dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as an SFP slot (for use with SFP transceivers) ports. Â 1 dual-personality (RJ-45 or USB micro-B) serial console port. |
Switching capacity | 20 Gb/s |
Minimum dimensions (W x D x H) | 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height) |
Weight | 0.91 kg (2.0 lb) |
Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 3 MB dynamically allocated. |
Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB);IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
1000 Mb latency | < 2.3 s (LIFO 64-byte packets) |
100 Mb Latency | < 7.4 s (LIFO 64-byte packets) |
Throughput | Up to 77.3 Mp/s (64-byte packets) |
Switching capacity | 104 Gb/s |
MAC address table size | 16000 entries |
Dimensions (W x D x H) | 44.3 x 25.4 x 4.45 cm (17.44 x 10.00 x 1.75 in) (1U height) |
Weight | 3.08 kg (6.8 lb) |
Maximum heat dissipation | 203 BTU/hr (214.17 kJ/hr) |
Voltage | 100 - 127 / 200 - 240 V ac |
Current | 1.2/0.7 A |
Idle power1 | 29.5 W |
Maximum power rating2 | 59.5 W |
Frequency | 50/60 Hz |
Operating temperature | 0 to 45C (32 to 113F) |
Operating relative humidity | 15% to 95% @ 40C (104F), noncondensing |
Non-operating/storage temperature | -40 to 70C (-40 to 158F) |
Non-operating/storage relative humidity | 65C15% to 90% @ 149F (65C), noncondensing |
Altitude | Up to 3 km (10,000 ft) |
Acoustic | Power: 31.0 dB, Pressure: 34.5 dB |
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
Â
Â
Â
Â
Â
The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave and cloud-based Central.
Â
Type | Aruba 2530-48G Switch |
Ports |  48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only. 4 fixed Gigabit Ethernet SFP ports. 1 dual-personality (RJ-45 or USB micro-B) serial console port.        |
Throughput | Up to 77.3 Mp/s (64-byte packets) |
Switching capacity | 104 Gb/s |
Dimensions (W x D x H) | 44.3 x 25.4 x 4.45 cm (17.44 x 10.00 x 1.75 in) (1U height) |
Weight | 3.08 kg (6.8 lb) |
Â
Type | Aruba 2530-48G-PoE+ Switch |
Ports | 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 1 Dual-personality (RJ-45 or USB micro-B) serial console port. |
Memory and processor | Processor: ARM9E 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 3 MB dynamically allocated. |
Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC - Intelligent Management Center; Command-Line Interface (CLI); Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
1000 Mb latency | < 2.3 s (LIFO 64-byte packets) |
100 Mb Latency | < 7.4 s (LIFO 64-byte packets) |
Throughput | Up to 77.3 million pps (64-byte packets) |
Switching capacity | 104 Gb/s |
MAC address table size | 16000 entries |
Dimensions (W x D x H) | 44.3 x 32.26 x 4.45 cm (17.44 x 13.00 x 1.75 in) (1U height) |
Weight | 4.72 kg (10.4 lb) |
Maximum heat dissipation | 236 BTU/hr (248.98 kJ/hr), (switch only: 236 BTU/hr; combined switch + max. PoE devices: 1624 BTU/hr) |
Voltage | 100 - 127 / 200 - 240 V ac |
Current | 5.8/2.9 A |
Idle power1 | 40.1 W |
Maximum power rating2 | 476 W |
PoE power | 382 W |
Frequency | 50/60 Hz |
Operating temperature | 0 to 45C (32 to 113F) |
Operating relative humidity | 15% to 95%Â 40C (104F), noncondensing |
Non-operating/storage temperature | -40 to 70C (-40 to 158F) |
Non-operating/storage relative humidity | 15% to 90%Â 65C (149F), noncondensing |
Altitude | Up to 3 km (10,000 ft) |
Acoustic | Power: 33.6 dB, Pressure: 43.9 dB |
Â

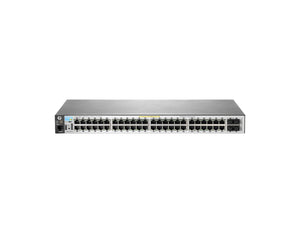

HPE Aruba 2530 48G-POE+ Switch (J9772A) ensures security, user-friendliness, and reliability for enterprise edge, branch office, and SMB deployments. HPE Aruba 2530 is a fully manageable switch, built to deliver Layer 2 capabilities with optional PoE+, improved access security, sFlow, traffic prioritization, IPv6 host support, and power-saving capability with Energy Efficient Ethernet.Â
HPE Aruba 2530 48G-POE+ Switch (J9772A) series feature easy-to-use and deploy and deliver consistent wired/wireless user-experience with unified management tools such as Airwave, cloud-based Central and ClearPass Policy Manager.
Â
Product Code | J9772A |
Type | Aruba 2530-48G-PoE+ Switch |
Ports | 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 1 Dual-personality (RJ-45 or USB micro-B) serial console port. |
PoE power | 382 W |
Throughput | Up to 77.3 million pps (64-byte packets) |
Switching capacity | 104 Gb/s |
Dimensions (W x D x H) | 44.3 x 32.26 x 4.45 cm (17.44 x 13.00 x 1.75 in) (1U height) |
Weight | 4.72 kg (10.4 lb) |
Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 3 MB dynamically allocat. |
Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB);IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
1000 Mb latency | < 2.2 s (LIFO 64-byte packets) |
100 Mb Latency | < 6.6 s (LIFO 64-byte packets) |
ThrougArubaut | Up to 13 million pps (64-byte packets) |
Switching capacity | 17.6 Gb/s |
MAC address table size | 16000 entries |
Dimensions (W x D x H) | 44.2 x 32.26 x 4.45 cm (17.4 x 12.7 x 1.75 in) (1U height) |
Maximum heat dissipation | 170 BTU/hr (179.35 kJ/hr), (switch only: 170 BTU/hr; combined switch + max. PoE devices: 1505 BTU/hr). |
Voltage | 100 - 127 / 200 - 240 V ac |
Current | 5.2/2.6 A |
Idle power1 | 37.5 W |
Maximum power rating2 | 441 W |
PoE power | 382 W |
Frequency | 50/60 Hz |
Operating temperature | 0 to 45C (32 to 113F) |
Operating relative humidity | 15% to 95% @ 40C (104F), noncondensing |
Non-operating/storage temperature | -40 to 70C (40 to 158F) |
Non-operating/storage relative humidity | 15% to 90% @ 65C (149F), noncondensing |
Altitude | Up to 3 km (10,000 ft) |
Acoustic | Power: 31.8 dB, Pressure: 37.9 dB |
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
Â
Â
Â
Â
Â
The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave and cloud-based Central.
Â

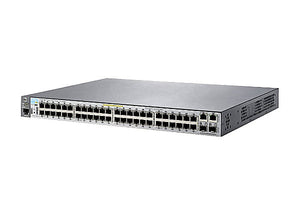

Type | Aruba 2530-48-PoE+ Switch |
Ports |  48 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full  2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only  2 fixed Gigabit Ethernet SFP ports  1 dual-personality (RJ-45 or USB micro-B) serial console port. |
Switching capacity | 17.6 Gb/s |
PoE power | 382 W |
Minimum dimensions (W x D x H) | 44.2 x 32.26 x 4.45 cm (17.4 x 12.7 x 1.75 in) (1U height) |
Weight | 4.58 kg (10.1 lb) |
