HPE ARUBA INSTANT ON 1930 48G CLASS4 POE 4SFP/SFP+ 370W SWITCH (JL686A)
| Model: | JL686A |
| Detail: |
|
| List Price: | |
| Price: | $850.00 |
| You Save: | $134.00 (14% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

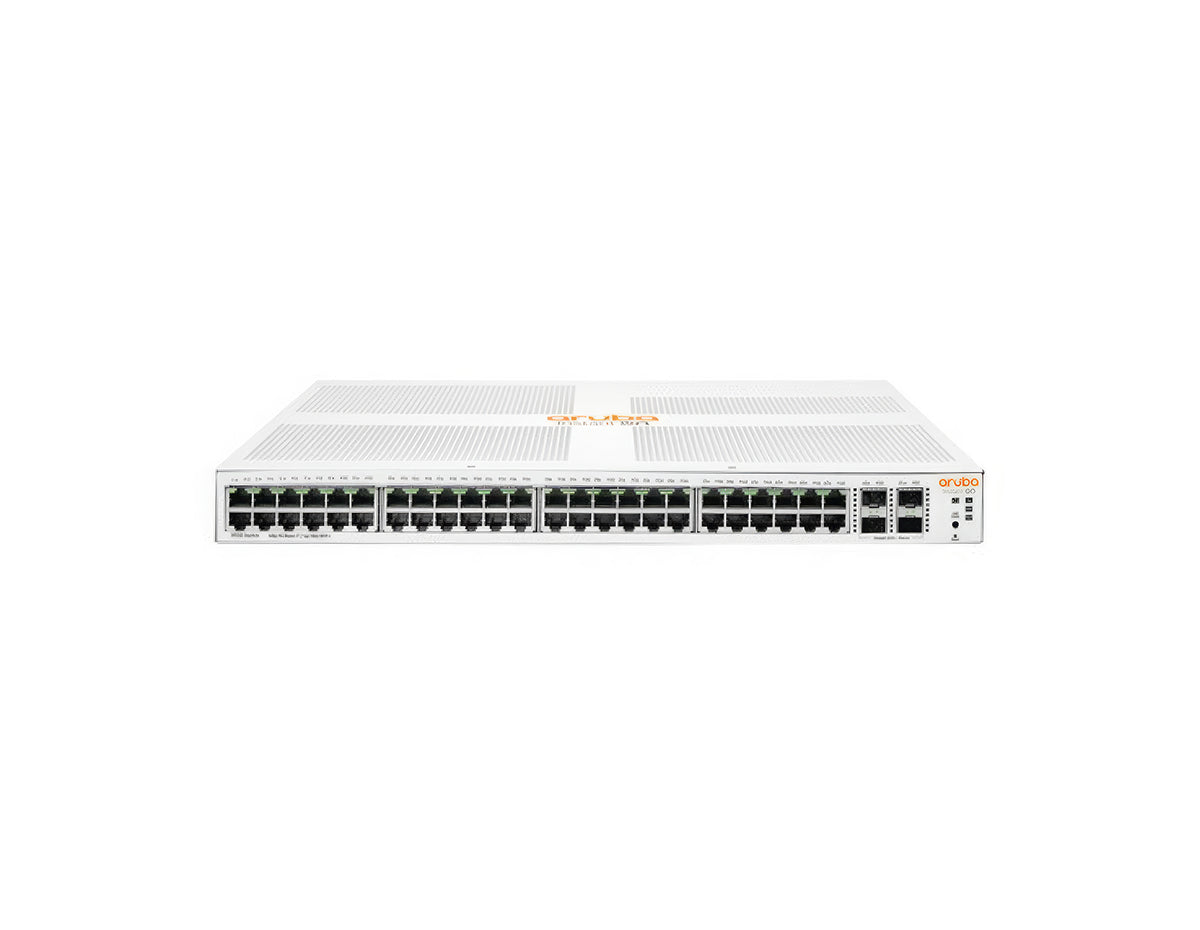

HPE Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686A)
The HPE Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686A) is a robust, smart-managed solution designed for businesses that need high-performance and flexible networking capabilities. With 48 Gigabit Ethernet ports and 4 SFP/SFP+ uplink ports, this switch offers reliable connectivity and efficient power delivery, making it perfect for bandwidth-heavy applications. The 370W PoE power budget allows it to supply power to devices such as IP cameras, wireless access points, and VoIP phones.
Key Features:
- 48 x 1GbE Class 4 PoE Ports: Provides up to 30W per port for powering devices like wireless access points, IP phones, and security cameras, reducing the need for additional power supplies.
- 4 x SFP/SFP+ Uplink Ports: Supports speeds of up to 10Gbps, ensuring fast uplinks and reliable connectivity between switches and the network core.
- 370W PoE Power Budget: Delivers ample power to multiple devices, enabling seamless deployment of PoE-enabled network components.
- Smart-Managed Layer 2+ Features: Includes VLANs, link aggregation, static routing, and ACLs for efficient traffic management and network segmentation.
- Cloud-Based Management: Easily set up, monitor, and manage the switch via the Aruba Instant On mobile app or cloud-based web portal, giving administrators flexibility and control from anywhere.
Technical Overview:
- Recommended for: Small and medium-sized businesses, retail environments, and branch offices.
- Ports: 48 x 1GbE Class 4 PoE ports, 4 x 1G/10G SFP/SFP+ uplink ports.
- Switching Capacity: 176 Gbps.
- Forwarding Rate: 130.95 Mpps.
- PoE Power Budget: 370W to power connected PoE devices.
- Layer 2+ Features: Supports VLANs, static routing, link aggregation, and ACLs for advanced traffic management.
- Management: Managed via Aruba Instant On mobile app and cloud-based web GUI.
- Security: Includes IEEE 802.1X, MAC-based authentication, and ACLs for enhanced network security.
You can check the related tab for the JL686A datasheet.
Accessories
| Transceivers | |
| Aruba 1G SFP LC SX 500m MMF Transceiver | J4858D |
| Aruba 1G SFP LC LX 10km SMF Transceiver | J4859D |
| Aruba 1G SFP RJ45 T 100m Cat5e Transceiver | J8177D |
| Aruba 10G SFP+ LC SR 300m MMF Transceiver | J9150D |
| Aruba 10G SFP+ LC LR 10km SMF Transceiver | J9151D |
| Aruba 10G SFP+ to SFP+ 1m DAC | J9281D |
| Aruba 10G SFP+ to SFP+ 3m DAC | J9283D |
Specifications
| Specifications | HPE OfficeConnect 1930 JL686A |
| Memory and processor |
ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
|
| 100 Mb Latency | < 4.5µs |
| 1000 Mb Latency | < 2.2 µs |
| Throughput | 130.95 Mpps |
| Routing/Switching capacity | 176 Gbps |
| Routing table size | 32 entries |
| MAC address table size | 16000 entries |
| Management | Aruba Instant On Portal; Web browser; SNMP Manager |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Altitude | up to 10,000 ft (3 km) |
| Acoustic | Pressure: 40.6 Power: 63.2 dB |
| MTBF (years) | 57 |
| Safety |
UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368- 1:2014
|
| Emissions |
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
|
| Immunity | CISPR 24 / CISPR 35 EN 55024:2010 / EN 55035:2017 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
| General protocols | • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-X • IEEE 802.2af PoE 1 (PoE models only) • IEEE 802.3at PoE 1 (PoE models only) • IEEE 802.3x Flow control • IEEE 802.1Q VLANS • IEEE 802.1p Priority • IEEE 802.3ad Link Aggregation Control Protocol (LACP) • IEEE 802.1X Port Access Authentication • IEEE 802.3az Energy Efficient Ethernet • IEEE 802.1D: Spanning Tree Protocol • IEEE 802.1W: Rapid Spanning Tree Protocol • IEEE 802.1S: Multiple Spanning Tree Protocol • IEEE 802.1AB Link Layer Discovery Protocol • Denial of service protection • CPU DoS Protection |
| Warranty | A limited lifetime warranty |
Properties
| Properties | HPE OfficeConnect 1930 JL686A |
| Description |
The Aruba Instant On 1930 48G PoE+ Switch (JL686A): 48 Gigabit ports, advanced PoE, and SFP/SFP+ uplinks for modern business networks.
|
| Product Family | 1930 Series |
| Product Type | Ethernet Switch |
| I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports |
| Frequency | 50/60 Hz |
| AC voltage | 100 - 127/200 - 240 VAC |
| Current | 5/2.5 A |
| Maximum power rating | 460.0 W |
| PoE power | 370 W Class 4 PoE |
| Idle power | 34.5W |
| Dimension | 17.42 x 10.42 x 1.73 in (44.25 x 26.47 x 4.39 cm) |
| Weight | 9.97 lb (4.52 kg) |
