Model: J9821A
Detail: --> Switch, managed, rack-mountable, PoE+, <
List Price: US$2,567.00
You Save: $1,004.50 (39% OFF)
Condition: Brand New Sealed
Availability: Out of Stock
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey

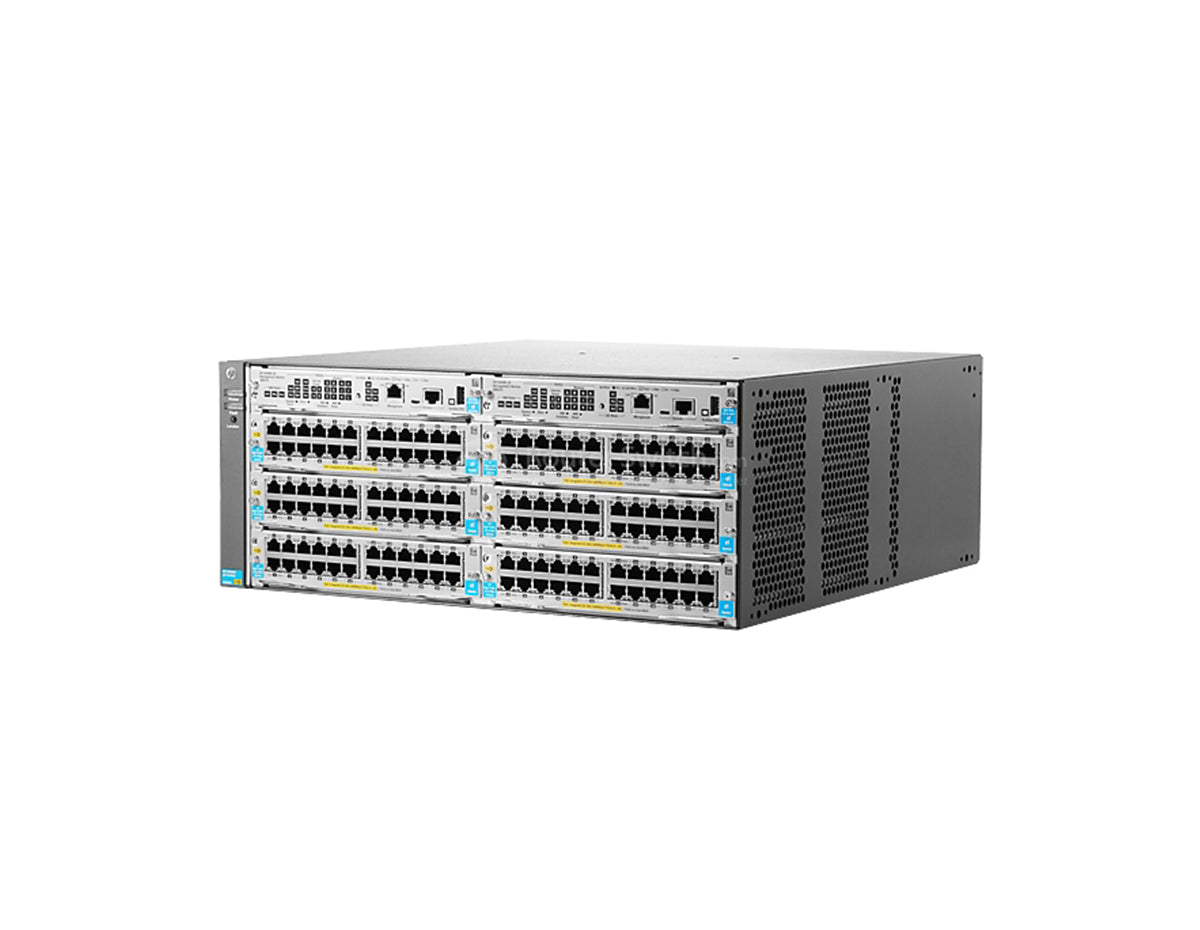

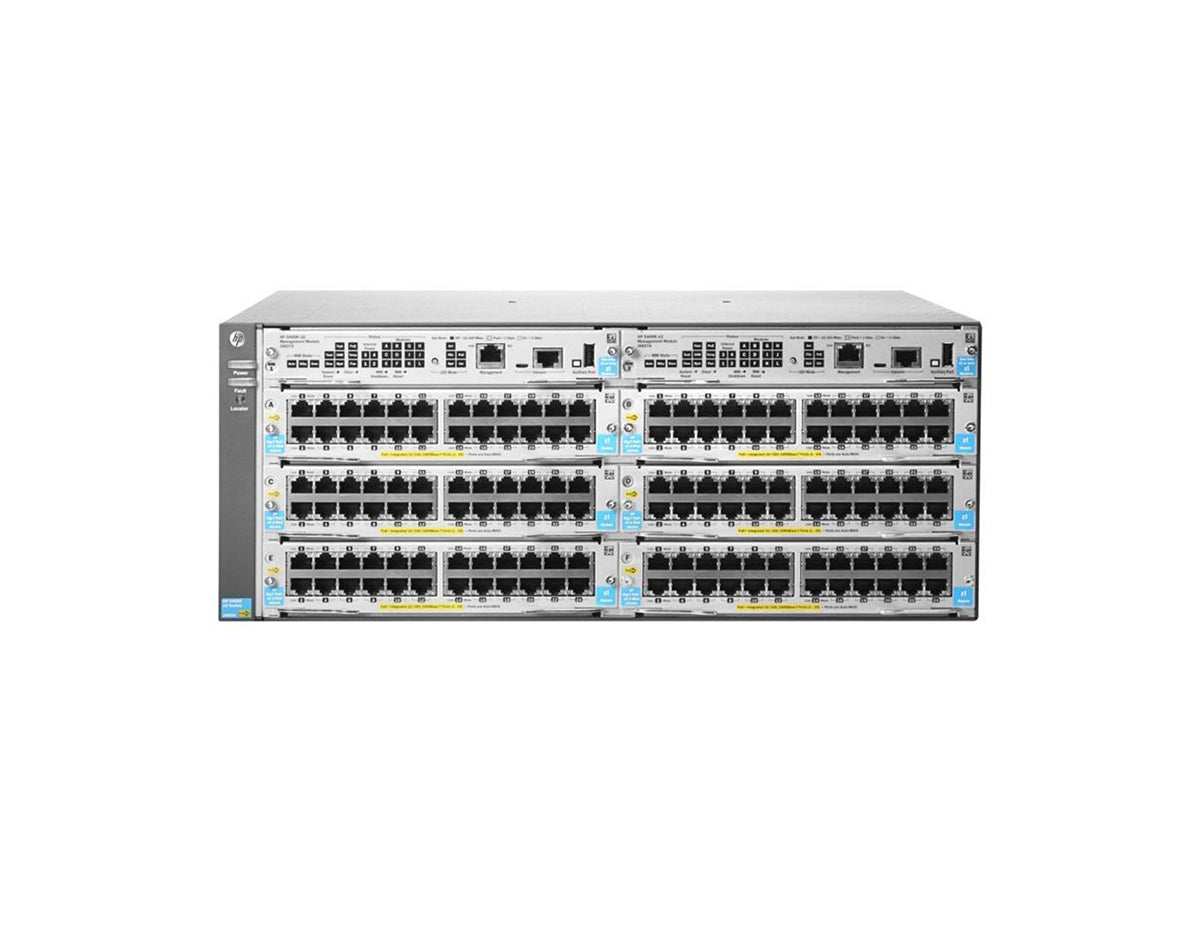

HPE Aruba 5406R zl2 Switch (J9821A) Overview


The Aruba 5400R zl2 Switch Series brings enterprise-class resiliency and innovative flexibility to mobile-first networks. This advanced Layer 3 modular switch provides scalable aggregation with HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, Virtual Switching Framework (VSF) stacking technology, hitless failover, line rate 40GbE, robust QoS and security and requires no software licensing. The 5400R is easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.


Type HPE 5406R zl2 Switch
Included accessories 1 HPE 5400R zl2 Management Module (J9827A)

1 HPE 5406R zl2 Switch Fan Tray (J9831A)
I/O ports and slots 6 open module slots

Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate

Multi-Gigabit or 12 40GbE ports, or a combination

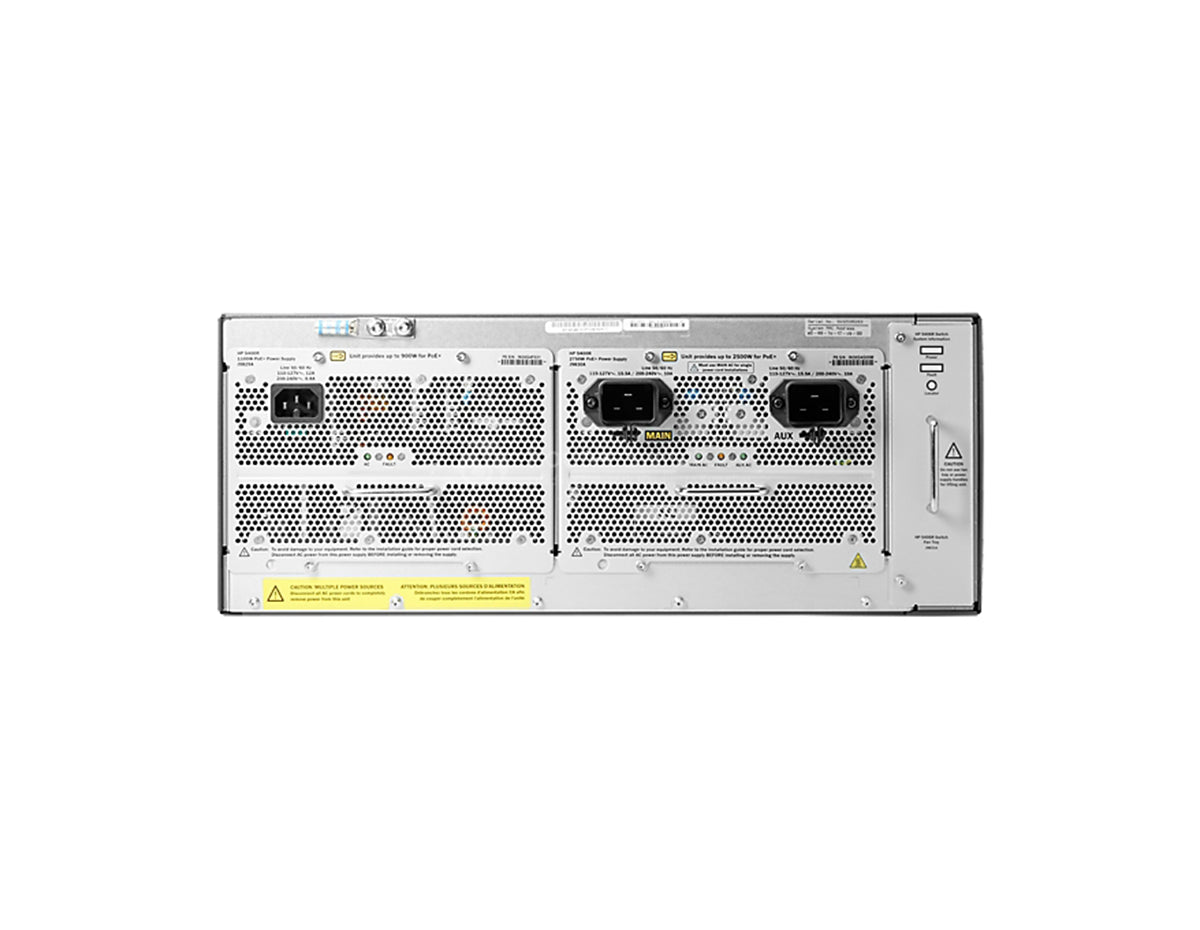

Power supplies 2 power supply slots

1 minimum power supply required (ordered separately)
Fan Tray Includes: 1 x J9831A

1 fan tray slot
Dimensions (W x D x H) 17.5(w) x 17.75(d) x 6.9(h) in. (44.45 x 45.09 x 17.53 cm) (4U height)
Weight 24.5 lb (11.11 kg)



v3 Gigabit Module Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
v2 Gigabit Module ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal
v3 10G Module Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
v2 10G Module ARM 11 @ 550 MHz; Packet buffer size: 18 MB internal
v3 40G Module Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
Management Module Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM
Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included);

Horizontal surface mounting only
1000 Mb Latency < 2.8 s (FIFO 64-byte packets)
10 Gbps Latency < 1.8 s (FIFO 64-byte packets)
40 Gbps Latency < 1.5 s (FIFO 64-byte packets)
Throughput Up to 571.4 Mpps
Routing/Switching capacity 960 Gbps
Switch fabric speed 1015 Gbps
Routing table size 10000 entries (IPv4), 5000 entries (IPv6)
MAC address table size 64000 entries
Operating temperature 32F to 113F (0C to 45C); 0C to 40C with J8177C transceiver installed, 0C to 35C

with FIPS Opacity Shield installed
Operating relative humidity 15% to 95% @ 113F (45C), noncondensing
Nonoperating/Storage temperature -40F to 158F (-40C to 70C)
Nonoperating/Storage relative humidity 15% to 95% @ 149F (65C), noncondensing
Altitude Up to 10,000 ft (3 km)
Acoustic Power: 44 dB, Pressure: 31.7 dB ISO 7779, ISO 9296
Frequency 50/60 Hz
80plus.org Certification Gold
Description Does not come with power supply. Two power supply slots are available; three different power

supplies are available. See power supply products for additional specifications.
Maximum heat dissipation 2450 BTU/hr (2584 kJ/hr), (max. non-PoE);

3700 BTU/hr (3903 kJ/hr), (max. using PoE)
Voltage 100-127/200-240 VAC, rated
Idle power (depending on power supply chosen)
Notes Heat dissipation does not include heat dissipated by the PoE-powered devices themselves.
Safety CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
Emissions FCC part 15 Class A; EN 55022/CISPR 22 Class A







Power frequency magnetic field


EN 55024, CISPR 24

IEC 61000-4-2; 4 kV CD, 8 kV AD;

HPE ENV. 765.002

IEC 61000-4-3; 3 V/m

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-5; 1 kV/2 kV AC, 1 kV signal, 0.5 kV DC

IEC 61000-4-6; 3 Vrms

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods

EN 61000-3-2, IEC 61000-3-2

EN 61000-3-3, IEC 61000-3-3
Management IMC-Intelligent Management Center; Command-line interface; Web browser; Configuration menu;

Out-of-band management (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serial RS-232C or micro USB) AirWave Network Management
Notes Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later; For example, J9142B, J8177C).
