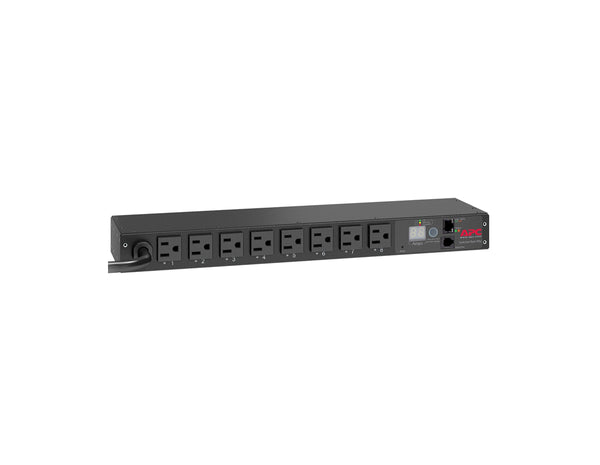

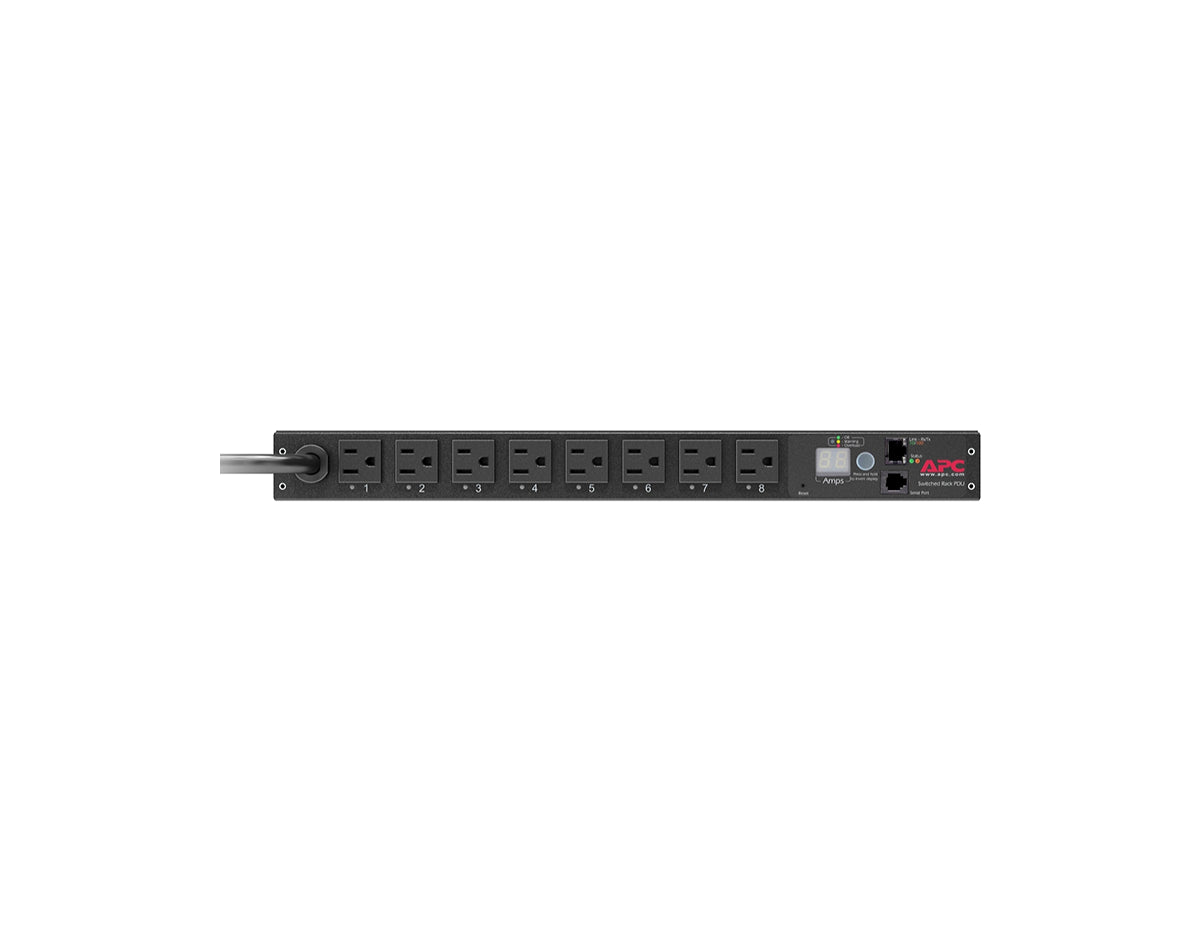

APC AP7900B - Switched Rack PDU 1U 1.4kW 120V 15A 8 Outlets

Overview

The APC AP7900B is a 1U switched rack power distribution unit designed for efficient and secure power management in IT environments. Delivering 1.4kW of capacity with 8 NEMA 5-15R outlets, it provides advanced control features such as remote monitoring, outlet-level switching, and local current metering to help prevent overloads and streamline operations.

Key Features & Benefits

• Remote Outlet Control: Power cycle, sequence, or shut down outlets from anywhere.
• Local Current Monitoring: Prevent overloads with real-time load visibility via front display.
• Multi-Tier User Access: Restrict outlet control to authorized personnel only.
• Compact 1U Design: Maximizes rack space with horizontal mounting options.
• Secure Installation: Includes cord retention and mounting hardware for stability.

Technical Deep Dive

The AP7900B operates within a 100–120V input range and supports a 15A load with a 1.4kW capacity. This ensures reliable distribution of conditioned power across critical IT hardware without risk of downtime caused by overload.

Integrated remote management enables administrators to monitor and control each of the 8 outlets individually. This allows load balancing, scheduled power cycling, and fast remote rebooting of servers and network devices without onsite intervention.

The built-in current meter offers immediate visual alerts in case of excessive load, supporting proactive maintenance and operational resilience in dense rack environments.

Ideal Applications

• Small to mid-size server racks
• Network closets and branch office IT
• Edge computing and distributed infrastructure
• Enterprise labs and test environments

Frequently Asked Questions (FAQs)

Q1: How is the AP7900B installed?
A: It is a 1U horizontal rackmount PDU and comes with brackets and cord retention hardware for flexible mounting.

Q2: What performance can I expect?
A: It delivers up to 1.4kW at 120V with 8 NEMA 5-15R outlets. Runtime depends on connected UPS systems and load levels.

Q3: How can the PDU be managed?
A: It supports remote network-based management for outlet-level control and includes a local LCD for live current monitoring.

Brand	APC by Schneider Electric
Model	AP7900B
Product Type	NetShelter Switched Rack PDU
Form Factor	Rackmount 1U
Dimensions (H x W x D)	1.7" x 17.5" x 4.3" (44 x 445 x 108 mm)
Weight	5.004 lb (2.27 kg)
Color	Black
Number of Rack Units	1U
Mounting Mode	Rack-mounted (Horizontal)
Cooling	Not specified

PDU Type	Switched
Input Voltage	100–120 V
Output Voltage	120 V
Input Plug Type	NEMA 5-15P
Input Frequency	50/60 Hz
Line Rated Current	12 A (Max 15 A)
Load Capacity	1440 VA
Outlets	8 × NEMA 5-15R
Communication Ports	Network Management (Remote monitoring & control)
Operating Temperature	32–113 °F (0–45 °C)
Storage Temperature	-13–149 °F (-25–65 °C)
Operating Humidity	0–95%
Storage Humidity	0–95%
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, RoHS, REACh
Warranty	2 years repair or replace
