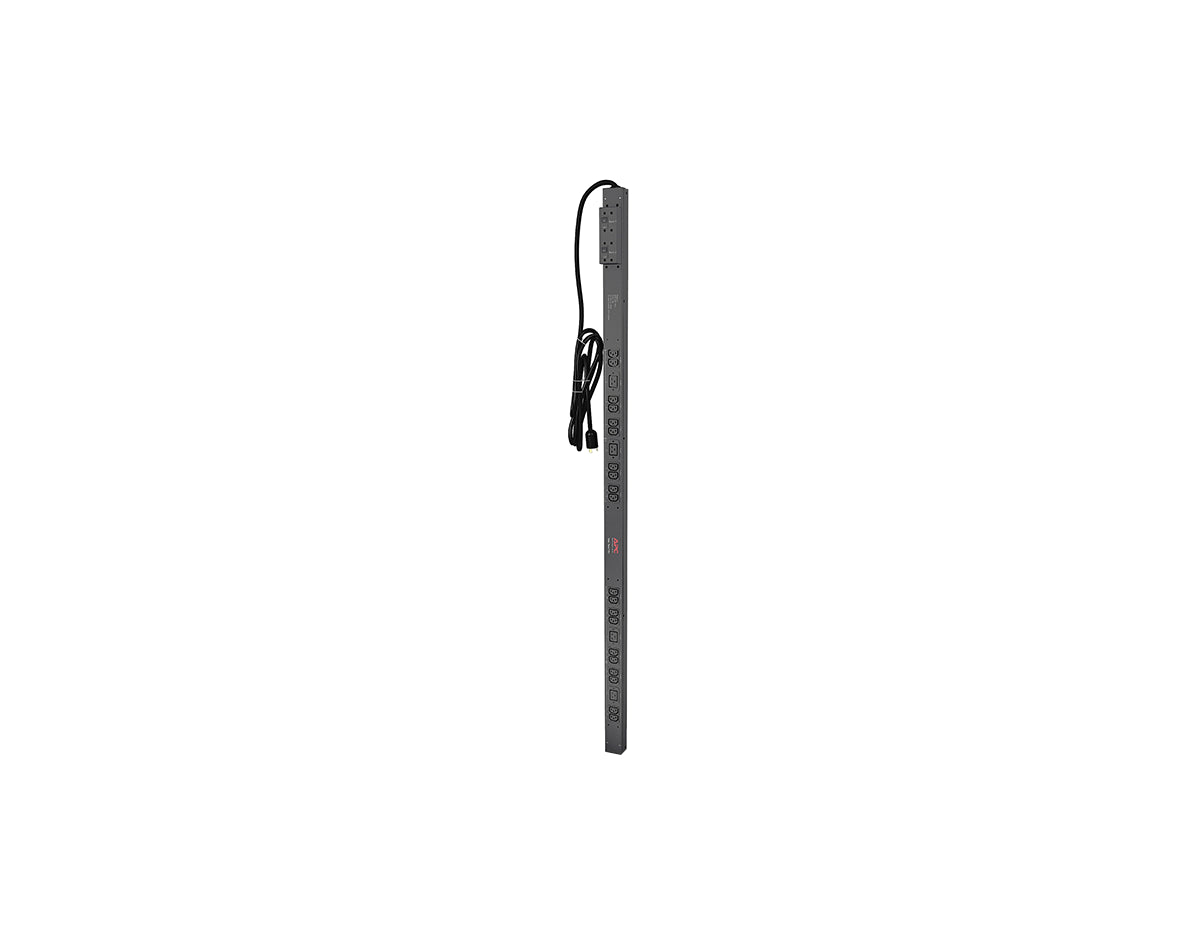

APC AP7541 - Basic Rack PDU ZeroU 4.99kVA 30A 200/208V 20x C13 & 4x C19
APC Rack PDU Basic Zero U, 30A, 200/208V, (20)C13 & (4)C19 (AP7541)
The APC AP7541 Basic Rack PDU delivers reliable power distribution for IT environments, including data centers, server rooms, and enterprise networking setups. Featuring a 30A input current limit (24A continuous line rated current) and a 200/208V output, this Zero U vertical PDU efficiently manages power distribution without taking up valuable rack space.
Designed for high-density IT racks, the AP7541 features (20) IEC C13 and (4) IEC C19 outlets, providing seamless power management for servers, networking devices, and storage units. The NEMA L6-30P input plug ensures compatibility with standard 208V power sources, making it a reliable solution for enterprise power needs.
This rack PDU is tool-less mountable in APC NetShelter enclosures, enabling quick installation and easy integration into IT infrastructures. With its integrated 9.8-ft (3 m) power cord, the AP7541 offers flexible deployment options, making it ideal for large-scale deployments.
Key Features:
- Power Distribution: 24A line rated current (30A input limit), 200/208V output with reliable power management.
- Outlet Configuration: (20) IEC C13 and (4) IEC C19 outlets for high-density IT loads.
- Input Plug: NEMA L6-30P, ensuring secure connectivity to power sources.
- Mounting Flexibility: Zero U vertical rack design, saving valuable rack space.
- Tool-Free Installation: Mounts easily in APC NetShelter enclosures.
- Optimal Reach: 9.8-ft (3 m) power cord for flexible positioning.
- Efficient Performance: Supports up to 4992VA for enterprise-level power needs.
- Durability: Built for 0-95% humidity tolerance, and operates at 32-113°F (0-45°C).
Why Choose the APC AP7541 Basic Rack PDU?
The APC AP7541 is an efficient power distribution solution for high-density IT infrastructures. Its Zero U design, high outlet capacity, and tool-less installation make it an ideal choice for enterprise data centers and network environments needing reliable and scalable power management.
Ensure uninterrupted power management with the APC AP7541—optimized for enterprise IT environments!
| Brand | APC |
| Model | AP7541 |
| SKU | AP7541 |
| Product Type | Basic Rack PDU |
| Series | APC Basic Rack PDUs |
| Form Factor | Zero U |
| Total Outlets | 24 outlets |
| Interface | NEMA L6-30P input; (20) C13 and (4) C19 outlets |
| Power | 30A (24A Line Rated Current), 200/208V |
| Input Plug | NEMA L6-30P |
| Output Receptacles | (20) IEC 60320 C13; (4) IEC 60320 C19 |
| Input Voltage | 200V / 208V / 230V |
| Line Rated Current | 24 A |
| Input Current Limits | 30 A |
| Load Capacity | 4992 VA |
| Input Frequency | 50/60 Hz |
| Cord Length | 9.8 ft (3 m) |
| Color | Black |
| Dimensions | 63.7 in x 2.2 in x 1.7 in (161.9 cm x 5.6 cm x 4.4 cm) |
| Net Weight | 12.28 lb (5.57 kg) |
