PALO ALTO PAN-PA-3430 FIREWALL
| Model: | PAN-PA-3430 |
| Detail: |
|
| Price: | $59,102.00 |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

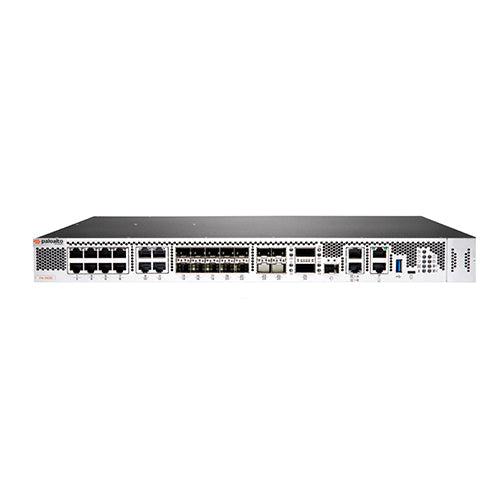

Palo Alto PAN-PA-3430 Firewall
The PA-3400 Series is NGFWs from Palo Alto Networks that are a great choice for those looking to maximize their network security through AI and machine learning. The PAN-PA-3430 allows you to define Dynamic User Groups (DUGs) to take fast security actions and keep security policies consistent regardless of users’ locations and devices. The PAN-PA-3430 provides dynamic security actions against suspicious users based on user behavior analysis.
Key Features:
- Full Layer 7 inspection
- Central management with Panorama
- Firewall throughput (HTTP/appmix): 25.5/20.5 Gbps
Accessories
Specifications
| Specifications | Palo Alto PAN-PA-3430 Firewall |
| Performance and Capacities | |
| Firewall throughput (HTTP/appmix) (Throughput is measured with App-ID and logging enabled, with 64 KB HTTP/appmix transactions.) | 25.5/20.5 Gbps |
| Threat Prevention throughput (HTTP/appmix) (Threat Prevention throughput measured with App-ID, IPS, antivirus, antispyware, WildFire, DNS Security, file blocking, and logging enabled, utilizing 64 KB HTTP/appmix transactions) | 9.2/10.5 Gbps |
| IPsec VPN throughput ( IPsec VPN throughput is measured with 64 KB HTTP transactions, and logging enabled.) | 12.2 Gbps |
| Max concurrent sessions (Max concurrent sessions are measured utilizing HTTP transactions.) | 2.5M |
| New sessions per second (New sessions per second is measured with application override, utilizing 1 byte HTTP transactions.) | 240.000 |
| Virtual systems (base/max) (Adding virtual systems over base quantity requires a separately purchased license) | (1/11) |
| Note: Results were measured on PAN-OS 11.0. | |
| Networking Features | |
| Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
| Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 Bidirectional Forwarding Detection (BFD) |
| IPsec and SSL VPN | Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 GlobalProtect large-scale VPN for simplified configuration and management (Requires GlobalProtect License) Secure access over IPsec and SSL VPN tunnels using GlobalProtect Gateway and Portals (Requires GlobalProtect License) |
| VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad) intracard and/or intercard, and LACP |
| Network Address Translation | NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation) NAT64, NPTv6 Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription |
| High Availability | Modes: active/active, active/passive, HA clustering Failure detection: path monitoring, interface monitoring |
| Mobile Network Infrastructure | 5G Security GTP Security SCTP Security |
| Hardware Specifications | |
| I/O | PA-3430: 1G/2.5G/5G/10G (12), 1G/10G SFP/SFP+ (10), 25G SFP28 (4), 40G/100G QSFP/QSFP28 (2) |
| Management I/O | 100/1000 out-of-band management port (1) 100/1000 high availability (2), 10G SFP+ high availability (1) RJ-45 console port (1), Micro USB (1) |
| Storage Capacity | 480 GB SSD |
| Power Supply (Avg/Max Power Consumption) | |
| Redundant 450-watt AC (133W/190W) | |
| Max BTU/hr | 650 |
| Input Voltage Frequency | AC: 100–240 VAC (50–60Hz) |
| Max Current Consumption | AC: 1.9 A @ 100 VAC, 0.8 A @ 240 VAC |
| Mean Time Between Failure (MTBF) | 22 years |
| Rack Mount Dimensions | 1U, 19” standard rack 14.15” x 17.15” x 1.70” |
| Weight (Standalone Device/As Shipped) | 15.5 lbs / 25 lbs |
| Safety | cTUVus, CB |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Environment | Operating temperature: 32°F to 104°F, 0°C to 40°C Nonoperating temperature: -4°F to 158°F, -20°C to 70°C Humidity tolerance: 10% to 90% Maximum altitude: 10,000 ft/3,048 m Airflow: front to back |
Properties
| Properties | Palo Alto PAN-PA-3430 Firewall |
| Description | Palo Alto Networks PA-3400 Series PA-3420 - Security appliance - 10 GigE, 5 GigE, 2.5 GigE, 25 Gigabit LAN - front-to-back airflow - 1U - rack-mountable |
| Product Family | PA-3400 Series Firewall |
| Product Type | Firewall |
| Key Features: | Full Layer 7 inspection Central management with Panorama Firewall throughput (HTTP/appmix): 25.5/20.5 Gbps |
| Advanced Features | • Advanced Threat Prevention • Advanced URL Filtering • DNS Security • Enterprise DLP • SaaS Security • IoT Security |
