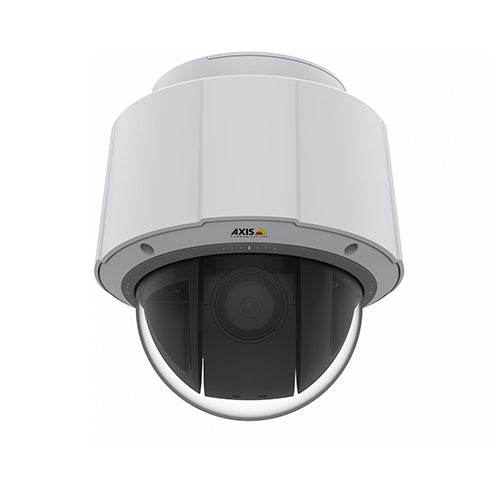

AXIS Q6074-E 60HZ PTZ NETWORK CAMERA

Accessories

Optional accessories

• Smoked dome cover • AXIS T91 Mounting Accessories • AXIS T8415 Wireless Installation Tool • AXIS T90 Illuminators • AXIS T8310 Video Surveillance Control Board • Multi-user decoder license pack

Specifications

Specifications	AXIS Q6074-E 60HZ PTZ Network Camera
Camera
Image sensor	1/2.8” progressive scan CMOS
Lens	4.25–127.5 mm, F1.6–4.2
	Horizontal field of view: 63.8°–2.6° (720p)
	Vertical field of view: 38.0°–1.47° (720p)
	Autofocus, auto-iris
Day and night	Automatically removable infrared-cut filter
Minimum illumination	Color: 0.15 lux at 50 IRE, F1.6
	B/W: 0.003 lux at 50 IRE, F1.6
Shutter speed	1/11000 s to 1/3 s with 60 Hz
Pan/Tilt/Zoom	Pan: 360° endless, 0.05°–450°/s
	Tilt: 220°, 0.05°–450°/s
	Zoom: 30x optical, 12x digital, total 360x zoom
	E-flip, 256 preset positions, tour recording (max 10, max
	duration 16 minutes each), guard tour (max 100), control queue,
	on-screen directional indicator, orientation aid PTZ, set new pan
	0°, adjustable zoom speed, focus recall
System on chip (SoC)
Model	ARTPEC-7
Memory	1024 MB RAM, 512 MB Flash
Compute capabilities	Machine learning processing unit (MLPU)
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	HDTV 720p 1280x720 to 320x180
Frame rate	Up to 50/60 fps (50/60 Hz) in HDTV 720p
Video streaming	Multiple, individually configurable streams in H.264, H.265 and
	Motion JPEG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265
Image settings	Manual shutter time, compression, color, brightness, sharpness,
	white balance, exposure control, exposure zones, fine tuning of
	behavior at low light, rotation: 0°, 180°, text and image overlay,
	polygon privacy masks, electronic image stabilization (EIS), freeze
	on PTZ, automatic defog, backlight compensation, scene profiles
	Wide Dynamic Range (WDR): Up to 120 dB depending on scene,
	highlight compensation
Network
Security	Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, protection of cryptographic keys with FIPS 140-2 certified TPM 2.0 module
	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
Supported protocols	IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPS* , SSL/TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Syslog
	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
System Integration
Application Programming Interface	Open API for software integration, including VAPIX® and
	AXIS Camera Application Platform; specifications at axis.com
	One-Click Cloud Connection
	ONVIF® Profile G, ONVIF® Profile S and ONVIF® Profile T,
	specification at onvif.org
Event conditions	Device status: above operating temperature, above or below
	operating temperature, below operating temperature, fan failure,
	IP address removed, network lost, new IP address, shock detected,
	storage failure, system ready, within operating temperature
	Edge storage: recording ongoing, storage disruption
	I/O: digital input, manual trigger, virtual input
	PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready
	Scheduled and recurring: scheduled event
	Video: live stream open
Event actions	Day/night mode, overlay text, video recording to edge storage,
	pre- and post-alarm video buffering, send SNMP trap
	PTZ: PTZ preset, start/stop guard tour
	File upload via FTP, SFTP, HTTP, HTTPS network share and email
	Notification via email, HTTP, HTTPS and TCP
Data streaming	Event data
Built-in installation aids	Pixel counter, leveling guide
Analytics
AXIS Object Analytics	Object classes: humans, vehicles
	Trigger conditions: line crossing, object in area
	Up to 10 scenarios
	Metadata visualized with color-coded bounding boxes
	Polygon include/exclude areas
	Perspective configuration
	ONVIF Motion Alarm event
Applications	Included
	AXIS Object Analytics
	AXIS Video Motion Detection, autotracking 2, active gatekeeper
	Basic analytics (not to be compared with third-party analytics):
	object removed, enter/exit detector, object counter
	Supported
	Support for AXIS Camera Application Platform enabling
	installation of third-party applications, see axis.com/acap
General
Casing	IP66-, IP67-, NEMA 4X- and IK10-rated
	Metal casing (aluminum), polycarbonate (PC) clear dome,
	sunshield (PC/ASA)
Sustainability	PVC free
Power	Axis High PoE 60 W SFP midspan: 100–240 V AC, max 66.1 W
	Camera consumption: typical 14 W, max 51 W
Connectors	RJ45 10BASE-T/100BASE-TX PoE, RJ45 Push-pull Connector
	(IP66/IP67) included
Storage	Support for SD/SDHC/SDXC card
	Support for SD card encryption
	Support for recording to network-attached storage (NAS)
	For SD card and NAS recommendations see axis.com
Operating conditions	With 30 W: -20 °C to 50 °C (-4 °F to 122 °F)
	With 60 W: -50 °C to 50 °C (-58 °F to 122 °F)
	Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
	(165 °F)
	Arctic Temperature Control: Start-up as low as -40 °C (-40 °F)
	Humidity 10–100% RH (condensing)
Storage conditions	(-40 °C to 65 °C (-40 °F to 149 °F)
	Humidity 5–95% RH (non-condensing)
Approvals	EMC
	EN 55032 Class A, EN 55035, EN 61000-3-2,
	EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024,
	FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A,
	RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35
	EN 50121-4, IEC 62236-4
	Safety
	IEC/EN/UL 60950-1, IS 13252
	IEC/EN/UL 60950-22, IEC/EN/UL 62368–1
	Environment
	IEC/EN 60529 IP66/IP67, NEMA TS 2 (2.2.7-2.2.9),
	IEC 62262 IK10, ISO 4892-2, EN 50121-4, IEC 62236-4,
	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
	IEC 60068-2-27, IEC 60068-2-60, IEC 60068-2-78,
	NEMA 250 Type 4X
	Network
	NIST SP500-267
	Midspan: EN 60950-1, GS, UL, cUL, CE, FCC, VCCI, CB, KCC,
	UL-AR
Dimensions	Ø232 x 271 mm (Ø9.13 x 10.7 in)
Weight	3.75 kg (8.3 lb)
Included accessories	Axis High PoE 60 W SFP midspan 1-port, RJ45 Push-pull
	Connector (IP66), Sunshield
	Installation Guide, Windows decoder 1-user license
Video management software	AXIS Companion, AXIS Camera Station, Video management
	software from Axis’ Application Development Partners available
	on www.axis.com/vms
Languages	English, German, French, Spanish, Italian, Russian, Simplified
	Chinese, Japanese, Korean, Portuguese, Traditional Chinese
Included accessories	Axis PoE+ midspan 1-port, Recessed mount for hard and drop
	ceilings, Smoked dome cover
	Installation Guide, Windows decoder 1-user license
Video management software	AXIS Companion, AXIS Camera Station, Video management
	software from Axis’ Application Development Partners available
	on www.axis.com/vms
Languages	English, German, French, Spanish, Italian, Russian, Simplified
	Chinese, Japanese, Korean, Portuguese, Traditional Chinese

Properties

Properties	AXIS Q6074-E 60HZ PTZ Network Camera
Description	The AXIS Q6074-E PTZ Network Camera is an outdoor-ready surveillance powerhouse with HDTV 720p, 30x optical zoom, and Axis Lightfinder 2.0 for superior low-light performance. Featuring Autotracking 2, an orientation aid, and built-in analytics for active object tracking, it ensures security with signed firmware, secure boot, TPM, and FIPS 140-2 level 2 certification. Axis Zipstream with H.264/H.265 minimizes bandwidth and storage needs, offering a compact and efficient outdoor PTZ solution.
Product Family	AXIS Q6074-E PTZ Network Camera
Product Type	Camera
