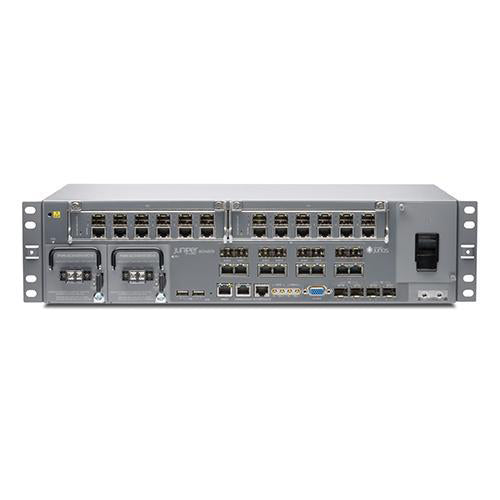

JUNIPER ACX4000BASE-AC ROUTER
| Model: | ACX4000BASE-AC |
| Detail: | Converged Access Gateway Base Unit, AC version, 2 x open slot chassis, 6 x GE Cu, 2 x GE PoE, 2 x GE Fiber, 2 x 10GE Fiber |
| List Price: | |
| Price: | $11,299.00 |
| You Save: | $6,356.00 (36% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
Juniper ACX4000 Universal Metro Router is a 2.5 U, actively cooled access router that is environmentally hardened for field deployment. This versatile, high-performance mobile access platform runs on the Junos operating system.
Accessories
| Accessories | |
| PKG-1U-ACXS | Package Spare for ACX 1RU Chassis |
| RACK-MNT-1RU-19-S | ACX Series 1 RU 19" Mounting Bracket" |
| RACK-MNT-1RU-23-S | ACX Series 1 RU 23" Mounting Bracket" |
| CBL-PWR-C15M-HITEMP-US | Power Cord, AC, C15M |
Specifications
| Specifications | ACX4000BASE-AC |
| System Throughput | Up to 60 Gbps |
| Operating temperature | -40° to 149° F (-40° to 65° C) |
| Humidity | 95% RH noncondensing |
| Platform Features | |
| Layer 2 | IEEE 802.3 bridging IEEE 802.1q IEEE 802.1ad (Q-in-Q) VLAN id manipulation for outer/inner: swap/pop/push Rapid Spanning Tree Protocol (RSTP)/VLAN Spanning Tree Protocol (VSTP)/Multiple Spanning Tree Protocol (MSTP) Link Aggregation Control Protocol (LACP) Enhanced load balancing based on L2-L4 header info Link Layer Discovery Protocol (LLDP) Layer 2 bridge protocol data unit (BPDU) tunneling/MAC rewrite |
| Layer 3 | IPv4 IPv6 RPF Equal-cost multipath (ECMP) Enhanced load balancing based on L2-L4 header info OSPF IS-IS BGP Indirect/composite next hop |
| MPLS and Seamless MPLS | RSVP LDP Path Computation Element Protocol (PCEP) RSVP-TE BGP-LU LDP-RSVP RSVP fast reroute (FRR) |
| Services | IEEE 802.3 bridge domain PWE (T-LDP) L2VPN (BGP) Layer 3 VPN Integrated routing and bridging (IRB) Stateless filters L2-L4 Circuit emulation SAToP/CESoPSN/ATM o MPLS |
| Class of Service (CoS) | 8 queues per port with schedulers and shaping Classification based on 802.1p, DiffServ code point(DSCP), IP-precedence, Exp bit Single-rate policer ingress/egress Two-rate three-color policer ingress/egress Per-Port Egress Shaping |
| OAM and SLA Management | Bidirectional Forwarding Detection (BFD) Connectivity fault management (CFM) Y.1731 RFC2544 TWAMP |
| Multicast | Protocol Independent Multicast (PIM) Internet Group Management Protocol (IGMP) IGMP snooping |
| Timing and Sync | BITS/1pps/10MHz 1588v2 BC 1588v2 over IP 1588v2 over Ethernet Synchronous Ethernet Hybrid mode |
| Security | L2 storm control |
| Configuration, Management and Automation | CLI NETCONF NMP v2/v3 SLAX/Python on-box scripting tools ZTD YANG |
| Safety Approvals | CAN/CSA-C22.2 No. 60950-1 UL 60950-1 EN 60950-1 IEC 60950-1CB Scheme EN 60825-1 |
| EMC | AS/NZS CISPR22 Class A EN55022 Class A VCCI Class A FCC Part 15 Class A IECS-003 Issue 4 BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions KN 22, Class A CISPR 32/EN55032: 2012 European Radiated Emissions Class A EN-61000-4-6 Low Frequency Common Immunity EN-61000-4-11 Voltage Dips and Sags CISPR 24/EN55024 Information Technology Equipment Immunity Characteristics |
| ETSI (European Telecommunications Standardization Institute) | EN 300 386 V1.6.1 Telecommunication Network Equipment, Electromagnetic Compatibility Requirements ETSI EN 300 019-2-1 (2000) Storage, Class T1.2 ETSI EN 300 019-2-2 (1999) Transportation, Class T2.3 ETSI EN 300 019-2-4 (2003) Stationary Use at Non-Weather Protected Locations, Class 4.1 ETSI 300753 (1997) Acoustic Noise Emitted by Telecommunications Equipment |
| NEBS | SR-3580 NEBS Criteria Levels (Level 3 Compliance) GR-63-CORE: NEBS, Physical Protection GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment (Issue 6 compliant) GR-3108-CORE: Generic Requirements for Network Equipment in the Outside Plant (OSP) |
| Telecomm Compliance | T1 and XDSL Interfaces FCC Part 68 (T1 Only) Industry Canada CS-03 JATE Green Book E1 Interface TBR 12/13 ACA TS016 G.703 RTTE Directive 1995/5/EC Device management: NETCONF, CLI, SNMP v1/v2/v3 End-to-end provisioning of E-Line, emulated LAN (ELAN), Layer 3 VPN (L3VPN), OAM, class of service (CoS) Device and service-level fault management Device and service-level performance management |
| Metro Ethernet Forum (MEF) | MEF CE2.0 compliant |
Properties
| Properties | Juniper ACX4000BASE-AC |
| Description | Converged Access Gateway Base Unit, AC version, Dual power supply, 2.5RU, ETSI 300, SyncE/1588v2, Temperature hardened, 8xGE SFP/RJ45 Combo ports including 2xGE POE RJ45 ports, 2XGE SFP,2x10GE SFP+(optics sold separately) |
| Product Family | ACX4000 Series |
| Product Type | Base Unit |
| Built-In Interface Options | |
| TDM (T1/E1) | Up to 32 (with MICs) |
| OC3 (STM1)/OC12 (STM4) | Up to 8/2 (with MICs) |
| GbE (combo) | 8 (PoE++ support on 2 ports) |
| GbE (SFP) | Up to 14 (with MICs) |
| 10GbE (SFP+) | 2 |
| Console port | RJ-45 connector |
| Management Ethernet port | RJ-45 connector |
| Dimension (WxHxD) | 17.5 x 4.35 x 9.25 in (44.5 x 11 x 23.5 cm) |
| Weight (lb/kg) | 23.8 lb (10.82 kg) (Fully configured with two power supply units, two MICs) |
| Power | 90 to 240 VAC |
| Maximum power draw | 150 W (w/o MICs) 45 W for each MIC 65 W for each PoE++ port |
| Rack Unit | 1 U |
