| Specifications |

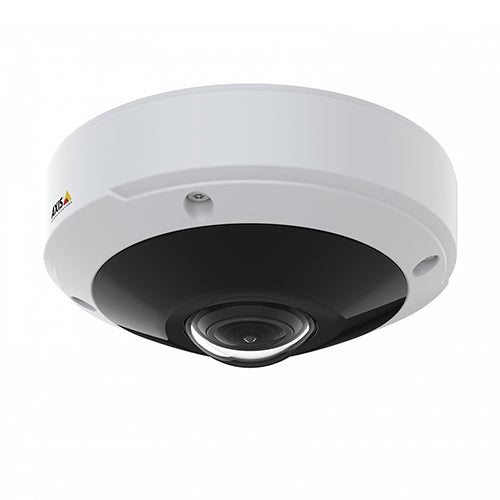

AXIS M3057-PLR Mk II Dome Camera |
| Camera |
| Image sensor |
1/1.8” progressive scan RGB CMOS |
| Lens |
1.56 mm, F2.0 |
| Horizontal field of view: 183° |
| Vertical field of view: 183° |
| Fixed iris, fixed focus, IR corrected |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
Color: 0.16 lux at 50 IRE, F2.0 |
| B/W: 0.03 lux at 50 IRE, F2.0 |
| 0 lux with IR illumination on |
| Shutter speed |
1/16000 s to 1 s |
| Camera angle adjustment |
Digital roll: ± 180° |
| System on chip (SoC) |
| Model |
ARTPEC-7 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
Overview: 2016x2016 to 160x160 |
| Panorama: 2560x1440 to 192x72 |
| Double Panorama: 2560x1920 to 384x288 |
| Quad view: 2560x1920 to 384x288 |
| View area 1-4: 1920x1440 to 256x144 |
| Corner right/left: 2368x1184 to 384x288 |
| Double corner: 2016x2016 to 384x288 |
| Corridor: 2560x1920 to 256x144 |
| Frame rate |
360° overview only, up to 2016x2016 without WDR: 50/60 fps |
| @ 50/60 Hz |
| 360° overview and dewarped views up to max resolution with |
| WDR: up to 25/30 fps @ 50/60 Hz |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Low latency mode |
| Video streaming indicator |
| Multi-view streaming |
360° overview, dewarped panorama, corridor, corner left/right |
| and quad views. Up to 4 individually cropped out and dewarped |
| view areas. All different views can be streamed simultaneously. |
| When streaming 4 dewarped view areas and one 360° overview |
| in max resolution: up to 19 fps per stream. |
| Image settings |
Compression, color saturation, brightness, sharpness, contrast, |
| local contrast, white balance, day/night threshold, tone mapping, |
| exposure control (including automatic gain control), exposure |
| zones, Forensic WDR: up to 120 dB depending on scene, fine |
| tuning of low-light behavior, dynamic text and image overlay, |
| mirroring, digital roll, polygon privacy masks |
| Image settings |
Compression, brightness, sharpness, contrast, white balance, |
| Forensic WDR, exposure control, exposure zones, fine tuning of |
| behavior at low light, rotation: 0°, 90°, 180°, 270° including |
| Corridor Format, dynamic overlay, 32 individual polygonal privacy |
| mask, mirroring of images |
| Scene profiles: forensic, vivid, traffic overview |
| Pan/Tilt/Zoom |
Digital PTZ, optical zoom, preset positions, limited guard tour, |
| control queue, on-screen directional indicator |
| Tour recording (max 10, max duration 16 minutes each), guard |
| tour (max 100), adjustable zoom speed |
| Network |
| Security |
IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, user access log, centralized certificate management |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, SSL/TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
| Onscreen controls |
Day/night shift |
| Wide dynamic range |
| Video streaming indicator |
| IR illumination |
| Event conditions |
Analytics, edge storage events, virtual inputs through API, |
| supervised external inputs, open casing |
| Call: state, state change |
| Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, casing |
| open, IP address removed, network lost, new IP address, storage |
| failure, system ready, within operating temperature |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| I/O: digital input, manual trigger, virtual input |
| MQTT subscribe |
| PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position |
| reached, PTZ ready |
| Scheduled and recurring: scheduled event |
| Video: average bitrate degradation, day-night mode, live stream |
| open, tampering |
| MQTT subscribe |
| Event actions |
Calls: answer call, end SIP call, make SIP call |
| Day-night mode |
| Guard tour |
| I/O |
| IR illumination |
| MQTT publish |
| Overlay text |
| Preset positions |
| Recordings |
| WDR mode |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| Notification: email, HTTP, HTTPS, TCP, SNMP trap messages |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter, digital roll, repositioning of quad views, digital |
| PTZ of view areas, digital PT of panorama, corner, corridor and |
| quad views |
| Analytics |
| Applications |
Included |
| AXIS Video Motion Detection, active tampering alarm |
| Supported |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, |
| AXIS People Counter, AXIS Occupancy Estimator, |
| AXIS Queue Monitor |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| Cybersecurity |
| Edge security |
Software: Signed firmware, brute force delay protection, digest |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization |
| Code Flow for centralized ADFS account management, password |
| protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Axis Edge Vault cybersecurity platform |
| Secure element (CC EAL 6+), Axis device ID, secure keystore, |
| signed video, secure boot |
| Network security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)* , IEEE 802.1AR, HTTPS/HSTS* , TLS v1.2/v1.3*, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Documentation |
AXIS Hardening Guide |
| AXIS Vulnerability Management Policy |
| AXIS Security Development Model |
| AXIS OS Software Bill of Material (SBOM) |
| To download documents, go to axis.com/support/cybersecurity/resources |
| To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
| General |
| Casing |
IP66/67-, NEMA 4X- and IK10-rated |
| Polycarbonate hard-coated dome |
| Aluminum |
| Color: white NCS S 1002-B |
| Sustainability |
PVC free |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 8.2 W, max 12.2 W |
| Connectors |
M12: female, rugged, D-coded with rotatable coupling nut |
| IR illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reach 20 m (66 ft) or more depending on scene |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(-40 °C to 55 °C (-40 °F to 131 °F) |
| Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) |
| Maximum temperature (intermittent): 70°C (158 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C |
| (165 °F) |
| Humidity 10–100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC |
| RCM AS/NZS CISPR 32 Class A, ECE R10 rev.06 (E approval), |
| EN 50498, EN 55035, EN 55032 Class A, EN 50121-4, |
| EN 50121-3–2, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), |
| IEC 62236-4, KS C 9835KS C 9832 Class A, VCCI Class A |
| Safety |
| CAN/CSA C22.2 No. 62368-1 ed. 3, |
| CAN/CSA-C22.2 No. 60950-22, EN 45545–2, IEC 62471 risk |
| group exempt, IEC/EN/UL 62368-1 ed. 3, UN ECE R118, IS 13252, |
| NFPA 130 |
| Environment |
| EN 50155:2017 OT2/ST2 (2007: Class TX), IEC 60068-2-1, |
| IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, |
| IEC 60068-2-30, IEC 60068-2-64, IEC 60721-3-5 Class 5M3 (vibration and shock), IEC/EN 61373 Category 1 Class B, |
| IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, |
| NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
| Network |
| NIST SP500-267 |
| Other |
| IEC/EN 63000:2018 |
| Dimensions |
Height: 66 mm (2.5 in) |
| ø 149 mm (5.8 in) |
| Weight |
760 g (1.68 lb) |
| Included accessories |
Installation guide, Windows® |
| decoder 1-user license, drill |
| hole template, cable gaskets, connector guard, I/O connector, |
| RESISTORX® TR20 bit, mounting bracket, cable hole lid, view |
| protector |
| Video management software |
AXIS Device Manager, AXIS Companion, AXIS Camera Station, |
| video management software from Axis Application Development |
| Partners available at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, |
| Vietnamese |
