Aruba 2540 Series Switches

Aruba 2540 Series Switches

Best suited for enterprises, small and medium-sized businesses, and branch office networks, Aruba 2540 Switches are easy to use, with a powerful, web-based management interface that allows you to configure, monitor, and troubleshoot your network from anywhere. They offer advanced security and network management features and flexible connectivity options to accommodate a range of network architectures.

       Their features include:

     - Plug-and-play 24- and 48-port Ethernet models

     - Fast 10GbE uplinks

     - PoE-enabled options

     - Advanced Layer 2 and basic Layer 3 features

     - Support for static and RIP routing, ACLs, sFlow, IPv6

     - Energy Efficient Ethernet

     - Automated software updates

Aruba 2540 Series Switches

Show on page:

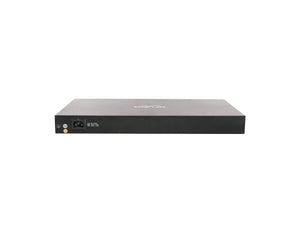

  • HPE Aruba 2540 48G 4SFP+ Switch (JL355A) - Network Devices Inc.
    Save $1,550.00

    HPE ARUBA 2540 48G 4SFP+ SWITCH (JL355A)

    HPE ARUBA 2540 48G 4SFP+ SWITCH (JL355A)

    $2,450.00
    $4,000.00
    • Switch
    • managed
    • 48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
    • desktop
    • rack-mountable
    • wall-mountable

    Device Type Switch - 48 ports - managed
    Enclosure Type Desktop, rack-mountable, wall-mountable 1U
    Subtype Gigabit Ethernet
    Ports 48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
    Performance Throughput: 112 Mpps  Switching capacity: 176 Gbps
    MAC Address Table Size 16384 entries
    Encryption Algorithm SSL
    Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2)
    Processor 1 x ARM: 1016 MHz
    RAM 1 GB DDR3 SDRAM
    Flash Memory 4 GB
    Interfaces 48 x 1000Base-T RJ-45  4 x Gigabit / 10Gbit LAN SFP+  1 x console RJ-45 management  1 x micro-USB Type B management
    Power Device Internal power supply
    Voltage Required AC 120/230 V (50/60 Hz)
    Power Consumption Operational 46.6 Watt
    Compliant Standards CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024: CISPR 24:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
    Width 17.4 in
    Depth 9.7 in
    Height 1.7 in
    Weight 6.83 lbs
    Service & Support Limited warranty - lifetime
    Min Operating Temperature 32 F
    Max Operating Temperature 113 F
    Humidity Range Operating 15 - 95% (non-condensing)
    Min Storage Temperature -40 F
    Max Storage Temperature 158 F
    Humidity Range Storage 15 - 90% (non-condensing)







    Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for mobile users. With advanced security and network management tools - Aruba ClearPass Policy Manager and Aruba AirWave - this Layer 2 access switch is easy to deploy and manage. With support from cloud-based Aruba Central, you can quickly set up remote branch sites with little or no IT support. The 2540 delivers entry-level features for the enterprise campus, SMB and branch offices. It provides built-in 10GbE uplinks, robust QoS, static and RIP routing, IPv6, PoE+ models and requires no software licensing.

    quick view
    Availability: In Stock
    $4,000.00
    $2,450.00
    quick view

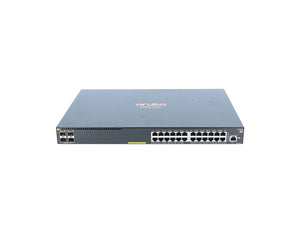

  • HPE Aruba 2540 24G PoE+ 4SFP+ Switch (JL356A) - Network Devices Inc.
    Sold Out

    HPE ARUBA 2540 24G POE+ 4SFP+ SWITCH (JL356A)

    HPE ARUBA 2540 24G POE+ 4SFP+ SWITCH (JL356A)

    $1,861.20
    $3,285.00
    • Switch
    • managed
    • 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
    • desktop
    • rack-mountable
    • wall-mountable
    • PoE+ (370 W)
    Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for mobile users. With advanced security and network management tools - Aruba ClearPass Policy Manager and Aruba AirWave - this Layer 2 access switch is easy to deploy and manage. With support from cloud-based Aruba Central, you can quickly set up remote branch sites with little or no IT support. The 2540 delivers entry level features for the enterprise campus, SMB and branch offices. It provides built-in 10GbE uplinks, robust QoS, static and RIP routing, IPv6, PoE+ models and requires no software licensing.
    Availability: Out Of Stock
    $3,285.00
    $1,861.20
  • HPE Aruba 2540 48G PoE+ 4SFP+ Switch (JL357A) - Network Devices Inc.
    Sold Out

    HPE ARUBA 2540 48G POE+ 4SFP+ SWITCH (JL357A)

    HPE ARUBA 2540 48G POE+ 4SFP+ SWITCH (JL357A)

    $3,694.60
    $5,000.00
    • Switch
    • managed
    • 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
    • desktop
    • rack-mountable
    • wall-mountable
    • PoE+ (370 W)

    Ports (48) RJ-45 autosensing 10/100/1000 PoE+ ports
    (4) SFP+ 1/10GbE ports
    PHY-less
    Memory and processor Dual Core ARM Coretex A9 @ 1016 MHz
    1 GB DDR3 SDRAM
    Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
    4 GB eMMC
    Latency 1000 Mb Latency: < 3.8 s
    10 Gbps Latency: < 1.6 s
    Throughput up to 112 Mpps
    Switching capacity 176 Gbps
    PoE capability 370 W PoE+
    Management features Aruba AirWave Network Management
    IMC - Intelligent Management Center
    Command-line interface
    Web browser
    Configuration menu
    SNMP manager
    Telnet
    RMON1
    FTP
    Out-of-band management (serial RS-232C or micro USB)
    Input voltage 100 - 127 / 200 - 240 VAC, rated
    Power consumption 459 W (maximum)
    Heat dissipation 1566 BTU/hr (1652.13 kJ/hr)
    Product dimensions (H x W x D) 17.42 x 11.98 x 1.73 in
    Weight 17.49 KG





    Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for mobile users. With advanced security and network management tools - Aruba ClearPass Policy Manager and Aruba AirWave - this Layer 2 access switch is easy to deploy and manage. With support from cloud-based Aruba Central, you can quickly set up remote branch sites with little or no IT support. The 2540 delivers entry level features for the enterprise campus, SMB and branch offices. It provides built-in 10GbE uplinks, robust QoS, static and RIP routing, IPv6, PoE+ models and requires no software licensing.

    Availability: Out Of Stock
    $5,000.00
    $3,694.60
