| Specifications |

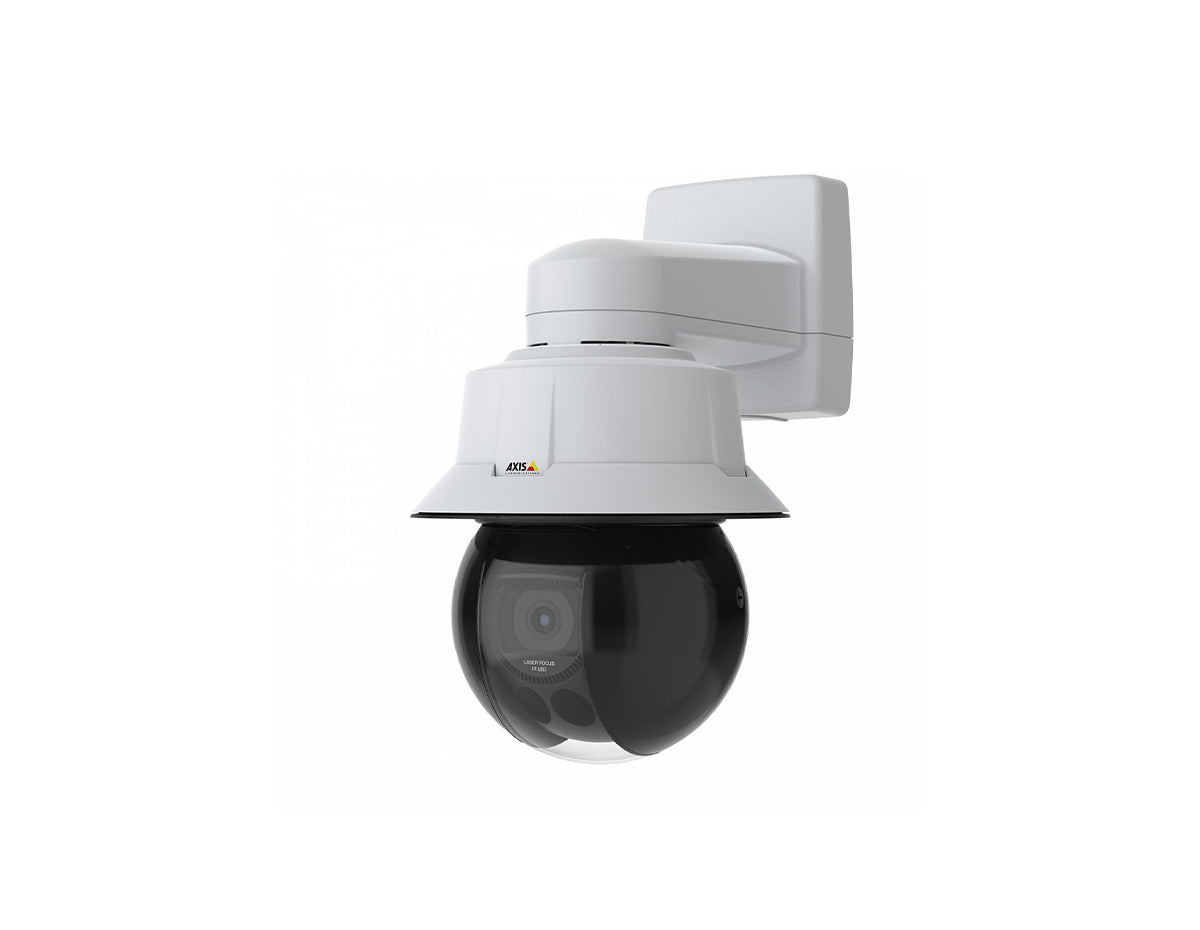

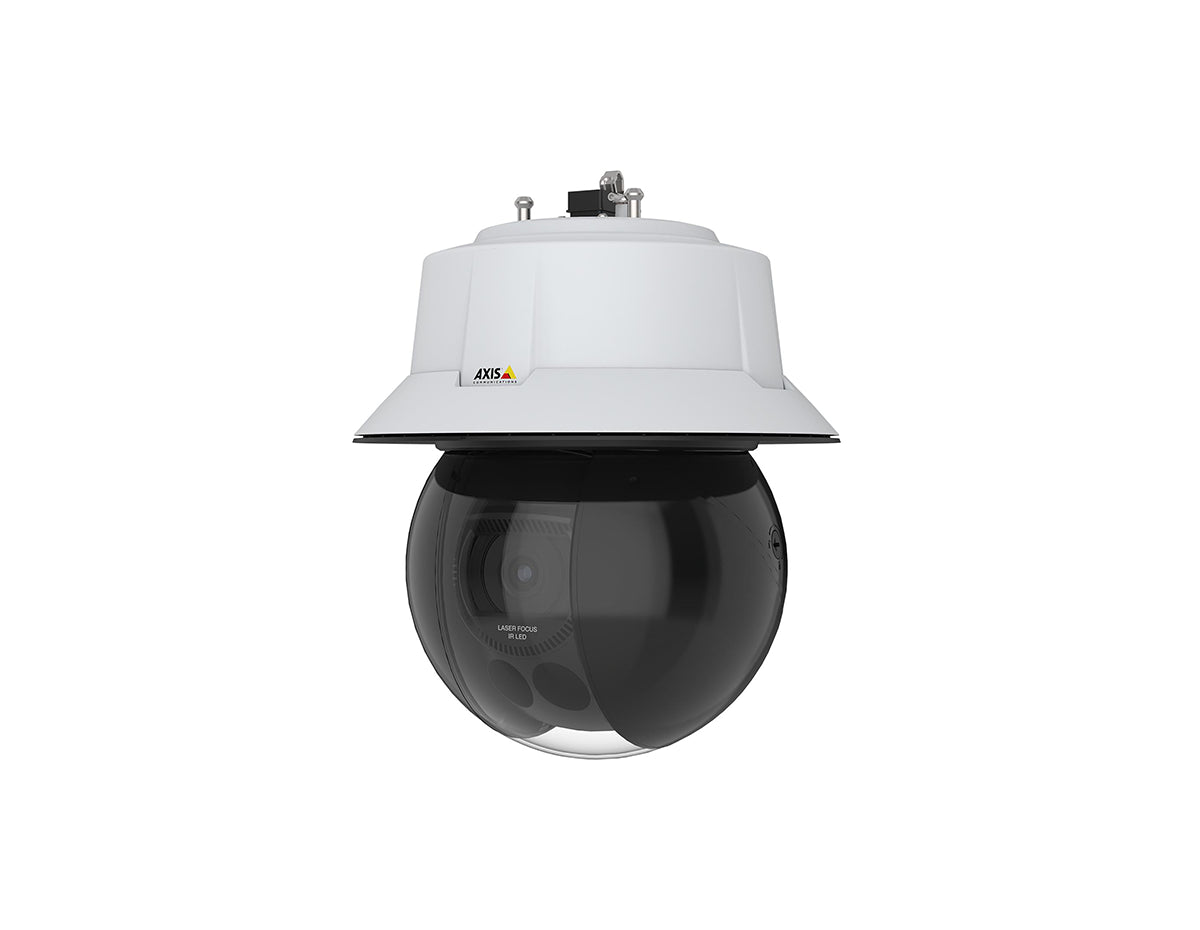

AXIS Q6318-LE 60 Hz PTZ Camera |
| Camera |
| Image sensor |
1/2” progressive scan CMOS |
| Lens |
Focal length: 6.91 – 214.64 mm, F1.36 – F4.6 |
| Horizontal field of view: 58.5°– 2.3° |
| Vertical field of view: 34.9°– 1.4° |
| Laser focus, autofocus, P-iris |
| Zoom speed: <1 sec between any zoom value |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
Color: 0.11 lux at 30 IRE, F1.36 |
| B/W: 0.001 lux at 30 IRE, F1.36, 0 lux with IR illumination on |
| Color: 0.25 lux at 50 IRE, F1.36 |
| B/W: 0.009 lux at 50 IRE, F1.36, 0 lux with IR illumination on |
| Shutter speed |
1/8500 s to 1/5 s with 60 Hz |
| Pan/Tilt/Zoom |
Pan: 360° endless, 0.05°– 550°/s |
| Tilt: +20 to -90°, 0.05°– 500°/s |
| Zoom: 31x optical, 12x digital, Total 372x zoom |
| Quick-zoom, nadir flip, 300 preset positions, tour recording |
| (max 10, max duration 16 minutes each), guard tour (max 100), |
| control queue, on-screen directional indicator, set new pan 0°, |
| adjustable zoom speed, speed dry |
| System on chip (SoC) |
| Model |
ARTPEC-7 |
| Memory |
2048 MB RAM, 512 MB Flash |
| Compute capabilities |
Machine learning processing unit (MLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
3840x2160 4K UHD |
| Frame rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Low latency mode |
| Video streaming indicator |
| Image settings |
Compression, color, brightness, sharpness, white balance, |
| exposure control, exposure zones, image freeze on PTZ, scene |
| profiles, rotation, electronic image stabilization (EIS), defogging |
| Contrast, local contrast, autofocus, Forensic WDR: Up to |
| 120 dB depending on the scene, 32 individual polygon privacy masks |
| including mosaic privacy mask |
| Network |
| Security |
multi-level user, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)*, network access control, user access log, centralized certificate management |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, |
| TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS |
| (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, |
| NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, |
| DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure |
| syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address |
| (ZeroConf)*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-Click Cloud Connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and |
| ONVIF® Profile T, specification at onvif.org |
| Onscreen controls |
IR illumination |
| Quick-zoom |
| Enable/disable all privacy masks |
| Speed dry |
| Event conditions |
Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, fan failure, |
| IP address removed, network lost, new IP address, shock detected, |
| storage failure, system ready, within operating temperature |
| Edge storage: recording ongoing, storage disruption |
| I/O: manual trigger, virtual input |
| MQTT subscribe |
| PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position |
| reached, PTZ ready |
| Scheduled and recurring: scheduled event |
| Video: average bitrate degradation, day-night mode, live stream open |
| Event actions |
Record video: SD card and network share |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| Pre- and post-alarm video or image buffering for recording or |
| upload |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap |
| PTZ: PTZ preset, start/stop guard tour |
| Overlay text, day/night mode |
| WDR mode |
| IR illumination |
| MQTT publish |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles |
| Trigger conditions: line crossing, an object in the area, time in area BETA |
| Up to 10 scenarios |
| Metadata visualized with color-coded bounding boxes |
| Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Metadata |
Object data: Classes: humans, faces, vehicles, license plates |
| Confidence, position |
| Event data: Producer reference, scenarios, trigger conditions |
| Applications |
Included |
| AXIS Object Analytics, AXIS Video Motion Detection, |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, |
| AXIS OSDI Zone, Orientation Aid PTZ, advanced gatekeeper, |
| auto tracking 2 |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| Cybersecurity |
| Edge security |
Software: Signed firmware, brute force delay protection, digest authentication, password protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Secure boot, Axis Edge Vault with Axis device ID, signed video, secure keystore (CC EAL4+, FIPS 140-2 level 2 certified hardware protection of cryptographic operations and keys |
| Network security |
IEEE 802.1X (EAP-TLS)*, IEEE 802.1AR, HTTPS/HSTS*, TLS v1.2/v1.3*, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| (ZeroConf)*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Documentation |
AXIS OS Hardening Guide |
| Axis Vulnerability Management Policy |
| Axis Security Development Model |
| AXIS OS Software Bill of Material (SBOM) To download documents, go to axis.com/support/cybersecurity/resources To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
| General |
| Casing |
IP66-, IP67, NEMA 4X- and IK10-rated |
| Color: white NCS S 1002-B |
| Repaintable metal casing (aluminum), hard-coated Polycarbonate |
| (PC) clear dome with Sharpdome technology |
| Sustainability |
PVC free |
| Power |
Axis High PoE 60 W SFP midspan 1-port: |
| 100–240 V AC, max 1.5 A |
| IEEE802.3bt Type 3 Class 6 |
| Camera consumption: typical 17 W (no IR), max 51 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T |
| RJ45 Push-pull Connector (IP66) |
| IR illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reaching 200 m (656 ft) or more depending on the scene |
| Storage |
Support for SD/SDHC/SDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Support for recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(-5 °C to 50 °C )(-23 °F to 122 °F): typical 15 W (no IR), max 30 W. |
| With IR: 44 W |
| (-50 °C to 50 °C) (-58 °F to 122 °F): typical 15 W (no IR), max 51 W |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) |
| Arctic temperature control: start-up as low as -40 °C (-40 °F) |
| Humidity: 10–100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5 - 95% RH (non-condensing) |
| Approvals |
EMC |
| EN 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, |
| EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), |
| VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, |
| EN 50121-4, KS C 9832 Class A, KS C 9835 |
| Safety |
| IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, |
| IEC/EN 62471 risk group 2, IEC 60825-1 Class 1, IS 13252 |
| Environment |
| IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, |
| NEMA 250, Type 4X, NEMA TS 2 (2.2.7–2.2.9), IEC 60068-2-1, |
| IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B) |
| Network |
| NIST SP500-267 |
| Dimensions |
Height: 261 mm (10.3 in) |
| With weather shield: ø 239 mm (9.4 in) |
| Without weather shield: ø 192 mm (7.6 in) |
|
|
| Weight |
4 800 g (10.6 lb) |
| Included accessories |
Installation guide, Windows® |
| decoder 1-user license, 60 W |
| Midspan (including power cable), IP66 rated network connector, |
| repaint template, paint paper |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese |
