| Specifications |

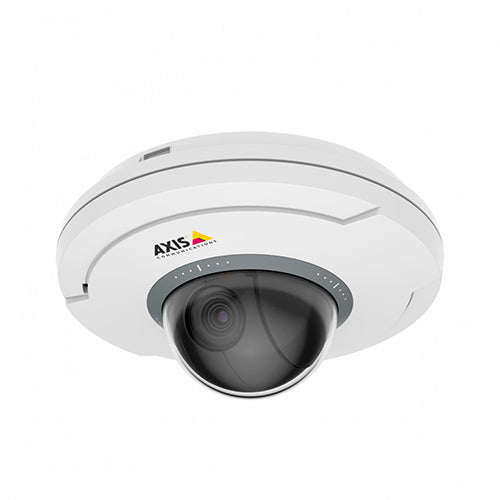

AXIS M5074 PTZ Camera |
| Camera |
| Image sensor |
1/2.8” progressive scan RGB CMOS |
| Lens |
Varifocal. 2.2–11.0 mm, F1.4–F2.5 |
| Horizontal field of view: 14°–71° |
| Vertical field of view: 8°–40° |
| Autofocus |
| Minimum illumination |
Color: 0.1 lux at 30 IRE F1.4 |
| Shutter speed |
1/17000 s to 2 s |
| Pan/Tilt/Zoom |
Pan: ±179°, 100°/s |
| Tilt: 90°, 100°/s |
| Zoom: 5x optical, 12x digital |
| 256 preset positions, control queue, on-screen directional |
| indicator, set new pan 0°, autofocus area, focus recall |
| System on chip (SoC) |
| Model |
ARTPEC-7 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
1280x720 to 320x180 (16:9) |
| Frame rate |
Up to 50/60 fps (50/60 Hz) in all resolutions |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264 |
| Video streaming indicator |
| Image settings |
Saturation, contrast, brightness, sharpness, WDR, white balance, |
| day/night threshold, local contrast, tone mapping , exposure |
| mode, exposure zones, compression, rotation: 0°, 180°, barrel |
| distortion correction, text and image overlay, polygon privacy |
| masks |
| Audio |
| Audio streaming |
One-way |
| Audio encoding |
24 bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, |
| G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable bit rate |
| Audio input |
Built-in microphone |
| Network |
| Security |
Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed OS, secure boot |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Supported protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, Network Time Security (NTS), SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S and |
| ONVIF® Profile T, specification at onvif.org |
| Onscreen controls |
Day/night shift |
| Video streaming indicator |
| Focus recall zone |
| Privacy masks |
| Event conditions |
Audio: audio detection |
| Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, IP address |
| removed, network lost, new IP address, storage failure, system |
| ready, within operating temperature |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| I/O: manual trigger, virtual input |
| MQTT subscribe |
| PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position |
| reached, PTZ ready |
| Scheduled and recurring: scheduled event |
| Video: average bitrate degradation, day-night mode, live stream |
| open, tampering |
| Event actions |
Day-night mode |
| MQTT publish |
| Overlay text |
| Preset positions |
| Recordings |
| Status LED |
| WDR mode |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| Data streaming |
Event data |
| Built-in installation aids |
Leveling assistant, pixel counter |
| Analytics |
| Applications |
Included |
| AXIS Video Motion Detection, audio detection, active tampering |
| alarm, gatekeeper, AXIS Scream Detection, AXIS Removed Object |
| Detection |
| Support for additional applications if the device is used with |
| compatible accessories. For more information, contact your Axis |
| partner. |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| General |
| Casing |
IP51-rated plastic casing, clear dome |
| Color: white NCS S 1002-B |
| For repainting instructions, go to the product’s support |
| page. For information, go to |
| axis.com |
| Sustainability |
PVC free |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 4.2 W, max 9.3 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
0 °C to 45 °C (32 °F to 113 °F) |
| Humidity 10–90% RH (non-condensing) |
| Storage conditions |
(-30 °C to 60 °C (-22 °F to 140 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC |
| EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), |
| KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, |
| VCCI Class A |
| Safety |
| CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 |
| Environment |
| IEC/EN 60529 IP51 |
| Network |
| NIST SP500-267 |
| Dimensions |
Ø130 x 63 mm (Ø5.1 x 2.5 in) |
| Weight |
380 g (0.84 lb) |
| Included accessories |
AXIS M50 Mounting Kit, Installation Guide, Windows decoder |
| 1-user license |
| Video management software |
AXIS Camera Station Edge/Pro/5 and partner VMS, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese |
| Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
