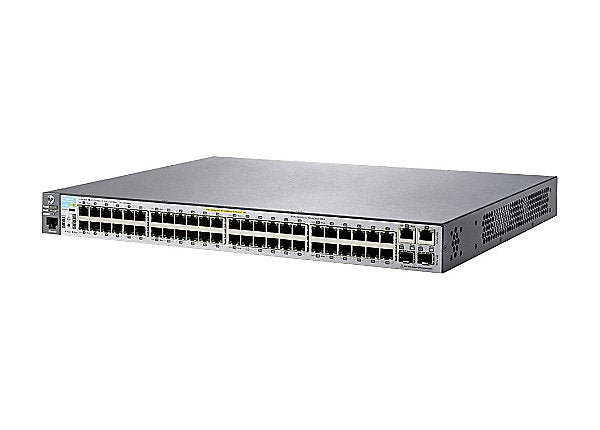

HPE Aruba Networking 2530 J9778A 48-Port PoE+ 10/100 Switch with 2x 1G SFP and 2x 1G RJ45
- Managed, Rack-mountable, 48 x 10/100 PoE+ ports, 2 x 1G copper + 2 x 1G SFP Uplinks, PoE+ (382W), Layer 2
Overview
The Aruba 2530 Switch Series offers Gigabit and Fast Ethernet models for right-sized Layer 2 access in enterprises, branch offices and small and midsize businesses, managed with Aruba AirWave or Aruba Central. The J9778A is the 48-port Fast Ethernet PoE+ model: it puts PoE+ on 48 ports at 10/100 for voice, camera and building devices that do not need Gigabit, with Gigabit only on the uplinks. Against the 48-port Gigabit PoE+ model it carries the same 382 W budget but mixes two SFP and two copper Gigabit uplinks instead of four SFP slots.
Technical Details
The HPE Aruba Networking 2530 J9778A is the Aruba 2530 48 PoE+ Switch, a Layer 2 managed 1U rackmount switch with 48 Fast Ethernet (10/100) PoE+ ports and four Gigabit uplinks: two fixed 1G SFP and two 10/100/1000 RJ-45. Switching capacity is 17.6 Gbps and forwarding rate is 13 Mpps. The PoE+ budget is 382 W, the total available to all PoE ports from the included internal power supply, with up to 30 W per port. It powers IP phones, IP cameras and access points where 10/100 access is enough.
Best For
The J9778A suits wiring closets that power up to 48 IP phones, IP cameras or access points where 10/100 access is sufficient, with Gigabit fiber or copper uplinks to the distribution layer. A 382 W PoE+ budget is suitable for mixed deployments of these devices; actual device counts depend on each powered device's power draw.
Not suitable if:
- you need Gigabit to the endpoint, since the 48 access ports are 10/100 Fast Ethernet
- you need 10G uplinks, since the four uplinks are Gigabit
- you need IP routing, since the 2530 QuickSpecs list Layer 2 switching only
- you need hardware stacking into one logical switch, since the 2530 lists only single-IP Virtual Stacking management
J9778A Specifications
| Class & Licensing | |
|---|---|
| License Tier | None (no feature license tiers listed) |
| License Detail / MTBF | None (no feature license tiers listed); MTBF not published |
| Ports & Uplinks | |
| PoE Budget | 382 W |
| Port Speed | Fast Ethernet |
| Uplink Configuration | 2x 1G SFP (fixed) + 2x 10/100/1000 RJ45 |
| Performance & Scale | |
| Stacking | No |
| Switching Capacity | 17.6 Gbps |
| Forwarding Rate | 13 Mpps |
| MAC Table | 16,000 entries |
| Hardware & Memory | |
| DRAM | 256 MB DDR3 DIMM |
| Flash | 128 MB |
| Power & Thermal | |
| Power Input / PSU | 100-127/200-240 VAC, 50/60 Hz; internal power supply |
| Redundant PSU | No (single internal power supply) |
| Cooling | Variable-speed fan |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.75 x 17.40 x 12.70 in (4.45 x 44.2 x 32.26 cm) |
| Weight | 10.1 lbs (4.58 kg) |
| Operating Temperature | 32 to 113 °F (0 to 45 °C), up to 10,000 ft (3 km) |
| Software | |
| Operating System | Not published |
J9778A Accessories
| Transceivers | |
|---|---|
| J9054C | HPE X121 1G SFP LC SX Transceiver |
| J8177C | HPE X121 1G SFP LC LX Transceiver |
| J4859C | HPE X121 1G SFP RJ45 T Transceiver |
| J4858C | HPE X111 100M SFP LC FX Transceiver |
| Cables | |
| AJ833A | HPE 0.5 m Multimode OM3 LC/LC Optical Cable |
| AJ834A | HPE 1 m Multimode OM3 LC/LC Optical Cable |
| AJ835A | HPE 2 m Multimode OM3 LC/LC Optical Cable |
| AJ836A | HPE 5 m Multimode OM3 LC/LC Optical Cable |
| AJ837A | HPE 15 m Multimode OM3 LC/LC Optical Cable |
| AJ838A | HPE 30 m Multimode OM3 LC/LC Optical Cable |
| AJ839A | HPE 50 m Multimode OM3 LC/LC Optical Cable |
| QK732A | HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable |
| QK733A | HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable |
| QK734A | HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable |
| QK735A | HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable |
| QK736A | HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable |
| QK737A | HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable |
FAQ
Does the HPE Aruba Networking 2530 J9778A support PoE, and how much power does it provide?
Yes. The HPE Aruba Networking 2530 J9778A provides IEEE 802.3at PoE+ on all 48 Fast Ethernet (10/100) access ports, up to 30 W per port, and also powers IEEE 802.3af and pre-standard PoE devices. Its PoE power budget is 382 W, which HPE defines as the total power budget available to all PoE ports, drawn from the included internal power supply. Because 48 ports at 30 W would exceed that budget, plan device counts from each device's actual draw.
What uplinks and transceivers does the J9778A use?
The J9778A has four Gigabit uplinks: two fixed Gigabit Ethernet SFP ports and two RJ-45 10/100/1000 ports. The SFP ports are 1G, so 10G SFP+ optics are not supported. For this model the QuickSpecs list the Aruba 1G SFP SX, LX and LH fiber transceivers, the 1G SFP RJ45 copper transceiver and the 100M SFP FX transceiver, and HPE requires SFPs of revision B or later. Transceivers are sold separately.
Are the J9778A access ports Gigabit?
No. The J9778A's 48 access ports are 10/100 Fast Ethernet; only its four uplinks run at Gigabit. That suits IP phones, many IP cameras and building devices whose traffic fits in 100 Mbps. If endpoints need Gigabit, the J9772A is the 2530 model with 48 Gigabit PoE+ ports.
Can the J9778A be stacked?
No. The J9778A does not stack: the Aruba 2530 QuickSpecs list no hardware stacking technology, stacking ports, stack bandwidth or member limit, so several J9778A switches cannot operate as one logical switch. The related feature HPE lists is Virtual Stacking, which provides single IP address management for up to 16 switches while each switch is still configured individually. For resilient links between switches the QuickSpecs list LACP trunking of up to eight links per trunk, IEEE 802.1s Multiple Spanning Tree and SmartLink.
What is the difference between the J9778A and the J9772A?
Both are 48-port 2530 PoE+ switches with a 382 W PoE budget. Differences documented by HPE include port speed, uplinks and throughput. The J9778A has 48 Fast Ethernet (10/100) PoE+ ports, two 1G SFP plus two 10/100/1000 RJ-45 uplinks, 17.6 Gbps switching capacity and a 13 Mpps forwarding rate. The J9772A has 48 Gigabit (10/100/1000) PoE+ ports, four 1G SFP uplinks, 104 Gbps switching capacity and a 77.3 Mpps forwarding rate. Choose the J9778A where 10/100 access is enough.
How is the J9778A managed?
The J9778A is a fully managed switch. HPE lists a command-line interface, a web browser GUI, a configuration menu, SNMPv1/v2c/v3, Intelligent Management Center and out-of-band management through an RJ-45 or USB micro-B serial console port. It can also be managed on-premises with Aruba AirWave, which supports Zero-Touch Provisioning through a DHCP-based process, or from the cloud with Aruba Central.
What condition is the J9778A sold in, and what warranty applies?
The J9778A is sold new and factory-sealed. It is covered by the Network Devices Inc. 1-year warranty and a 30-day return policy.
