| Properties |

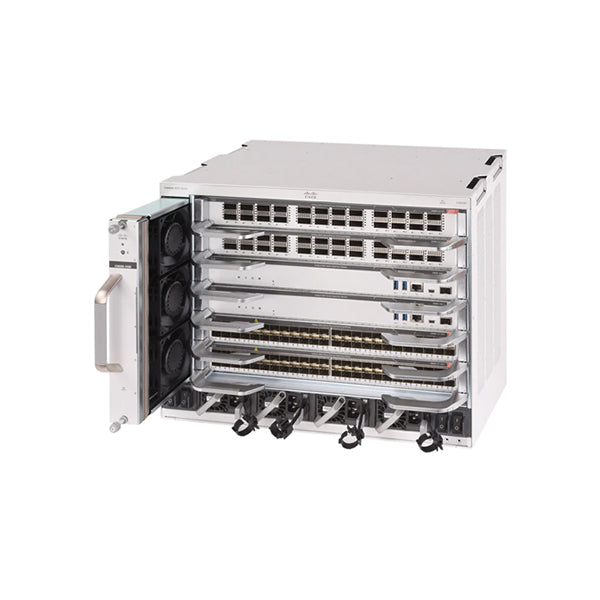

Cisco Catalyst C9606R Chassis |
| Description |
Cisco Catalyst 9600 Series 6 Slot Chassis |
| Product Family |
Catalyst 9600 |
| Product Type |
Switch Chassis |
| Total number of slots |
6 |
| Line Card slots |
4 |
| Supervisor Engine slots |
2 |
| Dedicated Supervisor Engine slot numbers |
3 and 4 |
| Supervisor Engine Redundancy |
Yes |
| Supervisor Engines Supported |
C9600-SUP-1, C9600X-SUP-2 |
| Dimensions (H x W x D) |
35.43 x 44.2 x 40.9 cm (13.95 x 17.4 x 16.1‚¬) |
| Rack Units (RU) |
8 |
| Chassis Weight with 2 Power Supplies (AC) and Fan tray |
31.31 kg (69.03 lbs) |
| Chassis Weight (without Fan tray, without PSU) |
25.36 kg (55.90 lbs) |
| Weight of Fan-tray |
3.56 kg (7.85 lbs) |
| Weight of individual PSUs |
AC PSU (3000W): 1.4 kg (3.09 lbs)
AC PSU (2000W): 1.2 kg (2.65 lbs)
DC PSU (2000W): 1.28 kg (2.82 lbs) |
| Number of Power Supply bays |
4 |
Minimum number of Power Supplies
*Fully loaded C9606R chassis, Minimum 3 power supplies required if input voltage is 110V |
2 |
| Power Supplies supported |
3000W AC, 2000W AC, and 2000W DC |
| Number of Fan-tray bays |
1 |
| Input Voltage |
AC: 90V to 264V, 47 to 63 Hz
DC: -40V to -72V |
| BTU output |
C9606R + C9606-FAN: 1,621 (max) |
| Power supply specifications |
| C9600-PWR-3KWAC |
Max power rating: 3000W
Input voltage range and frequency: 90VAC to 140VAC and 180VAC to 264VAC 47 to 63 Hz
Power supply efficiency: 94% (typical)
Input current: 17.6A max at 115VAC (1500W), 17.6A max at 230VAC (3000W)
Output ratings: 12Vmain at 125A (15000W), 12Vmain at 250A (3000W)
Output holdup time: AC = 20 ms minimum for system
Power-supply input receptacles: AC IEC 60320 C20
Power cord rating: AC 20A |
| C9600-PWR-2KWAC |
Max power rating: 2000W
Input voltage range and frequency: 90VAC to 140VAC and 180VAC to 264VAC 47 to 63 Hz
Power supply efficiency: 94% (typical)
Input current: 10.5A max at 115VAC (1050W), 10.5 A max at 230VAC (2000W)
Output ratings: 12Vmain at 88A, 12Vmain at 167A
Output holdup time: AC = 20 ms minimum for system
Power-supply input receptacles: AC IEC 60320 C16
Power cord rating: AC 15A |
| C9600-PWR-2KWDC |
Max power rating: 2000W
Input voltage range and frequency: -40VDC to -72VDC frequency
Power supply efficiency: 92% (typical)
Input current: Maximum: 60A per DC input at -40VDC input (when full PSU loading)
Output ratings: 12Vmain at 167A
Output holdup time: AC = 5 ms minimum for system
Power-supply input receptacles: Amphenol C10-638976-000
Power cord rating: DC 70A |
| Power Cord Options |
| C9600-PWR-3KWAC |
CAB-9K2A-NA: North America/Japan 20A, 125VAC
CAB-9K16A-US2: US/Japan 16A, 250VAC
CAB-9K16A-AUS: Australia 16A, 250VAC
CAB-9K16A-CH: China 16A, 250VAC
CAB-9K16A-INT: International 16A, 250VAC
CAB-9K16A-SW: Switzerland 16A, 250VAC
CAB-9K16A-EU: Continental Europe 16A, 250VAC
CAB-C19-CBN: Cabinet Jumper 16A, 250VAC |
| C9600-PWR-2KWAC |
CAB-TA-CN: China AC Type A Power Cable
CAB-TA-IS: Israel AC Type A Power Cable
CAB-TA-AP: Australia AC Type A Power Cable
CAB-TA-AR: Argentina AC Type A Power Cable
CAB-TA-DN: Denmark AC Type A Power Cable
CAB-TA-EU: Europe AC Type A Power Cable
CAB-TA-IN: India AC Type A Power Cable
CAB-TA-IT: Italy AC Type A Power Cable
CAB-TA-SW: Switzerland AC Type A Power Cable
CAB-TA-UK:United Kingdom AC Type A Power Cable
CAB-TA-NA: North America AC Type A Power Cable
CAB-C15-CBN: Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors
CAB-TA-JP: Japan AC Type A Power Cable
CAB-C15-CBN-JP: Japan Cabinet Jumper Power Cord, 250 VAC 12A, C14-C15
CAB-TA-250V-JP: Japan 250V AC Type A Power Cable
CAB-ACBZ-12A: AC Power Cord (Brazil) 12A/125V BR-3-20 plug up to 12A |
| C9600-PWR-2KWDC |
PWR-2KW-DC-CBL: Power Cord - 2KW DC |
