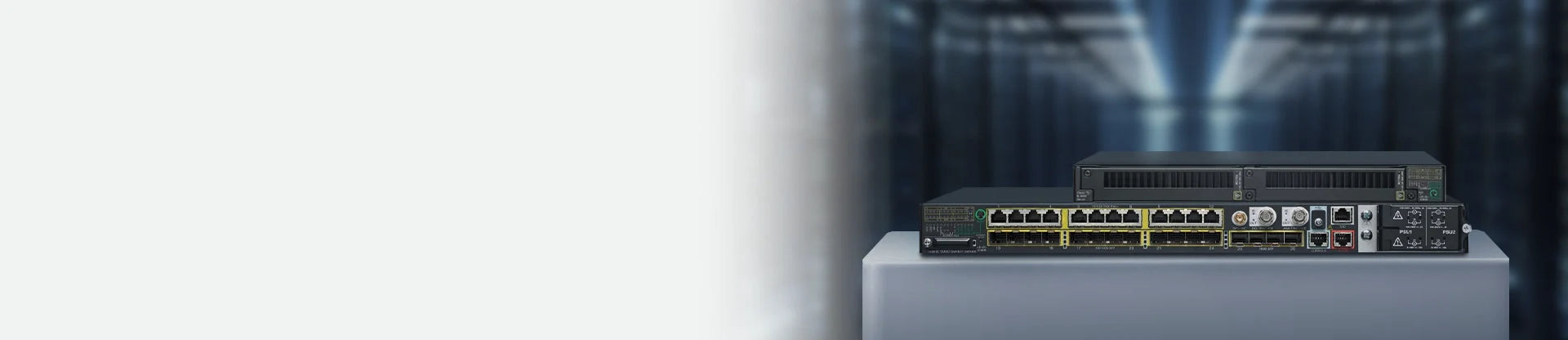

Cisco Industrial Ethernet 5000 Series Switches

Cisco Industrial Ethernet 5000 Series Switches

The Cisco IE 5000 series includes industrial ethernet switches that are ruggedized and designed to withstand challenging environments.



     Their features include:

     - User-friendly, web-based Device Manager

     - Easy configuration

     - Up to 12 PoE or PoE+ support

     - Cisco DNA Center

     - Extreme resiliency towards harsh environments

Cisco Industrial Ethernet 5000 Series Switches

Show on page:
  • Cisco IE-5000-12S12P-10G Switch - Network Devices Inc.
    Save $13,303.99

    CISCO IE-5000-12S12P-10G SWITCH

    CISCO IE-5000-12S12P-10G SWITCH

    $16,500.00
    $29,803.99
    • Switch
    • Managed
    • 4 x 1 Gigabit / 10 Gigabit SFP+ + 12 x Fast Ethernet/Gigabit SFP + 12 x
    • 10/100/1000 (PoE+)
    • Rack-mountable
    • PoE+



    Hardware   1-GB DRAM

      256-MB onboard flash memory

      1-GB removable SD flash memory card

      Mini-USB connector

      RJ-45 traditional console connector

      GPS antenna interface (needs future software support) - GPS antenna input

      Analog Timing I/O interface (needs future software support) - For analog IRIG support

      Digital Timing I/O interface (needs future software support) - For digital timing such as IRIG-B TTL

      TOD interface (needs future software support) - Cisco Time-of-Day port to provide RS422 1 PPS, IRIG-B TTL or IOS-8601 and NMEA Time-of-Day support
    Alarm   Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay
    Power consumption   Maximum of 90W not including PoE consumption
    Accessories   SD-IE-1GB= - Spare SD card
    Forwarding bandwidth 28Gbps (IE-5000-16S12P) or 64Gbps (IE-5000-12S12P-10G) - Line rate/Non-blocking
    Switching bandwidth 56Gbps (IE-5000-16S12P) or 128Gbps (IE-5000-12S12P-10G)
    Forwarding rate 41.67Mpps (IE-5000-16S12P) or 95.238Mpps (IE-5000-12S12P-10G) with 64 byte packets (Line rate)
    Number of queues 4 egress
    Unicast MAC addresses 16,000
    IGMP multicast groups 1,000
    Number of VLANs 1,005
    IPv4 MAC security ACEs 1,000 with default TCAM Template
    NAT translation Bidirectional, 256 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly









    Cisco IE-5000-12S12P-10G Switch Overview



    The Cisco Industrial Ethernet (IE) 5000 Series switches with four 10 Gigabit or four 1 Gigabit Ethernet uplinks and 24 Gigabit Ethernet downlinks is a rack mount, ruggedized switch that provides Layer 2 and Layer 3 line-rate aggregation and copper Power over Ethernet (PoE) connectivity in harsh industrial environments.

    The IE 5000 Series is ideal for Industrial Ethernet applications where hardened products are required. This includes utility industries, manufacturing, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining.



    Total ports 28
    Uplinks 4 SFP/SFP+ (1G/10G)
    SFP fiber ports (S) 12 (FE/GE)
    Copper 10/100/1000 PoE/PoE+ ports 12 (10/100/1000M)
    Default software LAN Base
    Dimensions (H x W x D)   1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H

     / PWR-RGD-LOW-DC-H

      1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x  38.56 cm),  1 RU (rack unit) height with PWR-RGD-AC-DC-250
    Weight   Without Power Supply: 13.7 lb (6.21 kg)

      PWR-RGD-AC-DC-H: 2.55 lb (1.16kg)

      PWR-RGD-LOW-DC-H-H: 2.5 lb (1.13kg)

      PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg)
    quick view
    Availability: In Stock
    $29,803.99
    $16,500.00
    quick view
  • Cisco IE-5000-16S12P Switch - Network Devices Inc.
    Save $4,005.33

    CISCO IE-5000-16S12P SWITCH

    CISCO IE-5000-16S12P SWITCH

    $9,795.00
    $13,800.33
    • Switch
    • Managed
    • 16 x Gigabit SFP + 12 x 10/100/1000 (PoE+)
    • Rack-mountable
    • PoE

    Hardware   1-GB DRAM

      256-MB onboard flash memory

      1-GB removable SD flash memory card

      Mini-USB connector

      RJ-45 traditional console connector

      GPS antenna interface (needs future software support) - GPS antenna input

      Analog Timing I/O interface (needs future software support) - For analog IRIG support

      Digital Timing I/O interface (needs future software support) - For digital timing such as IRIG-B TTL

      TOD interface (needs future software support) - Cisco Time-of-Day port to provide RS422 1 PPS, IRIG-B TTL or IOS-8601 and NMEA Time-of-Day support
    Alarm   Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay
    Power consumption   Maximum of 90W not including PoE consumption
    Accessories   SD-IE-1GB= - Spare SD card
    Forwarding bandwidth 28Gbps (IE-5000-16S12P) or 64Gbps (IE-5000-12S12P-10G) - Line rate/Non-blocking
    Switching bandwidth 56Gbps (IE-5000-16S12P) or 128Gbps (IE-5000-12S12P-10G)
    Forwarding rate 41.67Mpps (IE-5000-16S12P) or 95.238Mpps (IE-5000-12S12P-10G) with 64 byte packets (Line rate)
    Number of queues 4 egress
    Unicast MAC addresses 16,000
    IGMP multicast groups 1,000
    Number of VLANs 1,005
    IPv4 MAC security ACEs 1,000 with default TCAM Template
    NAT translation Bidirectional, 256 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly









    Cisco IE-5000-16S12P Switch Overview



    The Cisco Industrial Ethernet (IE) 5000 Series switches with four 10 Gigabit or four 1 Gigabit Ethernet uplinks and 24 Gigabit Ethernet downlinks is a rack mount, ruggedized switch that provides Layer 2 and Layer 3 line-rate aggregation and copper Power over Ethernet (PoE) connectivity in harsh industrial environments.

    The IE 5000 Series is ideal for Industrial Ethernet applications where hardened products are required. This includes utility industries, manufacturing, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining.



    Total ports 28
    Uplinks 4 SFP/SFP+ (1G)
    SFP fiber ports (S) 12 (FE/GE)
    Copper 10/100/1000 PoE/PoE+ ports 12 (10/100/1000M)
    Default software LAN Base
    Dimensions (H x W x D)   1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H

     / PWR-RGD-LOW-DC-H

      1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x  38.56 cm),  1 RU (rack unit) height with PWR-RGD-AC-DC-250
    Weight   Without Power Supply: 13.7 lb (6.21 kg)

      PWR-RGD-AC-DC-H: 2.55 lb (1.16kg)

      PWR-RGD-LOW-DC-H-H: 2.5 lb (1.13kg)

      PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg)
    quick view
    Availability: In Stock
    $13,800.33
    $9,795.00
    quick view
