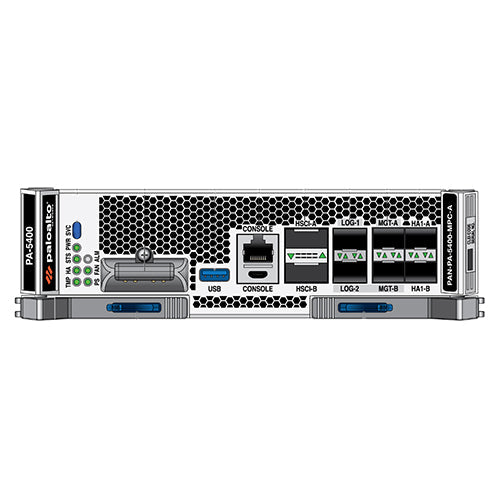

PALO ALTO PA-5400-MPC-A MODULE
| Model: | PAN-PA-5400-MPC-A |
| Detail: |
|
| Price: | $67,057.20 |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
Palo Alto PA-5400-MPC-A Module
The PA-5400-DPC-A is a mandatory interface card that connects the firewall to the PA-5400-BC-A base card. The PA-5400-DPC-A is a firewall management card that features two system drives and a logging drive. It enables management, logging, and high-availability through SFP+ ports.
Accessories
Specifications
| Specifications | PA-5400 Series |
| Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
| Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 Bidirectional Forwarding Detection (BFD) |
| SD-WAN | Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) |
| IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption SLAAC |
| IPsec and SSL VPN | Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3des, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 GlobalProtect Large Scale VPN for simplified configuration and management* Secure access over IPsec and SSL VPN tunnels using GlobalProtect gateway and portals* |
| VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad), LACP |
| Network Address Translation | NAT modes (IPv4): static IP, dynamic IP, Dynamic IP and Port (port address translation) NAT64, NPTv6 Additional NAT features: dynamic IP reservation, tunable Dynamic IP and Port oversubscription |
| High Availability | Modes: active/active, active/passive, HA clustering Failure detection: path monitoring, interface monitoring |
| Mobile Network Infrastructure | 5G Security GTP Security SCTP Security * Requires GlobalProtect license |
| Hardware Specifications | |
| PAN-PA-5400-MPC-A Management I/O | SFP/SFP+ MGT (2), SFP/SFP+ HA1 (2), HSCI HA2/HA3 QSFP+/ QSFP28 (2), RJ45 serial console (1), Micro USB serial console (1) |
| Management I/O | 1G/10G SFP/SFP+ out-of-band management port (1), 1G/10G SFP/SFP+ high availability (2), 40G QSFP+ high availability (1), RJ-45 console port (1), Micro USB |
| Storage Capacity | 480 GB SSD pair, system storage |
| Power Supply (Avg/Max Power Consumption) | 630/760 W |
| Max BTU/hr | 1638 |
| Power Supplies (Base/Max) | 1:1 fully redundant (2/2) |
| AC Input Voltage (Input Hz) | 100–240 VAC (50–60 Hz) |
| AC Power Supply Output | 1,200 watts/power supply |
| Max Current Consumption | AC: 7 A @ 100 VAC, 3 A @ 240 VAC DC: 15 A @ -48 VDC, 12 A @ -60 VDC |
| Max Inrush Current | AC: 50 A @ 230 VAC, 50 A @ 120 VAC DC: 200 A @ 72 VDC |
| Mean Time Between Failure (MTBF) | 22 years |
| Rack Mount Dimensions | 2U, 19" standard rack (3.45" H x 22.5" D x 17.34" W) |
| Weight (Standalone Device/As Shipped) | 35.2 lbs/48.8 lbs |
| Safety | cTUVus, CB |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Environment | Operating temperature: 32°F to 122°F, 0°C to 50°C Nonoperating temperature: -4°F to 158°F, -20°C to 70°C Humidity tolerance: 10% to 90% Maximum altitude: 10,000 ft/3,048 m Airflow: front to back |
Properties
| Properties | PAN-PA-5400-MPC-A Module |
| Description | The MPC subsystem (PAN-PA-5400-MPC-A) acts as a dedicated point of contact for controlling all aspects of the PA-5450. |
| Product Family | PA-5400 Series firewalls |
| Product Type | Expansion Module |
| Card Status | Up |
| Power (w) | 152 |
| Power Specification (Power Produced (+) or Rated Consumption (-)) | -180 Watts (Includes power allocation for optics) |
| Hardware Specifications | SFP/SFP+ MGT (2), SFP/SFP+ HA1 (2), HSCI HA2/HA3 QSFP+/ QSFP28 (2), RJ45 serial console (1), Micro USB serial console (1) |
