| Specifications |

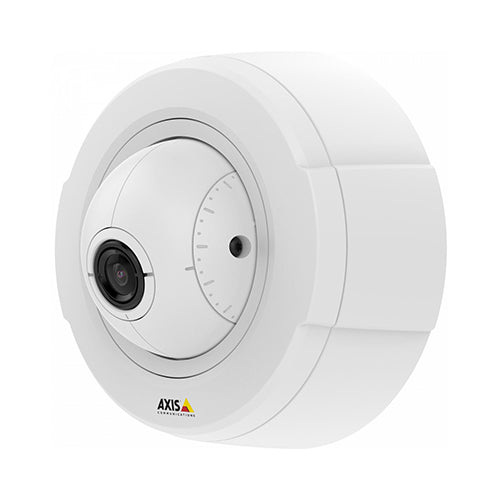

AXIS P1290-E 4 MM 8.3 FPS Thermal Network Camera |
| Camera |
| Image sensor |
Uncooled Microbolometer 208 x 156 pixels, Pixel size 12 µm, |
| Spectral range: 8-14 µm |
| Lens |
Athermalized |
| 4 mm, F1.2 |
| Horizontal field of view: 35.4° |
| Vertical field of view: 28° |
| Near focus distance: 1 m |
| Sensitivity |
NETD < 100 mK |
| Camera angle adjustment |
Tilt: 120°, Rotation: 90° |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| Motion JPEG |
| Resolution |
Sensor is 208 x 156. Image can be scaled up to 640 x 480 |
| Frame rate |
Up to 8.3 fps |
| Video streaming |
Multiple, individually configurable streams in H.264 (Main, |
| Baseline and High Profiles) and Motion JPEG |
| Axis Zipstream technology in H.264 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264 |
| Image settings |
Brightness, sharpness, contrast, automatic gain control, gain, |
| rotation, palette, compression, mirroring, text and image overlay, |
| Axis Corridor Format |
| Network |
| Security |
Password protection, IP address filtering, HTTPS(*) encryption, IEEE 802.1X (EAP-TLS)(*) network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware |
| (*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/), and cryptographic software written by Eric Young) |
| Supported protocols |
IPv4, IPv6 USGv6, HTTP, HTTPS (*) , SSL/TLS (*) , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| (*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/), and cryptographic software written by Eric Young) |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G and ONVIF® Profile S |
| Event triggers |
Analytics, hardware temperature, edge storage events, time |
| scheduled, video motion detection, live stream accessed |
| Event actions |
File upload: email, FTP, HTTP, HTTPS, network share |
| Notification: email, HTTP, HTTPS and TCP |
| Pre- and post-alarm video buffering |
| Send SNMP trap |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter |
| Analytics |
| Applications |
Included |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard |
| AXIS Video Motion Detection, AXIS Guard Suite |
| Supported |
| AXIS Perimeter Defender |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications |
| General |
| Casing |
Main unit: Polycarbonate casing |
| Color: White NCS S 1002-B |
| Thermal sensor unit: Plastic |
| Color: White NCS S 1002-B |
| Memory |
512 MB RAM, 256 MB Flash |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 |
| max 4.0 W, typical 2.5 W |
| Connectors |
Female RJ45 for 10BASE-T/100BASE-TX PoE |
| RJ12 for sensor unit |
| Storage |
Support for microSD/microSDHC/microSDXC cards (not included) |
| Support for SD card encryption |
| Support for recording to network-attached storage (NAS) |
| For SD card and NAS recommendations |
| Operating conditions |
Main unit: -20 °C to 50 °C (-4 °F to 122 °F) |
| Humidity 10-85% RH (non-condensing) |
| Thermal sensor unit: -30 °C to 55 °C (-22 °F to 131 °F) |
| Humidity 10-100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C ) (-40 °F to 149 °F) |
| Approvals |
EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, |
| RCM AS/NZS CISPR 23 Class B, IEC/EN/UL 62368-1, EN 50581, |
| EN 50121-4 , IEC 62236-4, EAC, KC KN32 Class B, KC KN35 |
| Thermal sensor unit: IEC 60068-2-1, IEC 60068-2-2, |
| IEC 60068–2–6, IEC 60068-2-14, IEC 60068–2–27, |
| IEC 60068-2-30, IEC 60068-2-78, IEC 60529 IP66/IP67, |
| IEC/EN/UL 60950-22, NEMA 250 Type 4X |
| Network |
| NIST SP500-267 |
| Dimensions |
Main unit: 16 x 46 x 109 mm (0.6 x 1.8 x 4.3 in) |
| Thermal sensor unit: Depth: 38 mm (1.5 in) |
| ø 112 mm (4.4 in) |
| Cable: 12 m (39 ft) |
| Weight |
Main unit: 72 g (0.16 lb) |
| Thermal sensor unit with cable: 530 g (1.2 lb) |
| Included accessories |
Installation Guide, Windows decoder 1-user license, AVHS |
| Authentication key |
| Rotation tool |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
