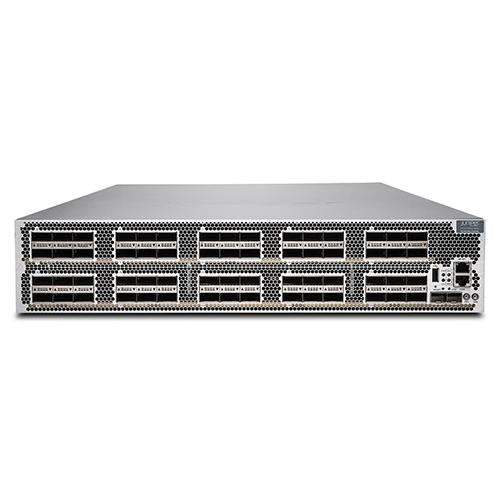

JUNIPER PTX10002-60C-DC ROUTER

Model: PTX10002-60C-DC
Detail:
  • PTX10002-60C Base SW + JNP10002-60C-DC System with 60 100G Ports or 60 40G Ports or 192 10G Ports with 4 1600W DC Power Supplies, 4 Power Cables and 3 Fan Trays
List Price: US$555,120.00
Price:
$388,584.00
You Save: $166,536.00 (30% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

The space-efficient PTX10002 is designed to scale for exponential traffic growth in cloud and service provider networks. It addresses power and 100GbE interconnect challenges, and is ideal for space-constrained peering and collocation facilities and central office locations in emerging markets where space and power are at a premium.

Accessories

Specifications

Specifications PTX10002-60C-DC
CPU Intel Quad Core Ivy Bridge 2.5 GHz CPU
RAM 32 Gb SDRAM
SSD 64Gx2
System throughput 6 Tbps
Forwarding capacity Up to 4 Bpps
Management and Precision Time Protocol (PTP) interfaces 1 small form-factor pluggable transceiver (SFP/SFP +) port or PTP Grandmaster
Fiber (SFP) or 10/100/1000BASE-T (RJ-45) Ethernet management port
SMB in, SMB out, 10 MHz in, 10 MHz out
One console port
USB 2.0 storage interface
Total packet buffer 24 GB
Latency As low as 2.5 microseconds within a Packet Forwarding
Engine (PFE)
As low as 5.5 microseconds across PFEs
Operating temperature 32° to 104° F (0° to 40° C)
Storage temperature -40° to 158° F (-40° to 70° C)
Operating altitude Up to 10,000 ft. (3,048 m)
Relative humidity operating 5 to 90% (noncondensing)
Relative humidity nonoperating 5 to 95% (noncondensing)
Seismic Designed to meet GR-63, Zone 4 earthquake requirements
Safety CAN/CSA-C22.2 No. 60950-1 Information Technology
EquipmentSafety
UL 60950-1 Information Technology EquipmentSafety
EN 60950-1 Information Technology EquipmentSafety
IEC 60950-1 Information Technology EquipmentSafety (All country deviations)
EN 60825-1 Safety of Laser ProductsPart 1: Equipment Classification
EMC 47CFR Part 15, (FCC) Class A
ICES-003 Class A
EN 55022 Class A
CISPR 22 Class A
EN 55024
CISPR 24
EN 300 386
VCCI Class A
AS/NZA CISPR22 Class A
KN22 Class A
CNS 13438 Class A
EN 61000-3-2
EN 61000-3-3
ETSI
ETSI EN 300 019: Environmental Conditions & Environmental
Tests for Telecommunications Equipment
ETSI EN 300 019-2-1 (2000)Storage
ETSI EN 300 019-2-2 (1999)Transportation
ETSI EN 300 019-2-3 (2003)Stationary Use at Weatherprotected Locations
ETSI EN 300 019-2-4 (2003)Stationary Use at NonWeather-protected Locations
ETS 300753 (1997)Acoustic noise emitted by telecommunications equipment

Properties

Properties Juniper PTX10002-60C-DC
Description PTX10002 Base system with 60-port 100GbE QSFP28 / 60-port 40GbE QSFP+ / 192-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
Product Family PTX10000 Series
Product Type Router
Port Densities
Max. 10GbE 192
Max. 40GbE 60
Max. 100GbE 60
Dimension (WxHxD) 17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm)
Weight (lb/kg) fully configured 68 lb (31 kg)
Rack units 2 U
Maximum power draw 2425 W DC, 4862 BTU/hr
Typical power draw 1850 W DC, 3583 BTU/hr
Power 4x 1,600 Watt AC/DC power supply
Cooling Front-to-back airflow
Three hot-swappable fan modules with redundant fans
