[shortdesc]

Unmanaged, Rack-mountable, 16 x 1G ports, No PoE (Data Only), Layer 2

[/shortdesc]

[specifications]

Device type	Switch - 16 ports - unmanaged
Enclosure type	Desktop, rack-mountable
Ports	16 x 10/100/1000
Power over Ethernet (PoE)	N/A
Performance	Switching capacity: 32 Gbps Forwarding performance (64-byte packet size) : 23.8 Mpps
MAC address table size	8000 entries
Jumbo frame support	Yes
Features	Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x
Status indicators	Power, link/activity, cable diagnostics, loop detection
Interfaces	16 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Power device	Power supply - internal
Voltage required	100-240V AC/50-60 Hz universal input
Electric current required	N/A
Width	11 in
Depth	6.7 in
Height	1.7 in
Weight	3.2 lbs
Fanless	Yes
Compliant standards	UL 60950, FCC CFR47 Part 15, CSA 22.2
Localization	Chinese (simplified), German, French, Italian, Spanish, Japanese
OS required	N/A
Min operating temperature	32 F
Max operating temperature	104 F
Humidity range operating	10 - 90% (non-condensing)
Min storage temperature	-4 F
Max storage temperature	158 F
Humidity range storage	10 - 90% (non-condensing)

[/specifications]

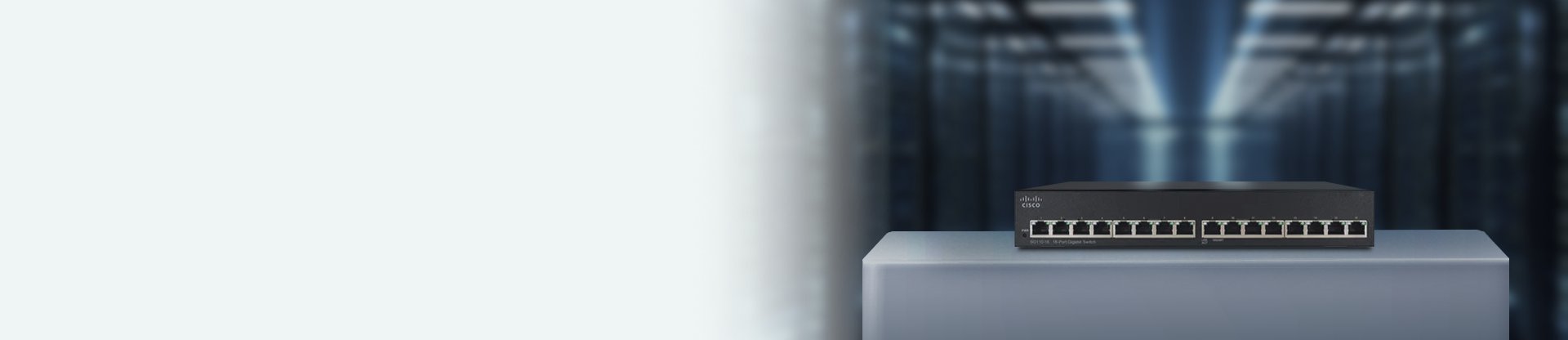

Cisco SG110-16 Switch

The Cisco SG110-16 is a 16-port Gigabit Ethernet switch that offers affordable, high-speed networking for small businesses. With plug-and-play functionality, the SG110-16 delivers reliable performance without the need for complex setup. It provides the essential features you need to connect computers, printers, and other devices, all while optimizing power consumption with energy-efficient technologies.

Key Features:

16 x Gigabit Ethernet Ports: Delivers fast, reliable network connectivity for various devices, including PCs, printers, and IP phones.
Plug-and-Play Operation: No configuration required; simply connect and use.
Energy-Efficient Design: Complies with IEEE 802.3az standards, reducing power consumption during periods of low network activity.
Fanless Design: Operates silently, making it ideal for noise-sensitive environments like offices and retail spaces.
High Performance: Supports up to 32 Gbps of switching capacity for fast and smooth data transfers.

Technical Overview:

Recommended for: Small businesses, retail environments, and branch offices.
Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet ports.
Switching Capacity: 32 Gbps.
Forwarding Rate: 23.8 Mpps.
Energy Efficiency: Meets IEEE 802.3az standards for energy-saving performance.

You can check the related tab for the SG110-16 datasheet.
