AXIS M3086-V Dome Camera - Network Devices Inc

AXIS M3086-V Dome Camera (02374-001)

Name: AXIS M3086-V Dome Camera (02374-001)
Brand: Axis
SKU: 02374-001-NEW
Price: 408.45 USD
Availability: InStock

Part Number: 02374-001

Technical Details

Fixed 4 MP mini dome with deep learning, Great image quality in 4 MP, Compact, discreet design, WDR and Lightfinder, Support for analytics with deep learning, Built-in cybersecurity features

$408.45

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AXIS M3086-V Dome Camera (02374-001)

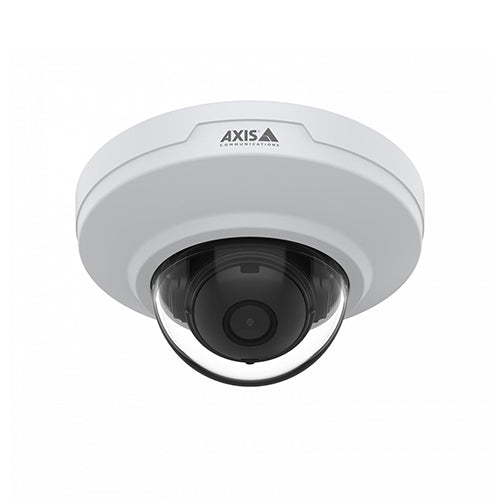

The AXIS M3086-V camera provides high-quality 4 MP images, even in difficult lighting situations. Its Wide Dynamic Range (WDR) feature ensures clear images in scenes with both dark and light areas. This cost-effective mini dome camera is compatible with various mounting accessories, allowing for flexible and inconspicuous installation. The bayonet-fitted casing enables quick and convenient installation by twisting on and off.

Quick Specs:

WDR and Lighfinder
Built-in cybersecurity features
Compact, discreet design
Great image quality in 4 MP

Please see the related tabs for the 02374-001 datasheet and compatible accessories.

Feature	AXIS M3057-PLR Mk II	AXIS M3077-PLVE	AXIS M3085-V	AXIS M3086-V	AXIS M3088-V
Max video resolution	2016x2016	2016x2016	1920x1080	2688x1512	3840x2160
Horizontal field of view	183	183	102	130	109
Built-in microphone	–	✓	–	0 / 1	–
Alarm inputs/outputs	1/1	1/1
HDMI Output	–	–	–	–	–
Built-in IR	✓	✓	–	–	–
Zipstream	✓	✓	✓	✓	✓
Wide dynamic range	Forensic WDR	Forensic WDR	WDR	WDR	WDR
Lightfinder	Lightfinder	Lightfinder	Lightfinder	Lightfinder
Analytics compute capability			DLPU	DLPU	DLPU
Axis Edge Vault	✓	✓	✓	✓	✓

Properties

Properties	AXIS M3086-V
Description	AXIS M3086-V Dome Camera offers 4 MP image quality even in challenging light conditions. With the Wide Dynamic Range (WDR) and Lightfinder features, you get sharp, clear, color images. It supports intelligent analytics based on deep learning on the edge.
Product Family	Axis Cameras
Product Type	Dome Camera
Image sensor	1/2.7” progressive scan RGB CMOS
Lightfinder	Lightfinder
Wide dynamic range	WDR
PoE Class	IEEE 802.3af/802.3at Type 1 Class 2
Connectors	RJ45 10BASE-T/100BASE-TX PoE
	Audio: Audio and I/O connectivity via portcast technology
Signed firmware	Yes
Secure boot	Yes
Axis Edge Vault	Yes
Remote focus	–
Remote zoom	–
Built-in IR	–
Local storage (memory card slot)	Yes
Operating temperature	0 to 45 °C
Outdoor Ready	–
Vandal rating	IK08
IP rating	IP42
Designed for repaint	Yes
Sustainability	BFR/CFR free, PVC free
Dimensions	Height: 56 mm (2.2 in)
	ø 101 mm (4.0 in)
Weight	150 g (0.33 lb)
Operating Temperature	0 °C to 45 °C (32 °F to 113 °F)
Event actions	Notification: HTTP, HTTPS, TCP and email
	Record video: SD card and network share
	MQTT: publish
	Pre- and post-alarm video or image buffering for recording or upload
	Record video: SD card and network share
	SNMP traps: send, send while the rule is active
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email
	External output activation via accessories using portcast technology
Applications	AXIS Object Analytics, AXIS Video Motion Detection
Supported	AXIS People Counter Support for AXIS Camera Application Platform enabling installation of third-party applications

Specifications

Specifications	AXIS M3086-V
System on chip (SoC) Model	CV25
Memory	1024 MB RAM, 512 MB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Min illumination/ light sensitivity (Color)	0.19 lux
Min illumination/ light sensitivity (B/W)	0.03 lux
Max video resolution	2688x1512
Max frames per second	25/30
Day and Night functionality	Yes
Electronic image stabilization	–
Focal length	2.4 mm
Horizontal field of view	130 °
Vertical field of view	93 °
Multi-view streaming	Up to 2 individually cropped out view areas in full frame rate
Pan/Tilt/Zoom	Digital PTZ
Audio streaming	Audio output via edge-to-edge technology
Audio input/output	Audio features through portcast technology: two-way audio connectivity, voice enhancer Network speaker pairing
Zipstream	Yes
H.264	High, Main
H.265	Yes
Motion JPEG	Yes

Accessories

Included accessories
AXIS M30 Clear Dome	Replacement dome for AXIS M30 Cameras
AXIS TM3818 Casing White	Casing for selected AXIS M30 Cameras
Optional accessories
AXIS T8129	PoE Extender
AXIS Surveillance Card 1 TB/ 512 GB/ 256 GB/128 GB/ 64 GB	High endurance microSDXC™ cards
AXIS M30 Smoke Dome	Replacement dome for AXIS M30 Cameras
AXIS TM3812	Tamper-resistant Cover
AXIS TM3818	Casing Black/White
AXIS T6101 Mk II	Audio and I/O Interface
AXIS T6112 Mk II	Audio and I/O Interface
AXIS T8640 PoE+ over Coax Adapter Kit	Cost-efficient migration to network video for smaller installations
AXIS T8645 PoE+ over Coax Compact Kit	Compact, cost-efficient single-channel migration to IP
AXIS T91A04	Camera Holder ¾” NPS
AXIS T91A05	Camera Holder 1.5” NPS
AXIS T8120	Midspan 15 W 1-port
AXIS T91A13	Threaded Ceiling Mount
AXIS T91A23	Tile Grid Ceiling Mount
AXIS T91A33	Lighting Track Mount
AXIS T91A27	Pole Mount
AXIS T91E61	Wall Mount
AXIS T91B53	Telescopic Ceiling Mount
AXIS T94B01P	Conduit Back Box
AXIS T94R01B	Corner bracket
AXIS T94B02M	J-Box/Gang Box Plate
AXIS T94B02D	Pendant Kit
AXIS TM3201	Recessed Mount
AXIS TM3101	Pendant Recessed Mount
AXIS TM3209	Recessed Mount
AXIS T8415	Wireless Installation Tool
