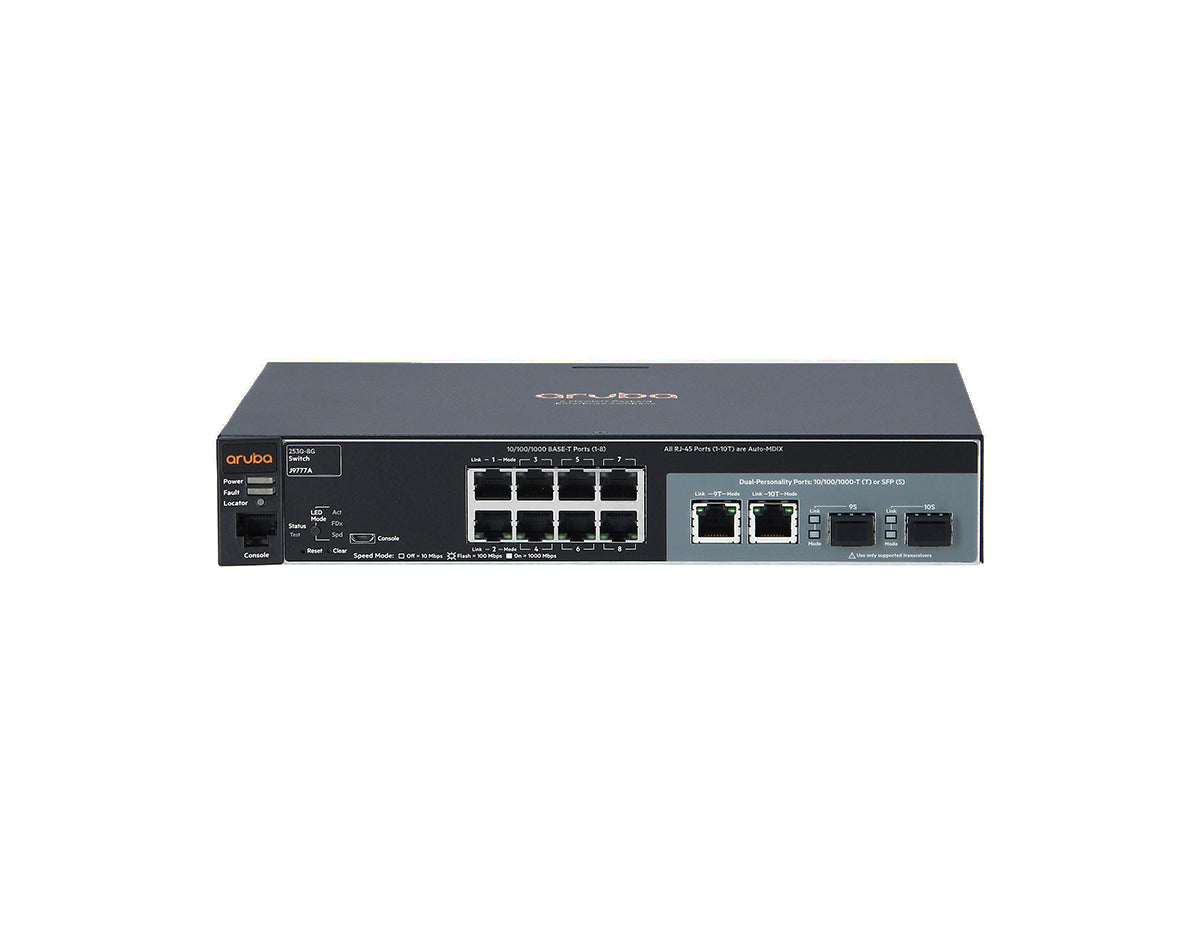

HPE ARUBA 2530 8G SWITCH (J9777A)

Model: J9777A-NEW
Detail: Switch, managed, 8 x 10/100/1000 + 2 x combo Gigabit SFP, desktop, rack-mountable, wall-mountable
List Price: US$679.00
Price:
$345.00
You Save: $334.00 (49% OFF)
Condition: Brand New Sealed
Availability: Out of Stock
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey
Quantity:
+
-



HPE Aruba 2530 8G Switch (J9777A) Overview



The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave and cloud-based Central.



Type Aruba 2530-8G Switch
Ports  8  RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);
Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full;1000BASE-T: full only.
 2  dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as an SFP slot (for use with SFP transceivers) ports.
 1 dual-personality (RJ-45 or USB micro-B) serial console port.
Switching capacity 20 Gb/s
Minimum dimensions (W x D x H) 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height)
Weight 0.91 kg (2.0 lb)

Specifications

Memory and processor Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated.
Mounting Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting.
Management IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or MicroUSB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB.
1000 Mb latency < 2.6 s (LIFO 64-byte packets)
100 Mb Latency < 7.4 s (LIFO 64-byte packets)
ThrougArubaut Up to 14.8 million pps (64-byte packets)
Switching capacity 20 Gb/s
MAC address table size 16000 entries
Dimensions (W x D x H) 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height)
Weight 0.91 kg (2.0 lb)
Maximum heat dissipation 63 BTU/hr (66.46 kJ/hr), (switch only: 63 BTU/hr)
Voltage 100 - 127 / 200 - 240 V ac
Current 0.5 A
Idle power1 13.6 W
Maximum power rating 18.6 W
PoE power N/A
Frequency 50/60 Hz
Operating temperature 0 to 45C (32 to 113F)
Non-operating/storage temperature -40 to 70C (-40 to 158F)
Non-operating/storage relative humidity 15% to 90% @ 65C (149F), noncondensing
Altitude Up to 3 km (10,000 ft)
Acoustic Power: 0 dB, Pressure: 0 dB
Safety UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
