Cisco 1000 Series - Integrated Services Routers

C1000

Cisco 1000 Series Integrated Services Routers (ISRs) with Cisco IOS XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. One of our most popular routers, the CISCO C1111-8P Router, is easy to deploy and manage, with separate data and control plane capabilities. Similarly, while smaller than the others in the lineup, the CISCO C1121-4P Router is a more economical option. Yet still, a very powerful router that provides highly secured broadband.

Cisco 1000 Series - Integrated Services Routers

Show on page:

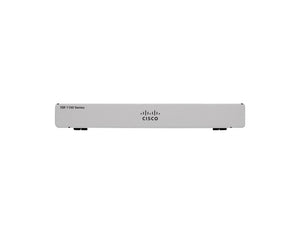

  • Cisco C1101-4P Router
    Save $727.72

    CISCO C1101-4P ROUTER

    CISCO C1101-4P ROUTER

    $800.00
    $1,527.72
    • Router, 4-port switch, GigE, rack-mountable
    Cisco 1000 Series Integrated Services Routers (ISRs) with Cisco IOS XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with separate data and control plane capabilities.
    quick view
    Availability: In Stock
    $1,527.72
    $800.00
    quick view
  • Cisco C1111-8P Router - Network Devices Inc. Cisco C1111-8P Router - Network Devices Inc.
    Save $1,171.77

    CISCO C1111-8P ROUTER

    CISCO C1111-8P ROUTER

    $1,035.45
    $2,207.22
    • Router
    • 8-port switch
    • GigE
    • WAN ports: 2

    Description ISR 1100 8 Ports Dual GE WAN Ethernet Router
    Dimensions (H x W x D) Non-LTE models:
    H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet)
    Weight with AC PS (w/o modules) 5.5 Lbs. (2.5 kg) maximum
    Input voltage Universal 100 to 240 VAC
    Frequency 50-60 Hz
    Input current PoE not enabled: 0.82A maximum

    PoE enabled: 1.55A Maximum
    Surge current 90 A peak and less than 8 Arms per half cycle
    Micro USB Port One RJ-45: Separate console port
    USB port USB 3.0 Type A host port
    USB devices supported:
    USB flash memory
    Console port One USB 5-pin micro Type B: Console management connectivity
    10/100/1000 Gigabit Ethernet Two GE ports allocated among RJ45 and SFP as:

    One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0)

    One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)
    Wireless VLANs 32 (encrypted and non-encrypted VLANs)
    Wireless specifications 2x2 .11ac Wave 2
    Default and maximum DRAM 4GB
    Default and maximum flash 4GB
    Inline PoE 4 ports for -8P PIDs, 2 ports for -4P PIDs

    802.3af-compliant PoE or 802.3at-compliant PoE+
    Acoustic for Cisco 1100 Series ISRs Emission
    47 CFR Part 15
    CISPR 32 Edition 2

    EN 300 386 V1.6.1

    EN 55032:2012/ AC:2013

    EN 55032:2015

    EN61000-3-2 2014

    EN61000-3-3: 2013

    ICES-003 ISSUE 6:2016

    KN 32: 2015

    V-2/2015.04

    V-3/2015.04

    TCVN 7189: 2009

    CNS13438: 2006

    IEC 60950-1

    EN 60950-1

    UL 60950-1

    CSA C22.2 No. 60950-1

    Immunity

    CISPR24: 2010 + A1: 2015

    EN 300 386 V1.6.1

    EN55024: 2010 + A1: 2015

    KN35: 2015

    TCVN 7317: 2003
    Operating humidity 5 to 85% relative humidity
    Operating temperature 32 to 104 F (0 to 40 C) Sea Level;

    32 to 77 F (0 C to 25 C) at 10,000 ft

    1.5 C derating per 1000 ft
    Altitude  0-10,000 ft (0-3050 m)
    Nonoperating temperature -40 to 158 F (-40 to 70 C)
    Nonoperating humidity 5 to 95% relative humidity (noncondensing)
    Nonoperating altitude 0 to 15,000 ft (0 to 4570m)







    Cisco C1111-8P Router

    Cisco C1111-8P Router is easy to deploy and easy to manage, with cutting-edge, scalable, multi-core separate data and control panel capabilities.

    Key Benefits of Cisco C1111-8P Router

    Cisco C1111-8P Router is best-suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices. This CPE is also deployable in service provider managed environments as well as smaller form factor and M2M use cases.



    GE 1
    GE/SFP combo 1
    ADSL2/VDSL2+ N/A

    LTE Advanced (CAT6)
    N/A
    802.11ac N/A
    GE 8
    PoE 4
    PoE+ 2
    Integrated USB 3.0 AUX/console Yes
    Dimensions (H x W x D) 1.75 x 12.7 x 9.03 in.
    (42 x 323 x 230mm) (includes rubber feet)
    Weight with AC PS (w/o modules) 5.5 Lbs. (2.5 kg) maximum
    quick view
    Availability: In Stock
    $2,207.22
    $1,035.45
    quick view

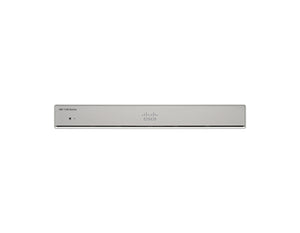

  • Cisco C1111X-8P Router
    Save $761.34

    CISCO C1111X-8P ROUTER

    CISCO C1111X-8P ROUTER

    $1,429.00
    $2,190.34
    • Router, 8-port switch, GigE, WAN ports: 2
    Cisco 1000 Series Integrated Services Routers (ISRs) with Cisco IOS XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with separate data and control plane capabilities.
    quick view
    Availability: In Stock
    $2,190.34
    $1,429.00
    quick view

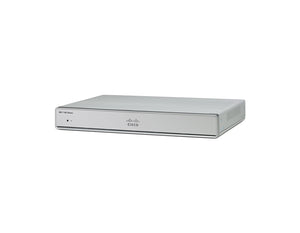

  • Cisco C1111-4P Router - Network Devices Inc. Cisco C1111-4P Router - Network Devices Inc.
    Sold Out

    CISCO C1111-4P ROUTER

    CISCO C1111-4P ROUTER

    $1,026.26
    $1,912.00
    • Router
    • 4-port switch
    • GigE

    Manufacturer Part Number  C1111-4P
    Description ISR 1100 4 Ports Dual GE WAN Ethernet Router
    Micro USB Port One RJ-45: Separate console port
    USB Port USB 3.0 Type A host port
    USB devices supported:
    USB flash memory
    Console Port One USB 5-pin micro Type B: Console management connectivity
    10/100/1000 Gigabit Ethernet Two GE ports allocated among RJ45 and SFP as:
    One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port
    (labeled GE0/0/0)
    One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)
    Wireless VLANs 32 (encrypted and non-encrypted VLANs)
    Wireless Specifications 2x2 .11ac Wave 2
    Default and Maximum DRAM 4 GB
    Default and Maximum flash 4 GB
    Inline PoE 4 ports for -8P PIDs, 2 ports for -4P PIDs
    802.3af-compliant PoE or 802.3at-compliant PoE+
    Operating Temperature 32 to 104F (0 to 40C) Sea Level;
    32 to 77F (0C to 25C) at 10,000 ft
    1.5C derating per 1000 ft
    Non-Operating Temperature -40 to 158F (-40 to 70C)
    Operating Humidity 5 to 85% relative humidity
    Non-Operating Humidity 5 to 95% relative humidity (noncondensing)



    Cisco C1111-4P Router for IP Phones & Cameras

    Cisco C1111-4P Router comes with a small form factor that is best-suited for small and mid-sized businesses, and enterprise branches. It’s also ideal for customer premises equipment in managed services settings. Customers can use it in ATMs, retail stores, and kiosks.

    Cisco C1111-4P Router comes with four LAN ports and supports Power over Ethernet (PoE) and PoE+ in order to power branch devices, such as IP phones and cameras.

    Key Benefits of Cisco C1111-4P Router

    Cisco C1111-4P Router has high performing Gigabit Ethernet packet forwarding capabilities. Its multi-core architecture  has separate cores for data plane and control plane, so your network can ensure an optimized user experience. This router also offers zero-touch provisioning by using the plug-and-play capability.



    Manufacturer Part Number  C1111-4P
    WAN GE 1
    WAN GE/SFP Combo 1
    ADSL2/VDSL2+ N/A
    802.11ac N/A
    LAN GE 4
    PoE 2
    PoE+ 1
    Integrated USB 3.0 AUX/console Yes
    Dimensions (H x W x D) 1.75 x 12.7 x 9.03 in.
    (42 x 323 x 230mm) (includes rubber feet)
    Weight with AC PS (w/o modules) 5.5 lbs. (2.5 kg)





    Availability: Out Of Stock
    $1,912.00
    $1,026.26

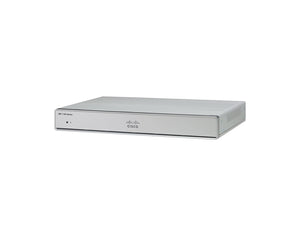

  • Cisco C1161X-8PLTEP Router - Network Devices Inc.
    Sold Out

    CISCO C1161X-8PLTEP ROUTER

    CISCO C1161X-8PLTEP ROUTER

    $1,295.00
    $2,855.00
    • Router
    • 8-port switch
    • GigE
    • WAN ports: 2

    Product Description ISR 1100 8P Dual GE SFP Router Pluggable SMS/GPS EMEA & NA
    WAN GE 1
    WAN GE/SFP combo 1
    ADSL2/VDSL2+ NA
    LTE Advanced (CAT6) Yes with Pluggable Technology
    Wi-Fi 802.11ac NA
    LAN GE 8
    PoE 4
    PoE+ 2
    Integrated USB 3.0 AUX/console Yes
    Pluggable Yes (All)
    Memory (default and maximum)  DRAM: 4 GB

    Only C1111X-8P,C1121X-8P,C1126X,C1127X, C1161X models have 8GB DRAM

     Flash: 4 GB

    Only C1111X-8P,C1121X-8P,C1126X,C1127X, C1161X models have 8GB Flash
    Console  Micro USB console (Type A).

     RJ45.

    Micro-USB port (reserved)  Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).
    WLAN interfaces  Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and

     802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU-MIMO).

     802.11ac Wave 2 with 2x2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points.

     Flexible deployment through the Mobility Express Solution is ideal for small to medium-sized deployments. Easy setup allows the 1000 Series (similar to 1815i) to be deployed on networks without a physical controller.

     For more information, view the Cisco Aironet 1815i Access Point Data Sheet.
    Maximum clients  Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per access point. C1109-4PLTEP and C1109-4PLTEW models come with default dual W-ANTM2050D-RPSMA external antenna and all modem have default 8.8 AP autonomous or Mobility Express release. Option to select 8.8 CAPWAP WLC image.
    Authentication and security  AES for Wi-Fi Protected Access 2 (WPA2).

     802.1X, RADIUS AAA.

     802.11r and 802.11i.
    802.11ac  2x2 SU-MIMO/MU-MIMO with two spatial streams.

     Maximal Ratio Combining (MRC).

     20-, 40-, and 80-MHz channels.

     PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz).

     Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx).

     802.11 Dynamic Frequency Selection (DFS).

     Cyclic Shift Diversity (CSD) support.
    Software  Cisco IOS Software feature set: Universal Cisco IOS XE 16.6.1 Software image or later. C1112, C1113, and C1101 models support starting with IOS XE 16.8.1 Software image or later. C1118, C1111X-8P and C1109 models support with IOS XE 16.9.1 Software image or later.

     Cisco IOS Software feature set: C1120 and C1160 models Universal Cisco IOS XE 16.11.1 Software image or later.

     Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (migration to 8.8 starting March, 2019 and 8.8 for 1101 and 1109 Models) MR1 or later.
    Serial WAN interface and protocol  Support for both synchronous and bisync modes.

     Synchronous maximum speed of up to 8 Mbps.

     Support for bisync modes.

     Support for network clock synchronization.

     EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21.
    Inline PoE  Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af-compliant PoE or 802.3at-compliant PoE+.
    External power supply Product power specifications:

    C111X, C1120 and C1160 Models

     AC input voltage: Universal 100 to 240 VAC.

     Frequency: 50 to 60 Hz.

     Maximum output power: 66W (default).

     Output voltages: 12 VDC.

     Optional PoE and PoE+:

    -Single 150W power supply required for Cisco 1100-8P series router

     -Single 115W power supply required for Cisco 1100-4P series router

     External output voltage: 48 VDC.

    C1101-4PLTEPWX and C1109-4PLTE2PWX Models:

     AC input voltage: Universal 100 to 240 VAC.

     Frequency: 50 to 60 Hz.

     Maximum output power: 66W (default iTemp for C1109-4PLTE2PWX Models).

     Output voltages: 12 VDC.

    C1101-4P, C1101-4PLTEP,C1109-2PLTE, and C1109-4PLTE2P Models:

     AC input voltage: Universal 100 to 240 VAC.

     Frequency: 50 to 60 Hz.

     Maximum output power: 30W (default iTemp for Models).

     Output voltages: 12 VDC.
    USB 3.0  USB devices supported:

    -USB eTokens and USB flash memory

     Devices USB 3.0 supports to be connected externally. View the USB Device Support Data Sheet .
    EDs  WWAN (green/amber).

     SIM status (green/amber).

     Received signal strength indication (RSSI) bar (green).

     3G/LTE service (green/amber).

     GPS (green/amber).

     Speed and link for Gigabit Ethernet WAN port (green).

     Speed and link for all Fast Ethernet LAN ports (green).
    Physical dimensions (H x W x D) C111X Models

     1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models).

     1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models).

    C1120 Models

     1.65 x 12.7 x 8.9 in. (41.9 x 322 x 226 mm).

    C1160 Models

     1.65 x 10.8 x 7.85 in. (41.9 x 274 x 199 mm).

    C1101-4PLTEP and C1101-4PLTEPWX Models

     1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models).

    C1101-4P Models

     1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (includes rubber feet models).

    C1109-2PLTE Models

     1.27 x 8.4 x 6.0 in. (32.3 x 213.4 x 152.4mm) (includes rubber feet models).

    C1109-4PLTE2P and C1109-4PLTE2PWX Models (ship default with dual W-ANTM2050DRPSMA Wi-Fi antennae)

     1.71 x 11.16 x 9.8 in. (43.4 x 283.5 x 248.9 mm) (includes rubber feet models).

    Pluggable

     0.85 x 2.5 x 3.88 in. (21.6 x 63.5 x 98.5 mm)
    Standard safety certifications  UL 60950-1.and EN 60950-1.

     CAN/CSA C22.2 No. 60950-1.

     CB to IEC 60950-1, 2 nd edition with all group differences and national deviations.
    EMC emissions  EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1.
    EMC immunity  EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300-386.
    Radio immunity  EN301 489-1, EN 301 489-7, and EN301 489-24.
    Cellular radio  EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13.
    Environmental operating range  Nonoperating temperature: -4  to 149 F (-20  to 65 C).

     Nonoperating humidity: 5% to 95% relative humidity (noncondensing).

     Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m).

     Operating temperature: 32  to 104 F (0  to 40 C). C1101 support 32  to 113 F (0  to 45 C). C1109-2PLTE support 32  to 122 F (0  to 50 C). C1109-4PLTE2P and C1109-4PLTE2PW models support -4  to 131 F (-20  to 55 C).

     Operating humidity: 10% to 85% relative humidity (noncondensing).

     Operating altitude: 0 to 10,000 ft (0 to 3000 m at 30 C). Operating altitude: 0 to 10,000 ft (0 to 3000 m at

     35 C for C1109-2PLTE models). Operating altitude: 0 to 10,000 ft (0 to 3000 m at 40 C for C1109-4PLTE2P and C1109-4PLTE2PW models).





    Get Internet access, advanced security, and wireless services in one device. Cisco 1000 Series Integrated Services Routers (ISRs) are fixed, high-performance routers that are easy to deploy and manage. Small yet powerful, they provide highly secure broadband, Metro Ethernet, and wireless LAN connectivity.



    Cisco C1161X-8PLTEP Router Overview



    Product Description ISR 1100 8P Dual GE SFP Router Pluggable SMS/GPS EMEA & NA
    Memory (default and maximum) DRAM: 4 GB

    Flash: 4 GB
    Dimensions (H x W x D) 1.65 x 12.7 x 8.9 in. (41.9 x 322 x 226 mm)
    WAN GE 1
    WAN GE/SFP combo 1
    ADSL2/VDSL2+ NA
    LTE Advanced (CAT6) Yes with Pluggable Technology
    Wi-Fi 802.11ac NA
    LAN GE 8
    PoE 4
    PoE+ 2
    Integrated USB 3.0 AUX/console Yes
    Pluggables Yes (All)



    Availability: Out Of Stock
    $2,855.00
    $1,295.00

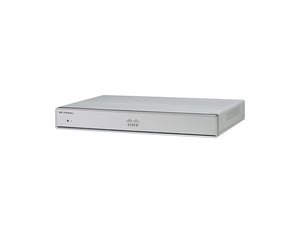

  • Cisco C1121X-8P Router - Network Devices Inc.
    Sold Out

    CISCO C1121X-8P ROUTER

    CISCO C1121X-8P ROUTER

    $1,295.00
    $2,151.53
    • Router
    • 8-port switch
    • GigE

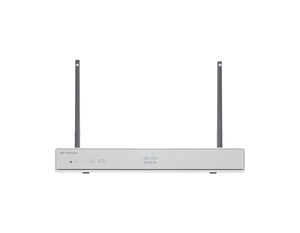

    Get Internet access, advanced security, and wireless services in one device. Cisco 1000 Series Integrated Services Routers (ISRs) are fixed, high-performance routers that are easy to deploy and manage. Small yet powerful, they provide highly secure broadband, Metro Ethernet, and wireless LAN connectivity.
    Availability: Out Of Stock
    $2,151.53
    $1,295.00

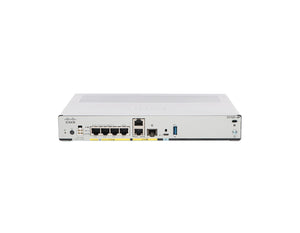

  • Cisco C1121-4P Router
    Sold Out

    CISCO C1121-4P ROUTER

    CISCO C1121-4P ROUTER

    $1,250.00
    • Router, 4-port switch, GigE, WAN ports: 2
    Cisco 1000 Series Integrated Services Routers (ISRs) with Cisco IOS XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with separate data and control plane capabilities.
    Availability: Out Of Stock
    $1,250.00
Show on page:
Just added to your wishlist:
My Wishlist
You've just added this product to the cart:
Checkout
