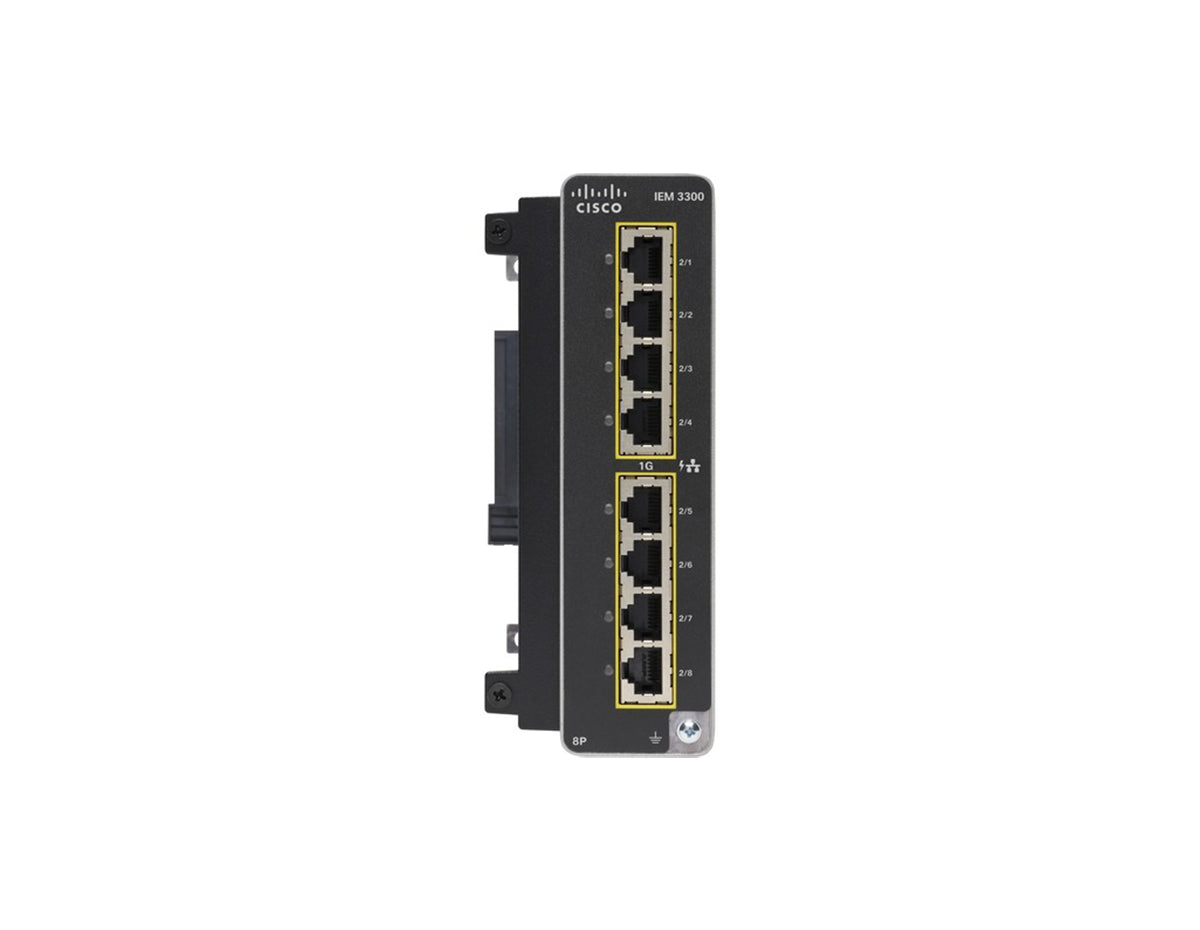

Cisco IEM-3300-8P Expansion Module

Name: Cisco IEM-3300-8P Expansion Module
Brand: Cisco
SKU: IEM-3300-8P-NEW
Price: 2550.00 USD
Availability: InStock

Part Number: IEM-3300-8P

Technical Details

Expansion module Gigabit Ethernet (PoE+) x 8 for Catalyst IE3300 Rugged Series

$6,314.61

$2,550.00

60% OFF

You Save: $3,764.61

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco IEM-3300-8P Expansion Module

The Cisco Catalyst IE3300 Rugged Series expansion modules are designed for harsh industrial environments such as manufacturing, energy, transportation, mining, smart cities, and oil and gas. It is fanless, convection-cooled, and hardened for vibration, shock, surge, and electrical noise immunity. The Cisco IEM-3300-8P= has 8 PoE/PoE+100/1000Mbps ports, expanding the switch to 18 ports.

Key Features:

Up to 480 Watts total PoE budget
For IE3300 and IE3400 base switch
IPv6 Ready Logo Certified

The tabs contain the Cisco IEM-3300-8P= datasheet with all the specifics you need.

Properties

Properties	Cisco IEM-3300-8P=
Description	Catalyst IE3300 w/ 8 GE PoE/PoE+ Copper ports, Expansion Module
Product Family	Industrial Ethernet 3300
Product Type	Ethernet Switch Expansion Module
Switches
Total ports on expansion module	8
Copper (RJ45) 10/100/1000Mbps	8 (PoE/PoE+)
SFP 100/1000Mbps	-
Copper (RJ45) 1GE/2.5G (with up to 802.3bt type 4 PoE)	-
Total system ports (including expansion module)	18
PoE / PoE (+) budget	Supported with IE3300 PoE base modules to provide a total PoE budget of 360W with the all GE base and up to 480Watts with IE3300 10G base and IE3400 PoE base
Dimensions (HxWxD) Inches	6 in. X 2.6 in. X 5.3 in. 15.2 cm. x 6.6 cm. x 13.5 cm
Weight	2.0 lbs (0.91 kg)
Mounting	DIN Rail

Specifications

Specifications	IE-3300-8P=
Power Consumption	14W (Power consumption for non PoE supported model is measured at 12V and for the PoE supported model is measured at 54V.)
Operating Temperature	-40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -34°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours)
Storage Temperature	-40 C to +85 C
Operating Altitude	Up to 15,000 feet
Storage Altitude	15,000 feet
Mean Time Between Failures (MTBF)	2,931,233
Industrial Automation Control System	IEC 62443-4-1 IEC 62443-4-2
Electromagnetic emissions	FCC 47 CFR Part 15 subpart B Class A EN 55032/CISPR 32 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A ICES 003 Class A CNS 13438 Class A KN 32 Class A EN 300 386
Electromagnetic immunity	CISPR 24 EN 55024 KN 35 EN 61000-4-2 Electro Static Discharge (air 15kV, contact 8kV) EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP) EN 61000-4-4 Electromagnetic Fast Transients (4kV) EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP) EN 61000-4-6 Conducted RF (10Vrms UTP) EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-16 Conducted CM Disturbances (30V, Cont/300V, 1 sec) EN 61000-4-17 Ripple Immunity DC Power (10%) EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz) EN-61000-4-29 DC Voltage Dips and interruptions
Industry standards	EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity EN 61326-1 Measurement, Control and Laboratory Equipment IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking EN50121-4 Railway Signaling and Telecommunications Apparatus EN50155- Railway applications - Rolling stock ODVA Industrial EtherNet/IP NEMA TS 2-2016 IP30
Marine I	DNC Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10
Safety standards and certifications	Information technology equipment: UL/CSA 60950-1, IEC 60950-1 CB with all country deviations UL/CSA 62368-1, IEC 62368-1 CB with all country deviations Industrial floor (control equipment): UL/CSA 61010-2-201 CB report and certificate to IEC/EN 61010-2-201 Hazardous locations: UL121201 (Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC) EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) Cabinet enclosure required
Humidity	Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30
Shock and vibration	IEC 60068-2-27 (operational shock, 50G, 3ms, half sine) IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal) MIL-STD-810, Method 514.4 IEC 60068-2-6 (vibration-sinusiodal, 5Hz-150Hz)
Corrosion	IEC 60068-2-52 (salt fog) IEC 60068-2-60 (flowing mixed gas)

Accessories

Accessories and License Upgrade PIDs
STK-RACK-DINRAIL	19 in. DIN Rail mount kit
IE-3300 Series Power Supplies
PWR-IE50W-AC	50W AC Power Supply
PWR-IE50W-AC-IEC=	50W AC-IEC Power Supply
PWR-IE50W-AC-L	50W AC-L Power Supply
PWR-IE65W-PC-AC	65W PC-AC Power Supply
PWR-IE65W-PC-DC	65W PC-DC Power Supply
PWR-IE170W-PC- AC	170W PC-AC Power Supply
PWR-IE170W-PC- DC	170W PC-DC Power Supply
PWR-IE240W-PCAC-L	240W PCAC-L Power Supply
PWR-IE480W-PCAC-L	480W PCAC-L Power Supply
*Expansion modules require an additional power supply separate from the main module's power supply.
