AXIS Q1700-LE License Plate Camera (01782-001)

Name: AXIS Q1700-LE License Plate Camera (01782-001)
Brand: Axis
SKU: 01782-001-NEW
Price: 1479.00 USD
Availability: InStock

Part Number: 01782-001

Technical Details

Dedicated camera for sharp images at high speeds, Designed for third-party software, Sharp license plate images day and night, Handle speeds of up to 130 km/h (81 mph), Capture range of up to 100 m (328 ft), Robust design for rough weather

$1,479.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AXIS Q1700-LE License Plate Camera (01782-001)

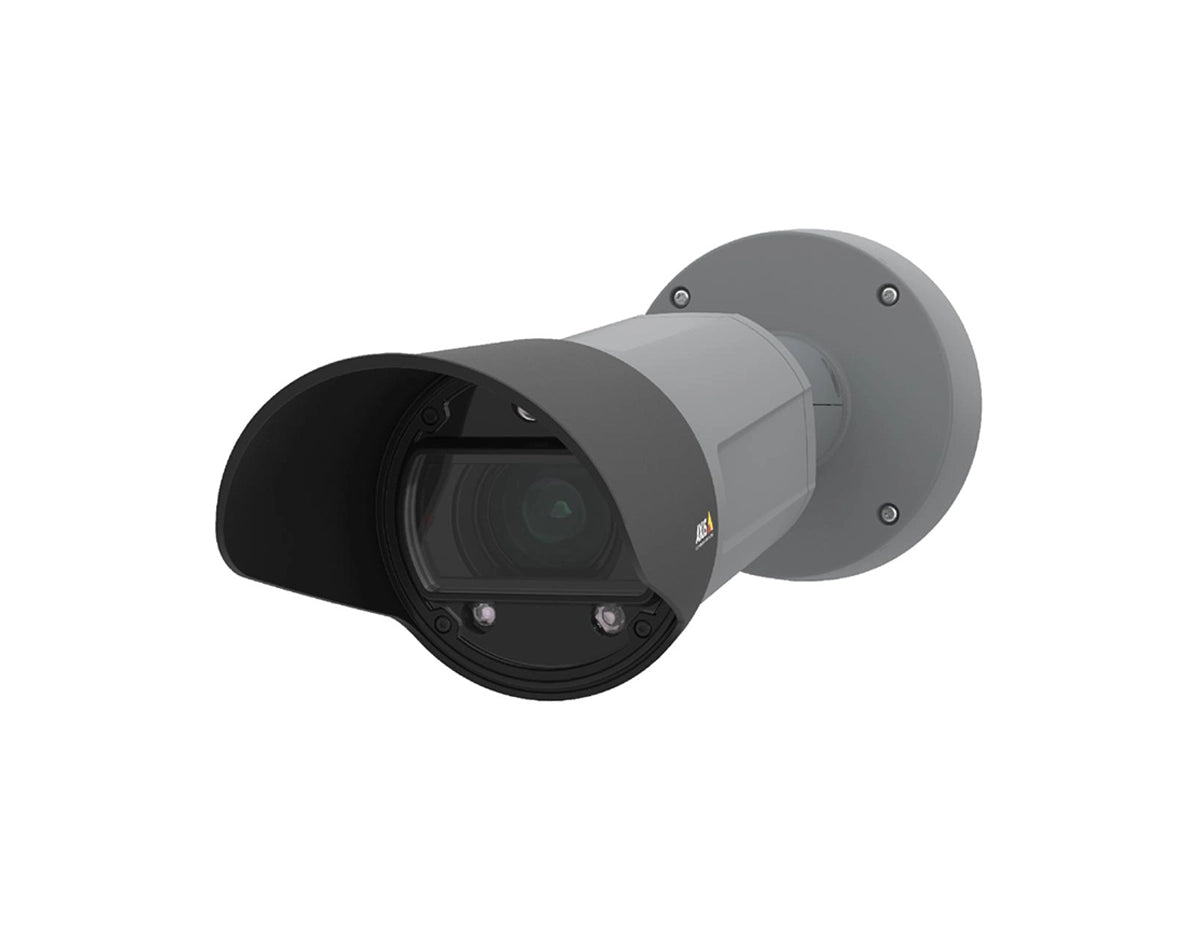

The AXIS Q1700-LE License Plate Camera represents the inaugural specialized license plate camera offering from Axis, designed to facilitate the capture of high-quality images around the clock. It is perfect for tracking forensic evidence, law enforcement, road, and urban security. The product features an adaptable platform, seamless integration with a wide range of third-party video management systems, and compatibility with AXIS Camera Station.

Quick Specs:

Designed for third-party software
Sharp license plate images day and night
Handle speeds of up to 130km/h
Capture range up to 100m

Please see the related tabs for the 01782-001 datasheet and compatible accessories.

Feature	AXIS Q1700-LE	AXIS Q1715
Max video resolution	1920x1080	1920x1080
Image sensor size	1/2.8	1/2.8
Optical zoom	8	21
OptimizedIR	✔	–
Horizontal field of view	16 - 2.3	76 - 3.6
Alarm inputs/outputs	2	4
Lightfinder	–	Lightfinder 2.0
Wide dynamic range	Forensic WDR	Forensic WDR
Zipstream	✔	✔
Electronic image stabilization	✔	✔
Analytics compute capability	–	DLPU
Edge to edge	–	Network speakers

This product has been discontinued.

Properties

Properties	AXIS Q1700-LE
Description	AXIS Q1700-LE License Plate Camera delivers clear and sharp license plate imagesin HDTV 1080p / 2MP from vehicles moving at speeds of up to 130 km/h (81 mph) day and night. It is ideal for road and urban security, vehicle loitering such as suspicious movement, tracking cars or goods and law enforcement purposes for instance gathering forensic evidence or searching for stolen vehicles.
Product Family	Axis Cameras
Product Type	License Plate Camera
Image sensor	1/2.8" progressive scan RGB CMOS
Lightfinder	-
Wide dynamic range	Forensic WDR
PoE Class	IEEE 802.3af/802.3at Type 1 Class 3
Connectors	Shielded RJ45 10BASE-T/100BASE-TX PoE
	IDC punchdown connector
	DC Power connector
	Terminal block for two configurable supervised inputs / digital outputs (12 V DC output, max. load 50 mA)
	3.5 mm mic/line in
Signed firmware	Yes
Secure boot	-
Remote focus	-
Remote zoom	Yes
Built-in IR	Yes
Local storage (memory card slot)	Yes
Outdoor Ready	Yes
Vandal rating	IK10
IP rating	IP66
Designed for repaint	Yes
Power (max)	13.5 W
Power (average)	7.8 W
DC input voltage	20-28 V
Dimensions	Length: 439 mm (17.3 in)
Dimensions	ø 147 mm (5.8 in)
Weight	2.4 kg (5.3 lb)
Operating Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Event actions	Pre- and post-alarm video buffering
	File upload: FTP, SFTP, HTTP, HTTPS, network share and email
	MQTT publish
	Notification: email, HTTP, HTTPS, TCP and SNMP trap
Applications	AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard Gatekeeper
Applications	Support for AXIS Camera Application Platform enabling installation of third-party applications
Cybersecurity	Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection
Cybersecurity	Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering

Specifications

Specifications	AXIS Q1700-LE
System on chip (SoC) Model	ARTPEC-6
Memory	1024 MB RAM, 512 MB Flash
Compute capabilities	Machine learning processing unit (MLPU)
Min illumination/ light sensitivity (Color)	0.16 lux
Min illumination/ light sensitivity (B/W)	0.03 lux
Max video resolution	1920x1080
Max frames per second	50/60
Electronic image stabilization	Yes
Pan/Tilt/Zoom	8x optical zoom, preset positions
Focal length	18 - 137 mm
Horizontal field of view	16 - 2.3 °
Vertical field of view	9.6-1.3 °
Detection range	Day: 20–100 m (66–328 ft) Night: 20–50 m (66–164 ft) Night detection range up to 100 m (328 ft) with optional accessory AXIS T90D20 IR-LED Illuminator
Vehicle speed	Up to 130 km/h (81 mph) with optional edge analytics Up to 250 km/h (155 mph) with server based analytics
Zipstream	Yes
H.264	Baseline, High, Main
H.265	-
Motion JPEG	Yes
Audio streaming	Audio in, simplex Two-way audio via edge-to-edge technology
Audio input/output	Automatic gain control External microphone input, line input, digital input with ring power, balanced microphone, balanced input Network speaker pairing
Sustainability	PVC free

Accessories

Included accessories
AXIS Connector A 2-pin 2.5 Straight, 10 pcs	Male connector for limited and full I/O port.
AXIS Connector A 4-pin 2.5 Straight, 10 pcs	Male connector for DC power input.
Gasket C M20	Cable gaskets
AXIS TQ1803	Front Window Kit
AXIS T94G01S	Mounting Plate
AXIS TQ1802	Weathershield
Optional accessories
AXIS T8129	PoE Extender
AXIS T8129-E	Outdoor PoE Extender
AXIS Surveillance Card 1 TB/ 512 GB/ 256 GB/128 GB/ 64 GB	High endurance microSDXC™ cards
AXIS T8120	Midspan 15 W 1-port
AXIS T8353A Microphone 3.5 mm	For professional audio surveillance
AXIS T98A17-VE	Surveillance Cabinet
AXIS T8640 PoE+ over Coax Adapter Kit	Cost-efficient migration to network video for smaller installations
AXIS T8645 PoE+ over Coax Compact Kit	Compact, cost-efficient single-channel migration to IP
AXIS T8606	Media Converter Switch 24 V DC
AXIS T8604	Media Converter Switch
AXIS T91B47	Pole Mount
AXIS T94G01P	Conduit Back Box
AXIS T94R01B	Corner bracket
AXIS T94P01B	Corner bracket
AXIS T94V01C	Dual Camera Mount
AXIS TQ1602-E	Conduit Back Box
AXIS T8061	Ethernet Surge Protector
AXIS TU8001	Ethernet Surge Protector
AXIS T8415	Wireless Installation Tool
