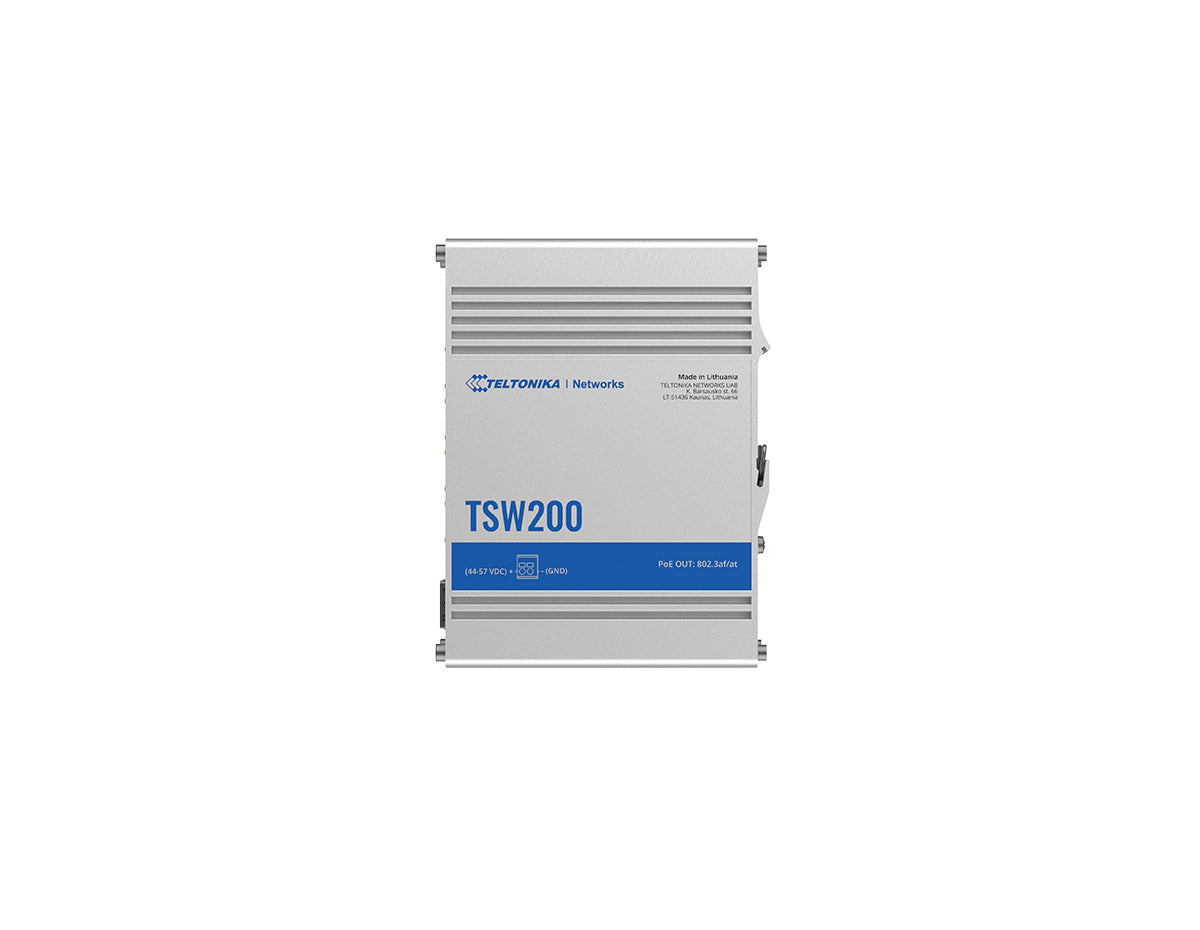

Teltonika TSW200 Switch (TSW200000050)
- PoE+
- 8 Ports
- Industrial Ethernet
- Gigabit Ports
$98.00
The Teltonika TSW200 Industrial Ethernet Switch provides reliable networking with Gigabit ports. Designed for demanding industrial environments, it ensures robust performance and efficient data transmission. Choose the TSW200 for high-quality, reliable networking.
| Properties | TSW200 SWITCH (TSW200000050) |
| Description | Teltonika TSW200 is an industrial unmanaged switch with 2 SFP ports, 8 Gigabit Ethernet ports (IEEE802.3af/at), perfect for high-bandwidth applications needing reliable data connection and power." |
| Product Family | Teltonika TWS Switches |
| Product Type | Switch |
| PoE standart | 802.3af/at (up to 30 W per port, total power budget - 240 W) |
| Ethernet | 8 x 10/100/1000 Mbps Ethernet ports |
| Fiber | 2 x SFP ports |
| Housing | Aluminium housing with wall or DIN rail mounting option and grounding capability |
| Dimensions | 132 x 44.2 x 95.1 mm |
| Weight | 456 g |
| Mounting | DIN rail and surface mounting options |
| Input voltage range | 7 - 57 VDC |
| Input voltage range for PoE | 44 - 57 VDC |
| Power consumption (idle/max no PoE/max) | 1.81 W / 5.5 W / 245.5 W |
| Bandwidth | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| Status LEDs | 16 x Ethernet, 1 x Power, 2 x SFP activity |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
