| Specifications |

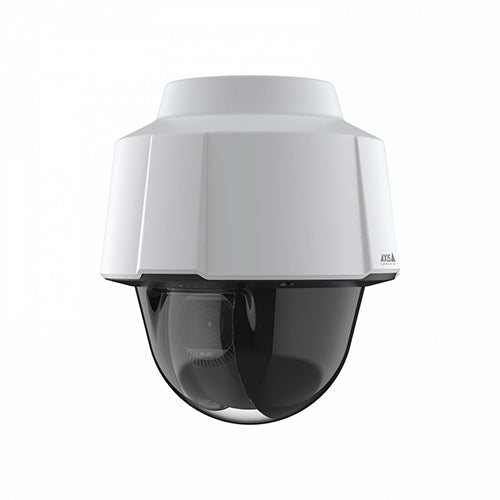

AXIS P5676-LE 60 Hz PTZ Camera |
| Camera |
| Image sensor |
1/2.9” progressive scan RGB CMOS |
| Lens |
Varifocal, 4.5-135 mm, F1.6 - 4.6 |
| Horizontal field of view: 57.1°- 2.1° |
| Vertical field of view: 34.4°- 1.2° |
| Minimum focus distance: 1.3 m (4.3 ft) |
| P-Iris control |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
Color: 0.11 lux at 50 IRE F1.6 |
| B/W: 0.03 lux at 50 IRE F1.6 |
| 0 lux with IR illumination on |
| Shutter speed |
1/62500 s to 1/5 s with 60 Hz |
| Pan/Tilt/Zoom |
Pan: 360° endless, 0.1°- 350°/s |
| Tilt: 0-90°, 0.1°- 350°/s |
| Zoom: 30x optical, 12x digital, Total 360x zoom |
| 256 preset positions, nadir flip, limited guard tour, control queue, |
| on-screen directional indicator, set new pan 0°, focus recall, |
| spot focus |
| System on chip (SoC) |
| Model |
ARTPEC-7 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Compute capabilities |
Machine learning processing unit (MLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
(16:9) 2688x1512 to 320x180 |
| Frame rate |
Up to 60/50 fps (60/50 Hz) in all resolutions |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG |
| Controllable frame rate and bandwidth |
| Axis Zipstream technology in H.264 and H.265 |
| VBR/ABR/MBR H.264/H.265 |
| Low latency mode |
| Video streaming indicator |
| Image settings |
Compression, saturation, brightness, sharpness, contrast, local |
| contrast, white balance, exposure control, exposure zones, |
| Forensic WDR: Up to 120 dB depending on scene, defogging, |
| day/night shift level, tone mapping, fine-tuning of low-light |
| behavior, rotation: 0°, 180°, text and image overlay, image |
| freeze on PTZ, electronic image stabilization, barrel distortion |
| correction, 20 individual polygon and mosaic privacy masks, |
| orientation aid PTZ, target aperture |
| Scene profiles: forensic, indoor, outdoor, traffic overview |
| Audio |
| Audio streaming |
Two-way audio via network speaker pairing |
| Audio encoding |
24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable bit rate |
| Audio input/output |
External microphone input or line input, line output (Requires |
| Axis 10-pin Push-pull System Connector or Axis Multicable C I/O |
| Audio Power 1 m/5 m, not included), automatic gain control |
| Network |
| Security |
IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, user access log, centralized certificate management |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX®, metadata |
| and AXIS Camera Application Platform (ACAP); specifications at |
| axis.com/developer-community. ACAP includes Native SDK . |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and |
| ONVIF® Profile T, specifications at onvif.org |
| Event conditions |
Audio: audio clip playing, audio detection |
| Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, fan |
| failure, IP address removed, network lost, new IP address, PTZ |
| power failure, storage failure, system ready, within operating |
| temperature |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| I/O: digital input, manual trigger, virtual input |
| MQTT: subscribe |
| PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position |
| reached, PTZ ready |
| Scheduled and recurring: schedule |
| Video: average bitrate degradation, day-night mode, live stream |
| open, tampering |
| Event actions |
Audio clips: play, stop |
| Day-night mode |
| Guard tour |
| I/O: toggle I/O once, toggle I/O while the rule is active |
| IR illumination: turn on, use lights while the rule is active |
| MQTT: publish |
| Notification: HTTP, HTTPS, TCP and email |
| Overlay text |
| Preset positions |
| PTZ Autotracking: start temporary detection, toggle, toggle |
| profile |
| Recordings: SD card and network share |
| SNMP trap messages: send, send while the rule is active |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| WDR mode |
| Built-in installation aids |
Pixel counter, leveling guide |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles |
| Features: line crossing, object in area, crossline countingBETA , |
| time in areaBETA |
| Up to 10 scenarios |
| Metadata visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Metadata |
Object data: Classes: humans, faces, vehicles, license plates |
| Confidence, position |
| Event data: Producer reference, scenarios, trigger conditions |
| Applications |
Included |
| AXIS Object Analytics |
| AXIS Video Motion Detection |
| Audio detection, active gatekeeper |
| Autotracker 2 |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| Cybersecurity |
| Edge security |
Software: Signed firmware, brute force delay protection, digest |
| authentication, password protection, AES-XTS-Plain64 256bit |
| SD card encryption |
| Hardware: Axis Edge Vault cybersecurity platform |
| Secure element (CC EAL 6+), Axis device ID, secure keystore, |
| signed video, secure boot |
| Network security |
IEEE 802.1X (EAP-TLS)* , IEEE 802.1AR, HTTPS/HSTS* , TLS v1.2/v1.3*, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| General |
| Casing |
IP66-, NEMA 4X- and IK10-rated |
| Polycarbonate (PC) casing |
| Color: white NCS S 1002-B, repaintable skin cover |
| For information |
| contact your Axis partner. |
| Power |
Camera consumption: typical 13 W (no IR), max 25.5 W |
| IEEE 802.3at Type 2 Class 4 |
| Camera consumption: typical 13 W (no IR), max 29 W |
| IEEE 802.3bt Type 3 Class 6 |
| Multiconnector: |
| 20–28 V DC, typical 13 W, max 30 W |
| 20–24 V AC, typical 20 VA, max 43 VA |
| (High PoE midspan or power supply not included) |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| RJ45 push-pull connector (IP66) included |
| With Axis 10-pin push-pull system connector or Axis |
| multicable C I/O audio power 1 m/5 m (not included): |
| I/O connector for DC or AC input, 4 configurable alarm |
| Inputs/outputs: mic in/line in, line out |
| IR illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| With 30 W midspan: Range of reach 200 m (656 ft) or more |
| depending on the scene. The range is temporarily reduced during |
| PTZ movements. |
| Storage |
Support for SD/SDHC/SDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(-30 °C to 50 °C) (-22 °F to 122 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C |
| (165 °F) |
| Start-up temperature: -30 °C |
| Humidity 10–100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5-95% RH (non-condensing) |
| Approvals |
EMC |
| CISPR 35, CISPR 32 Class A, EN 55032 Class A, EN 55035, |
| EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, |
| EN 61000-6-2 |
| Canada: ICES-3(A)/NMB-3(A) |
| Japan: VCCI Class A |
| Korea: KS C 9835, KS C 9832 Class A |
| USA: FCC Part 15 Subpart B Class A |
| Safety |
| IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, |
| IEC 62471 risk group 2 |
| Environment |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, |
| IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), |
| ISO 21207 (Method B) |
| Network |
| NIST SP500-267 |
| Dimensions |
Height: 242 mm (9.53 in) |
| ø 205 mm (8.1 in) |
| Weight |
2.5 kg (5.5 lb) |
| Included accessories |
RJ45 Push-pull plug (IP66), installation guide, Windows® decoder |
| 1-user license |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, |
| Vietnamese |
