Power supply
hot-plug / redundant (plug-in module)
AC 90-264 V
650 Watt
for P/N: C9500-24Y4C
C9500-32QC
C9500-48Y4C

[/shortdesc]

[specifications]

Properties	Cisco C9K-PWR-650WAC-R
Description	650W AC Power Supply
Product Family	Catalyst 9500
Product Type	Power Supply
Power max rating	650W
Input-voltage range and frequency	AC 90VAC to 264VAC, 47 to 63 Hz
Power supply efficiency	94% (Typ)
Input current	AC 6.8A Max at 115VAC, 3.4 A Max at 230VAC (when full loading)
Output ratings	12Vmain at 54A, 12Vsb at 3A
Output holdup time	AC = 20 ms minimum for system
Power-supply input receptacles	AC IEC 60320 C14
Power cord rating	AC 10A
Total output BTU (Note: 1000 BTU/hr = 293W) - Model
C9500-32QC	1,815
C9500-48Y4C	1,856
C9500-24Y4C	1,454
Supported models	C9500-32QC
	C9500-48Y4C
	C9500-24Y4C
IEC-61000-4-5 Surge	4KV CM, 2KV DM
AC line Hold-up Time	>=20ms@90% load
OPP (Over Power Protection)	130% x rated load
MTBF (hours)	2,268,760

[/specifications]

Cisco C9K-PWR-650WAC-R Power Supply

The Cisco C9K-PWR-650WAC-R is a hot-plug, redundant power supply featuring a 650W max rating. It is designed for seamless compatibility with Catalyst C9500 Series, especially C9500-24Y4C, C9500-32QC, and C9500-48Y4C. This plug-in module ensures reliable and efficient AC power delivery from 90-264V.

Key Features:

650 Watt
Plug-in module
For Catalyst 9500

The tabs contain the C9K-PWR-650WAC-R datasheet with all the specifics you need.

Cisco Catalyst 9500 Series Power Supplies

Cisco C9K-PWR-650WAC-R Power Supply

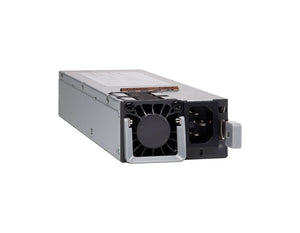

Cisco C9K-PWR-1600WAC-R Power Supply
