CISCO C9600-LC-48YL LINE CARD
| Part No: | C9600-LC-48YL |
| Detail: | Switch, 48 x 1/10/25 Gigabit SFP+ / SFP28, Plug-in module |
| List Price: |
|
| Price: |
$22,995.00
|
| You Save: | $5,110.35 (18% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|

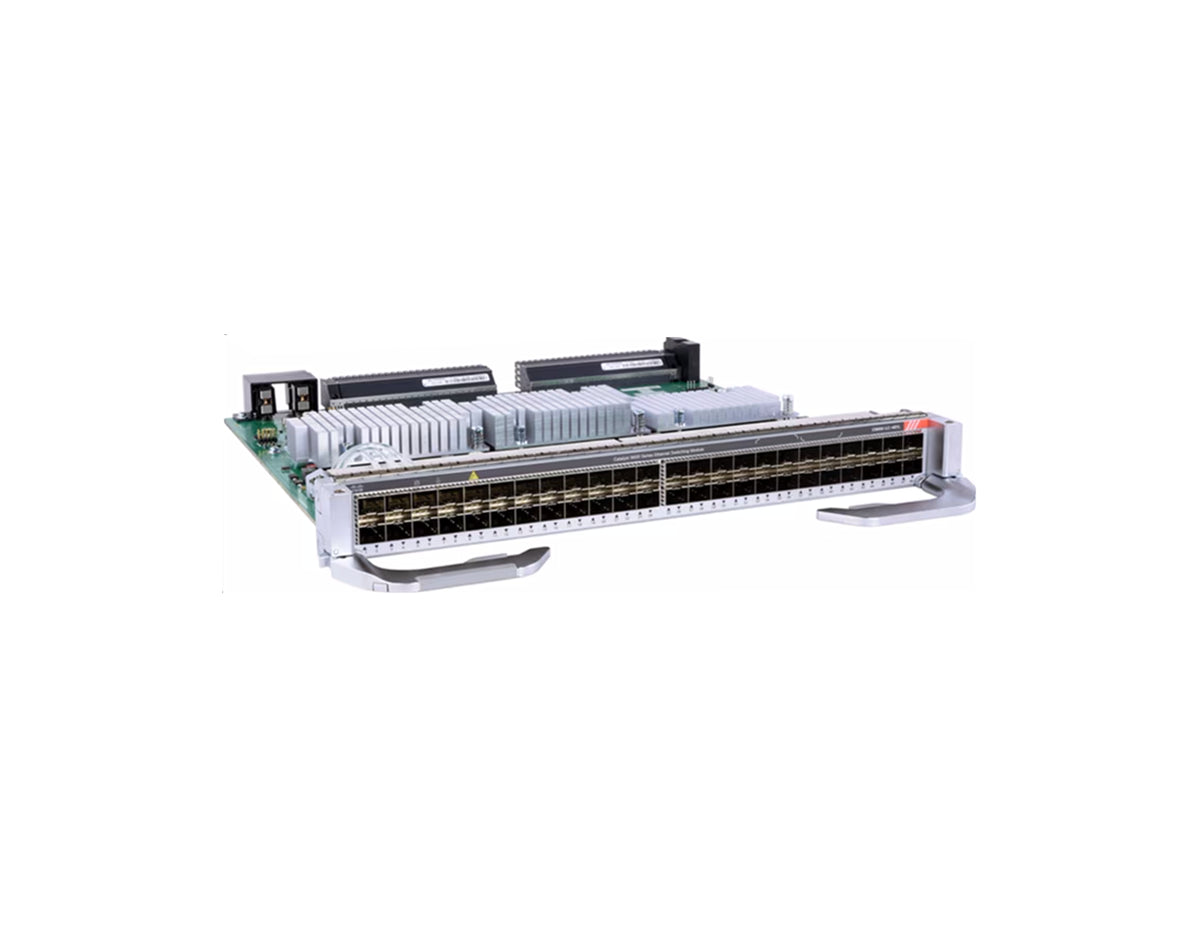

Cisco C9600-LC-48YL Line Card
The line cards of the C9600 Series are designed with high availability in mind. They have very high Mean Time Between Failures (MTBF), and the C9600-LC-48YL has 640,750 hours MTBF. It is equipped with features such as patching, Graceful Insertion and Removal (GIR), and redundant platinum-rated power supplies and fans. It is targeted for the enterprise campus core deployments.
Quick Specs:
- 48 ports (25GE/10GE/1GE SFP+)
- Nonblocking
- MACsec-256 encryption with the C9600-SUP-1
Please check the related tabs for the C9600-LC-48YL datasheet and detailed specifications.
Specifications
| Specifications | C9600-LC-48YL |
| Standards | Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab |
| Highlights | 48 ports nonblocking 50, 25, 10, and 1 GE SFP28, SFP+ ports (1 GE support is available only on C9600-SUP-1) IPv6 support on the UADP Application-Specific Integrated Circuit (ASIC), providing wire-rate forwarding for IPv6 networks Advanced Encryption Standard 256 (AES-256) support with the powerful MACsec-256 encryption algorithm is available on the UADP ASIC (UADP ASIC is part of the Cisco Catalyst 9600 Series Supervisor Engine 1. This line card does not support MACsec with C9600X-SUP-2) |
| Bandwidth | |
| C9600-SUP-1 | 2.4 Tbps |
| C9600X-SUP-2 | 4.8 Tbps |
| Minimum SW requirement | |
| C9600-SUP-1 | 16.11.1 |
| C9600X-SUP-2 | 17.7.1 |
| Operating temperature | -5° to 45° C (23° to 113° F) up to 6,000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet |
| Storage temperature | -40° to 75° C (40° to 167° F) |
| Relative Humidity, Operating and Non- operating, Non-condensing | 10% to 95%, noncondensing |
| Operating altitude | -60 to 3000 m (-197 to 9843 feet) |
| Rated MTBF (hours) | 640,750 |
| Safety conditions | Fiber optic lasers: Class 1 laser products |
| Safety certifications | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic emissions certifications | EN55032:2015 EN61000-3-2:2014 EN55032:2012 NM EN 55032:2015 QCVN 118:2018/BTTTT ICES-003:2016:Iss:6 NM EN 61000-3-3:2015 NM EN 61000-3-2:2015 47 CFR Part 15:2016 KN61000-3-3:2014 CISPR32:2012:Ed:1 EN300 386:2012:V1.6.1 KN61000-3-2:2014 CNS13438:2006 CISPR32:2015:Ed:2 KN32:2015 VCCI-CISPR 32:2016 EN61000-3-3:2013 CISPR24:2010+A1:2015 CISPR35:2016:Ed:1 EN55024:2010 EN55024:2010:A1 EN55035:2017 EN61000-6-1:2007 EN61000-6-2:2005 IEC61000-6-1:2016:Ed:3 IEC61000-6-2:2016:Ed:3 KN35:2015 NM EN 55024:2018 TCVN 7317:2003 |
| ROHS compliance | ROHS5 |
Properties
| Properties | Cisco C9600-LC-48YL |
| Description | Cisco Catalyst 9600 Series 48-port 25GE/10GE SFP28 line card |
| Product Family | Catalyst 9600 |
| Product Type | Switch Line Card |
| Ports for LC-48TX | |
| Port Speed | Maximum Ports |
| 25, 10, 1 GE | C9600X-SUP-2: 193* C9600-SUP-1: 192 *Speeds below 10GE not supported on C9600X-SUP-2 |
| 50 GE | C9600X-SUP-2: 192 C9600-SUP-1: N/A |
| Physical dimensions | 1.7 x 15.0 x 13.41 (to faceplate) (4.32 x 38.1 x 34.06 cm) 1.7 x 15.0 x 15.7 (to ejector) (4.32 x 38.1 x 39.88 cm) |
| Weight | 3.55 Kg (7.83 lbs) |
| Max rated power C9600X-SUP-2 | 300 W |
| Max rated power C9600-SUP-1 | 230 W |
