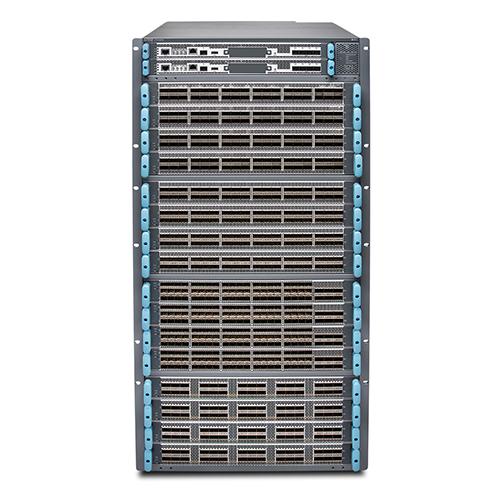

JUNIPER PTX10016-PREMIUM CHASSIS
| Model: | PTX10016-PREMIUM |
| Detail: |
|
| List Price: | |
| Price: | $212,625.00 |
| You Save: | $91,125.00 (30% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
The Juniper Networks PTX10016 Packet Transport Router provides cloud and data center operators with the highest levels of scale and throughput. The PTX10016 can provide 48 terabits per second (Tbps) of throughput and 32 Bpps of forwarding capacity in a 21-rack-unit (21-U) chassis. PTX10016 has 16 slots for line cards that allow for a smooth transition from 10-Gigabit Ethernet and 40-Gigabit Ethernet networks to 100-Gigabit Ethernet high-performance networks. Table 1 shows the supported port densities.
Specifications
| Specifications | PTX10016-PREMIUM |
| System capacity | 48 Tbps (96 Tbps half-duplex) per chassis 96 Tbps (192 Tbps half-duplex) per standard 19-inch telecommunications rack |
| Slot Capacity | 3 Tbps (6 Tbps half-duplex) |
| Operating temperature | 32° to 115° F (0° to 46° C) at sea level |
| Operating altitude | No performance degradation to 6562 feet (2000 meters) |
| Humidity | Relative humidity operating: 5 to 90% (noncondensing) |
Properties
| Properties | Juniper PTX10016-PREMIUM |
| Description | PTX10016 redundant 16-slot chassis [JNP10016], full duplex. Includes 2 REs, 10 power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards. |
| Product Family | PTX10016 Series |
| Product Type | Router |
| Modular Chassis Options | |
| 3T (30 x 100GbE; 144 x 10GbE) | 48T |
| 4.8T (4 x 400GbE; 48 x 100GbE) | 76.8T |
| 14.4T (36 x 400GbE; 144 x 100GbE) | 230.4T |
| Height | 16 slots/21 RU |
| Interface Options | |
| Max. 10GbE | 2304 |
| Max. 40GbE | 576 |
| Max. 100GbE | 480 |
| Dimension (WxHxD) | 17.4 x 36.65 x 35 in(44.2 x 93.09 x 88.90 cm); 42.40 in (107.7 cm) depth with EMI door |
| Maximum weight | 596 lb (270 kg) |
| Mounting | Front rack mount |
| Power system rating | 200-240 VAC / 50-60 Hz -48 VDC @ 60 A |
| Typical power consumption | 18 kW with Express2 line cards, fully loaded |
| Power supply slots | 10 |
| Shared Hardware Components | |
| Switch Fabrics | SF (3 Tbps/slot, Express2) SF3 (14.4Tbps/slot, Express4) |
| Routing Engines | JNP10K-RE0: The first-generation RE0 RE features a quad-core 2.5 GHz Intel processor with 32 GB memory and 2x50 GB solid-state drive (SSD) storage. JNP10K-RE1: The second-generation RE1 RE features a 10-core 2.2 GHz Intel processor with memory options of 64 GB or 128 GB and 2x200 GB solid-state drive (SSD) storage. |
| Express-based Line Cards | |
| PTX10K-LC1201-36CD (JNP10K-LC1201) | Bandwidth: 14.4 Tbps Silicon: Express4 100GbE Ports: 144 400GbE Ports: 36 QSFP56-DD/ QSFP56/QSFP28-DD/QSFP28/QSFP+ |
| PTX10K-LC1202-36MR (JNP10K-LC1202) | Bandwidth: 4.8 Tbps Silicon: Express4 100GbE Ports: 32 400GbE Ports: 34 QSFP56-DD and QSFP28 |
| PTX10K-LC1103 (QFX10000-60S-6Q support in PTX10K | Bandwidth: 840 Gbps 1GbE Ports: 60 10GbE Ports: 60 100GbE Ports: 2 QSFP28/QSFP+/SFP+ |
| PTX10K-LC1101 (JNP10K-LC1101) | Bandwidth: 3 Tbps Silicon: Express2 100GbE Ports: 30 QSFP28/QSFP+ |
| PTX10K-LC1102 (JNP10K-LC1102) | Bandwidth: 1.4 Tbps Silicon: Express2 100GbE Ports: 12 QSFP28/QSFP+ |
| PTX10K-LC1104 (JNP10K-LC1104) | Bandwidth: 1.2 Tbps Silicon: Express2 100GbE Ports: 6 DWDM |
| PTX10K-LC1105 (JNP10K-LC1105) | Bandwidth: 3 Tbps Silicon: Express2 100GbE Ports: 30 QSFP28/QSFP+ |
