| Specifications |

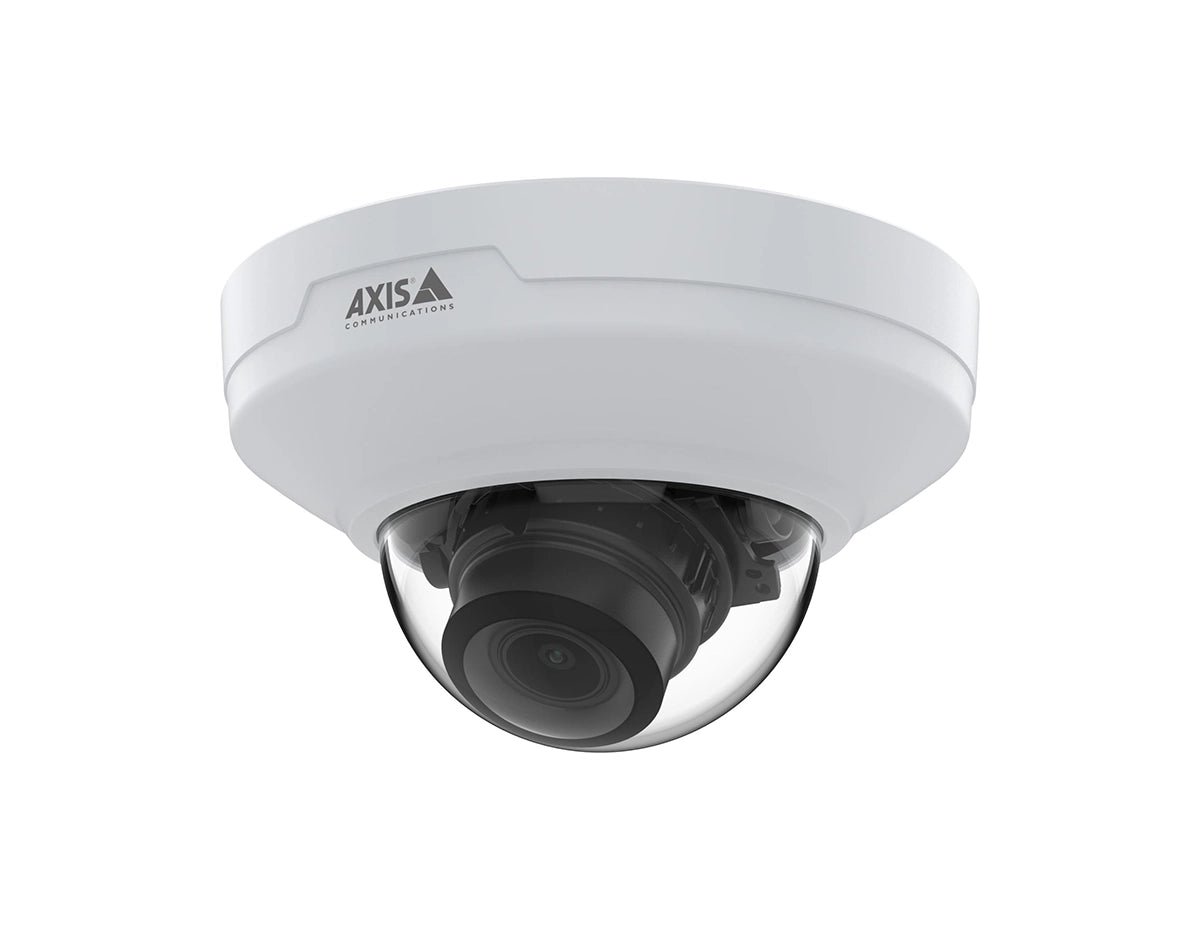

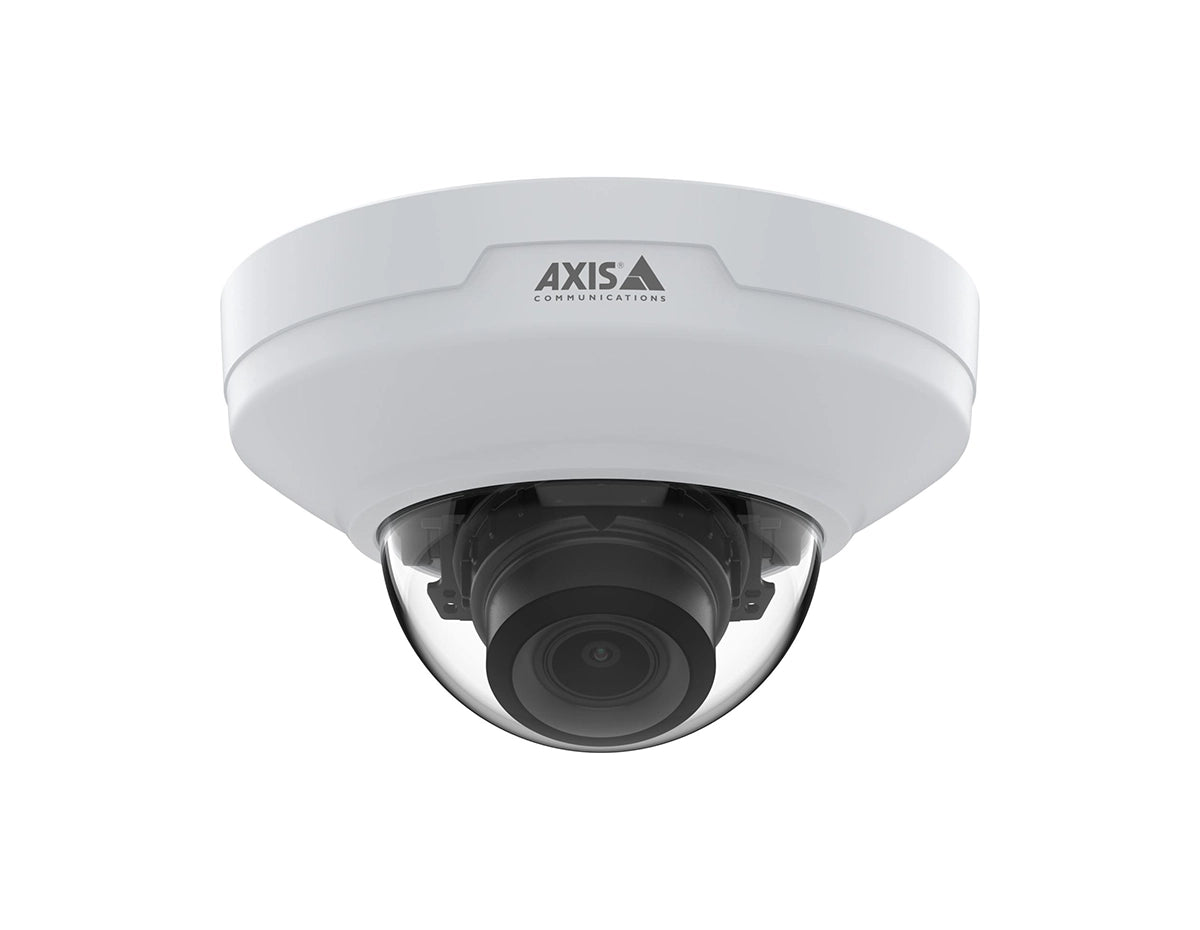

AXIS M4215-LV Dome Camera |
| Camera |
| Image sensor |
1/2.7” progressive scan RGB CMOS |
| Lens |
Varifocal, 3.5–6.6 mm, F1.9 - 2.7 |
| Horizontal field of view: 93°–47° |
| Vertical field of view: 72°–34° |
| Remote focus and zoom, fixed iris |
| Day and night |
Automatic IR-cut filter |
| Minimum illumination |
With Lightfinder: |
| Color: 0.18 lux at 50 IRE F2.0 |
| B/W: 0.03 lux at 50 IRE F2.0 |
| Shutter speed |
1/37500 s to 1/5 s |
| Camera angle adjustment |
Pan ±180°, tilt -40 to +65°, rotation ±105° |
| Can be directed in any direction and see the wall/ceiling |
| System on chip (SoC) |
| Model |
CV25 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Compute capabilities |
Deep learning processing unit (DLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main and High Profiles |
| Motion JPEG |
| Resolution |
2304x1728 to 320x240 (4 MP native in 4:3) |
| Frame rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/MBR H.264/H.265 |
| Multi-view streaming: up to 2 individually cropped view areas in full frame rate |
| HDMI output (1080p/720p selectable) |
| HDMI output |
HDMI 1080p (16:9) @25/30 fps (50/60 Hz) |
| HDMI 720p (16:9) @50/60 fps (50/60 Hz) |
| Image settings |
Compression, color, brightness, sharpness, contrast, white balance, exposure control, motion-adaptive exposure, WDR up to 110 dB depending on scene, text and image overlay, mirroring of images, privacy mask |
| Rotation: 0°, 90°, 180°, 270°, including Corridor Format |
| Digital PTZ |
| Audio |
| Audio input/output |
Two-way audio connectivity via optional AXIS T61 Audio and I/O Interfaces |
| Interfaces with portcast technology |
| Network |
| Security |
Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X (EAP-TLS) network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, Axis Edge Vault with Axis device ID |
| This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (openssl.org), and cryptographic software written by Eric Young. |
| Supported protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S and ONVIF® Profile T |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Trigger conditions: line crossing, object in area |
| Up to 10 scenarios |
| Metadata visualized with color-coded bounding boxes |
| Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Applications |
| Included |
AXIS Object Analytics, AXIS Video Motion Detection, AXIS Face Detector, active tampering alarm, AXIS Scene Metadata, AXIS Live Privacy Shield |
| Support for AXIS Camera Application Platform enabling installation of third-party applications (see axis.com/acap) |
| For detailed application support refer to axis.com |
| Video management software |
| Supported |
AXIS Companion, AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and video management software from Axis Application Development Partners. For more information see axis.com/vms |
| General |
| Casing |
IP42 water- and dust-resistant, IK08 impact-resistant, polycarbonate and aluminum casing with hard-coated dome |
| Encapsulated electronics |
| Color: white NCS S 1002-B |
| For repainting instructions contact your Axis partner. |
| Sustainability: PVC free, BFR/CFR free, 43% recycled plastics |
| Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2. Typical 2.8 W, max 4.4 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| HDMI type D (micro) |
| Audio and I/O connectivity via AXIS T61 Audio and I/O Interfaces with portcast technology |
| Support for microSD/microSDHC/microSDXC card and SD card encryption |
| Storage |
| Storage |
Support for microSD/microSDHC/microSDXC card. Support for recording to network-attached storage (NAS). For SD card and NAS recommendations see axis.com |
| Operating conditions |
0 °C to 45 °C (32 °F to 113 °F) |
| Humidity 10–85% RH (non-condensing) |
| Storage conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC: CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Safety: IEC/EN/UL 62368-1, IS 13252 |
| Environment: IEC 60068–2–1, IEC 60068–2–2, IEC 60068–2–14, IEC 60068–2–27, IEC 60068–2–6, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
| Network: NIST SP500-267 |
| Dimensions: Height: 71 mm (2.8 in); Ø 121 mm (4.76 in) |
| Weight: 350 g (0.77 lb) |
| Included accessories: Installation guide, Windows® decoder 1-user license |
| Video management software |
AXIS Companion, AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5 |
| For more information see axis.com/vms |
| Languages: English, German, French, Spanish, Italian, Russian, Japanese, Korean, Portuguese, Simplified Chinese, Traditional Chinese |
