| Specifications |

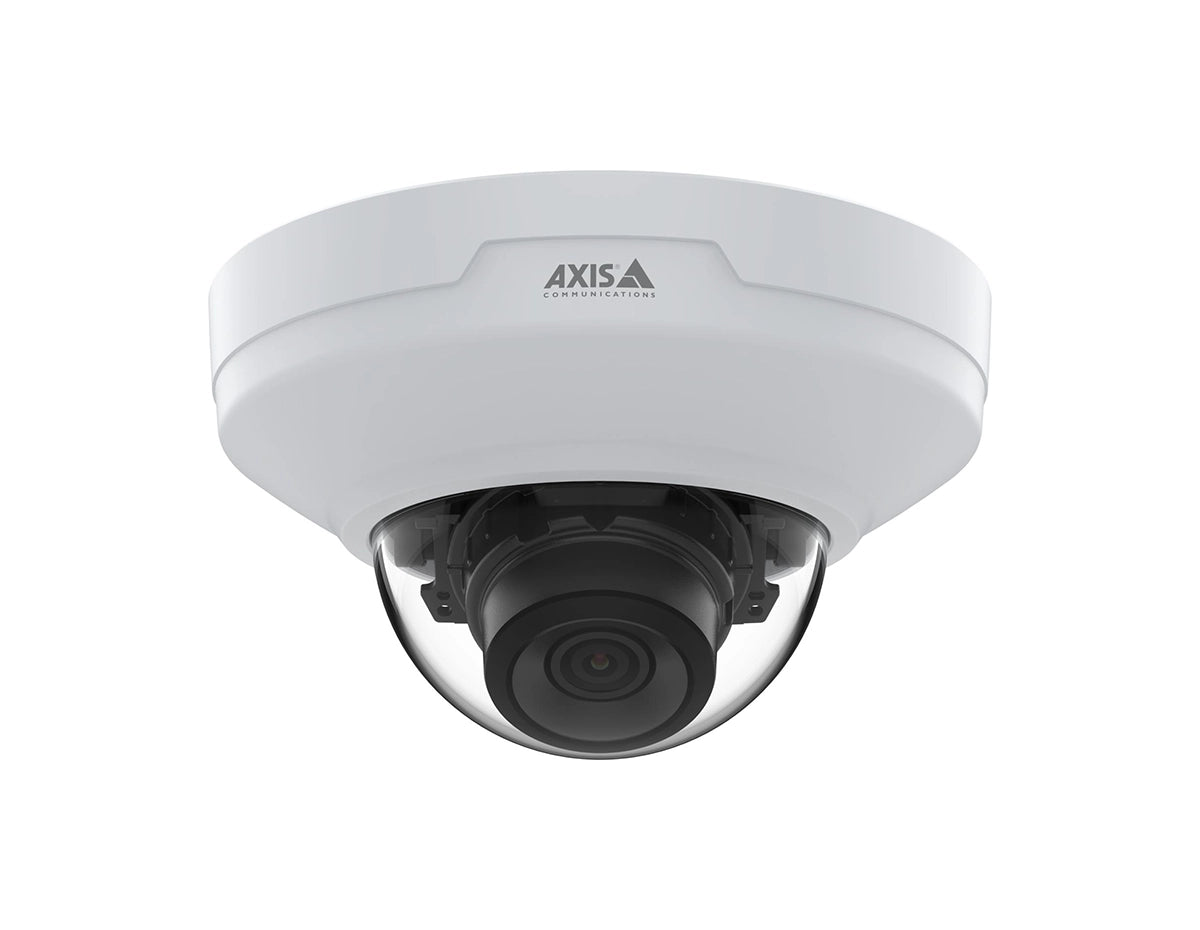

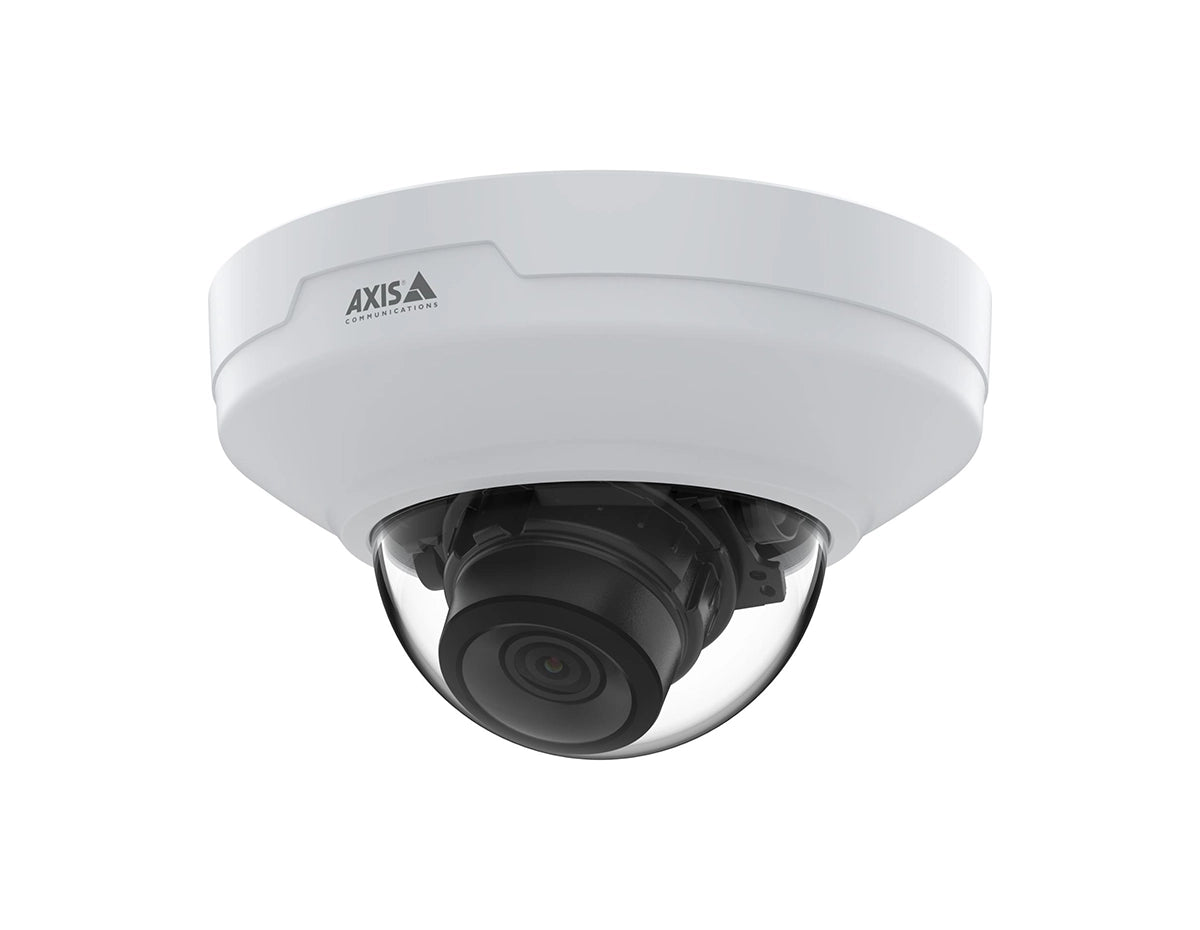

AXIS M4215-V Dome Camera |
| Camera |
| Image sensor |
1/2.8” progressive scan RGB CMOS |
| Lens |
Varifocal, 3.5–6.6 mm, F1.7 - 2.6 |
| Horizontal field of view: 93°–47° |
| Vertical field of view: 50°–26° |
| Minimum focus distance: 1.5 m (59 in) |
| Day and night |
Automatic IR-cut filter |
| Minimum illumination |
With Lightfinder: |
| Color: 0.14 lux at 50 IRE F1.7 |
| B/W: 0.03 lux at 50 IRE F1.7 |
| Shutter speed |
1/25000 s to 1/5 s |
| Camera angle adjustment |
Pan ±180°, tilt -40 to +65°, rotation ±105° |
| Can be directed in any direction and see the wall/ceiling |
| System on chip (SoC) |
| Model |
CV25 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Compute capabilities |
Deep learning processing unit (DLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
1920x1080 to 320x240 |
| Frame rate |
Up to 25/30 fps with power line frequency 50/60 Hz in H.264 and H.265 |
| (Reduced frame rate in Motion JPEG) |
| Video streaming |
Multiple, individually configurable streams* |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| *: We recommend a maximum of 3 unique video streams per camera or channel, for optimized user experience, network bandwidth, and storage utilization. A unique video stream can be served to many video clients in the network using multicast or unicast transport method via built-in stream reuse functionality. |
| Multi-view streaming |
2 individually cropped out view areas |
| HDMI output |
HDMI 1080p (16:9) @25/30 Hz refresh rate |
| HDMI 720p (16:9) @50/60 Hz refresh rate |
| Noise reduction |
Spatial filter (2D noise reduction) |
| Temporal filter (3D noise reduction) |
| Image settings |
Compression, color, brightness, sharpness, contrast, white |
| balance, exposure control, motion-adaptive exposure, WDR: up |
| to 110 dB depending on scene, text and image overlay, mirroring |
| of images, privacy mask |
| Rotation: 0°, 90°, 180°, 270°, including Corridor Format |
| Pan/Tilt/Zoom |
Digital PTZ |
| Audio |
| Audio input/output |
Audio features through portcast technology: two-way audio |
| connectivity, voice enhancer |
| Network |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer |
| 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, |
| SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, |
| RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, |
| ARP, SSH, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, M, S and T, specification at onvif.org |
| Video management systems |
Compatible with AXIS Companion, AXIS Camera Station |
| AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5 |
| Video management software from Axis’ Application Development Partners available at axis.com/vms |
| Onscreen controls |
Privacy masks |
| Media clip |
| Event conditions |
Application |
| Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, within |
| operating temperature, IP address removed, new IP address, |
| network lost, system ready, live stream active |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| I/O: manual trigger, virtual input |
| MQTT: subscribe |
| Scheduled and recurring: schedule |
| Video: average bitrate degradation, day-night mode, tampering |
| Event actions |
Day-night mode |
| MQTT: publish |
| Notification: HTTP, HTTPS, TCP and email |
| Overlay text |
| Pre- and post-alarm video or image buffering for recording or upload |
| Recordings: SD card and network share |
| SNMP traps: send, send while the rule is active |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| WDR mode |
| Built-in installation aids |
Pixel counter, remote zoom and focus, level grid |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Scenarios: line crossing, object in area, occupancy in area, time |
| in area |
| Up to 10 scenarios |
| Metadata visualized with color-coded bounding boxes |
| Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
| Attributes: Vehicle color, upper/lower clothing color, confidence, position |
| Event data: Producer reference, scenarios, trigger conditions |
| Applications |
Included |
| AXIS Object Analytics, AXIS Video Motion Detection, |
| AXIS Face Detector, AXIS Live Privacy Shield, active tampering alarm |
| Supported |
| AXIS People Counter |
| AXIS Queue Monitor |
| AXIS Scene Metadata |
| AXIS Camera Application Platform enabling installation of |
| third-party applications, see axis.com/acap |
| Approvals |
| Product markings |
CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| EMC |
CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, |
| EN 61000-6-1, EN 61000-6-2 |
| USA: FCC Part 15 Subpart B Class A |
| Canada: ICES-3(A)/NMB-3(A) |
| Korea: KS C 9835, KS C 9832 Class A |
| Australia/New Zealand: RCM AS/NZS CISPR 32 Class A |
| Japan: VCCI Class A |
| Safety |
IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IS 13252 |
| Environment |
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
| Network |
NIST SP500-267 |
| Cybersecurity |
| Edge security |
Software: Signed firmware, brute force delay protection, digest |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization |
| Code Flow for centralized ADFS account management, password |
| protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Axis Edge Vault cybersecurity platform |
| Secure element (CC EAL 6+), system-on-chip security (TEE), Axis |
| device ID, secure keystore, signed video, secure boot, encrypted |
| filesystem (AES-XTS-Plain64 256bit) |
| Network security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, |
| HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 |
| Certificate PKI, IP address filtering |
| Documentation |
AXIS OS Hardening Guide |
| Axis Vulnerability Management Policy |
| Axis Security Development Model |
| AXIS OS Software Bill of Material (SBOM) |
| General |
| Casing |
IP42 ingress protection, IK08 impact-resistant, polycarbonate |
| and aluminum casing with hard-coated dome |
| Encapsulated electronics |
| Color: white NCS S 1002-B |
| For repainting instructions |
| contact your Axis partner. |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 |
| Typical 2.7 W, max 4.4 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| HDMI type D |
| Audio: Audio and I/O connectivity via portcast technology |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Recording to network-attached storage (NAS) |
| For SD card and recorder recommendations, see axis.com |
| Operating conditions |
(0 °C to 45 °C) (32 °F to 113 °F) |
| Humidity 10–85% RH (non-condensing) |
| Storage conditions |
(-30 °C to 65 °C) (-22 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Dimensions |
Height: 71 mm (2.8 in) |
| ø 120 mm (4.72 in) |
| Weight |
348 g (0.77 lb) |
| Box content |
Camera, installation guide, owner authentication key, virtual client license for H.264/H.265 |
| System tools |
AXIS Site Designer, AXIS Device Manager, product selector, |
| accessory selector, lens calculator |
| Available at axis.com |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Sustainability |
| Substance control |
PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard |
| JS709 |
| RoHS in accordance with EU RoHS Directive 2011/65/EU/ and |
| EN 63000:2018 |
| REACH in accordance with (EC) No 1907/2006. For SCIP UUID, |
| see echa.europa.eu |
| Materials |
Renewable carbon-based plastic content: 40.3% (recycled) |
| Screened for conflict minerals in accordance with OECD guidelines |
| To read more about sustainability at Axis, go to |
| axis.com/about-axis/sustainability |
| Environmental responsibility |
axis.com/environmental-responsibility |
| Axis Communications is a signatory of the UN Global Compact, |
| read more at unglobalcompact.org |
